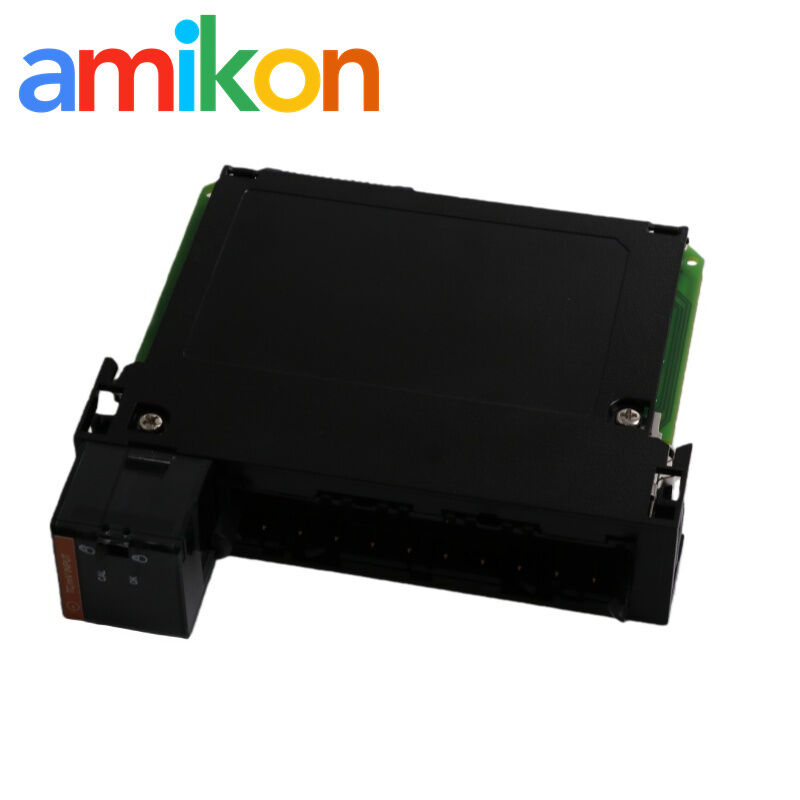

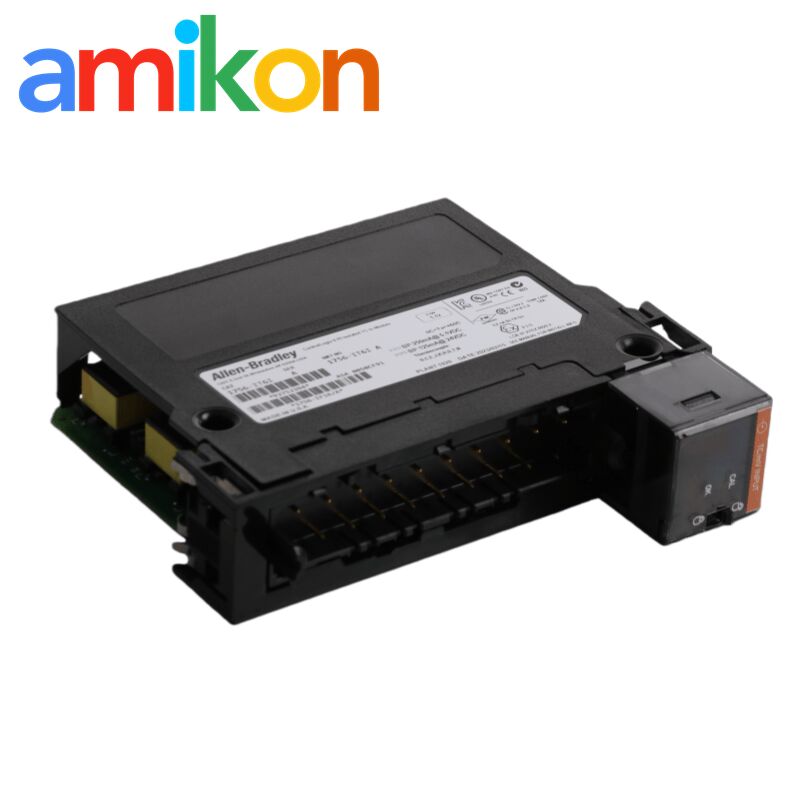

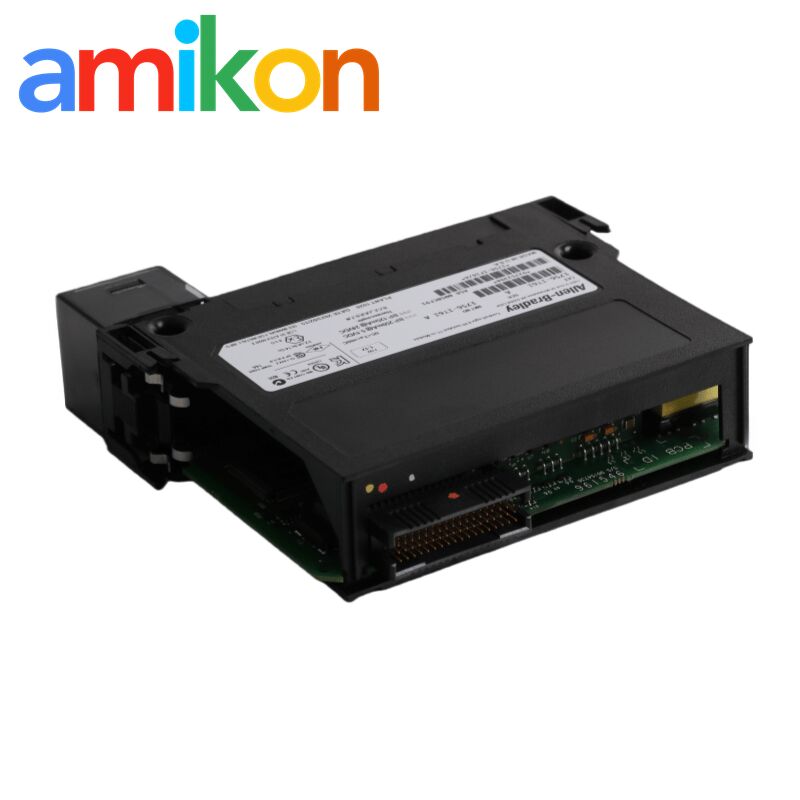

Allen Bradley 1756-IT6I2 ControlLogix Enhanced Thermocouple Input Module with 60 dB Noise Rejection
Allen Bradley 1756-IT6I2 ControlLogix Enhanced Thermocouple Input Module with 60 dB Noise Rejection
Enhanced Thermocouple Input ControlLogix Analog Input Module
60 dB Noise Rejection 1756-IT6I2 Module
Cold Junction Compensation Thermocouple Input Module
Place of Origin:
USA
Brand Name:
Allen Bradley
Model Number:
1756-IT6I2
Contact Us
Request A Quote
Product Details
Current Draw @ 5.1V:
200 MA
Current Draw @ 24V:
150 MA
Total Backplane Power:
4.6 W
Power Dissipation, Max:
4.6 W
Thermal Dissipation:
15.7 BTU/hr
Overvoltage Protection, Max:
120V AC/DC
Channel Bandwidth:
15 Hz
Local CJC Sensor Accuracy:
±0.3 °C
Highlight:
Enhanced Thermocouple Input ControlLogix Analog Input Module
,60 dB Noise Rejection 1756-IT6I2 Module
,Cold Junction Compensation Thermocouple Input Module
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
Allen Bradley 20 Point Feed-Through Termination Module with Integrated Fuse Support and Blown Fuse Indication
Get Best Price
Video
Allen Bradley Voltage Sensing Board with 0–600 V AC and 0–1000 V DC Range and ±1% Full Scale Accuracy
Get Best Price
CONTACT US
Contact Now
Product Description
Allen Bradley 1756-IT6I2 ControlLogix Analog Input Module
The Allen-Bradley 1756-IT6I2 is a ControlLogix analog input module designed for precision temperature measurement applications. This enhanced thermocouple input module supports various temperature ranges depending on the configured thermocouple type and offers flexible implementation as either a stand-alone ControlLogix module or integrated into Distributed I/O systems.
The module features open circuit detection with a 2-second response time at positive full-scale reading. Advanced noise rejection capabilities include 60 dB in normal mode at 60 Hertz and a minimum of 160 dB in common mode, tested at 600 Volts AC/60 Hertz with 100 Ohms differential resistance. Data format selection supports both integer and floating-point modes to accommodate diverse application requirements.
Key Features
- Cold junction compensation
- Multiple input ranges and configurable temperature units
- Notch filter and sensor type selection
- Real-time sampling capabilities
- Wire-off detection with under-range and over-range monitoring
- 10-ohm offset and digital filter (available in floating-point applications)
- Rate alarm and process alarm functionality
Installation Guidelines
- Do not connect more than two wires to any single terminal
- When using a separate power source, do not exceed the specified isolation voltage
