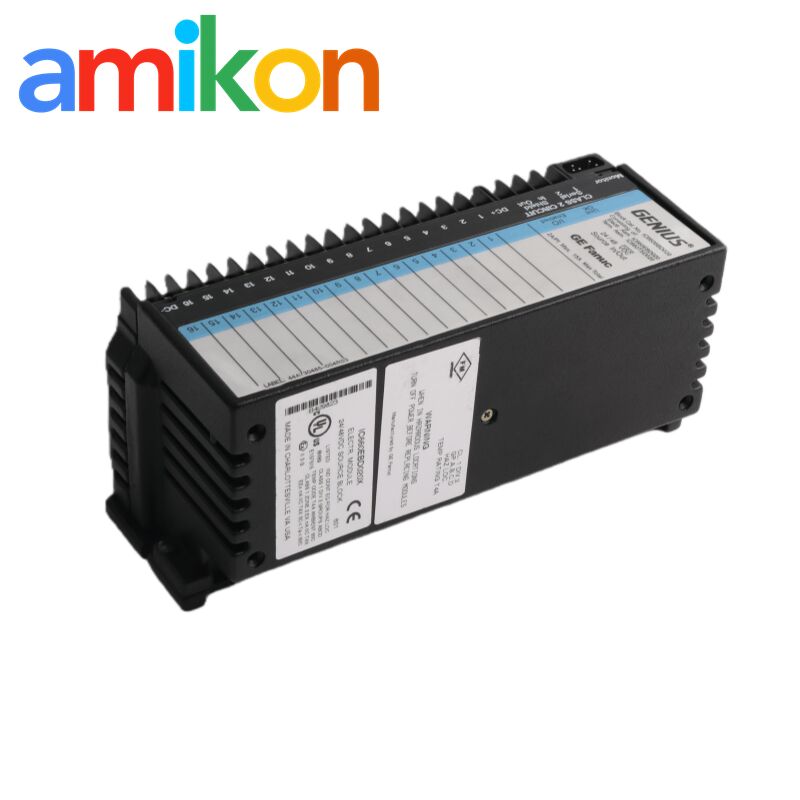

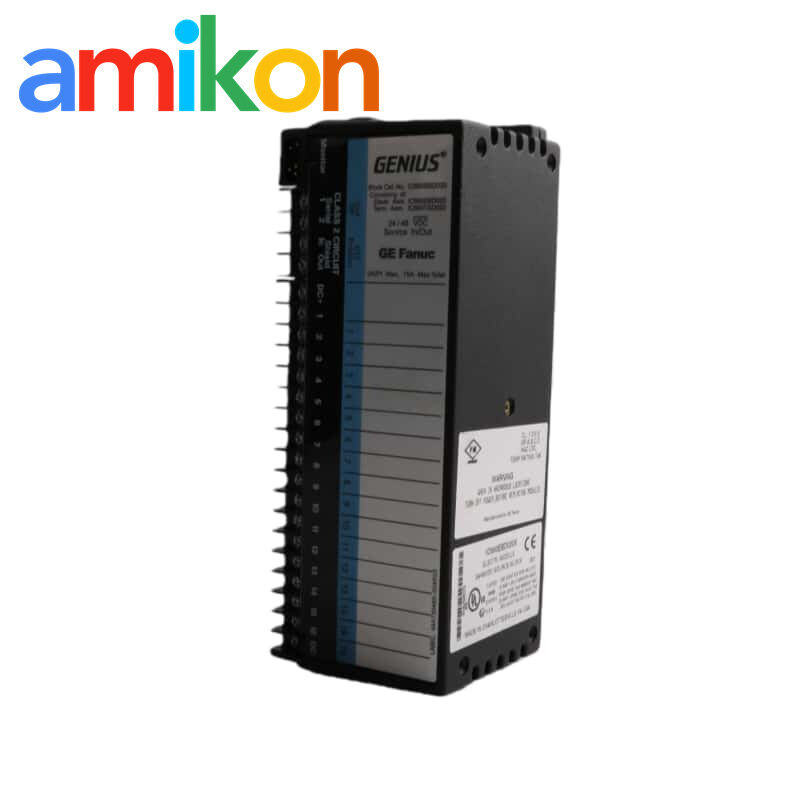

GE IC660BBD022 Genius Protocol-Enabled Block I/O Module with 16 I/O Circuits
GE IC660BBD022 Genius Protocol-Enabled Block I/O Module with 16 I/O Circuits
Genius Protocol-Enabled I/O Module
16 I/O Circuits Genius Block
2 Amperes Load Current GE IC660BBD022
Place of Origin:
USA
Brand Name:
General Electric
Model Number:
IC660BBD022
Contact Us
Request A Quote
Product Details
No. Of Circuits:
16 I/O Circuits
Load Current:
2 Amperes
Operating Voltage:
18-30VDC
Input Processing Time:
1.7 Ms
Nominal Voltage:
24VDC
Output Turn On Deplay:
1 Millisecond
Output Response Time:
1.0 Msec
Operating Temperature:
0 Degree To 60 Degree Celsius
Highlight:
Genius Protocol-Enabled I/O Module
,16 I/O Circuits Genius Block
,2 Amperes Load Current GE IC660BBD022
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
GE UR5EH Transducer I/O Module with 2.5 kV RMS Isolation Industrial Temperature Rating
Get Best Price
Video
GE 8709-CA-08 Module Carrier with 8-module capacity DIN-rail mounting and extended addressing
Get Best Price
CONTACT US
Contact Now
Product Description
The IC660BBD022 is a Genius protocol-enabled module from the Genius I/O Block family of distributed I/O modules. This stand-alone, single-node I/O station provides sixteen (16) configurable I/O circuits supporting source wiring configurations. Each circuit is rated for 24/48 VDC operation and can be individually configured as an input or output. Communication occurs through Genius I/O bus terminals, enabling data exchange with GE PLCs and PACs, as well as bus controllers, PC interface modules, HMIs, and compatible third-party devices.
This panel-mounted, open-type I/O block requires installation within a protective enclosure suitable for industrial environments. It supports remote mounting at distances up to 7,500 feet from the host controller and allows daisy-chaining of additional Genius I/O blocks to create distributed I/O networks. Local configuration is available through a Hand-Held Monitor (HHM) connected via the dedicated port on the terminal assembly, while remote configuration can be performed using the host controller's programming software.
The IC660BBD022 accepts 12/24 VDC nominal input signals with a 1.7 ms actuation delay. Output channels deliver up to 2 A per circuit with a maximum turn-on delay of 1 ms. The block supports operation with 2-wire and 3-wire sensors and includes configurable features such as output power default settings, selectable input filter times, and output pulse test functionality. Built-in diagnostics detect conditions including overload, overtemperature, short circuit, no-load, and failed switch events.
Configuration Options
- Output pulse test capability
- Selectable input filter time from 10 ms to 100 ms
- Output power-up default states
- Output hold last state or default behavior
These configurable features allow the block to adapt to a wide range of field devices and operating conditions.
