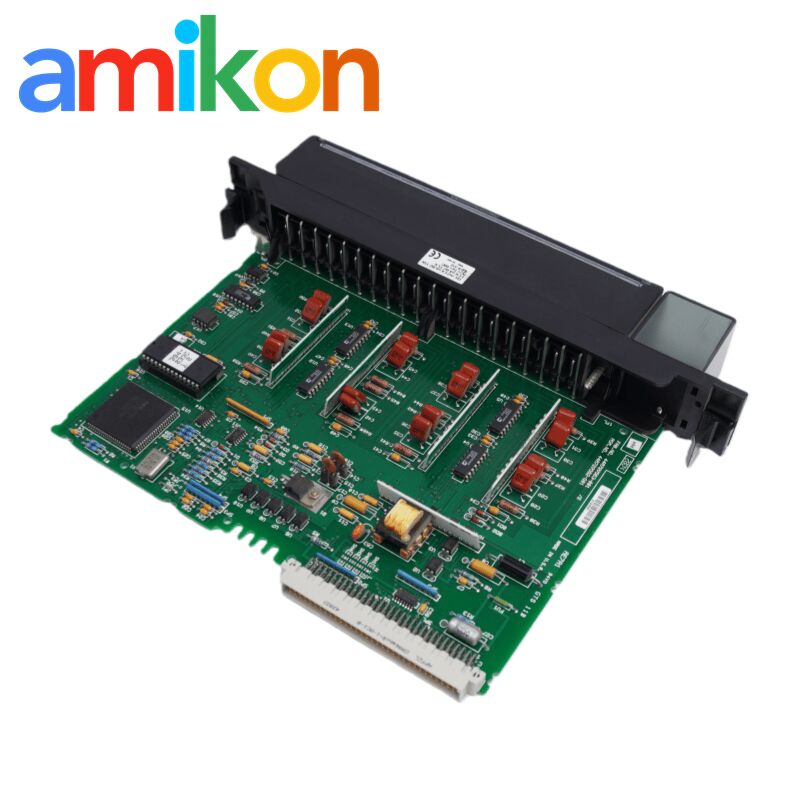

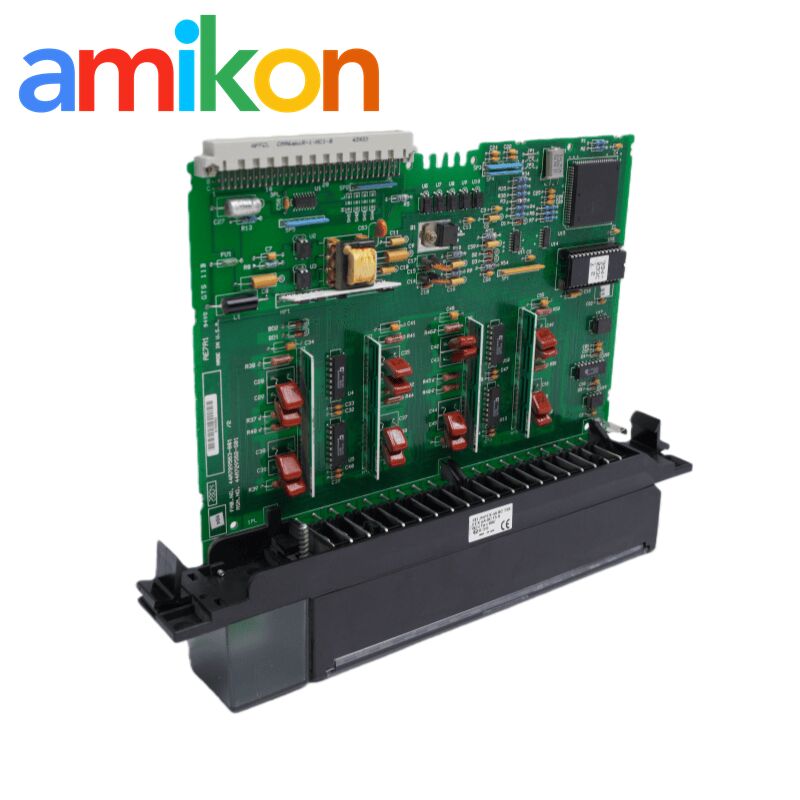

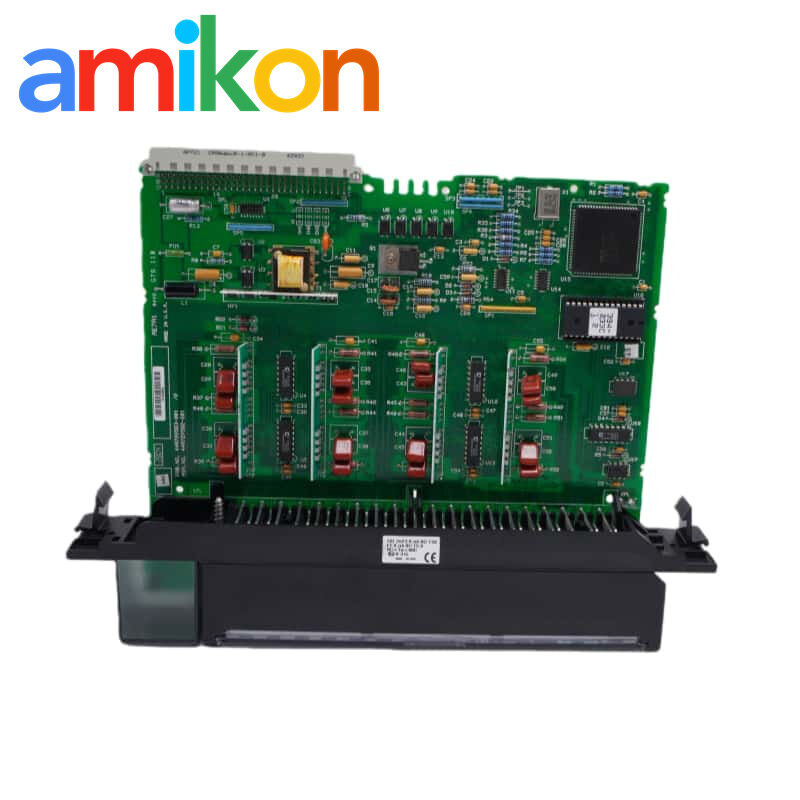

GE IC697ALG440 Current Expander Module with 16 Inputs 4-20 mA Input Range and 2.4 ms Update Rate
GE IC697ALG440 Current Expander Module with 16 Inputs 4-20 mA Input Range and 2.4 ms Update Rate
16 Inputs Current Expander Module
4-20 mA Input Range Analog Input Module
2.4 ms Update Rate GE IC697ALG440
Place of Origin:
USA
Brand Name:
General Electric
Model Number:
IC697ALG440
Contact Us
Request A Quote
Product Details
No. Of Inputs:
16 Inputs
Update Rate:
2.4 Ms
Resolution:
16 Bit
Power Requirement:
0.4 Amps (2 Watts) At +5 Volts
Accuracy:
+/- 0.07% Of Full Scale, +/-0.1% Of Value
Calibration:
Factory Set At 10 Volts +/- 2 MV
Current Input Range:
4 To 20 Milliamps
Estimated Shipping Size:
4x21.8x29.2cm
Highlight:
16 Inputs Current Expander Module
,4-20 mA Input Range Analog Input Module
,2.4 ms Update Rate GE IC697ALG440
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
GE IC693MDL231 Isolated Input Module with 240 V AC, 1500 V RMS Isolation for Industrial Automation
Get Best Price
Video
GE IC697ALG440 Current Expander Module with 16 Inputs 4-20 mA Input Range and 2.4 ms Update Rate
Get Best Price
Video
GE IC693BEM321 I/O Link Master Module with 16 Slave Devices 1024 Discrete Inputs
Get Best Price
CONTACT US
Contact Now
Product Description
GE IC697ALG440 Current Expander Module
Module Functionality & Specifications
Primary Function: Provides 16 current input channels with 4-20 mA input range and converts digital signals into analog form in 2's complement format.
System Requirements: Must be used with a base converter module and optionally with a voltage expander to form a complete analog input subsystem.
Connection Terminals: Terminals 36 and 38 of the base converter module are designated for analog expansion signal connections. Terminals 37 and 39 are available for differential data bus or serial communication.
Cable Shielding: Optional shielding available. When implemented, the shield ground should be connected to terminal 35. Proper polarity must be observed during all connections.
Installation Requirements: Must be installed in the same rack as connected expander modules, with all modules physically adjacent for optimal system performance.
Diagnostic Features: Comprehensive monitoring capabilities including status LEDs, error detection facilities, channel response monitoring, and health diagnostics for enhanced system reliability.
