GE IC693MDL930 Relay Output Module with 8 Isolated Outputs and 4 Amp Switching Capacity
GE IC693MDL930 Relay Output Module with 8 Isolated Outputs and 4 Amp Switching Capacity
8 isolated outputs Relay Output Module
4 Amp switching capacity PLC Output Module
24 volts DC GE IC693MDL930
Place of Origin:
USA
Brand Name:
General Electric
Model Number:
IC693MDL930
Contact Us
Request A Quote
Product Details
Country Of Origin:
USA
Manufacturer:
General Electric
Rated Voltage:
24 Volts DC, 120/240 Volts AC
Outputs Per Module:
8 Isolated Outputs
Minimum Load:
10 MA
Maximum Inrush:
5 Amps
On Response Time:
15 Ms Maximum
Off Response Time:
15 Ms Maximum
Highlight:
8 isolated outputs Relay Output Module
,4 Amp switching capacity PLC Output Module
,24 volts DC GE IC693MDL930
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
GE IC693ALG442 Analog Combination Module with 0.5 microamps resolution 2 single-ended channels
Get Best Price
Video
GE IC693MDL930 Relay Output Module with 8 Isolated Outputs and 4 Amp Switching Capacity
Get Best Price
Video
GE IC697PWR710 Power Supply Module with 56 Watts Output Power 5VDC up to 11 Amps
Get Best Price
CONTACT US
Contact Now
Product Description
The IC693MDL930 is a 4 Amp isolated relay output module designed for the Series 90-30 Programmable Logic Controller. This module provides eight normally-open relay output circuits for user-controlled output loads, with each output circuit featuring a switching capacity of 4 Amps.
Each output point is electrically isolated from all other points and includes a separate common power output terminal. The relay outputs are suitable for controlling a wide range of user-supplied load devices, including motor starters, solenoids, and indicator devices. Field device operating power, AC or DC, must be supplied by the user. The module contains no internal fuses.

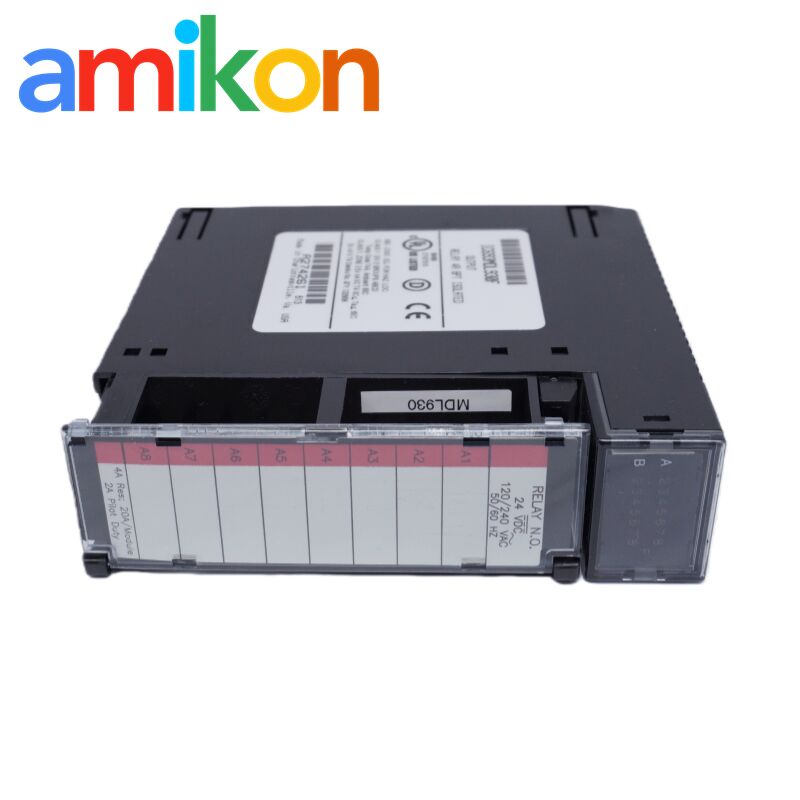

An insert is provided between the inside and outside surfaces of the hinged door. The inside-facing surface displays circuit wiring information, while the outside-facing surface is used for circuit identification. The left outside edge of the insert is color-coded red to identify a high-voltage module.
The IC693MDL930 may be installed in any I/O slot of a 5-slot or 10-slot baseplate in a Series 90-30 PLC system.
The following figure illustrates the field wiring connections for user-supplied load devices and the power source connected to the 4 Amp Relay Output Module.
