GE IC693BEM340 FIP Bus Controller Module for Series 90-30 PLC Interface
GE IC693BEM340 FIP Bus Controller Module for Series 90-30 PLC Interface
800mA current consumption FIP Bus Controller Module
0 to +55°C operating temperature GE IC693BEM340
FIP network support Series 90-30 PLC Interface
Place of Origin:
USA
Brand Name:
General Electric
Model Number:
IC693BEM340
Contact Us
Request A Quote
Product Details
Typical Current Consumption:
800mA
Max Current Consumption:
1.2 Amps Maximum
Vibration And Shock:
0.2-inch Displacement 5Hz To 10Hz
Operating Temperature:
0 To +55 Degrees Celsius (+32 To +131 Degrees Fahrenheit)
Estimated Shipping Size:
3.5x13x13.5cm
Country Of Origin:
USA
Place Of Shipment:
Xiamen, China
Product Parameters:
FIP Bus Controller Module
Highlight:
800mA current consumption FIP Bus Controller Module
,0 to +55°C operating temperature GE IC693BEM340
,FIP network support Series 90-30 PLC Interface
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
GE IC694MDL940 16 Point Relay Output Discrete Output Module with 2 Amps Pilot Duty
Get Best Price
CONTACT US
Contact Now
Product Description
The IC693BEM340 FIP Bus Controller Module is designed and manufactured by GE Fanuc to serve as an interface between a Series 90-30 I/O network and the system's central PLC. It is intended for installation in the same rack as the programmable logic controller and also to be fed from the same power source. Using a GE Fanuc IC693BEM340 FIP Bus Controller Module will not only allow for the communication of the I/O network to the system's central PLC, but also provide safe storage space for the field device's configuration data and serve as a centralized troubleshooting platform.

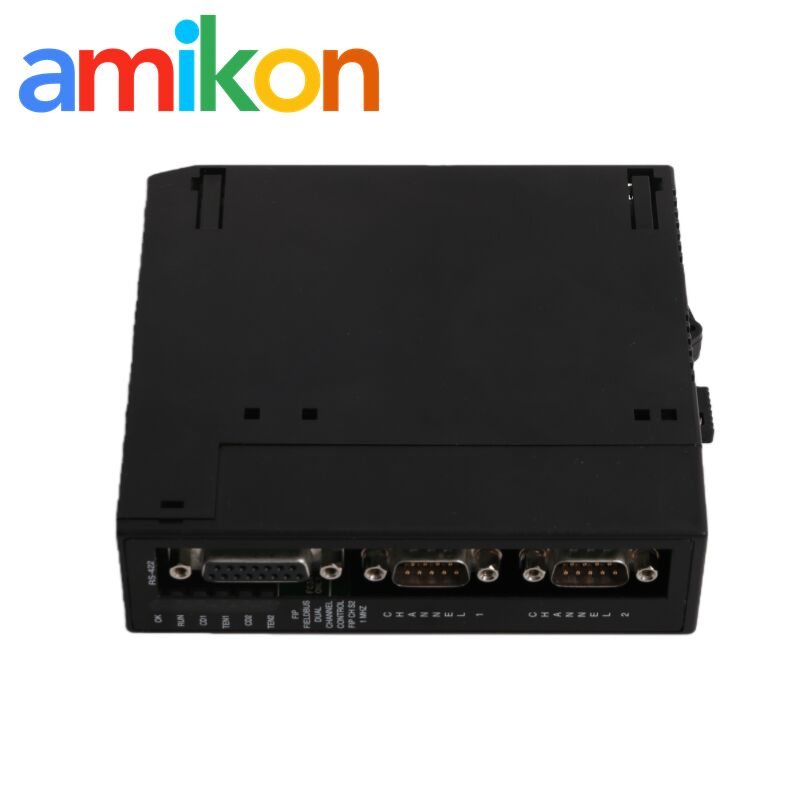

The front side of the module features 6 LEDs near the top, 2 serial ports for the FIP (Factory Instrumentation Protocol) network connections, and an additional RS-485 serial port for configuration. The IC693BEM340 Module's support for the FIP network is important because the Factory Instrumentation Protocol is an international communication system that attempts to standardize electronic industrial networking systems. It allows for the exchange of I/O data between PLCs and a wide number of field devices such as limit switches, solenoid valves, motor starters, and pressure sensors.
The GE Fanuc IC693BEM340 FIP Bus Controller Module is a central part of any automatic control platform that is using the FIP network with a Series 90-30 PLC as the main processing hardware, such as industrial applications in motion control, product packaging, and bulk handling machinery. Regarding its technical specifications, the module has a maximum current consumption of 1.2 Amps and it can operate within a temperature range of 0 to 55 degrees Celsius (32 to 131 degrees Fahrenheit).
FIP Bus Compatible Devices
- Series 90-70 PLC: Interfaced to the FIP bus via a FIP Bus Controller
- Field Control Stations: Field Control I/O modules interfaced through a FIP Bus Interface Unit (BIU)
- Remote Drops: Series 90-30 I/O racks interfaced through FIP Remote I/O Scanner Modules
- Generic Devices: General-purpose computers interfaced through a FIP Interface Module
Remote Drop Configuration
| Configuration Option | Description |
|---|---|
| Main Rack | One 5- or 10-slot main rack |
| Expansion Rack | One 5- or 10-slot expansion rack |
| I/O Modules | Any mix of discrete and analog I/O modules |
