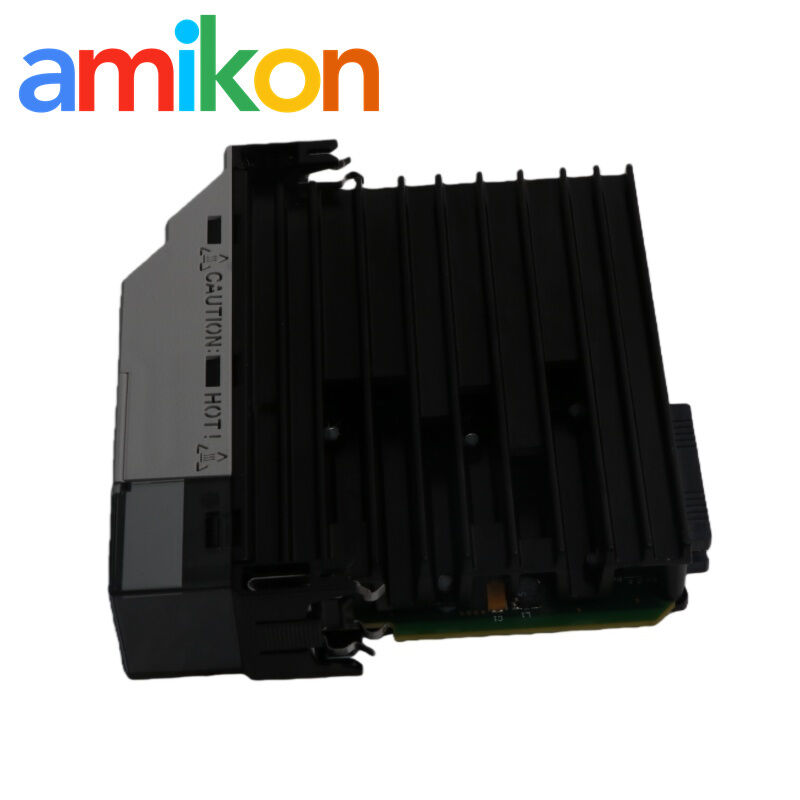

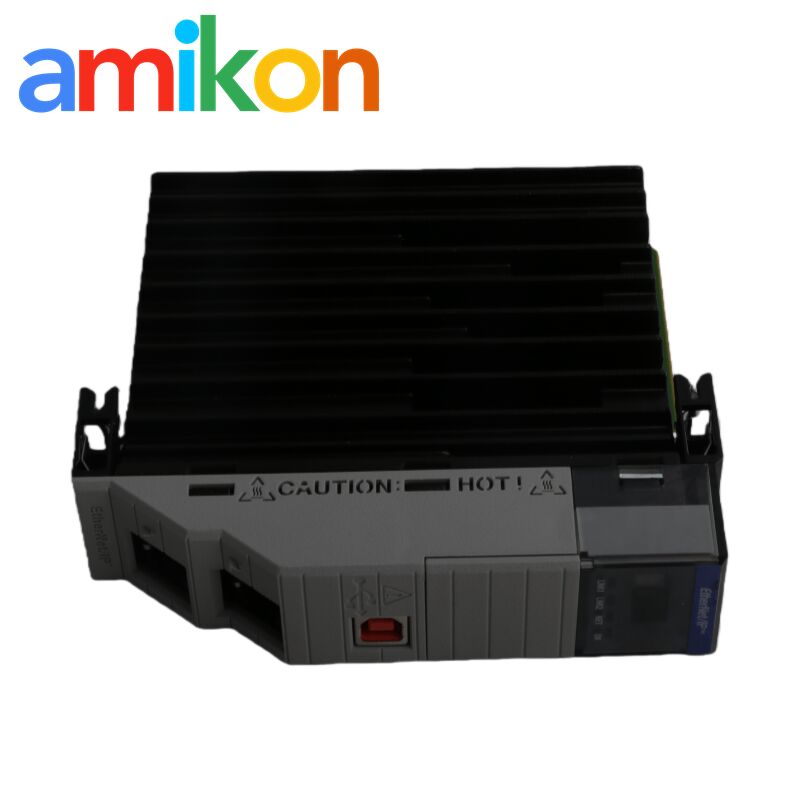

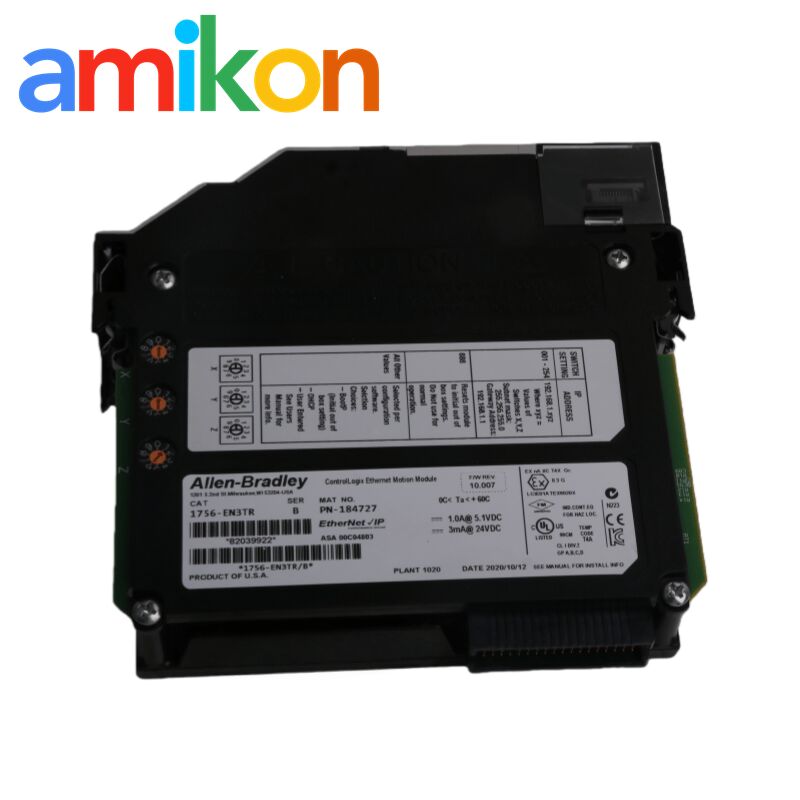

Allen Bradley 1756-EN3TR ControlLogix EtherNet/IP Module with 128 CIP Motion Axes
Allen Bradley 1756-EN3TR ControlLogix EtherNet/IP Module with 128 CIP Motion Axes
128 CIP motion axes ControlLogix EtherNet/IP Module
10-100 Mbps communication EtherNet/IP Communication Module
5.1 W power dissipation 1756-EN3TR
Place of Origin:
USA
Brand Name:
Allen Bradley
Model Number:
1756-EN3TR
Contact Us
Request A Quote
Product Details
Product Model:
1756-EN3TR
Product Parameters:
ControlLogix EtherNet/IP Module
Country Of Origin:
USA
Place Of Shipment:
Xiamen, China
Manufacturer:
Allen Bradley
Thermal Dissipation:
17.4 BTU/hr
Power Dissipation:
5.1 W
Communication Port:
Two (2) Ethernet; One (1) USB
Highlight:
128 CIP motion axes ControlLogix EtherNet/IP Module
,10-100 Mbps communication EtherNet/IP Communication Module
,5.1 W power dissipation 1756-EN3TR
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
video
Allen Bradley 1794-IA8 Digital Input Module with 120V AC 8 Discrete Inputs and IP20 Protection
Get Best Price
video
Allen Bradley 1769-OV32T CompactLogix Solid State Output Module with 32 Compact Digital Outputs
Get Best Price
Contact Us
Contact Now
Product Description
This advanced EtherNet/IP communication module supports up to 128 CIP motion axes (position loop) and 255 total axes, along with 128 TCP/IP connections and 256 Logix connections, making it ideal for demanding industrial automation applications. Key capabilities include embedded switching, communication rates of 10-100 Mbps, and extensive motion and connection capacity. The 1756-EN3TR also features a USB port and is designed for seamless integration into both local and distributed ControlLogix systems.
Technical Specifications
| Manufacturer | Allen-Bradley |
| Estimated Shipping Size | 5.1x15.2x15.2cm |
| Weight | 0.2 kg |
| USB Data Transfer Rate | 12 Mbps |
| Backplane Current (5V) | 1 amp |
| Backplane Current (24V) | 3 milliamps |
| Power Consumption | 5.1 Watts |
| Insulation Voltage | 30 Volts Continuous |
| Ethernet Data Transfer Speed | 10/100 Mbps |
| Mounting | Any 1756 Chassis |
| Location | Chassis (any slot) |
Electrical & Environmental Specifications
The 1756-EN3TR operates with a backplane current of 1A at 5.1V DC and 3 mA at 24V DC, with power consumption of 5.1 W and power dissipation up to 6.2 W. It has thermal dissipation of 21.28 BTU/hour, current rating of 1.2 A, and insulation voltage of 30 V continuous with an open enclosure. Operating temperature range is 32 to 140°F. As part of the ControlLogix PAC platform, this Ethernet communication module installs in any ControlLogix chassis and functions as an Ethernet bridge, connecting controllers, remote I/O, HMI, and SCADA systems into a unified, high-speed industrial network.
