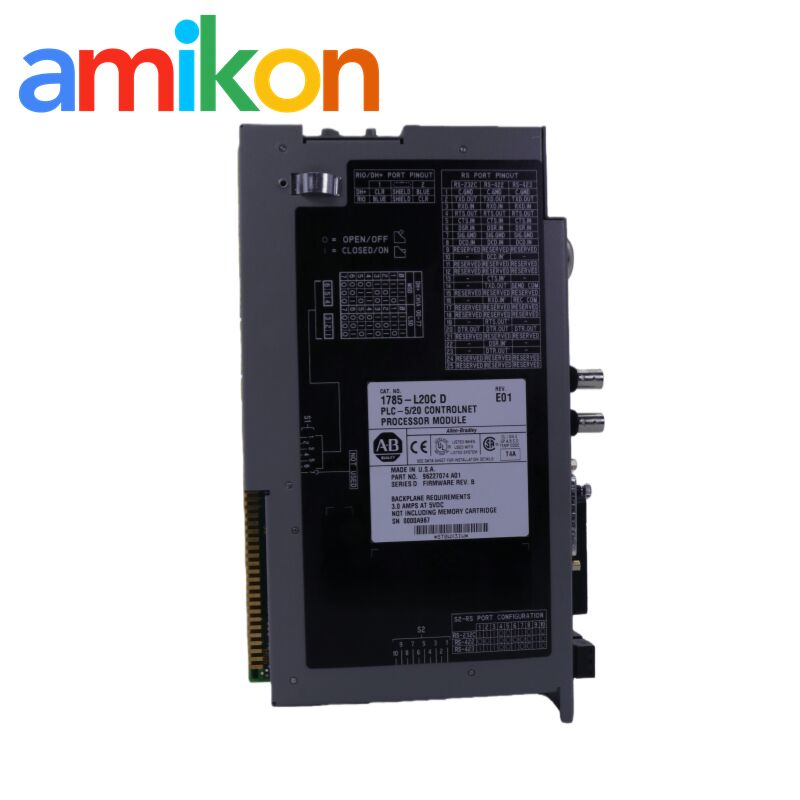

Allen Bradley 1785-L20C ControlNet Processor Module with 2-Slot Addressing
Allen Bradley 1785-L20C ControlNet Processor Module with 2-Slot Addressing
2-slot addressing ControlNet Processor Module
16/32-point digital I/O PLC-5 Controller
85-265V AC power supply Allen Bradley 1785-L20C
Place of Origin:
USA
Brand Name:
Allen Bradley
Model Number:
1785-L20C
Contact Us
Request A Quote
Product Details
I/O Addressing:
2-slot Addressing
Digital I/O Modules:
16/32-point Available
Analog I/O Modules:
4/8-channel Available
Power Supply:
85-265V AC Or 24V DC
Power Consumption:
25W (typical)
Isolation Voltage:
1500V AC
Operating Temperature:
0°C To +60°C
Storage Temperature:
-40°C To +85°C
Highlight:
2-slot addressing ControlNet Processor Module
,16/32-point digital I/O PLC-5 Controller
,85-265V AC power supply Allen Bradley 1785-L20C
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
Allen Bradley 1784-KTX ISA Communication Module for Data Highway Networks with Remote I/O Scanning
Get Best Price
Video
Allen Bradley 1772-LN2 CPU Module with 24V DC Input 16 DC Inputs and 1500V AC Isolation
Get Best Price
CONTACT US
Contact Now
Product Description
The Allen-Bradley 1785-L20C PLC-5 is a ControlNet programmable controller and processor. This unit ships with a comprehensive installation kit containing a 1770-XYC lithium battery, battery cover with screw, two keys, four 150-Ohm and two 82-Ohm terminating resistors, DIN rail connector cover, two 3-pin connectors, and a 1784-CP7 cable adapter.
Installation Safety: Always use an approved ground point during installation and avoid touching connector pins or the backplane connector. When not in use, store the processor in its static-shielded container to prevent electric shock and hardware damage.
Front Panel Features
The 1785-L20C front panel includes comprehensive status indicators and controls:
- Red battery indicator light
- Red/green RUN/FAULT indicator
- Amber force indicator
- Red/green indicators for ControlNet I/O, Channel 2, and ACTIVE/FAULT Channel 0 Communication
- Memory module expansion space
- Dedicated battery compartment
- Multiple channel ports
- Key switch for selecting processor operating mode
Connectivity & Specifications
The 1785-L20C features a serial port, coprocessor port, and control coprocessor expansion port. This controller supports up to 512 of any I/O and 512 analog I/O, with capacity for up to 16 MCPs.
