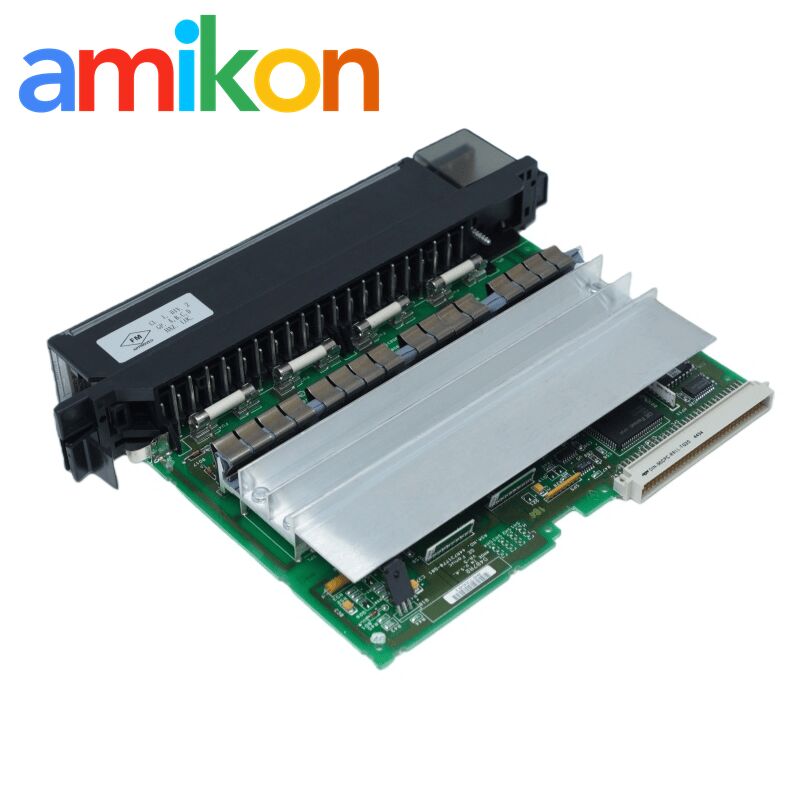

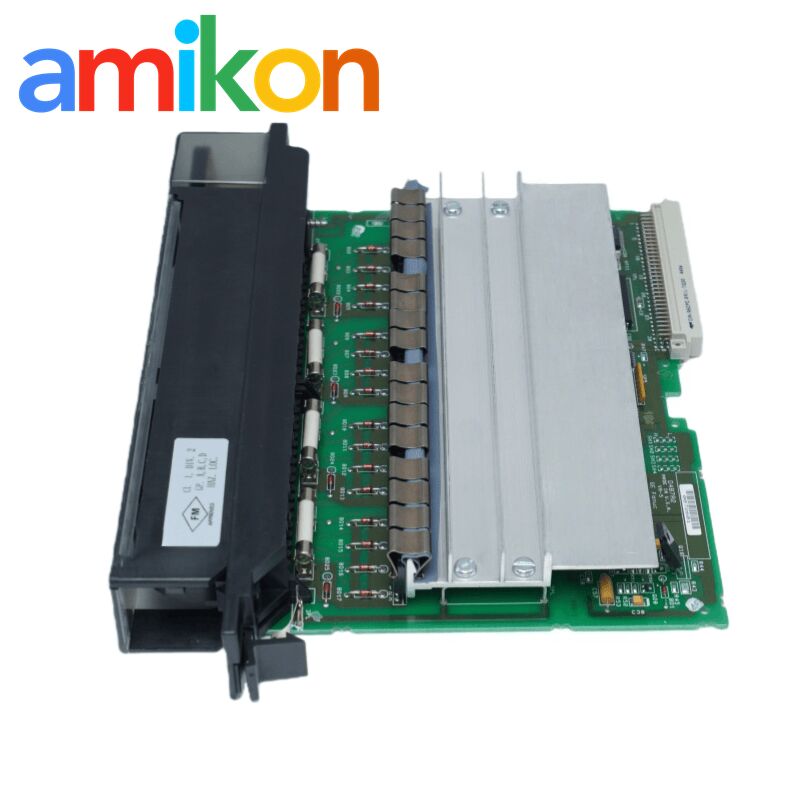

GE IC697MDL740 Discrete Output Module with 16 Outputs 1500 Volts Isolation and 2 A per Point
GE IC697MDL740 Discrete Output Module with 16 Outputs 1500 Volts Isolation and 2 A per Point
16 Outputs Discrete Output Module
1500 Volts Isolation GE Series 90-70 Module
2 A per Point PLC Output Module
Place of Origin:
USA
Brand Name:
General Electric
Model Number:
IC697MDL740
Contact Us
Request A Quote
Product Details
Series:
Series 90-70
Part Number:
IC697MDL740
Required Current:
0.15 Amps
Number Of Outputs:
16
Isolation Voltage:
1500 Volts
Rated Voltage:
24 To 48 Volts DC
Product Parameters:
Discrete Output Module
Country Of Origin:
USA
Highlight:
16 Outputs Discrete Output Module
,1500 Volts Isolation GE Series 90-70 Module
,2 A per Point PLC Output Module
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
GE IC697MDL940 Relay Output Module with 16 Relay Outputs 10 ms Response Time and 120/240 Volts AC
Get Best Price
Video
GE IC697MDL750 Discrete Output Module with 32 Output Channels and 1500 Volts Isolation
Get Best Price
CONTACT US
Contact Now
Product Description
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC697MDL740 |
| Product Type | Discrete Output Module |
| Country of Origin | USA |
| Place of Shipment | Xiamen, China |
| Manufacturer | General Electric |
| Weight | 0.88 kg |
| Estimated Shipping Size | 4 × 22 × 29.1 cm |
| Output Current | 2 A per point, 4 A per group |
| Output Voltage Range | 20 - 60 V DC |
| Inrush Current | 20 A (maximum) for 20 ms |
| Response Time - Off | 2 ms (maximum) |
| Output Voltage Drop | 0.8 V / 0.4 Ω (maximum) |
Frequently Asked Questions
What PLC hardware is the IC697MDL740 compatible with?
This module is designed specifically for the GE Series 90-70 PLC. It plugs into the standard 90-70 VME rack and is used for high-end discrete control in those systems.
What are the voltage specs for the output channels?
You have 16 outputs here. They operate on a DC range from 20 to 60 Volts. Make sure your field-side power supply is regulated within these limits to avoid switching failures.
What is the maximum current capacity for the MDL740?
At the point level, it's 2 Amps per output. However, there is a group limit of 4 Amps. You cannot run all points at 2 Amps simultaneously; you have to budget the load across the output groups.
How fast is the module response and what about voltage loss?
The response time is 2 milliseconds. The internal voltage drop is very low—less than 1 Volt—meaning the module is efficient and won't starve your field devices of power.
Can this module handle high inrush currents from motors or solenoids?
Yes. It can handle an inrush surge up to 10 times its rated current. This makes it a good choice for inductive loads that spike the moment they are turned on.
Where do I check the module status and fuse condition?

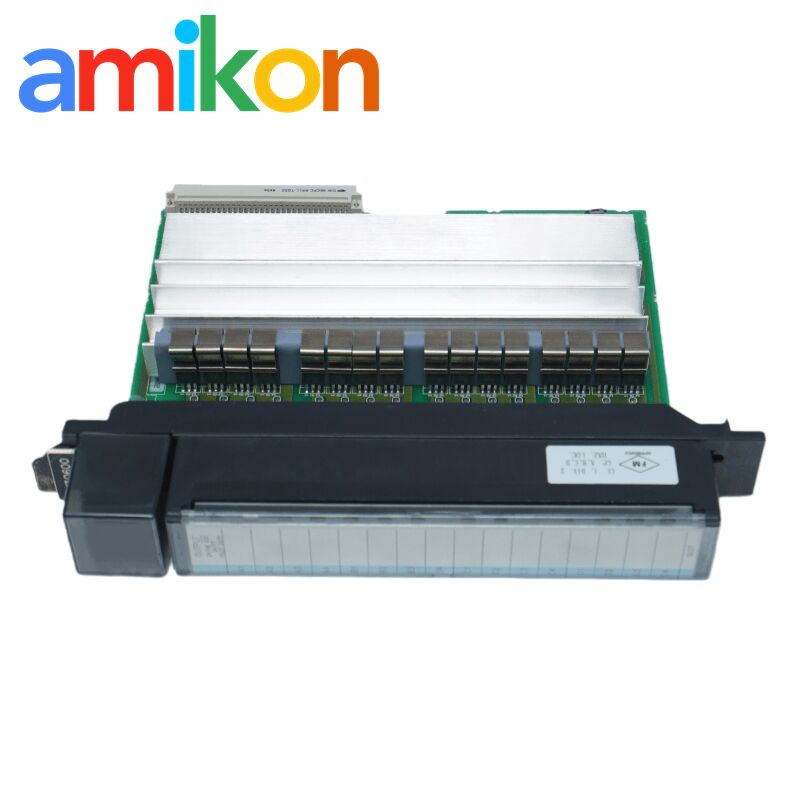

Look at the top of the module. There is a row of LEDs there. They show the ON/OFF logic state for each point and will signal if a fuse has blown on the board.
Does the IC697MDL740 have protection against incorrect installation?
It uses mechanical keying. This physical design ensures you don't accidentally stick the module into a slot that was set up for a different voltage or module type, which prevents hardware damage during maintenance.
How is the module configured and is there protection for harsh environments?
No hardware jumpers are needed. Setup is done via Windows-based software. For high-humidity or corrosive sites, you can order the version with a conformal coating as a factory option.
