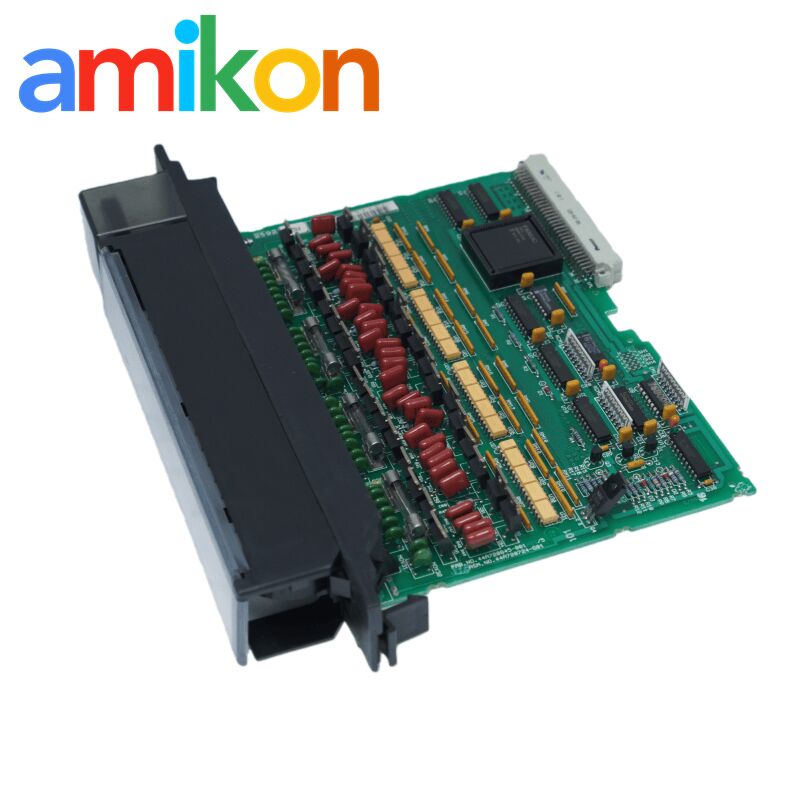

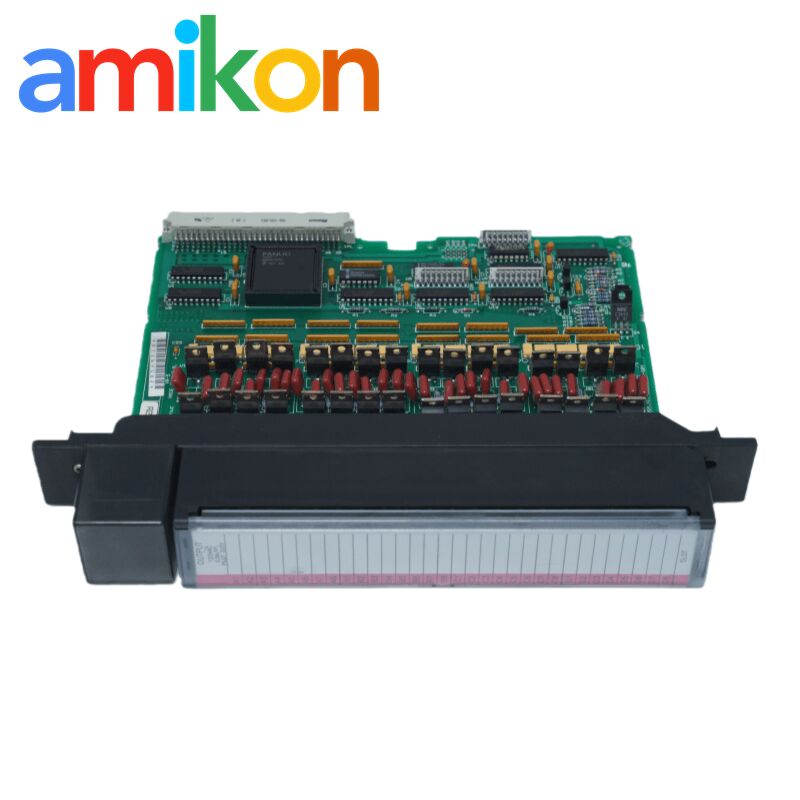

GE IC697MDL350 Discrete Output Module with 32 Points 120V AC and High Inrush Capacity
GE IC697MDL350 Discrete Output Module with 32 Points 120V AC and High Inrush Capacity
32 Discrete Output Points GE IC697MDL350
120 Volts AC Discrete Output Module
High Inrush Capacity Series 90-70 Module
Place of Origin:
USA
Brand Name:
General Electric
Model Number:
IC697MDL350
Contact Us
Request A Quote
Product Details
Output Current/Point:
0.5 A
Output Current/Group:
2 A
Inrush Current:
10 Amps Maximum Per Point For One Cycle (20 Ms)
Estimated Shipping Size:
4x22x29.3cm
Weight:
0.56 Kg
Rated Voltage:
120 V AC
Output Voltage Range:
85 To 132 Volt, 47-63 Hz
Output Voltage Drop:
3 Volts Maximum
Highlight:
32 Discrete Output Points GE IC697MDL350
,120 Volts AC Discrete Output Module
,High Inrush Capacity Series 90-70 Module
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
GE IC697MDL940 Relay Output Module with 16 Relay Outputs 10 ms Response Time and 120/240 Volts AC
Get Best Price
Video
GE IC697MDL750 Discrete Output Module with 32 Output Channels and 1500 Volts Isolation
Get Best Price
CONTACT US
Contact Now
Product Description
The IC697MDL350 is a discrete output module manufactured by GE Fanuc as part of the Series 90-70 system. This high-performance module operates at 120 Volts AC and provides 32 output points with 0.5 Amps current capacity per point. The outputs are organized into four isolated groups of 8 points each, allowing each group to be connected to different AC supply phases for flexible system integration.
Designed with industrial reliability in mind, the module features a high inrush capacity of approximately 20 times the rated current, making it suitable for demanding inductive loads. Each output group is protected by a 5 Amp fuse, and comprehensive LED indicators provide clear status monitoring for both output points and fuse conditions.
- High-Density Output Design: 32 discrete output points organized into four isolated groups of 8 points each
- Robust Electrical Performance: 120V AC operation with 0.5 Amp continuous current per point and high inrush capability
- Enhanced Load Compatibility: Optimized for inductive and incandescent loads including solenoids and motor starters
- Comprehensive Status Indication: LED indicators for each output point and fuse status
- Field-Proven Mechanical Design: Mechanically keyed housing for correct installation
- Flexible Configuration: Jumper-free configuration via programming software
- Multiple Communication Options: Supports Ethernet TCP/IP and SNP port configuration
Load Compatibility
Supports various load devices including solenoids, motor starters, indicators, and pilot lights. Designed to handle both resistive and inductive loads reliably.
Current Ratings
0.5 Amp continuous current per point with maximum current per 8-point group thermally limited at elevated temperatures.
Surge Handling
Each output can conduct surge currents significantly higher than its long-term rating. Surge repetition depends on device rating and duty cycle.
Thermal Performance
Total current per output group must be managed in high-temperature conditions to prevent thermal overload.
Robust Operation
High inrush capacity (20× rated current) enables reliable activation of NEMA size 2 contactors and other inductive devices.
