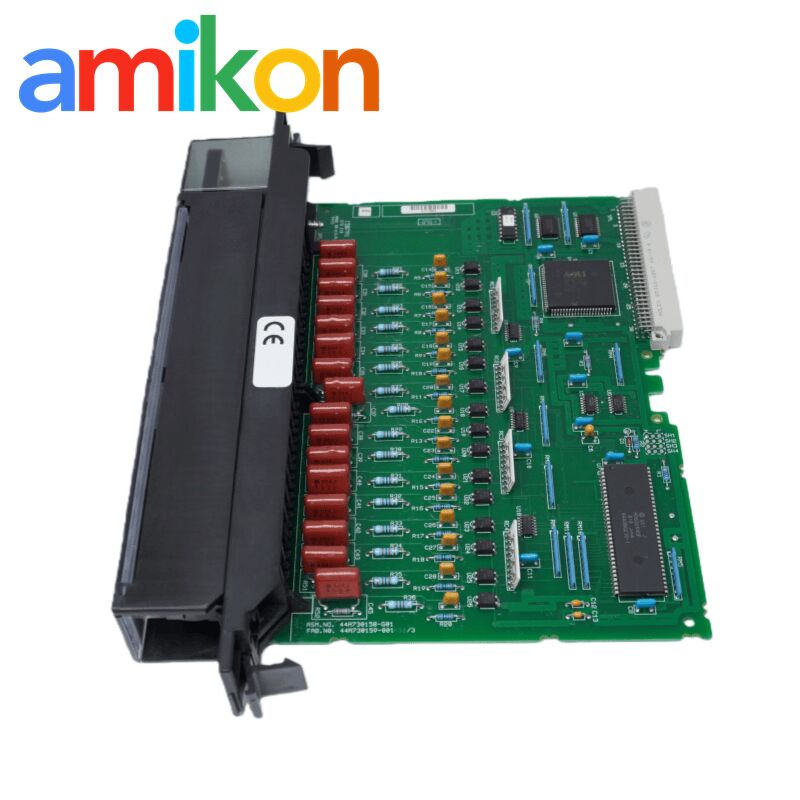

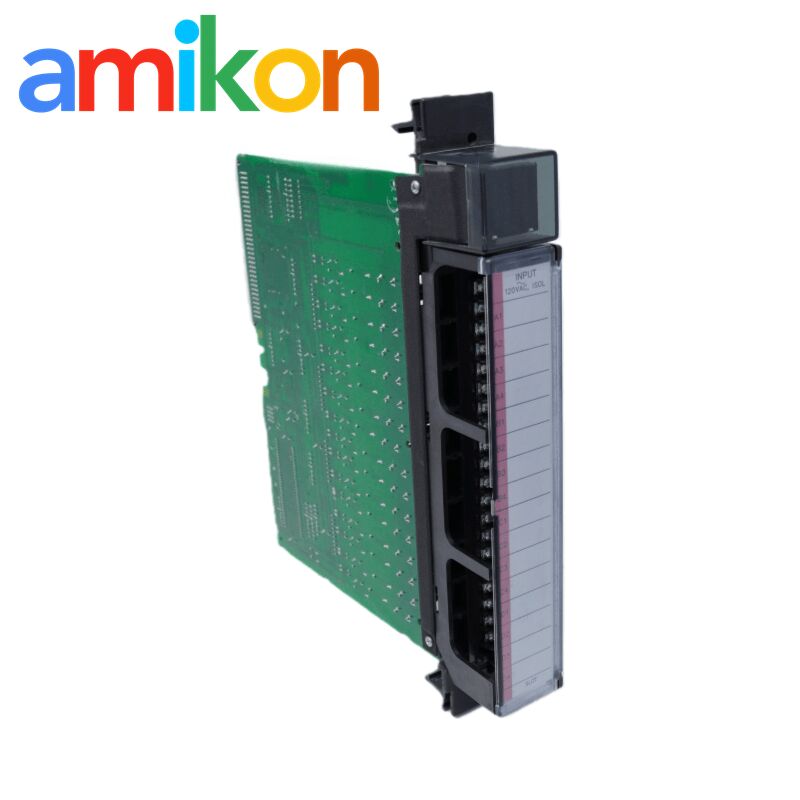

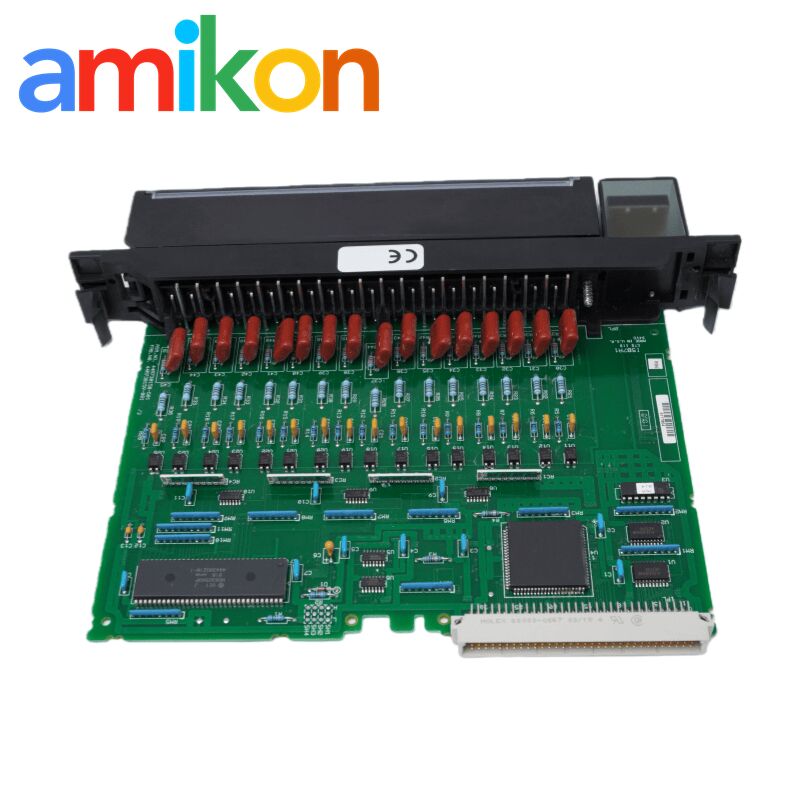

GE IC697MDL240 Discrete Input Module with 16 Isolated Inputs 120 Volts AC for Series 90-70 PLC
GE IC697MDL240 Discrete Input Module with 16 Isolated Inputs 120 Volts AC for Series 90-70 PLC
16 Isolated Inputs Discrete Input Module
120 Volts AC GE IC697MDL240
20 ms Input Filter Delay Series 90-70 PLC Module
Place of Origin:
USA
Brand Name:
General Electric
Model Number:
IC697MDL240
Contact Us
Request A Quote
Product Details
Inputs:
16 Isolated Inputs
Input Current:
10 MA
Frequency:
60 Hz
Current Required:
0.25 A
Estimated Shipping Size:
4x22x29.3cm
Weight:
0.56 Kg
Input Filter Delay Time:
20 Ms
Rated Voltage:
120 Volts AC
Highlight:
16 Isolated Inputs Discrete Input Module
,120 Volts AC GE IC697MDL240
,20 ms Input Filter Delay Series 90-70 PLC Module
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
GE IC695CHS016 Universal Backplane with Sixteen Slots IP54 Enclosure for RX3i System Compatibility
Get Best Price
Video
GE IC693CMM321 Ethernet Interface Module with 16 Server Connections for PLC Communication
Get Best Price
Video
GE IC697MDL250 Input Module with 32 Input Points 120 Volts AC and Isolated Groups
Get Best Price
CONTACT US
Contact Now
Product Description
The GE Fanuc IC697MDL240 is a 16-point isolated discrete input module for the Series 90-70 PLC. This module is rated for 120 Volts AC and includes a 20 millisecond input filter delay. Isolation design allows for connections between different AC supply phases. The reactive inputs support current-voltage characteristics for various 2-wire or 3-wire proximity switches. Top-mounted LEDs provide on/off status for each point on the PLC.
Mechanical keying is used for I/O configuration without DIP jumpers or switches. During initial installation, a mechanical key bolts to the backplane center rail. This key creates a fitting area to ensure proper module substitution during replacement. The capacitive input circuitry provides room for heat dissipation and reliability. Only similar module types can be installed once the key is in place.
Current draw is 0.25 Amps from the 5 Volts backplane bus. Typical on-state current is 10 milliamps, and the module sinks up to 4 milliamps of leakage current in the off-state. Configuration is handled through Windows or MS-DOS software via the SNP port or Ethernet TCP/IP port. The configuration function is installed on the programming device rather than the module itself.
Key Features
16 Isolated Input Points
Each input point can be connected to a different phase of the AC supply, ensuring flexibility and safety.
Reactive Input
Resistor/capacitor input with current-voltage characteristics compliant with IEC standard (type 2). Compatible with a wide range of 2-wire or 3-wire proximity switches.
LED Indicators
LEDs on the top of the module display the ON/OFF status of each input point on the PLC (logic) side.
Mechanical Keying
Ensures correct replacement with a similar module type in the field.
User-Configurable I/O References
I/O references can be configured without the use of jumpers or DIP switches, simplifying installation and maintenance.
Flexible Configuration
Configuration is performed using MS-DOS or Windows programming software running on Windows 95 or Windows NT, either via Ethernet TCP/IP or the SNP port.
Supported Programming Devices
Programming devices can be IBM® XT, AT, PS/2®, or compatible personal computers, with the configuration function installed on the device.
Technical Specifications
| Category | Details |
|---|---|
| Compatible Input Devices | 1. Pushbuttons, limit switches, selector switches & 2. Electronic proximity switches, both 2-wire and 3-wire |
| Input Circuitry | Capacitive design for low heat dissipation, high reliability, and long service life |
| Input Current (ON state) | Typically 10 mA |
| Input Current (OFF state) | Can sink up to 4 mA of leakage current to the input device |
| Proximity Switch Compatibility | Compatible with a wide range of 2-wire and 3-wire proximity switches |
| Compatibility Check | 1. Locate the ON state characteristics of the switch in the illustration & 2. If the point falls to the left of the input load line, the switch is compatible & 3. Example: ON state requirement of 5 mA at 20 volts drop is compatible |
| OFF-State Requirement | Must be less than 4 mA |
