GE IC697CMM741 Ethernet Controller with Battery-Backed RAM 10 Mbps LAN Interface
GE IC697CMM741 Ethernet Controller with Battery-Backed RAM 10 Mbps LAN Interface
Battery-Backed RAM Ethernet Controller
10 Mbps LAN Interface
15-Pin D-Type Connector GE Mark VIe Controller
Place of Origin:
USA
Brand Name:
General Electric
Model Number:
IC697CMM741
Contact Us
Request A Quote
Product Details
Memory Types:
RAM, ROM
Number Of LEDs:
3
Estimated Shipping Size:
4x21.7x29.2cm
Weight:
0.52 Kg
Country Of Origin:
USA
Cable Connector:
D-Type 15-Pin Connector
Cables:
Transceiver Cable Or AUI Cable
Product Type:
Ethernet Controller, LAN Interface
Highlight:
Battery-Backed RAM Ethernet Controller
,10 Mbps LAN Interface
,15-Pin D-Type Connector GE Mark VIe Controller
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description

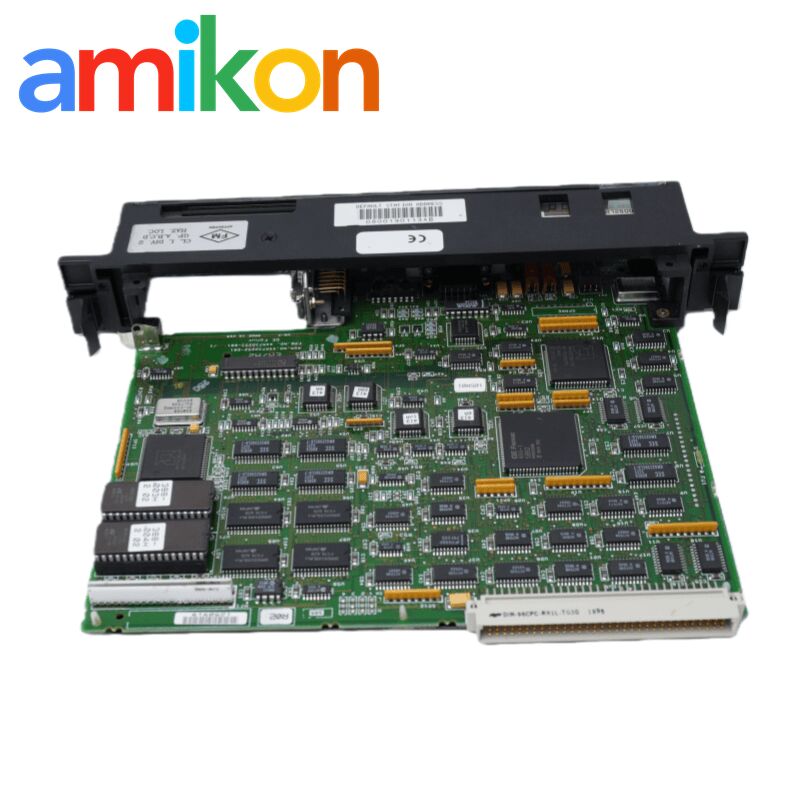

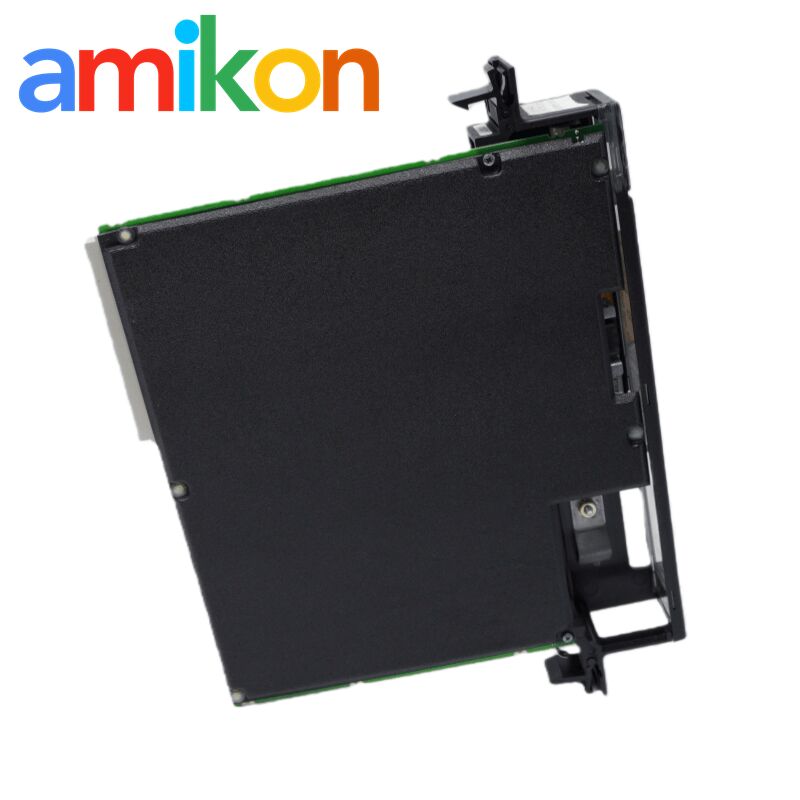

The GE Series 90-70 IC697CMM741 Ethernet controller and interface connects to a transceiver device using a user-supplied transceiver cable or an AUI (Attachment Unit Interface) cable. The connection is made through the standard 15-pin D-type connector. The controller uses the cable and transceiver to link to the Ethernet LAN. Three LEDs on the controller show the status of the interface. The RAM in the IC697CMM741 is battery-backed and stores all communication software. The controller also contains ROM and firmware. These store the basic functions, configuration software, and diagnostic features used by the device.
Module and Installation
- Single-slot module installed directly into IC697 CPU rack
- Connects to Ethernet LAN via user-supplied transceiver cable
- Transceiver attaches directly to IEEE 802.3 network cable
- Ethernet Interface operates at 10 Mbps
Indicators and Power
- Three LEDs indicate interface status
- Battery-backed RAM maintains communications software during power outages
Firmware and Communications Software
- Basic functions stored in ROM/firmware
- Firmware includes self-test diagnostics and configuration/testing software for PLC and Ethernet LAN
- Communications software can be loaded into RAM from GSM (serial or network) or MS-DOS/Windows OSI-Ethernet Programmer station
- RAM storage allows upgrading communications software without replacing ROM chips
Configuration
- Soft switches tailor the controller to the application
- MS-DOS or Windows Configuration Software configures the controller in the IC697 PLC and sets soft switches

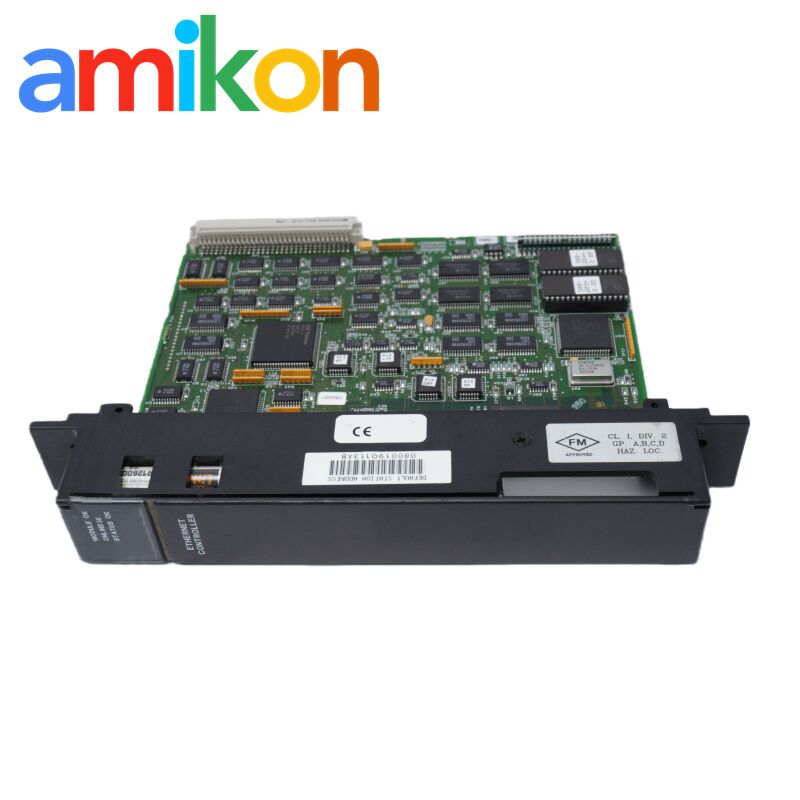

- Three LEDs: Top front of controller. Visible through window in front door.
- Default Station (MAC) Address Label: On outside of plastic housing. Used for network communications unless overridden by user.
- Restart Button: Directly below LEDs.
- Battery and Battery Holder: Right of LEDs, between Restart Button and serial port.
- Local Serial Port: 9-pin female connector for RS-232 interface.
- AUI Port: 15-pin female connector with slide-lock for transceiver cable. Located below the local serial port.
