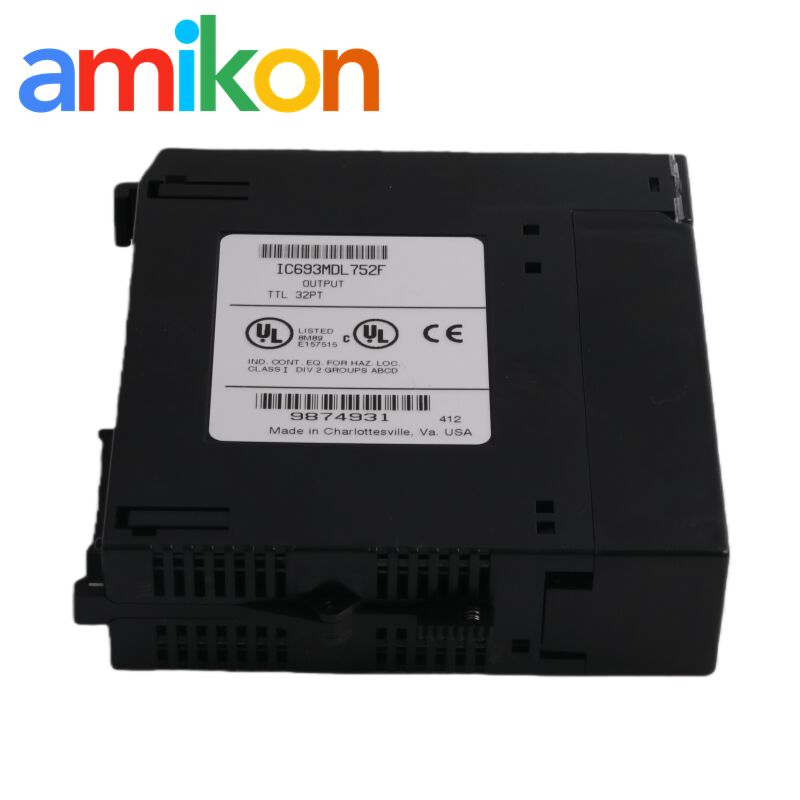

GE IC693MDL752 Discrete Output Module with 32 Discrete Outputs, 12/24 VDC and 5 VDC TTL Modes

GE IC693MDL752 Discrete Output Module with 32 Discrete Outputs, 12/24 VDC and 5 VDC TTL Modes

32 Discrete Outputs Discrete Output Module

12/24 VDC and 5 VDC TTL Modes PLC Output Module

4 Isolated Groups GE Mark VIe Controller

Place of Origin:

USA

Brand Name:

General Electric

Model Number:

IC693MDL752

Contact Us
Request A Quote
Product Details
No Of Channels:
Thirty-Two (32)
Output Points:
32
No. Of Output Groups:
Four (4)
Channels Per Group:
Eight (8)
Maximum Inrush Current:
4.6 A For 20 Ms
Output Connection:
2 X 24-pin Connectors
Estimated Shipping Size:
3.5x13x13.5cm
Weight:
0.24 Kg
Highlight:

32 Discrete Outputs Discrete Output Module

,

12/24 VDC and 5 VDC TTL Modes PLC Output Module

,

4 Isolated Groups GE Mark VIe Controller

Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
Product Description
GE IC693MDL752 Discrete Output Module with 32 Discrete Outputs, 12/24 VDC and 5 VDC TTL Modes 0
The IC693MDL752 is a dual-mode discrete output module for the Series 90-30 PLC family. The module supports 12/24 VDC mode and 5 VDC TTL mode as a negative logic output module. It provides 32 discrete outputs arranged in 4 isolated groups, with 8 channels per group. Each group can be independently configured for either 12/24 VDC or TTL operation.
In 12/24 VDC mode, the outputs sink up to 0.5 A per point, 4 A per group, and 3 A maximum per common pin, with an output voltage range of 10.2-28.8 VDC (nominal 24 VDC). In TTL mode, each output channel sinks up to 25 mA, with a voltage range of 4.75-5.25 VDC (nominal 5 VDC). Each output point includes an integrated pull-up resistor, and backplane isolation between logic and field sides is provided via opto-couplers. Front-panel LED indicators display the status of each output.
Connections to output circuits are made through two 24-pin male connectors on the front of the module. Wiring can be done using IC693CBL327/328 pre-wired cables or the TBQC terminal block quick-connect method. The module is suitable for controlling relays, solenoids, indicators, and other DC load devices, and care should be taken when using different groups in different operating modes due to possible electrical noise.
GE IC693MDL752 Discrete Output Module with 32 Discrete Outputs, 12/24 VDC and 5 VDC TTL Modes 1
Key Features & Applications
Hybrid Actuator Control: Simultaneously drives high-wattage DC solenoids (24V) and precision TTL-level digital hardware from a single slot.
High-Point Density Marshalling: Optimized for compact enclosures requiring 32 points of isolated control without the footprint of interposing relay banks.
Solenoid/Relay Interfacing: Direct sinking-logic control of DC contactors, indicator lamps, and valve manifolds (10.2-28.8 VDC operating range).
TTL Signal Shifting: Direct output to TTL-compatible electronic devices or high-speed digital counters without level-shifting circuitry.
Critical Isolation Loops: Essential for processes requiring 1500V RMS (approx.) galvanic separation between field-side noise and logic-side CPU processing.
