GE UR8NH Universal Relay with 4 × 50 – 240 V AC VT Inputs 0.2% Accuracy and 2 kV AC RMS Isolation

GE UR8NH Universal Relay with 4 × 50 – 240 V AC VT Inputs 0.2% Accuracy and 2 kV AC RMS Isolation

4 × 50 – 240 V AC VT Inputs Universal Relay

0.2 % Accuracy Protection Relay

2 kV AC RMS Isolation GE UR8NH

Place of Origin:

USA

Brand Name:

General Electric

Model Number:

UR8NH

Contact Us
Request A Quote
Product Details
VT Inputs:
4 × 50 – 240 V AC
Burden:
CT ≤ 0.12 VA @ 5 A
Accuracy:
0.2 % Of Reading ± 0.02 % Of Range
Frequency:
45 – 65 Hz
Isolation:
2 KV AC RMS
Operating:
-40 °C … +85 °C (inside UR Chassis)
Storage:
-55 °C … +95 °C
Humidity:
5 … 95 % RH Non-condensing
Highlight:

4 × 50 – 240 V AC VT Inputs Universal Relay

,

0.2 % Accuracy Protection Relay

,

2 kV AC RMS Isolation GE UR8NH

Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
Product Description

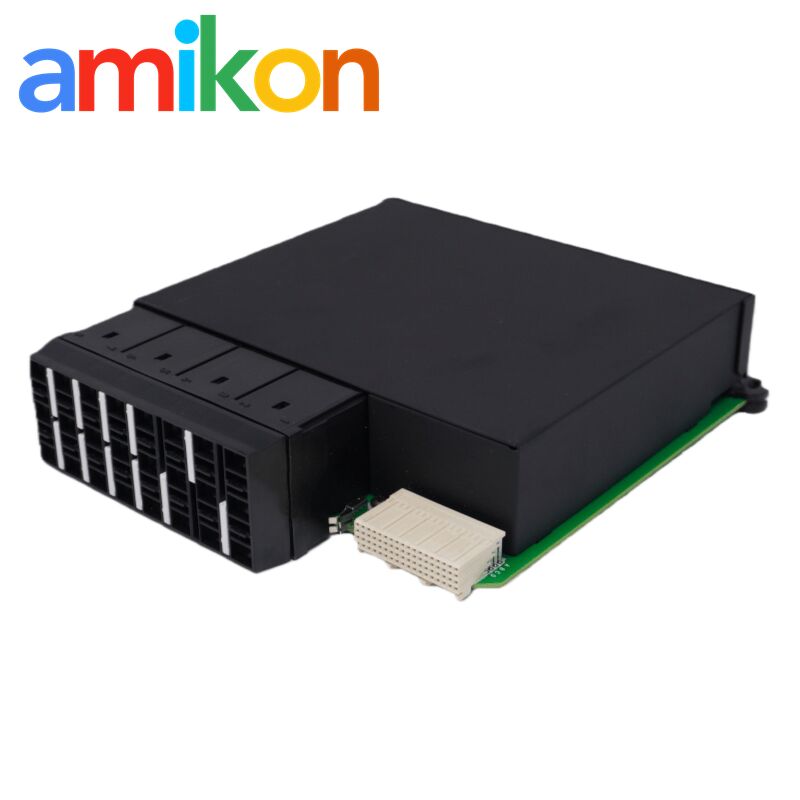

GE UR8NH Universal Relay with 4 × 50 – 240 V AC VT Inputs 0.2% Accuracy and 2 kV AC RMS Isolation 0
The GE UR8NH Universal Relay is part of the Universal Relay (UR) family of protection and control products, built on a common modular platform. All UR products deliver high-performance protection, expandable I/O options, integrated monitoring and metering, high-speed communications, and extensive programming and configuration capabilities. The UR8NH provides a simplified power management solution for the protection of critical assets, whether used as a stand-alone device or as part of a larger power automation system.
The UR8NH is managed and programmed through EnerVista Launchpad, a powerful software package included with each relay. EnerVista Launchpad allows setpoints to be programmed, manages setpoint files, provides access to the latest firmware and documentation, and offers visibility into the substation automation system. This comprehensive management tool ensures reliable, efficient operation and simplifies the configuration of the UR8NH.
The UR8NH is available in multiple configurations, including a 19-inch rack horizontal mount or a reduced-size (¾) vertical mount unit. The relay system consists of modular components such as the power supply, CPU, CT/VT input, digital input/output, transducer input/output, inter-relay communications, communication switch, and IEC Process Bus, providing a flexible and scalable solution for modern protection and control applications.

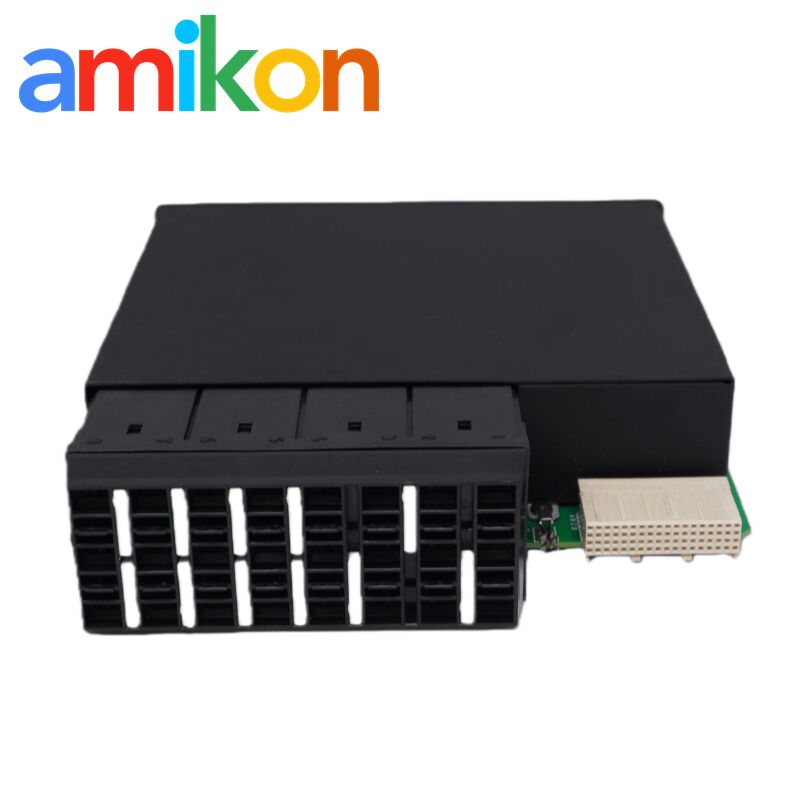

GE UR8NH Universal Relay with 4 × 50 – 240 V AC VT Inputs 0.2% Accuracy and 2 kV AC RMS Isolation 1

Connectivity: High-bandwidth fiber optic Ethernet with low-latency control for fast transfer of relay fault and event record information.
Redundancy: Optional redundant Ethernet enables fault-tolerant communication architectures without requiring intermediary communication hardware.
Industry Standard Protocols:
  • IEC 61850 with 61850-90-5 support
  • Ethernet Global Data (EGD)
  • IEC 60870-5-103 / IEC 60870-5-104
  • Modbus RTU / Modbus TCP/IP
  • HTTP, TFTP
  • SNTP & IEEE 1588 for time synchronization
  • PRP as per IEC 62439-3

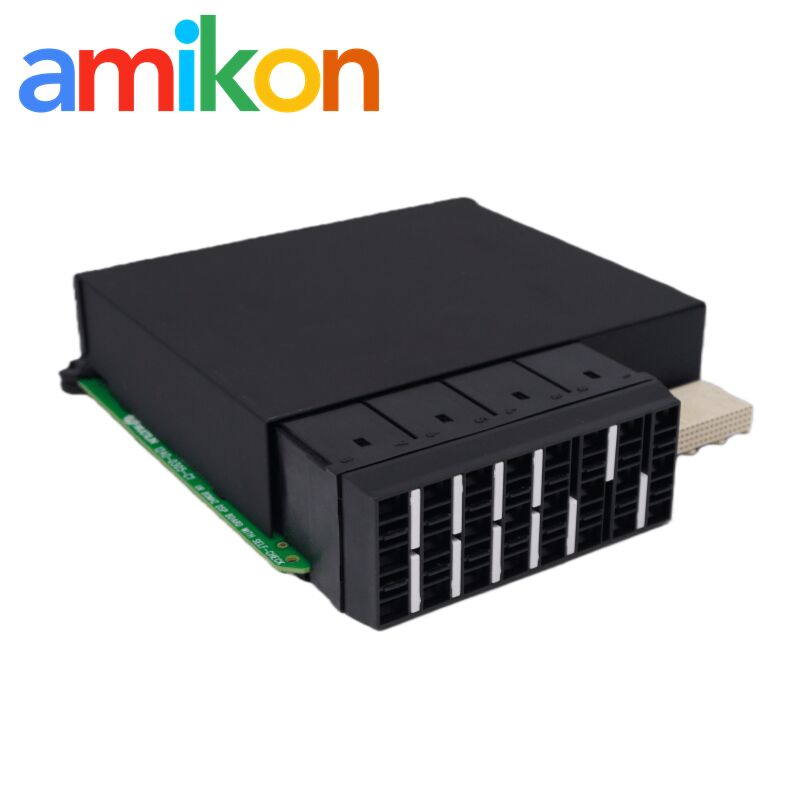

GE UR8NH Universal Relay with 4 × 50 – 240 V AC VT Inputs 0.2% Accuracy and 2 kV AC RMS Isolation 2
