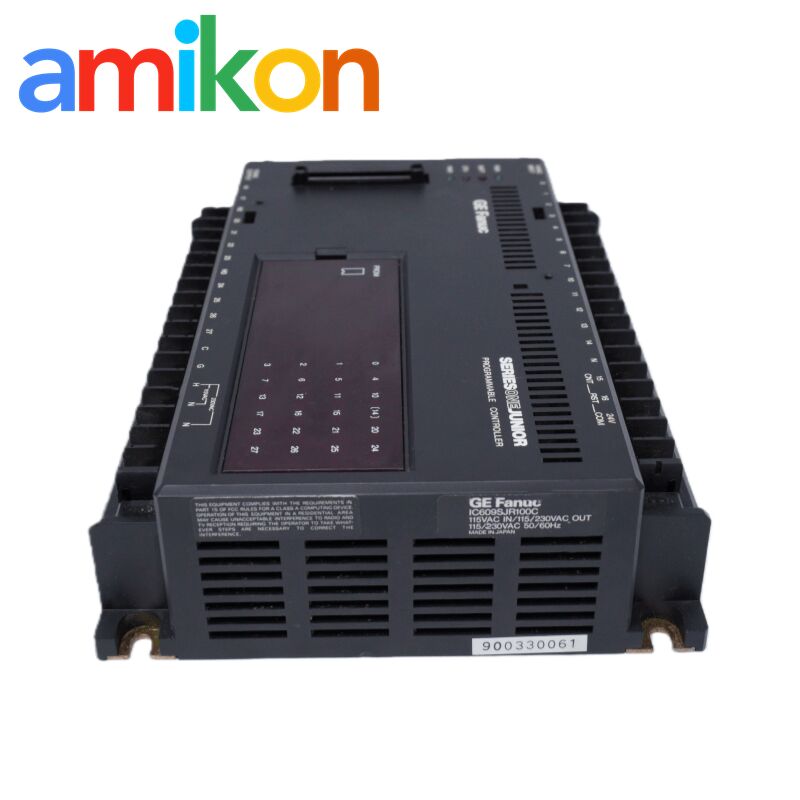

GE IC609SJR100 I/O Link Master Module with 1024 Discrete Inputs and Universal Backplane
GE IC609SJR100 I/O Link Master Module with 1024 Discrete Inputs and Universal Backplane
16 Slave Devices I/O Link Master Module
1024 Discrete Inputs GE IC609SJR100
Universal Backplane GE Mark VIe Controller
Place of Origin:
USA
Brand Name:
General Electric
Model Number:
IC609SJR100
Contact Us
Request A Quote
Product Details
Series:
Series 90-30
Max Number Of Slaves:
16
Estimated Shipping Size:
3.6x13x13.5cm
Module Type:
I/O Link Interface
Number Of Slots:
1 (single Slot)
Backplane Support:
Universal Backplane
Available Connector:
20-pin Honda Socket
PLCs Supported:
GE Fanuc Series 90-30 And 90-70 Series
Highlight:
16 Slave Devices I/O Link Master Module
,1024 Discrete Inputs GE IC609SJR100
,Universal Backplane GE Mark VIe Controller
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description
GE IC609SJR100 I/O Link Master Module
The Series 90-30 I/O Link Master Module enables a Series 90-30 PLC to operate as a master on the proprietary Fanuc I/O Link. The Fanuc I/O Link is a high-speed serial interface that supports the exchange of discrete I/O data between one master and up to 16 slave devices.
The master can receive up to 1024 discrete inputs from slaves and transmit up to 1024 discrete outputs.
A typical I/O Link system consists of a Series 90-30 PLC configured as the master, a Series 90-30 Hand-held Programmer (HHP), the I/O Link network, and one or more slaves. In a common configuration, a PowerMate CNC is used as a slave. Other supported slave devices include the Series 90-70 PLC, Series 90-30 PLC, Fanuc Series 0 CNC, Fanuc Connection Units, and Fanuc Operator Panels.
The module can be configured using Logicmaster 90 (LM90) Configurator software, release 4.5, or a Series 90-30 Hand-held Programmer. The HHP allows monitoring of I/O states, and with the Model 331 Series 90-30 PLC, it also supports overriding and forcing the I/O data exchanged with slave devices.
Module Specifications
Module Type: Standard Series 90-30 PLC module
Installation: Plugs directly into the Series 90-30 PLC baseplate. Secured by a latch located at the bottom of the module.
Mechanical Design: Removable front cover
Rack / Slot Usage: Occupies one module slot. Installable in any slot in any rack. Exception: Rack 0, Slot 1 (reserved for CPU module).
Power Supply Capacity: Maximum of six I/O Link Master Modules per CPU rack
Operating Conditions: 30-watt power supply. No other I/O modules installed. Optical cable adapter not used.
LED Status Indicators
The module has three LEDs that show its operating and communications status.
| ModuleOK | Module Configured | Link Active | Meaning |
|---|---|---|---|
| off | off | off | No power to module, or power up in progress |
| on | off | off | Module powered up but not configured |
| on | on | off | Module powered up and configured with minimum configuration (input status reference assigned and output status reference assigned), but link is not yet active, or has been activated but has gone down |
| on | on | on | Normal operation with active link |
