Allen Bradley 1747-DCM Direct Communication Module with 360 Milliamps Backplane Current

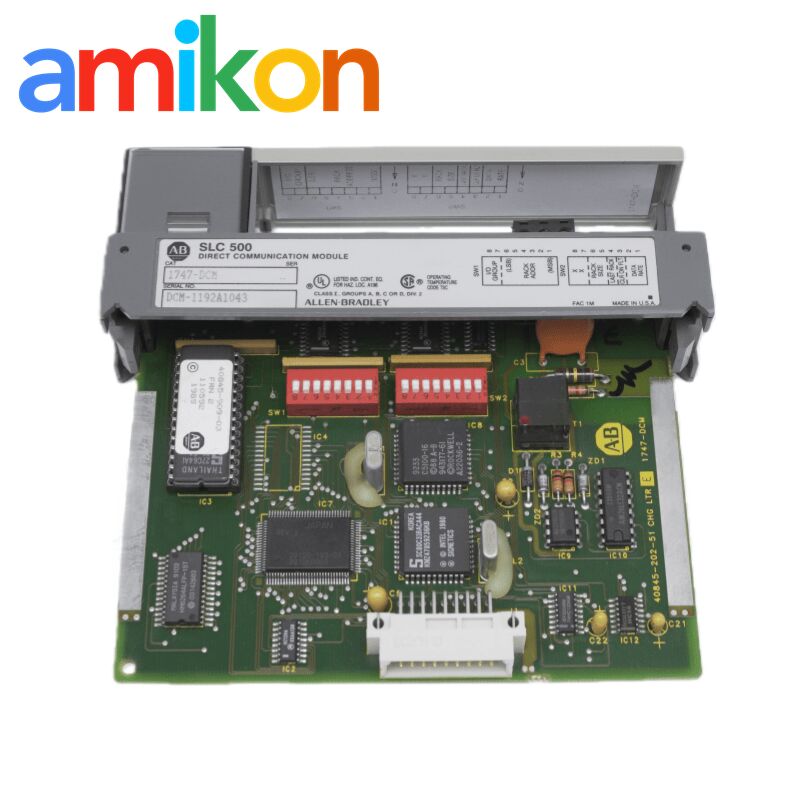

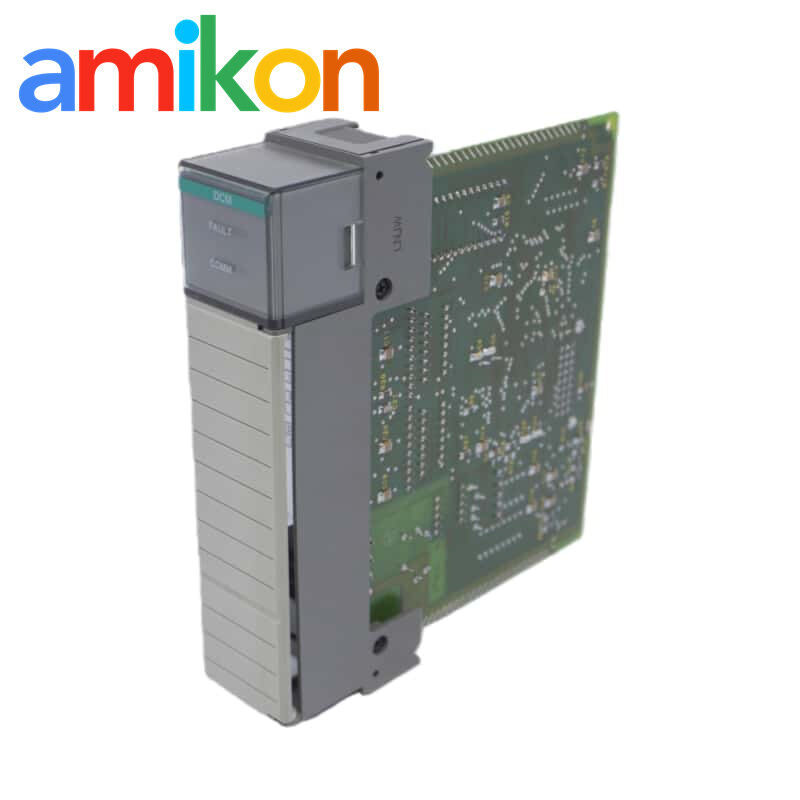

Allen Bradley 1747-DCM Direct Communication Module with 360 Milliamps Backplane Current
360 milliamps Backplane Current Direct Communication Module
6-Pin Phoenix Connector 1747-DCM
Belden 9463 Cable RIO Link Module
Place of Origin:
USA
Brand Name:
Allen Bradley
Model Number:
1747-DCM
Contact Us
Request A Quote
Product Details
Estimated Shipping Size:
15x5x15cm
Weight:
0.17 Kg
Backplane Current (5 Volts):
360 Milliamps
Cable:
Belden 9463
Connectors:
6-Pin Phoenix Connector
MOQ:
1 Piece
Shipping:
TNT, DHL, FedEx, EMS, UPS
Packaging:
Original New Packaging
Highlight:
360 milliamps Backplane Current Direct Communication Module
,6-Pin Phoenix Connector 1747-DCM
,Belden 9463 Cable RIO Link Module
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
Allen Bradley 1746-OBP16 16 Channel 24 VDC Output Module with Integrated Fuse Protection
Get Best Price
Video
Allen Bradley 1746-OB32 32 Point 24V DC Sourcing Configuration Digital Output Module
Get Best Price
Video
Allen Bradley 1756-DMD30 Drive Module and Fiber Optic Interface in Single-Slot Design
Get Best Price
Video
Allen Bradley 1747-ACN15 ControlNet I/O Adapter Module with High-Speed Data Transfer
Get Best Price
CONTACT US
Contact Now
Product Description
The Direct Communication Module (1747-DCM) connects any SLC 500 programmable controller with an expansion chassis or SLC 500 Modular Programmable Controller to a supervisory Allen-Bradley programmable controller via the RIO Link, providing a distributed processing system. The 1747-DCM enables these supervisory processors to transfer data between one another.
RIO Adapter Functionality
The 1747-DCM appears as an RIO adapter to:
| Compatible Systems |
|---|
| A PLC processor with integral RIO scanner on the RIO Communication Link |
| An RIO scanner, catalog number 1771-SN or 1747-SN, on the RIO Communication Link |
The 1747-DCM can physically reside on the RIO Link with any other adapter and is compatible with all RIO scanners.
Connection Configuration
1747-DCM Modules are connected in a daisy-chain configuration using Belden 9463 cable.
The Direct Communication Module, Catalog Number 1747-DCM, is used to connect an SLC 500 Fixed Programmable Controller with expansion chassis or any SLC 500 Modular Programmable Controller to a supervisory Allen-Bradley Programmable Controller via the RIO Link, thereby providing a distributed processing system. The DCM occupies one slot in any SLC 500 chassis.
Hardware Components
| Component | Function / Description |
|---|---|
| FAULT LED | Displays operating status |
| COMM LED | Displays communication status |
| Front, Side, and Door Labels | Provide module configuration information |
| RIO Link Connector | Provides physical connection to the RIO network |
| Cable Tie Slots | Secure and route wiring from the module |
| DIP Switches | Establish configuration parameters for the module |
| Self-Locking Tabs | Secure the module in the chassis slot |
Installation Instructions
- Power: Disconnect before installation
- Placement: Align the module with chassis card guides. Do not install in slot 0 (reserved for the CPU)
- Insertion: Slide the module into the chassis until the top and bottom latches fully engage
- Cable Connection: Attach the RIO link cable to the front connector
- Cable Securing: Insert a cable tie into the slots and route the cable down and away from the module
- Unused Slots: Cover all unused slots with the Card Slot Filler, catalog number 1746-N2
