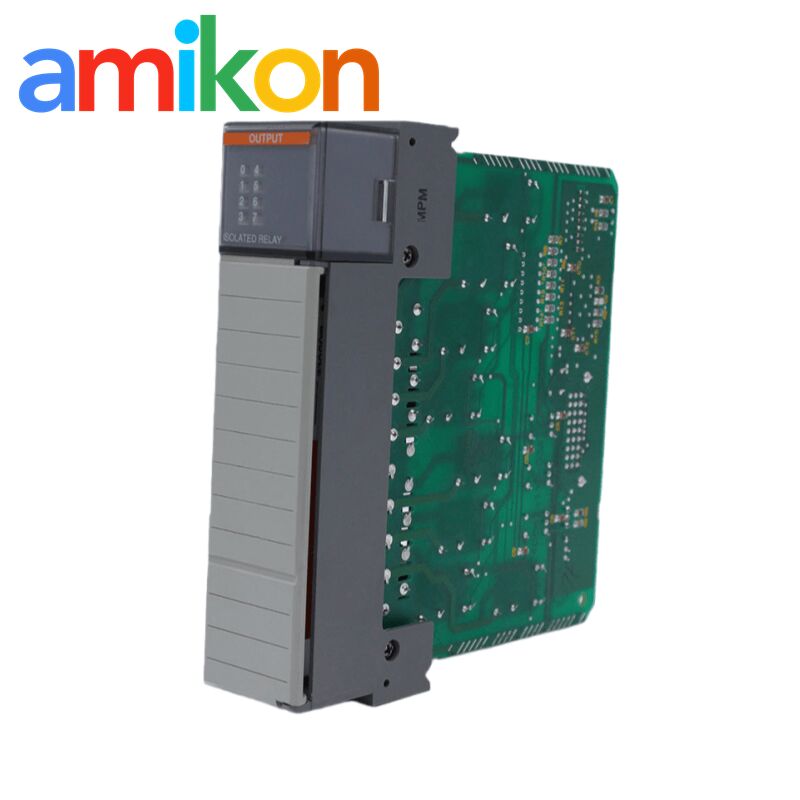

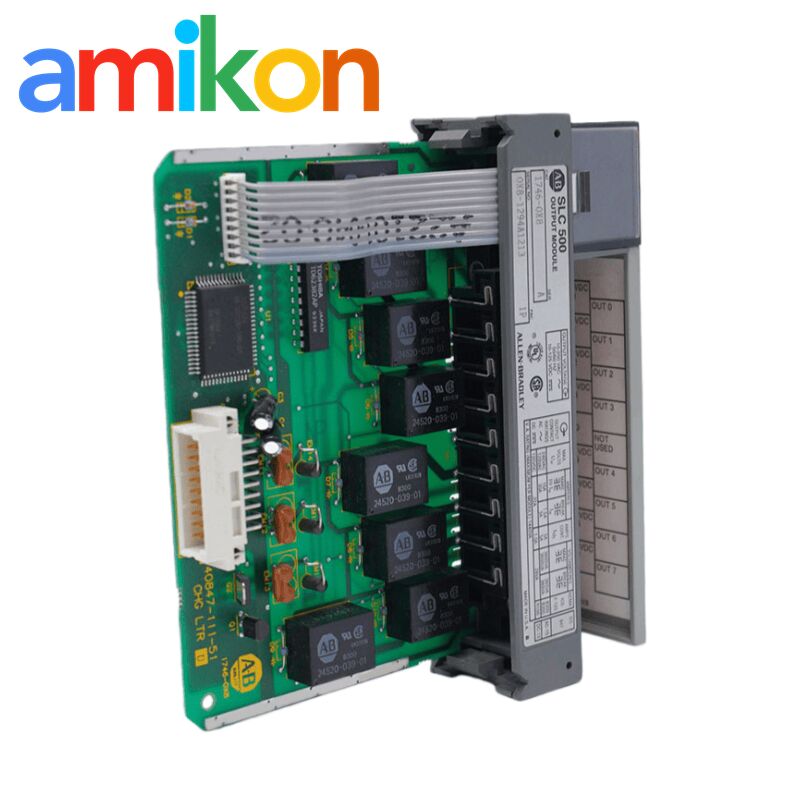

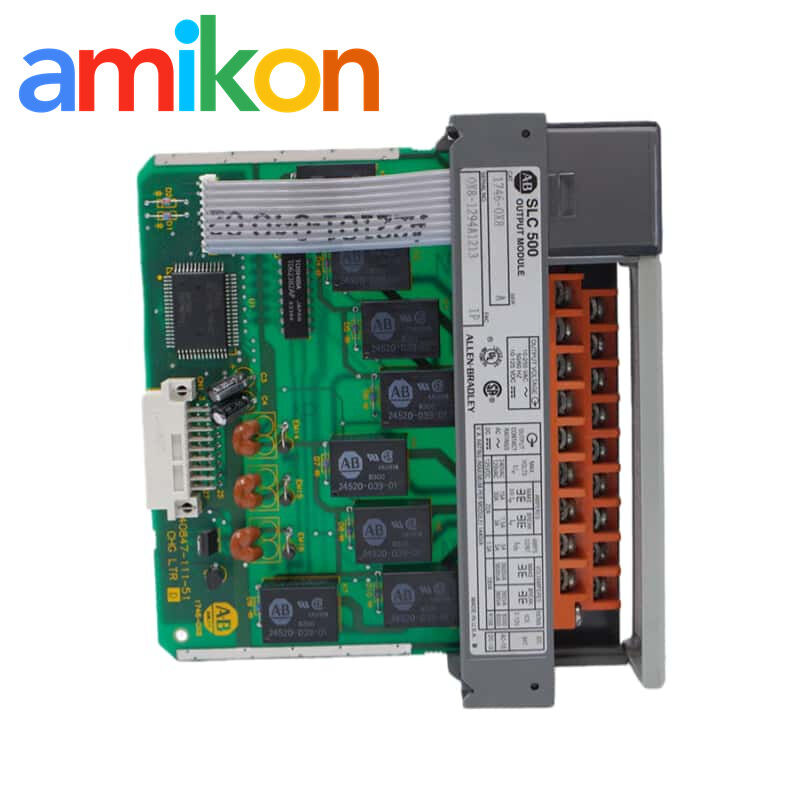

Allen Bradley 1746-OX8 Relay Output Module with 8 Outputs 30 A Relay Contact and 1500 V Isolation
Allen Bradley 1746-OX8 Relay Output Module with 8 Outputs 30 A Relay Contact and 1500 V Isolation
8 Outputs Relay Output Module
30 A Relay Contact Digital Output Module
1500 V Isolation SLC 500 Module
Place of Origin:
USA
Brand Name:
Allen Bradley
Model Number:
1746-OX8
Contact Us
Request A Quote
Product Details
Voltage Category:
AC/DC Relay
Number Of Outputs:
8
Backplane Current Consumption（5V DC）:
0.085 A
Backplane Current Consumption（24V DC）:
0.090 A
Off-state Leakage, Max:
0 MA
Load Current, Min:
10 MA @ 5V DC
Country Of Origin:
USA
MOQ:
1 Piece
Highlight:
8 Outputs Relay Output Module
,30 A Relay Contact Digital Output Module
,1500 V Isolation SLC 500 Module
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
Allen Bradley 1746-OBP16 16 Channel 24 VDC Output Module with Integrated Fuse Protection
Get Best Price
Video
Allen Bradley 1746-OB32 32 Point 24V DC Sourcing Configuration Digital Output Module
Get Best Price
Video
Allen Bradley 1756-DMD30 Drive Module and Fiber Optic Interface in Single-Slot Design
Get Best Price
Video
Allen Bradley 1747-ACN15 ControlNet I/O Adapter Module with High-Speed Data Transfer
Get Best Price
CONTACT US
Contact Now
Product Description
The Allen-Bradley 1746-OX8 is an SLC 500 digital output module featuring 8 high-current relay contact outputs that are individually isolated. This normally open (N.O.) relay output module provides robust relay contact ratings up to 30 A each for make and break at 120 V AC, and 15 A make / 1.5 A break at 240 V AC. At a continuous 5 A for both AC voltages, the module delivers 3600 VA make and 360 VA break capacity. For DC applications, maximum make and break ratings are 0.22 A each at 125 V DC, and 1.2 A each at 24 V DC, with continuous operation at 1 A for 125 V DC and 2 A for 24 V DC providing 28 VA make and break.
The module includes comprehensive status indicators, mounts securely in a chassis, and features an open-type enclosure design. Important safety note: installation or removal must only be performed when power is not applied to the chassis.
Technical Specifications
| Product Model | 1746-OX8 |
| Product Type | Relay Output Module |
| Manufacturer | Allen-Bradley |
| Country of Origin | USA |
| Outputs | 8 |
| Output Types | N.O. Relay Contact |
| Current/Output (120 VAC) | 3 amps |
| Current/Output (24VDC) | 1.2 amps |
| Operating Temperature | 0...60 °C (32...140 °F) |
| Operating Humidity | 5...95% (noncondensing) |
| Weight | 0.4 kg |
Performance Features
The module supports output currents of 3 A at 120 V AC and 1.2 A at 24 V DC. Operating voltage ranges from 5-125 V AC and 5-265 V DC. Backplane current consumption is 0.085 A at 5 V DC and 0.090 A at 24 V DC. Maximum resistive load signal delay is 10 milliseconds for both OFF and ON states. Minimum load current is 10 mA at 5 V DC, and maximum off-state leakage is 0 mA. Continuous current per module should be limited to 1440 VA.
The 1746-OX8 meets NEMA standard ICS 2 to 230 noise immunity and provides 1500 V electro-optical isolation between I/O terminals and control logic. Operating temperature range is 0 to 60°C, with storage temperatures from -40 to 85°C. The module is engineered to withstand operating vibration of 0.015 inches peak at 5-57 Hz and acceleration of 2.5 g at 57-2000 Hz, as well as operating shock of 10 g. Heat dissipation is 0.825 watts per point, with a minimum total dissipation of 2.590 W and a maximum total of 8.60 W.
The 1746-OX8 features channel-to-channel isolated relay outputs, enabling safe and reliable control of multiple loads simultaneously.
