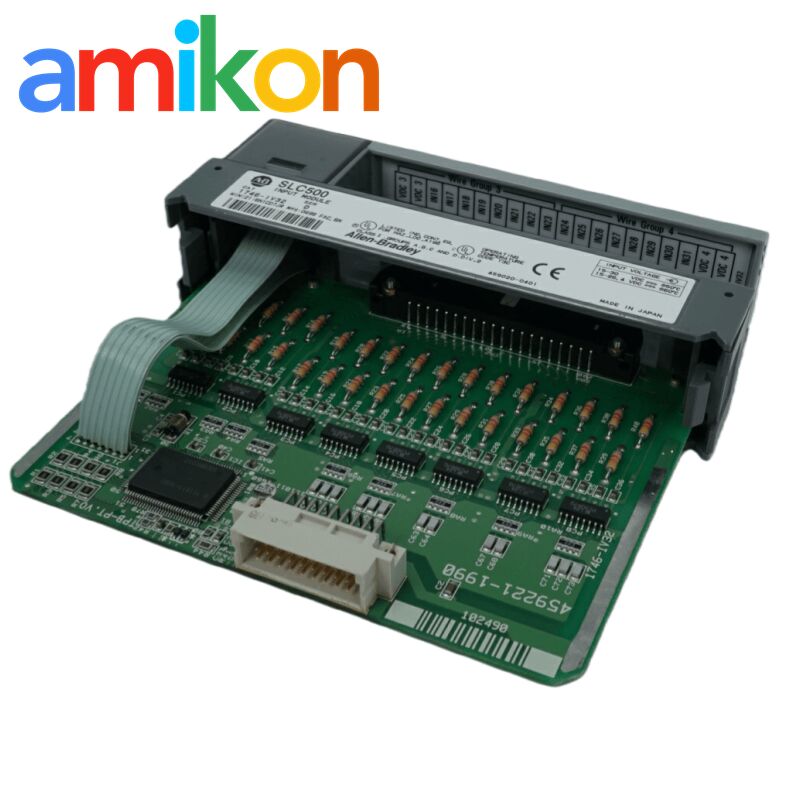

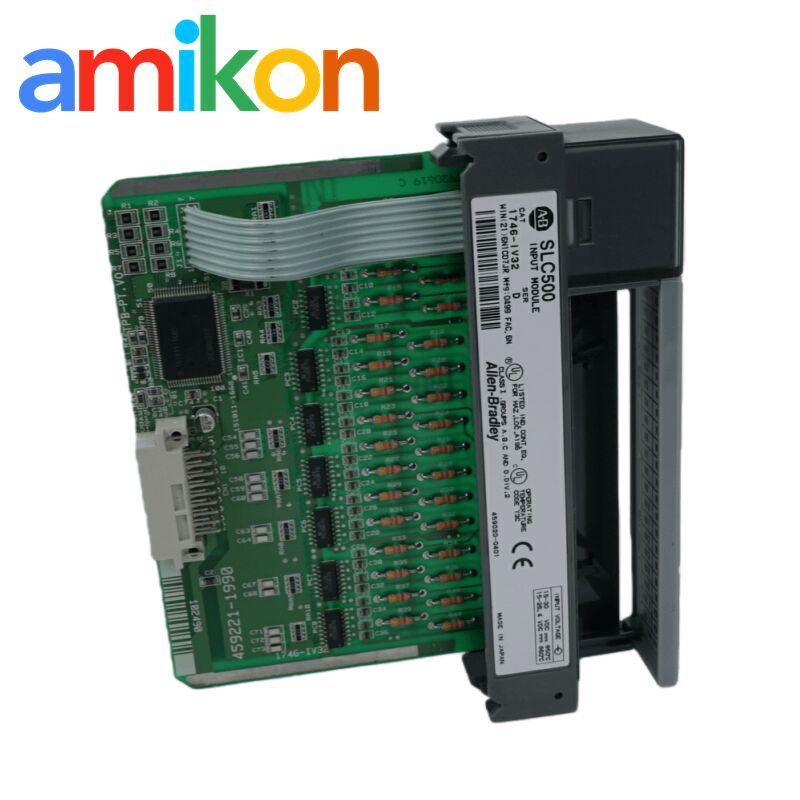

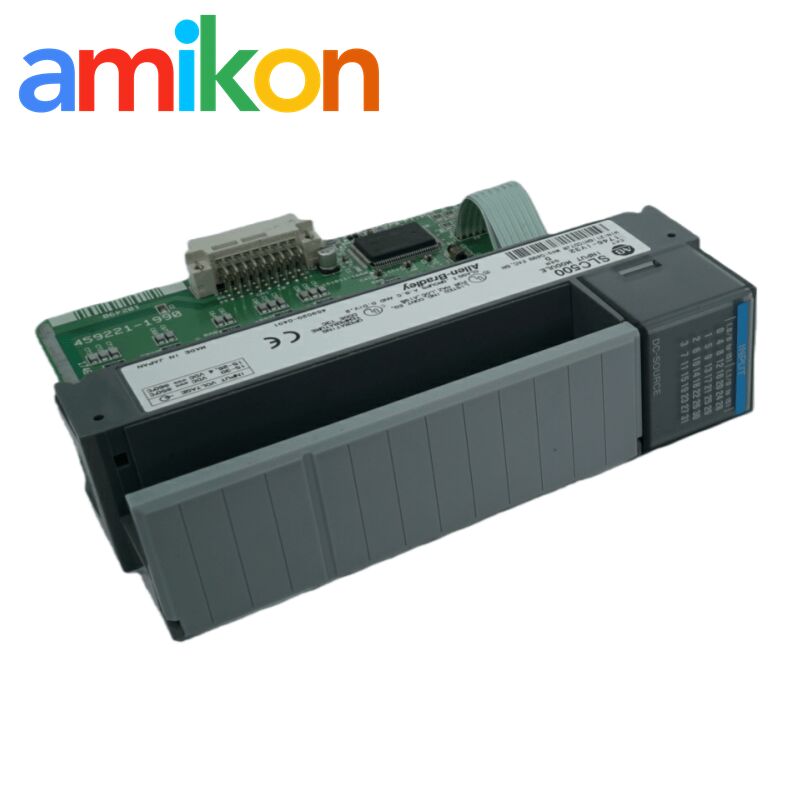

Allen Bradley 1746-IV32 32-channel 24V DC Current Sourcing SLC 500 Input Module
Allen Bradley 1746-IV32 32-channel 24V DC Current Sourcing SLC 500 Input Module
32-channel DC Input Module
24V DC SLC 500 Module
Current Sourcing 1746-IV32
Place of Origin:
USA
Brand Name:
Allen Bradley
Model Number:
1746-IV32
Contact Us
Request A Quote
Product Details
Place Of Shipment:
Xiamen, China
Country Of Origin:
USA
Estimated Shipping Size:
12.7x5.1x15.2cm
Weight:
0.3 Kg
Nom Input Voltage:
24VDC
Input Voltage Range:
10-30 VDC
Off-state Voltage, Max:
5VDC
Voltage Range:
10-30 Volts DC Source
Highlight:
32-channel DC Input Module
,24V DC SLC 500 Module
,Current Sourcing 1746-IV32
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
Allen Bradley 1746-OBP16 16 Channel 24 VDC Output Module with Integrated Fuse Protection
Get Best Price
Video
Allen Bradley 1746-OB32 32 Point 24V DC Sourcing Configuration Digital Output Module
Get Best Price
Video
Allen Bradley 1756-DMD30 Drive Module and Fiber Optic Interface in Single-Slot Design
Get Best Price
Video
Allen Bradley 1747-ACN15 ControlNet I/O Adapter Module with High-Speed Data Transfer
Get Best Price
CONTACT US
Contact Now
Product Description
The Allen-Bradley 1746-IV32 is a 32-channel digital input module for the SLC 500 system. This 24V DC current sourcing module features 32 input channels organized into four groups of eight channels each. Designed for industrial automation applications, it offers reliable performance in demanding environments.
Key Features
- 32 digital input channels in four 8-channel groups
- 24V DC current sourcing operation
- Operating voltage: 15-30V DC at 50°C, 15-26.4V DC at 60°C
- Backplane current draw: 0.05A at 5V DC
- Maximum signal delay: 3ms for ON/OFF states
- CE, CSA, and UL certified
- NEMA ICS 2-230 noise immunity
- Robust construction: withstands 2.5G vibration, 30G shock
- Operating temperature: 0-60°C with 5-95% non-condensing humidity
Series Variations
The 1746-IV32 is available in four series (A, B, C, and D). Series A, B, and C include four non-replaceable fuses (one per input common), while Series D does not feature internal fusing. The module is compatible with any SLC 500 chassis and processor, offering flexible deployment in local I/O racks, extended racks, or distributed I/O configurations.
Technical Specifications
| Specification | 1746-IV32 |
|---|---|
| Number of Inputs | 32 |
| Points Per Common | 8 |
| Voltage Category | 24V DC |
| Operating Voltage Range | 15-30V DC @ 50°C (122°F) 15-26.4V DC @ 60°C (140°F) |
| Backplane Current at 5V | 50 mA |
| Backplane Current at 24V | 0 mA |
| Voltage, Off-State Input, Max | 5.0V DC |
| Nominal Input Current | 5.1 mA @ 24V DC |
| Current, Off-State Input, Max | 1.5 mA |
| Signal On Delay, Max | 3 ms max |
