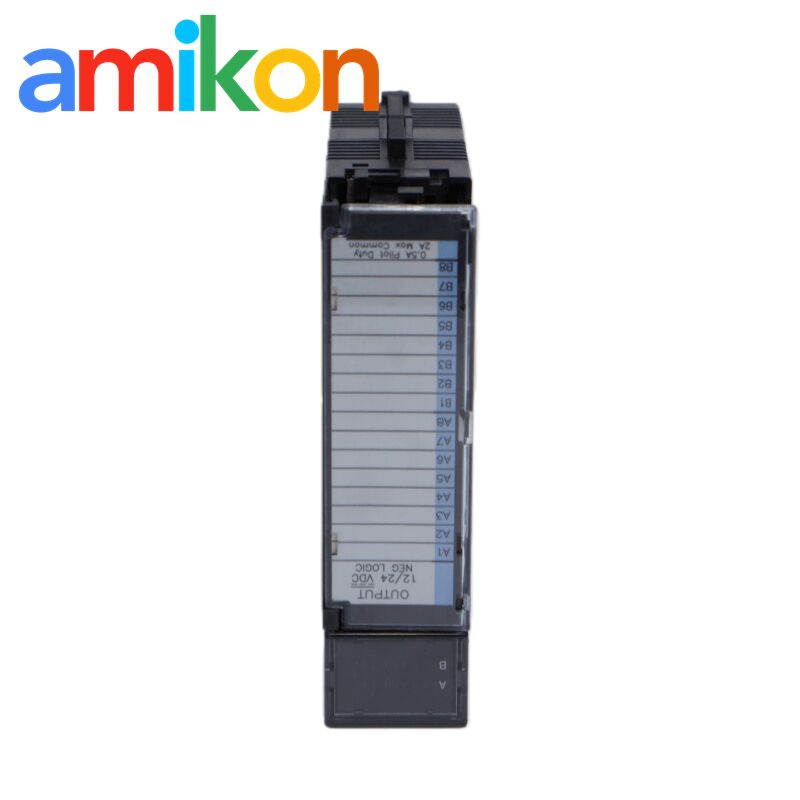

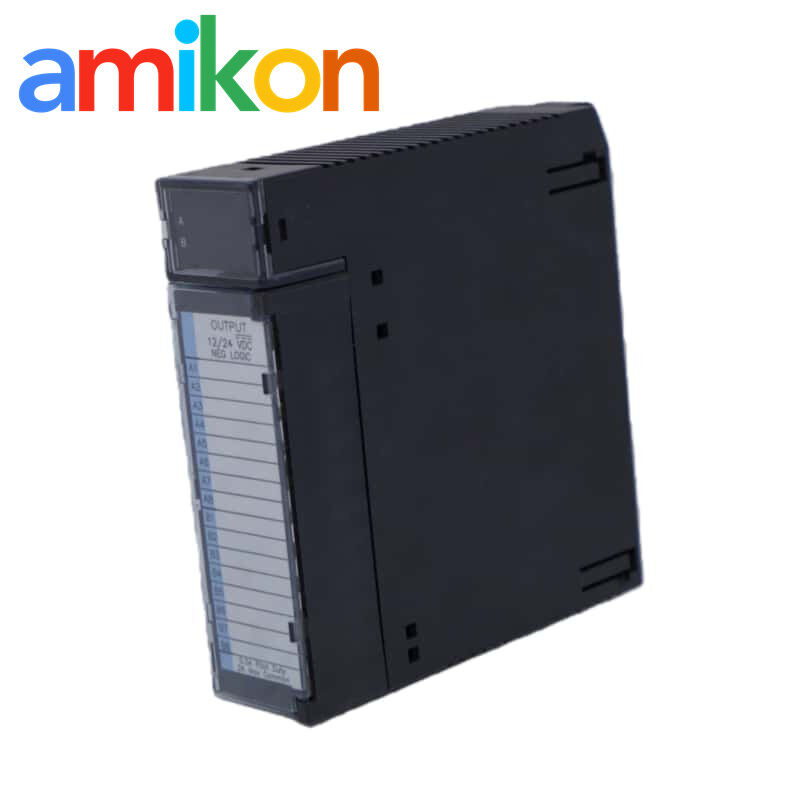

GE IC693MDL741 Discrete Output Module with 16 Output Points 12-24 VDC and 1500 Volts Isolation
GE IC693MDL741 Discrete Output Module with 16 Output Points 12-24 VDC and 1500 Volts Isolation
16 Output Points Discrete Output Module
12-24 VDC Output PLC Output Module
1500 Volts Isolation GE IC693MDL741
Place of Origin:
USA
Brand Name:
General Electric
Model Number:
IC693MDL741
Contact Us
Request A Quote
Product Details
Estimated Shipping Size:
3.5x13x13.7cm
Weight:
0.2 Kg
Place Of Shipment:
Xiamen, China
Output Current:
0.5 Amperes Per Point; 2 Amperes Per Common
Isolation:
1500 Volts Between Field Side And Logic Side; 500 Volts Between Groups
Current Draw:
110 MA (all Outputs Active)
Output Voltage Range:
12-24 VDC With (+ 20%, -15%)
Operating Temperature:
0 To 60 Degrees Celsius
Highlight:
16 Output Points Discrete Output Module
,12-24 VDC Output PLC Output Module
,1500 Volts Isolation GE IC693MDL741
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description
The IC693MDL741 is part of Emerson Automation's Series 90-30 Programmable Logic Controller (PLC) platform, formerly from GE Fanuc. This discrete output module supports negative logic wiring configuration and features sixteen (16) output LED indicators that display the operational state of each channel. The module delivers an output voltage range of 12 to 24 volts DC (+20%, -15%) with an output current rating of 0.5 Amperes per point and 2.0 Amperes per common, arranged in eight (8) channels per group.
While the module does not have individual channel isolation, it provides group isolation: 500 Volts between groups and 1500 Volts between the field side and logic side with optical isolation. A module insert allows users to write short descriptions of assigned outputs for easy identification.
The IC693MDL741 installs on a Series 90-30 baseplate, occupying a single slot, and can function as a local output component with the CPU baseplate or as a distributed I/O module. Its output characteristics include voltage drop of 0.5 Volts, off-state leakage of 1 mA, and Signal On and Off response time of 2 ms maximum. The module draws 110 mA from the 5VDC backplane when all outputs are energized.
This module is capable of energizing electrical loads such as motor starters, solenoids, indicating lamps, and annunciators. It may also be used with AC loads when an interposing relay is installed. The 16-point IC693MDL741 module can be installed in any slot of a Series 90-30 PLC with either a 5-slot or 10-slot baseplate.
The module sinks current from the loads to the negative power bus or user common, giving it negative logic characteristics. LEDs clearly indicate the on/off status of output points. Operating temperature range is 0 to 60°C, with storage temperature of -40 to 85°C.
| Feature | Details |
|---|---|
| Output Points | 16 |
| Number of Channels | 16 |
| Channels per Group | 8 |
| Output Groups | 2 |
| Rated Voltage | 12 / 24 VDC |
| Nominal Output Voltage | 12 / 24 VDC |
| Module Voltage Input | 5 VDC |
| Peak Module Current Draw | 110 mA |
| Peak Output Voltage Drop | 0.5 V |
| Output Voltage Drop (Max) | 0.5 V |
| On Response Time (Max) | 2 ms |
| Off Response Time (Max) | 2 ms |
| Off-State Leakage | 1 mA |
The IC693MDL741 is a 12/24 VDC, negative logic, 0.5 Amp output module for Series 90-30 PLCs. This guide shows how to connect user-supplied devices and power safely.
The 16 outputs are divided into two groups of eight channels. Group-to-group isolation is 500 V, and field-to-logic isolation is 1500 V. The module sinks current to the negative bus or user common, following negative logic operation.
It can drive DC loads like motor starters, solenoids, lamps, and annunciators. AC loads require an interposing relay. LED indicators show the status of each channel, helping verify wiring and operation. Follow proper polarity and voltage ratings to ensure safe, reliable performance.
