Allen Bradley 1771-ACN15 Communication Interface Module with 5 Mbps Communication Rate
Allen Bradley 1771-ACN15 Communication Interface Module with 5 Mbps Communication Rate
5 Mbps Communication Rate Communication Interface Module
ControlNet Network Compatibility ControlNet I/O Adapter Module
Diagnostic and Status Indicators 1771-ACN15 Module
Place of Origin:
USA
Brand Name:
Allen Bradley
Model Number:
1771-ACN15
Contact Us
Request A Quote
Product Details
Product Model:
1771-ACN15
Country Of Origin:
USA
Place Of Shipment:
Xiamen, China
Estimated Shipping Size:
5x16.5x27.4cm
Manufacturer:
Allen Bradley
Weight:
0.96 Kg
Shipping:
TNT, DHL, FedEx, EMS, UPS
MOQ:
1 Piece
Highlight:
5 Mbps Communication Rate Communication Interface Module
,ControlNet Network Compatibility ControlNet I/O Adapter Module
,Diagnostic and Status Indicators 1771-ACN15 Module
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
Allen Bradley 1746-OBP16 16 Channel 24 VDC Output Module with Integrated Fuse Protection
Get Best Price
Video
Allen Bradley 1746-OB32 32 Point 24V DC Sourcing Configuration Digital Output Module
Get Best Price
Video
Allen Bradley 1756-DMD30 Drive Module and Fiber Optic Interface in Single-Slot Design
Get Best Price
Video
Allen Bradley 1747-ACN15 ControlNet I/O Adapter Module with High-Speed Data Transfer
Get Best Price
CONTACT US
Contact Now
Product Description

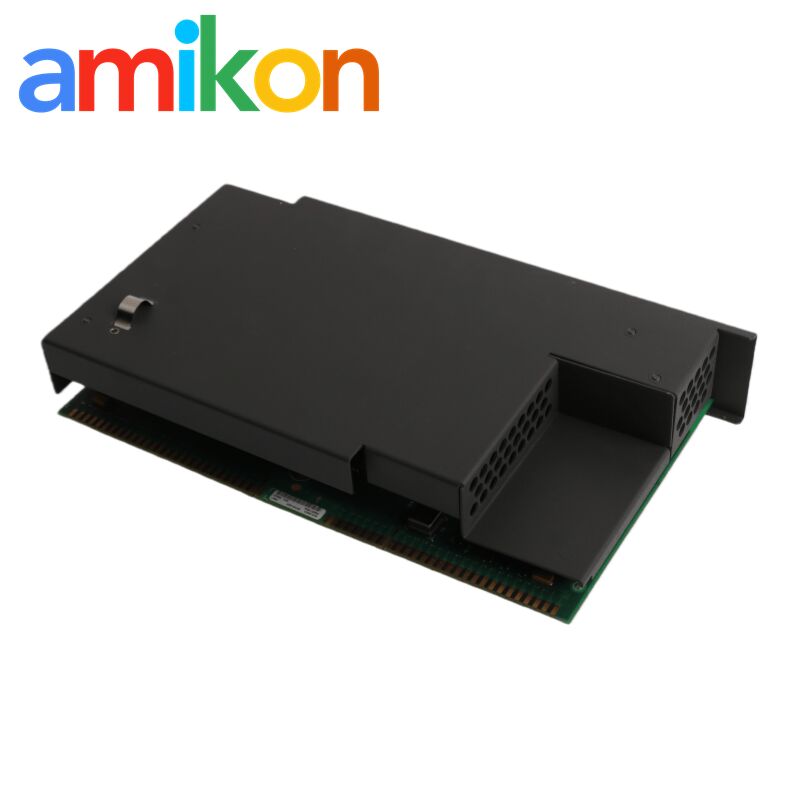

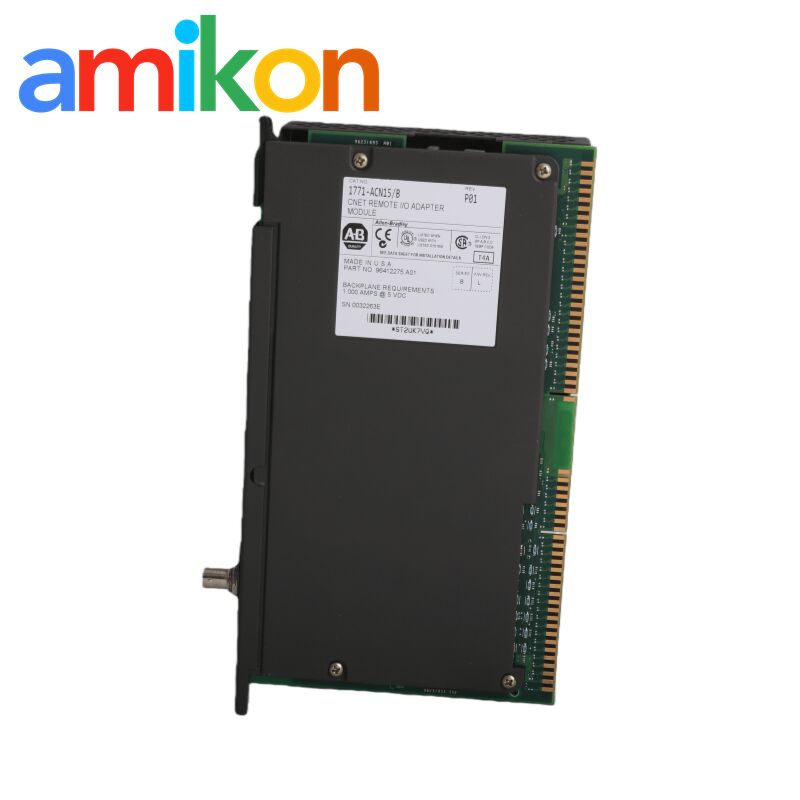

The Allen-Bradley 1771-ACN15 is a ControlNet I/O Adapter Module for the 1771 PLC-5 system. It enables communication between I/O modules in the 1771 chassis and a ControlNet scanner port over a ControlNet network. This module features high-speed data transfer, diagnostic messaging capabilities, and includes a Network Access Port (NAP) for programming and maintenance access to the local communication network.
The 1771-ACN15 operates at a communication rate of 5 Mbps and requires a ControlNet PLC-5 controller. It must be installed in a remote ControlNet chassis and positioned in the leftmost slot. The module requires 1A at 5V DC backplane current, has a power dissipation of 5W, and thermal dissipation of 17.06 BTU/hr.
Keying bands between positions 54-56 on the upper connector and 16-18 on the lower connector prevent incorrect module insertion. For network connectivity, a quad-shield RG-6 coaxial cable is required. The module features one standard BNC connector and uses two switch assemblies (ten's switch and one's switch) to configure network addresses from 1 to 99.

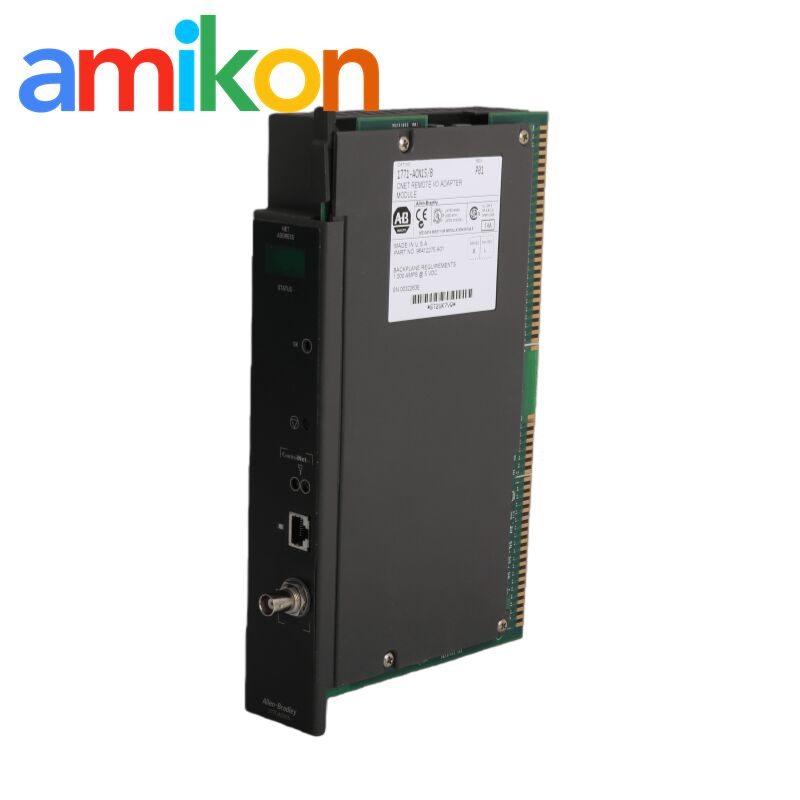

For troubleshooting and diagnostics, the 1771-ACN15 includes an OK indicator, status indicator, alphanumeric display, and a Communication Reset Pushbutton to resume communication after errors, ensuring reliable network operation and simplified maintenance.
| Module Type | I/O Adaptor Module |
| Port | ControlNet I/O Adaptor |
| Rate of Communication | 5 Mbit/s |
| Power Dissipation | 5 Watts |
| Backplane Current (at 5 Volts) | 1.0 Amperes |
| Thermal Dissipation | 17.06 BTU/hr |
| Cable | Coaxial Quad-Shield RG-6 |
| Upper Connector Keying | 54-56 |
ControlNet Network Connection Procedure
You connect your 1771-ACN15 or -ACNR15 adapter module to a ControlNet network via taps. These taps are available:
- Remove the dust cap from the tap's straight or right-angle connector
- Remove and discard the dust caps from the adapter's BNC jacks
- Connect the tap to the adapter by plugging its connector into the adapter's BNC jack
- For redundant adapters (1771-ACNR15): remove (and save) the dust cap from the straight or right-angle connector on the second segment (segment 2)
- Connect this tap to the adapter's BNC jack for segment 2
- Once both segments are terminated, your node is ready to connect to the network
