GE IC693CHS391 10 Slot Modular CPU Expansion Baseplate with Panel Mount for Flexible PLC Setup
GE IC693CHS391 10 Slot Modular CPU Expansion Baseplate with Panel Mount for Flexible PLC Setup
10 Slot Expansion Baseplate
Modular CPU Expansion Baseplate
Panel Mount Expansion Baseplate
Place of Origin:
USA
Brand Name:
General Electric
Model Number:
IC693CHS391
Contact Us
Request A Quote
Product Details
Product Model:
IC693CHS391
Product Parameters:
10 Slot Expansion Baseplate
Country Of Origin:
USA
Place Of Shipment:
Xiamen, China
Estimated Shipping Size:
44.4x2.2x12.9cm
Weight:
0.95 Kg
Computer Connection:
Supported With A PCI Card
Product Lifecycle Status:
Discontinued/Obsolete
Highlight:
10 Slot Expansion Baseplate
,Modular CPU Expansion Baseplate
,Panel Mount Expansion Baseplate
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description

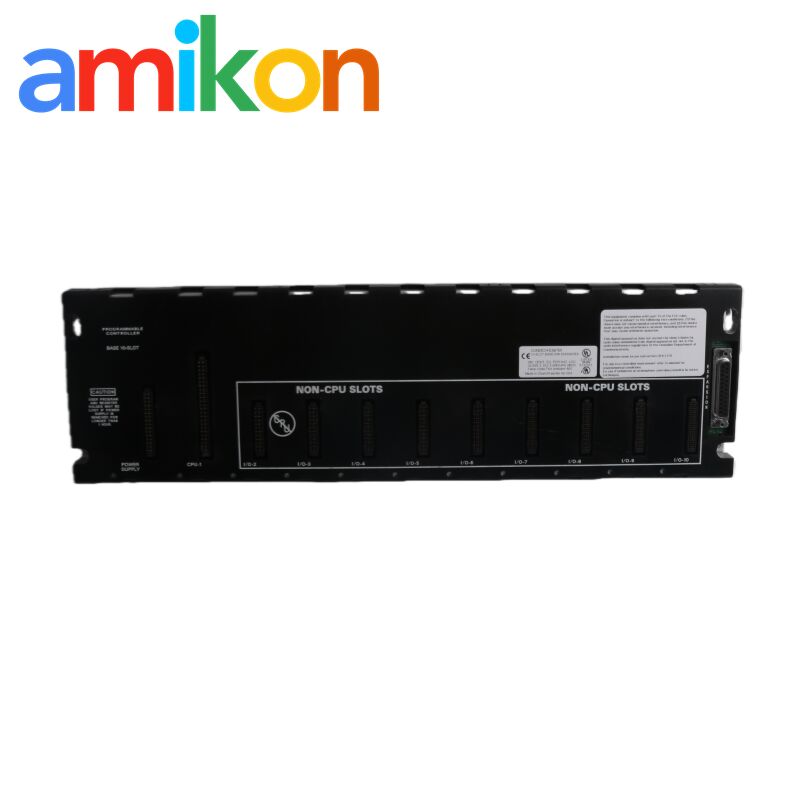

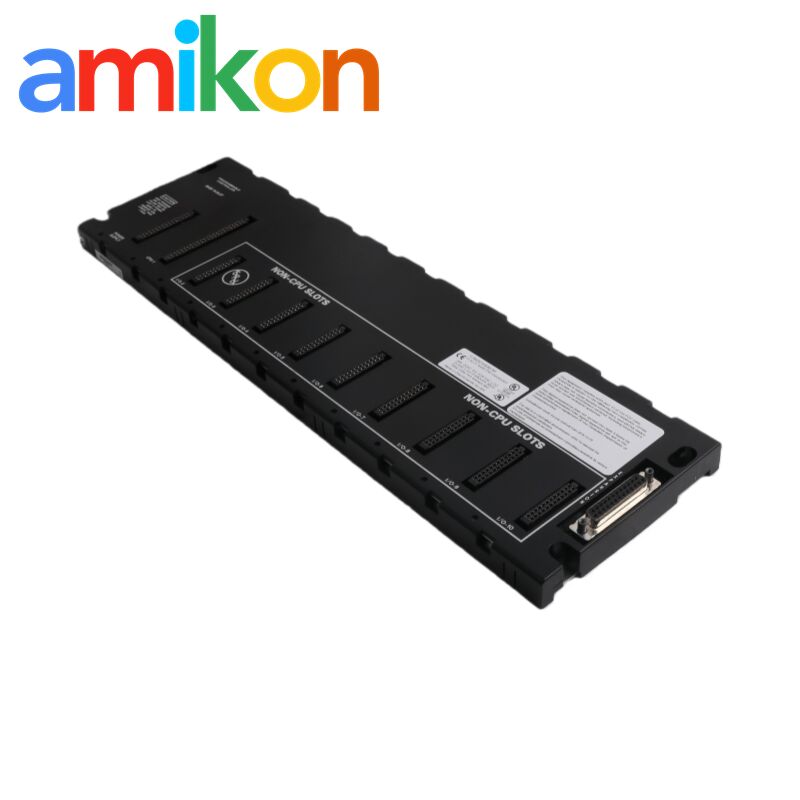

The IC693CHS391 is a modular CPU baseplate from GE Fanuc's Series 90-30, designed to provide flexible and manageable PLC system configuration. This baseplate supports modular CPUs, I/O modules, and Power Supply modules in an organized layout.
Key Features
- 10 Total Slots: 1 CPU slot (Slot 1) for CPU modules or special option modules like the FIP Bus Remote I/O Scanner, plus 9 I/O slots (Slots 2-10) for I/O or option modules
- Power Supply Slot: Installed in the left-most position (not included in slot count)
- Expansion Port: 25-pin female connector on the right side for connecting expansion or remote baseplates
- Modular Design: Easy CPU and module replacement or upgrade for enhanced functionality
- Node Address: Defaults to 0, adjustable via programming software
- Expansion Support: Supports up to 4 or 7 expansion baseplates depending on CPU configuration
Technical Specifications
- Current: 420 mA
- Voltage: 5 V DC
- Mounting: Panel mount only with screws and washers; compatible with vertical or horizontal orientation
- Design: Open enclosure for simplified installation and maintenance
- Connectivity: Compatible with PLC or PC via PCI card; remote connections require cable under 700 feet
- Environmental Requirements: Operate within specified temperature range; protect from water, dust, and harmful chemicals
| Only one modular CPU baseplate is allowed per system. Any additional baseplates must be expansion or remote I/O types. | Power supply installs in the left-most slot, leaving all numbered slots available for CPU or I/O modules. | CPU always occupies Slot 1, while Slots 2+ are reserved for I/O/option modules. | Expansion or remote baseplates connect on the right-hand expansion port, supporting multiple CPUs depending on configuration. |
Module Installation Guidelines
Power Supply Module: Must be installed in the left-most slot (not numbered). This slot is uniquely sized and type-specific, exclusively supporting Power Supply modules.
CPU Module / Special Option Module: Must be installed in Slot 1 (labeled CPU/1). This specially sized slot supports CPU modules or special option modules such as the FIP Remote I/O Scanner (IC693BEM330).
I/O and Option Modules: Slots 2 and above are uniquely sized and type-specific, designed exclusively for I/O or Option modules.
Expansion & Remote Baseplates: A 25-pin D-type female expansion connector at the right end allows connection to Expansion or Remote baseplates.
Modular CPU Features: CPU modules are replaceable or upgradeable for additional functionality. Only one CPU baseplate is permitted per system, with additional baseplates requiring Expansion or Remote types. By default, modular CPU baseplates are assigned Rack Number 0.
Is the equipment new?
Absolutely. We exclusively supply Brand New, Original components.
Absolutely. We exclusively supply Brand New, Original components.
How are we protected?
Every part includes a comprehensive 1-Year Warranty for complete peace of mind.
Every part includes a comprehensive 1-Year Warranty for complete peace of mind.
Why Choose Amikon?
- Better Prices: Reduce your maintenance costs with competitive pricing
- Faster Shipping: Minimize downtime with expedited delivery
- Real Support: Experience dedicated partnership, not just transactional sales
Payment Method: T/T (Wire Transfer) accepted.
