GE IC693CBL305 Profibus Interface Module with 1 Foot Cable Length for Dual Serial Ports

GE IC693CBL305 Profibus Interface Module with 1 Foot Cable Length for Dual Serial Ports

1 Foot Cable Length Profibus Interface Module

28 AWG Size Wire Wye Cable

Dual Serial Ports Serial Communication Cable

Place of Origin:

USA

Brand Name:

General Electric

Model Number:

IC693CBL305

Contact Us
Request A Quote
Product Details
Part Number:
IC693CBL305
Cable Length:
1 Foot
Cable Type:
Wye Cable
Wire Shield:
Yes
Average Weight:
2.0 Pounds
Cable Housing:
Yes
Conducting Material:
28 AWG Size Wire
Country Of Origin:
USA
Highlight:

1 Foot Cable Length Profibus Interface Module

,

28 AWG Size Wire Wye Cable

,

Dual Serial Ports Serial Communication Cable

Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
Product Description
GE IC693CBL305 Profibus Interface Module with 1 Foot Cable Length for Dual Serial Ports 0

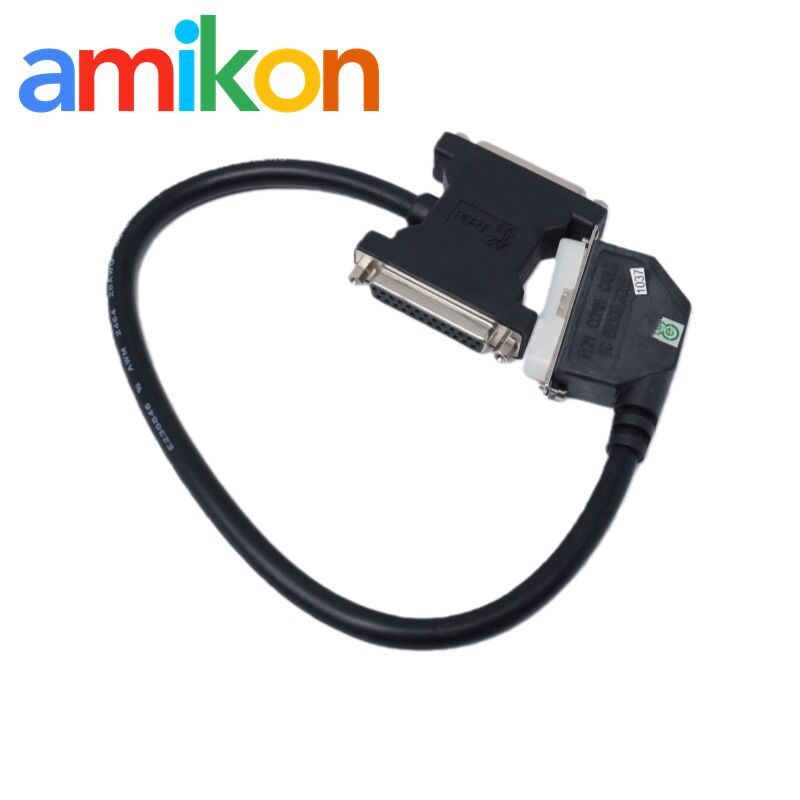

The GE Fanuc IC693CBL305 Wye Cable is a serial communication cable designed to physically separate the GE Series 90-30 communications coprocessor modules' combined serial ports into two ports, known as Port 1 and Port 2, for ease of wiring. The IC693CBL305 Cable is also used to split out the two ADC port connections from the single connector on an ADC module. This cable is supplied with the GE Series 90-30 communications coprocessor modules.
The IC693CBL305 Wye Cable is designed to provide physical distance between the serial ports, allowing convenient space for wiring. It is compatible with Series 90-30 CMM and PCM modules, which have Port 1 and Port 2 configured by default as a single connector, and it provides physical separation between these two port signals. Cable IC693CBL305 can be used in applications that require use of both SCM serial ports.
This is a Wye-type cable that breaks out the Port 1 and Port 2 connections on the module's single connector into two individual connectors. This cable is not required for applications that use only one SCM port.
Caution: The IC693CBL305 Wye Cable should not be used with an SCM connected to a multidrop network because it introduces signal reflections on the network. Multidrop networks should be cabled directly to the SCM serial connector.
GE IC693CBL305 Profibus Interface Module with 1 Foot Cable Length for Dual Serial Ports 1 GE IC693CBL305 Profibus Interface Module with 1 Foot Cable Length for Dual Serial Ports 2
Key Features
  • Splits one serial connector into two independent ports
  • Gives extra wiring space and better cable management
  • Works with CMM, PCM, and SCM modules in the GE 90-30 family
  • Helps when both serial ports must be used at once
  • Supplied with GE 90-30 communication coprocessor modules
Common Applications
The IC693CBL305 is commonly used in industrial control systems, PLC communication setups, systems that need dual serial ports for programming, data exchange, or device communication, and ADC module installations where two ports need to be accessed separately.
