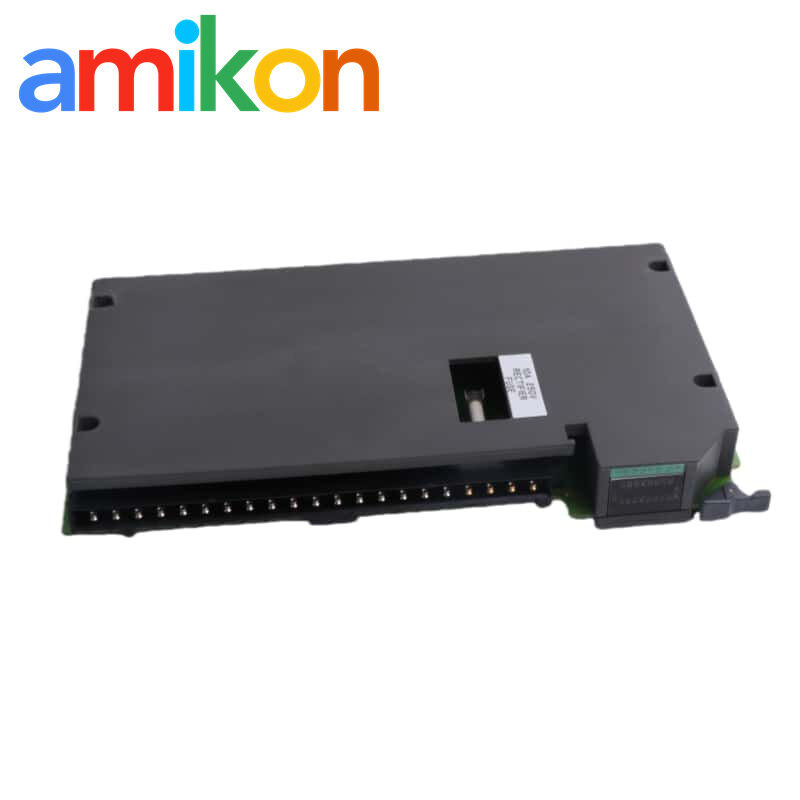

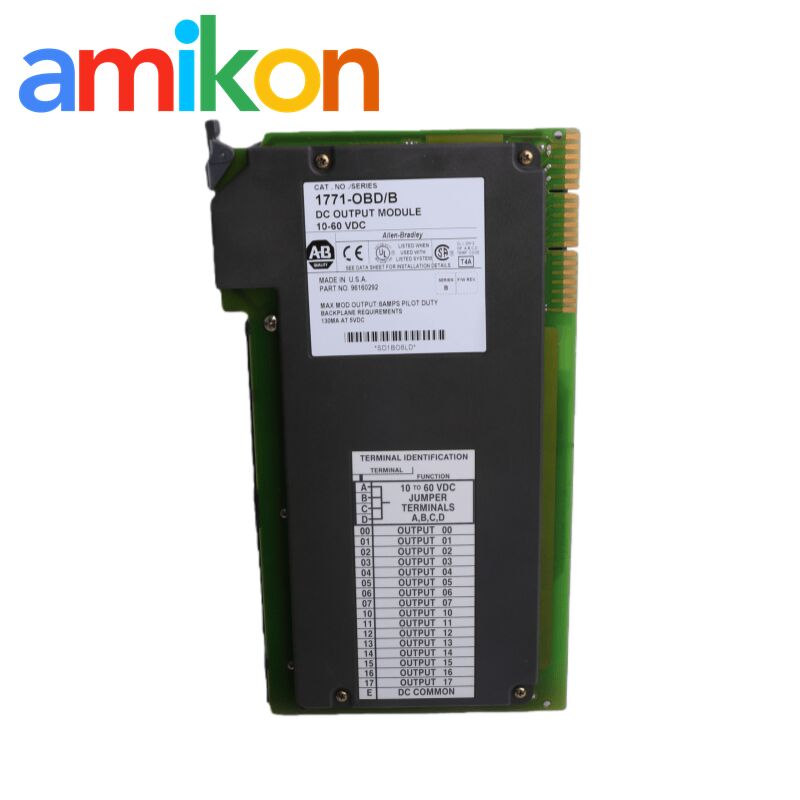

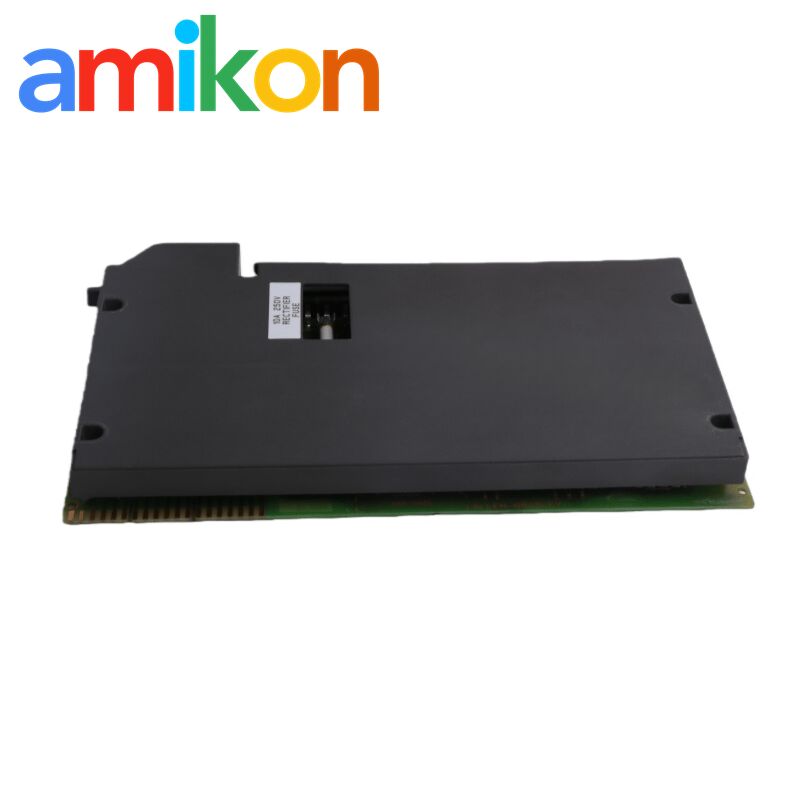

Allen Bradley 1771-OBD 16 Point Digital Output Module with 2 Amp and 10-60VDC Operating Range
16 Point Digital Output Module
2 Amp Allen Bradley Module
10-60VDC 1771-OBD
Place of Origin:
USA
Brand Name:
Allen Bradley
Model Number:
1771-OBD
16 Point Digital Output Module
,2 Amp Allen Bradley Module
,10-60VDC 1771-OBD
Video
Allen Bradley 1746-OBP16 16 Channel 24 VDC Output Module with Integrated Fuse Protection
Video
Allen Bradley 1746-OB32 32 Point 24V DC Sourcing Configuration Digital Output Module
Video
Allen Bradley 1756-DMD30 Drive Module and Fiber Optic Interface in Single-Slot Design
Video
Allen Bradley 1747-ACN15 ControlNet I/O Adapter Module with High-Speed Data Transfer
Product Details
Product Model: 1771-OBD
Spare Models: 1771-0BD, 1771-OBD/B, 1771-OBD/C
Manufacturer: Allen-Bradley
Type: Digital Output Module, 16 Point, 2 Amp
Operating Voltage: 10-60 VDC
Nominal Output Voltage: 48 VDC
Minimum Load Current: 2.5 mA
Power Dissipation: 15.6 W
Mounting: Rack Mountable (1771OBD)
|
Installation Guide
Insert the 1771-OBD module into the appropriate slot in the chassis.
Ensure the module is securely seated to maintain proper electrical and mechanical connection.
The 1771-OBD is a modular component of the 1771 I/O system.
Requires a properly installed system chassis.
Refer to the Universal I/O Chassis Installation Instructions for full guidance.
Ensure that adjacent slots do not exceed 10 W of power dissipation.
This prevents overheating and ensures stable operation.
