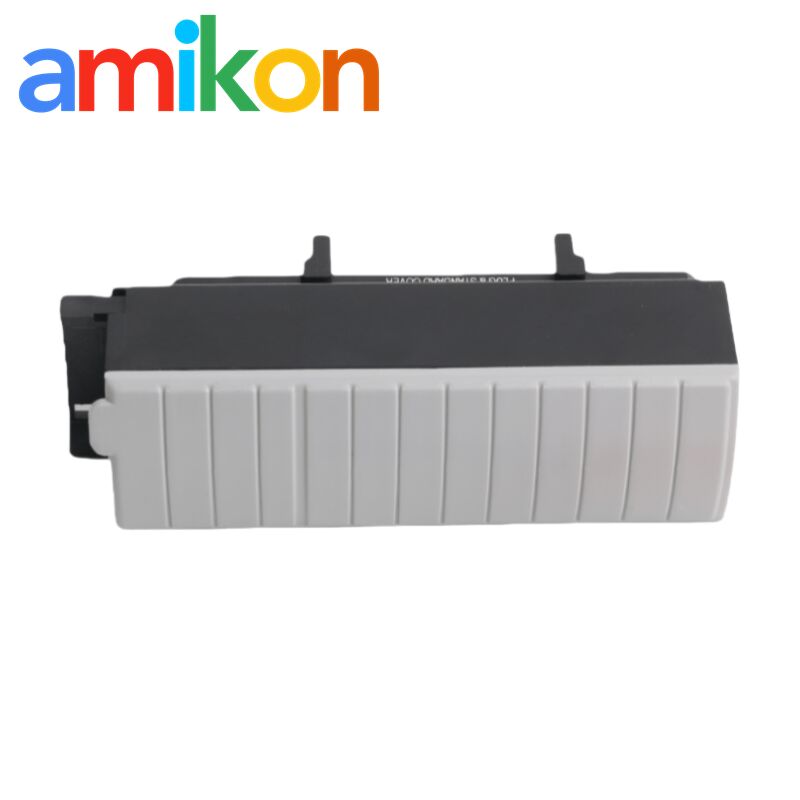

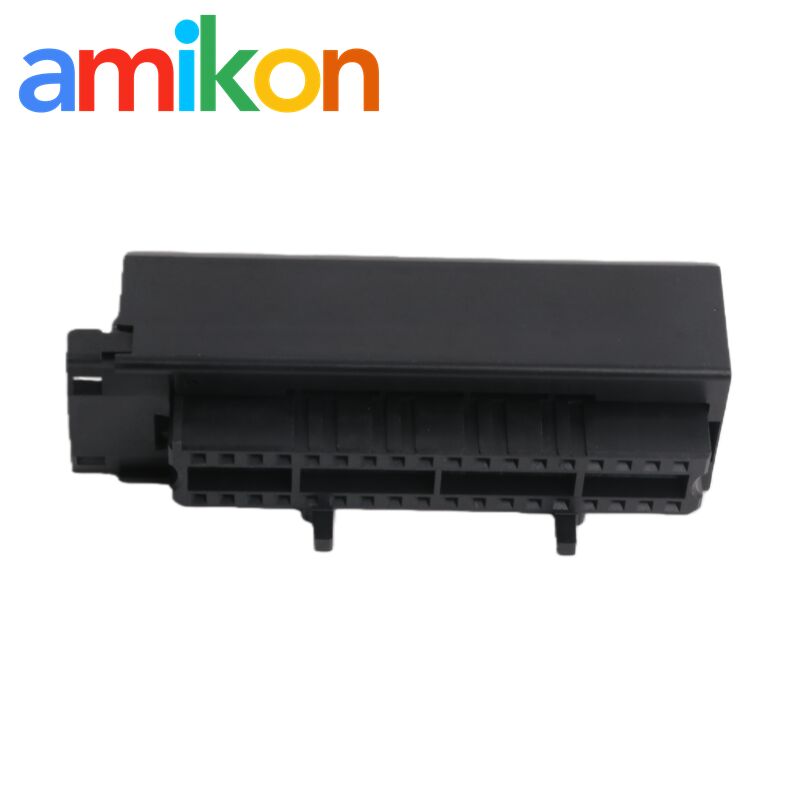

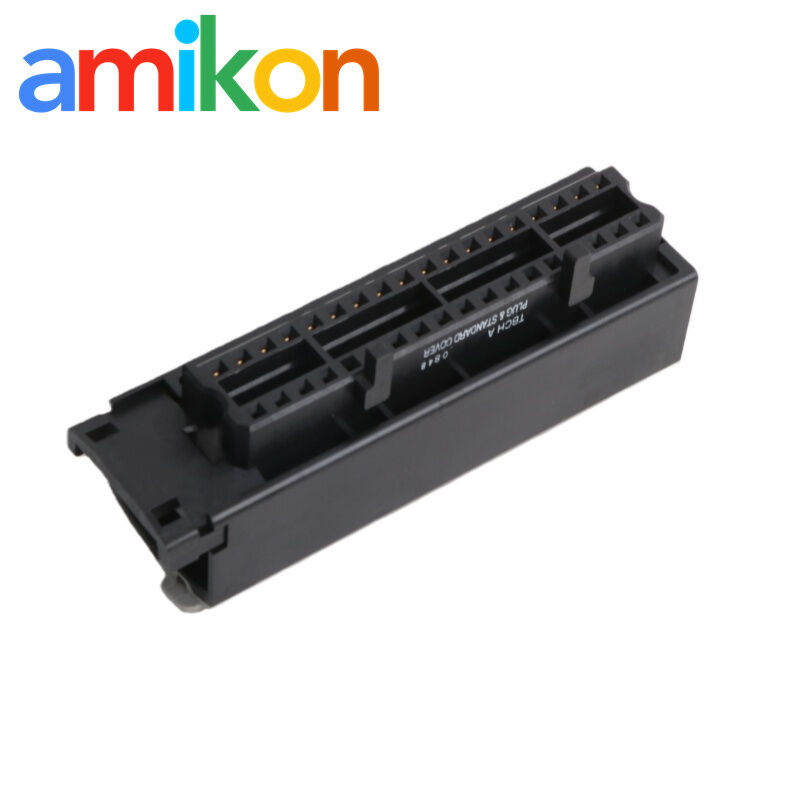

Allen Bradley 1756-TBCH ControlLogix 36-Pin Screw-Clamp Terminal Block in 0-60°C Environments
Allen Bradley 1756-TBCH ControlLogix 36-Pin Screw-Clamp Terminal Block in 0-60°C Environments
36-Pin Connection ControlLogix Terminal Block
22-14 AWG Wire Size 1756-TBCH Terminal Block
0-60°C Operating Temperature Removable Terminal Block
Place of Origin:
USA
Brand Name:
Allen Bradley
Model Number:
1756-TBCH
Contact Us
Request A Quote
Product Details
Product Model:
1756-TBCH
Place Of Shipment:
Xiamen, China
Estimated Shipping Size:
3.5x5x11.8cm
Manufacturer:
Allen Bradley
Weight:
0.15 Kg
Pins:
36-Pin Connection
Operating Temperature:
32-140 Fahrenheit (0-60 Celsius)
Screwdriver Width:
3.2 Mm (1/8 In.)
Highlight:
36-Pin Connection ControlLogix Terminal Block
,22-14 AWG Wire Size 1756-TBCH Terminal Block
,0-60°C Operating Temperature Removable Terminal Block
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
Allen Bradley 1746-OBP16 16 Channel 24 VDC Output Module with Integrated Fuse Protection
Get Best Price
Video
Allen Bradley 1746-OB32 32 Point 24V DC Sourcing Configuration Digital Output Module
Get Best Price
Video
Allen Bradley 1756-DMD30 Drive Module and Fiber Optic Interface in Single-Slot Design
Get Best Price
Video
Allen Bradley 1747-ACN15 ControlNet I/O Adapter Module with High-Speed Data Transfer
Get Best Price
CONTACT US
Contact Now
Product Description
Sales Manager: Miya Zheng
Email: sales@amikon.cn
Phone / WhatsApp: +86-18020776792
Expert Team • Fast Response • Quality Service
Looking forward to working with you!
- The Allen-Bradley 1756-TBCH is a high-quality 36-pin removable terminal block (RTB) designed for use with ControlLogix 1756 I/O modules. As a separately ordered accessory, it provides a flexible and reliable interface between field wiring and the I/O module.
- The 1756-TBCH installs directly onto the front of a ControlLogix I/O module and features a durable cage-clamp screw-type connection for secure wiring.
- This RTB supports a wide range of 1756 ControlLogix input, output, and specialty modules, allowing wiring termination to be completed even before the I/O module is installed.
- Significantly reduces downtime during commissioning, maintenance, or module replacement, as the RTB can be removed and reattached without rewiring.
- Accommodates 22-14 AWG single-wire terminations and 22-16 AWG double-wire terminations, using solid or stranded copper conductors.
- Built for industrial environments, offering dependable performance under 0-60°C operating temperatures and up to 30g operational shock.
Key Features & Specifications
Model: 1756-TBCH
Compatible Spares: 1756TBCH, 1756-TBCH/A
Type: ControlLogix 36-Pin Screw Terminal Block
Clamp Type: Screw-Clamp
Pin Configuration: 36-Pin Connection
Wire Size Support: 22-14 AWG
Operating Temperature: 32-140°F (0-60°C)
Screwdriver Width: 3.2 mm (1/8 in.)
Tariff Code: 8537101190
Country of Origin: USA
Manufacturer: Allen-Bradley
Weight: 0.15 kg
Shipping Size: 3.5 * 5 * 11.8 cm
Place of Shipment: Xiamen, China
Bulletin 1756 ControlLogix Features
Bulletin 1756 ControlLogix chassis-based modules provide a full range of digital, diagnostic digital, analog, motion control, specialty I/O, and compute modules.
Catalog Number Explanation
Certain I/O module catalog numbers contain characters at the end of the catalog number that indicate additional features.
| Character | I/O Type | Description |
|---|---|---|
| D | Diagnostic | These modules provide diagnostic features to the point level. |
| E | Electronic fusing | These modules have internal electronic fusing to help prevent too much current from flowing through the module. |
| I | Individually isolated | These modules have individually isolated inputs or outputs. |
| K | Conformal coated | These modules have additional conformal coating and design considerations that add a degree of protection when exposed to harsh, corrosive environments. |
| XT | Conformal coated | These modules have additional conformal coating and design considerations that add a greater degree of protection when exposed to harsh, corrosive environments. |
| H | HART interface | These modules send and receive digital information across analog wires between smart devices and control or monitoring systems using HART (Highway Addressable Remote Transducer) protocol. |
| S | Scheduled or Safety | These modules offer time-scheduled output control or ensure that ControlLogix control systems operate safely. |
| SOE | Sequence of Events | These modules offer sub-millisecond time-stamping on a per point basis. |
