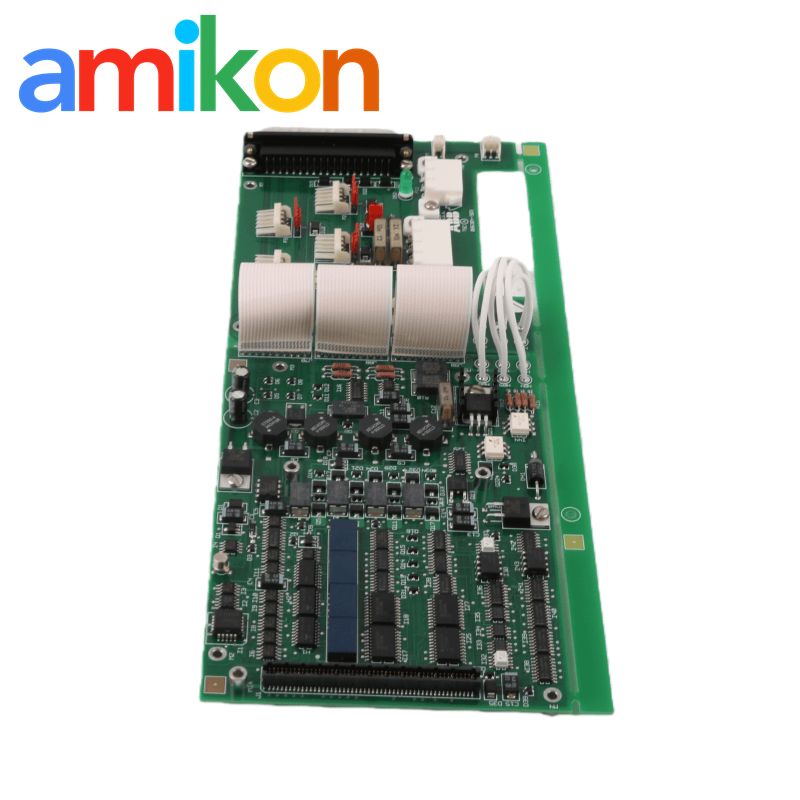

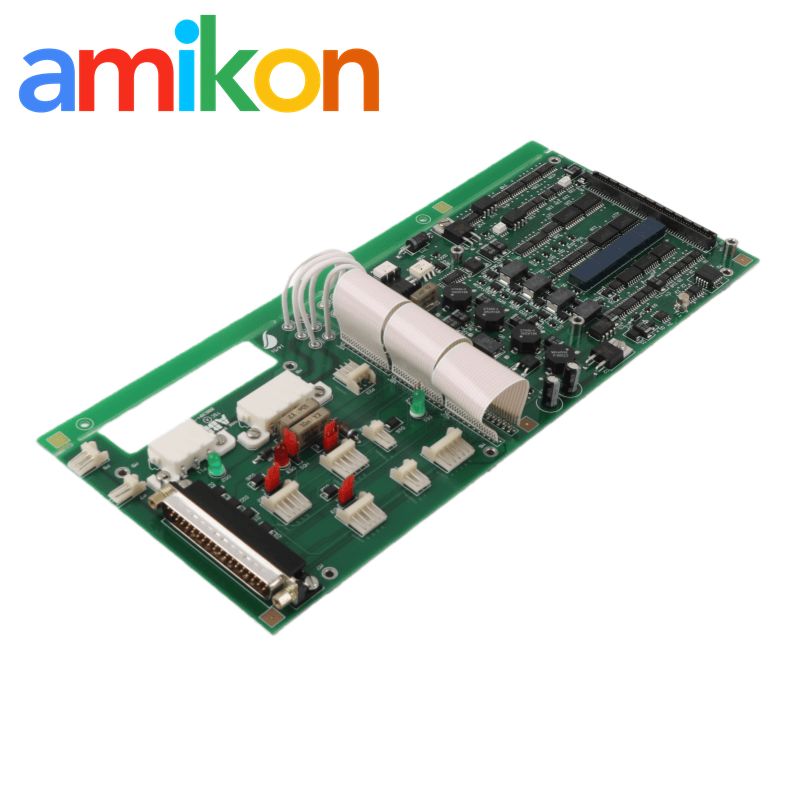

ABB 086384-003 Control Board with 32-bit DSP Processor 100-150 MHz for Industrial Automation
32-bit DSP processor Control Board
100-150 MHz Industrial Control Board
1-2 analog outputs ABB PLC Control Board
Place of Origin:
SWEDEN
Brand Name:
ABB
Model Number:
086384-003
32-bit DSP processor Control Board
,100-150 MHz Industrial Control Board
,1-2 analog outputs ABB PLC Control Board
Video
ABB SDCS-IOB-3 3BSE004086R1 Analog I/O Board with Single-ended Differential Encoder Connections
Video
ABB PU514 Real Time Accelerator RTA Board for Fast Regulatory Control Complex Algorithms
ABB 086384-003 Control Board
|
A compact, high-performance industrial control board designed for reliable analog and digital signal management. Ideal for automation, monitoring, and control applications. Key Features:
|
|
Contact for inquiries
Miya Zheng
Email: sales@amikon.cn
Mobile: +86-18020776792
UNITROL Excitation Systems
ABB's UNITROL series provides high-performance excitation solutions for synchronous generators and motors. The range includes:
- UNITROL 1000 Series: Brushless excitation systems for small to medium-sized machines (models: 1010, 1020)
- UNITROL 6000 Series: Advanced indirect and static excitation systems based on the AC800PEC platform (models: 6000 Light, 6000 Medium)
Key Features Comparison
| Feature | ABB 086384-003 Control Board | UNITROL 1000 / 6000 Series |
|---|---|---|
| Primary Function | Industrial control board for analog & digital signals | Excitation control for synchronous generators & motors |
| Outputs | Analog (0-10V / 4-20 mA), Digital relay outputs (NO/NC) | Excitation current output (1-400A for UNITROL 1000), fast analog & digital I/O for UNITROL 6000 |
| Processing | 32-bit DSP, 100-150 MHz, Flash 2-4 MB, RAM 512 KB-1 MB | High-performance AC800PEC processor (UNITROL 6000), fast cycle times (~400 μs) |
| Power Supply & Consumption | 24VDC ±10%, <15 W | Integrated power systems for excitation; design optimized for generator/motor loads |
| Control Features | Fast signal processing, isolated control/power sections | Closed-loop excitation control, speed-dependent exciter output, natural demagnetization |
| Environmental Ratings | Operating: -25°C to +70°C, Storage: -40°C to +85°C, Humidity 5-95% | Designed for industrial environments, with DNV Cybersecurity Type Approval for 1000 series |
| Flexibility | Supports various analog/digital configurations | Modular architecture (UNITROL 6000), customizable system for different generator/motor types |
| Size & Weight | 29 * 4 * 11.5 cm, 0.24 kg | System size varies; designed for integration with machines rather than standalone compact board |
While the ABB 086384-003 Control Board is a compact general-purpose industrial control solution, the UNITROL Excitation Systems are specialized for generator and motor excitation control. Both share principles of high-speed digital processing, robust signal management, and reliability in harsh industrial conditions. The main difference lies in their application focus: the control board is versatile and modular, while UNITROL systems are tailored for precise excitation control with closed-loop feedback and speed-dependent outputs.
Besides the ABB 086384-003 Control Board, Amikon offers an extensive catalogue of industrial automation and control equipment from over 100 of the world's leading manufacturers. Many of our products qualify for same-day or next-day delivery, helping you minimize downtime and keep your operations running smoothly.
If you are interested in any of our products or need urgent supply, please contact Miya as soon as possible.
Thank you for your interest in our automation systems.
