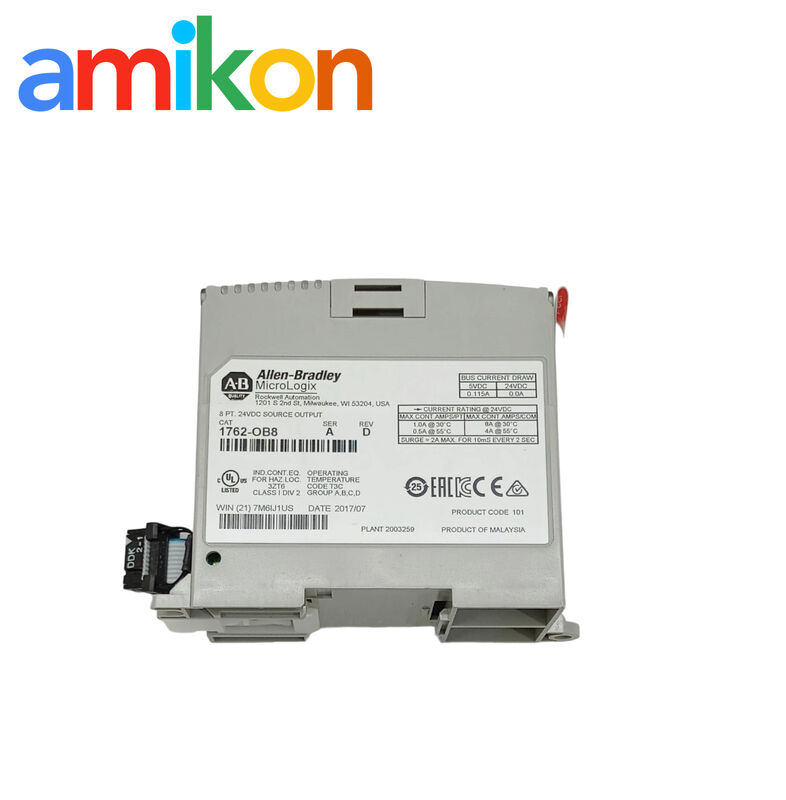

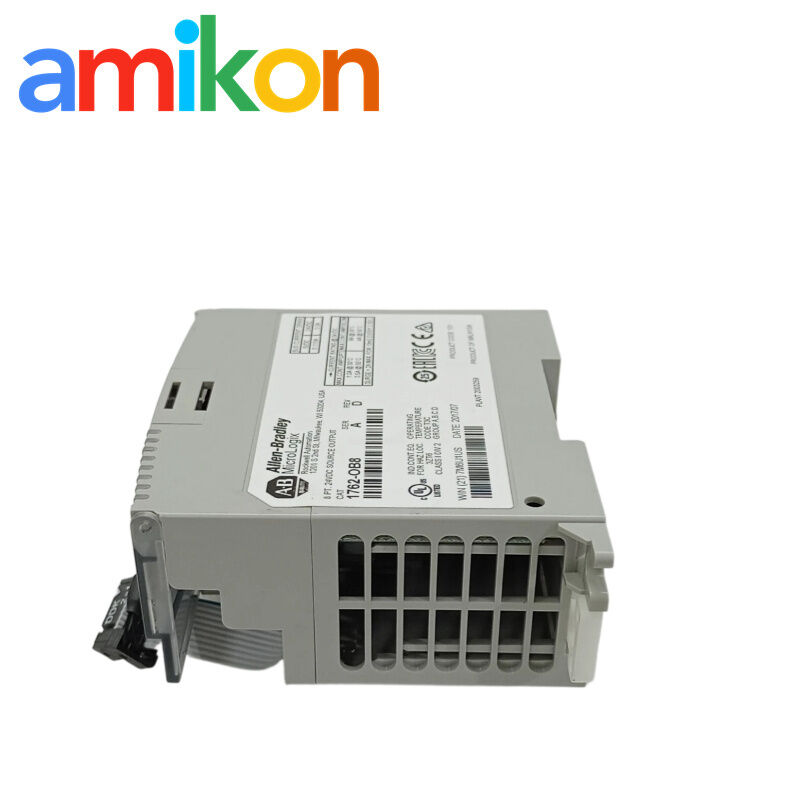

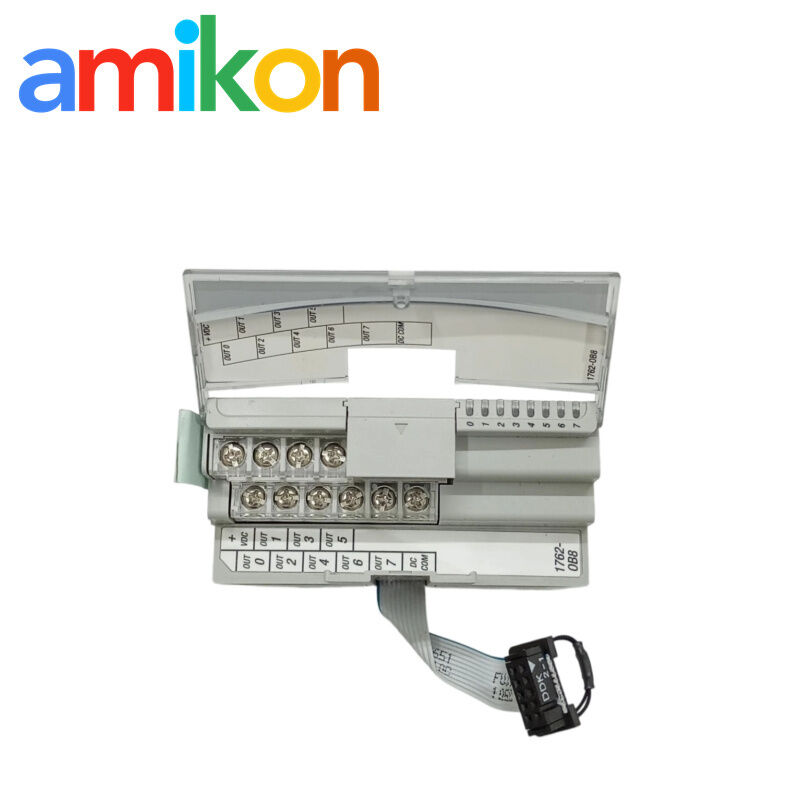

Allen-Bradley 1762-OB8 MicroLogix 1200 8-Point 24V DC Digital Output Module
Allen-Bradley 1762-OB8 MicroLogix 1200 8-Point 24V DC Digital Output Module
1762-OB8
MicroLogix 1200
8-Point Digital Output Module
Place of Origin:
USA
Brand Name:
Allen-Bradley
Contact Us
Request A Quote
Product Details
Highlight:
1762-OB8
,MicroLogix 1200
,8-Point Digital Output Module
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
In Stock
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
PRODUCT PROFILE
Digital Output Expansion
The 1762-OB8 provides eight 24 V DC source outputs for a MicroLogix 1200 expansion I/O system. It is used where a control system requires additional discrete output points for field devices.
1762-OB8
source output expansion module for MicroLogix 1200 systems
01 / TECHNICAL DATA
Technical Specifications
1762-OB8
08
OUTPUT POINTS
24 V
DC OUTPUT
1 A
PER POINT
40.4
WIDTH / MM
Electrical
Operating voltage20.4–26.4 V DC
Minimum on-state current1 mA
Maximum voltage drop1.0 V DC
Off-state leakage1 mA max.
Maximum surge current2.0 A
Resistive-load delay0.1 / 1.0 ms
Delay values are ON / OFF respectively.
Current & Power
Continuous current / point1 A at 30°C
Continuous current / common8 A at 30°C
Continuous current / module8 A at 30°C
Backplane draw115 mA at 5 V
Backplane power0.575 W
Heat dissipation1.61 W max.
*Current ratings depend on operating temperature and installation conditions.
Mechanical & Environment
Dimensions (W × H × D)40.4 × 90 × 87 mm
Weight210 g
Operating temperature0–55°C
Storage temperature−40–85°C
Relative humidity5–95%
Altitude2000 m max.
Humidity is non-condensing. Verify the applicable installation limits.
Module Characteristics
Digital outputs Isolated I/O LED status Screw connection One output group Outputs 0–7
Installation spacing
Maximum power-supply distance rating: six modules. Confirm the complete system layout and load conditions before installation.
03 / AMIKON INDUSTRIAL SUPPLY
About Our Service
Industrial parts sourcing and order coordination.
01 / INSPECTION
Component Inspection
02 / ORDER PREPARATION
Parts & Packaging
04 / ORDER TERMS
Delivery & Warranty
Testing
Inspection and test scope to be confirmed in the quotation.
Packaging
Protective packaging; condition and packing details confirmed per order.
Returns / DOA
Report issues promptly with order details and evidence. Return approval is subject to agreed terms.
Warranty
Duration, scope, exclusions and remedy are confirmed in the sales agreement.
06 / FAQ
Frequently Asked Questions
1. What does the 1762-OB8 do?
It provides eight 24 V DC source outputs as an expansion I/O module for the MicroLogix 1200 system.
2. What is the output voltage range?
The manufacturer specifies an operating voltage range of 20.4–26.4 V DC.
3. What should be checked if an output fails?
Check the controller command, output status indication, field supply, wiring and connected load before determining whether the module needs replacement.
4. What installation details need verification?
Confirm controller compatibility, mounting, wiring, load ratings, power-supply distance and environmental conditions for the installed system.
5. What information is needed for a quotation?
Provide Part Number, Quantity, Destination, Required Date and Machine/System Model. Availability, condition, delivery and warranty terms can then be confirmed.
