Allen-Bradley 1762-IR4 RTD / Resistance Input Module
4-Channel RTD / Resistance Input
MicroLogix 1200 Compatible
Temperature Measurement
Place of Origin:
USA
Brand Name:
Allen-Bradley
4-Channel RTD / Resistance Input
,MicroLogix 1200 Compatible
,Temperature Measurement

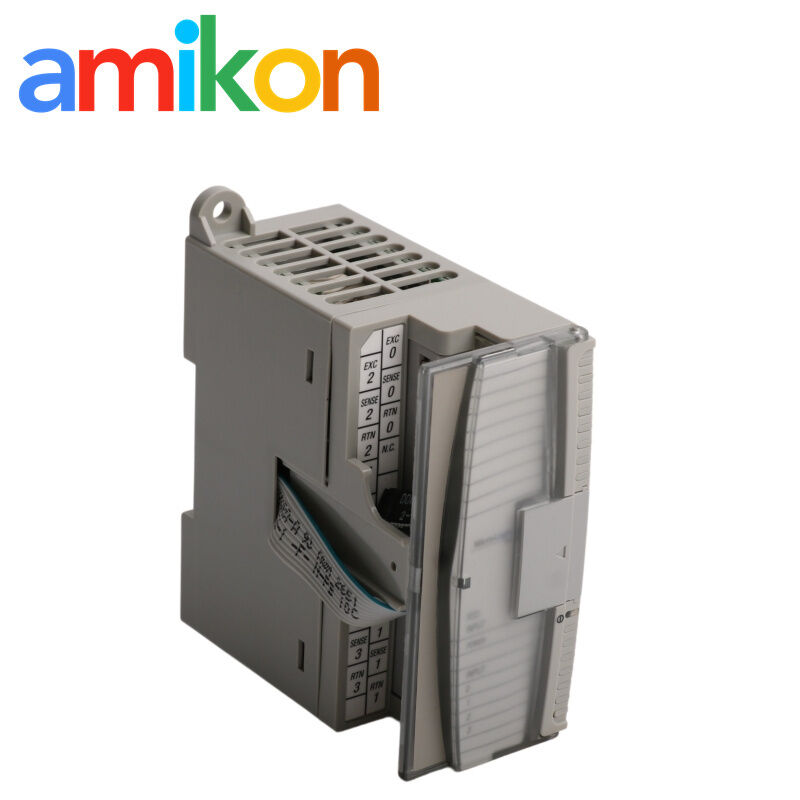

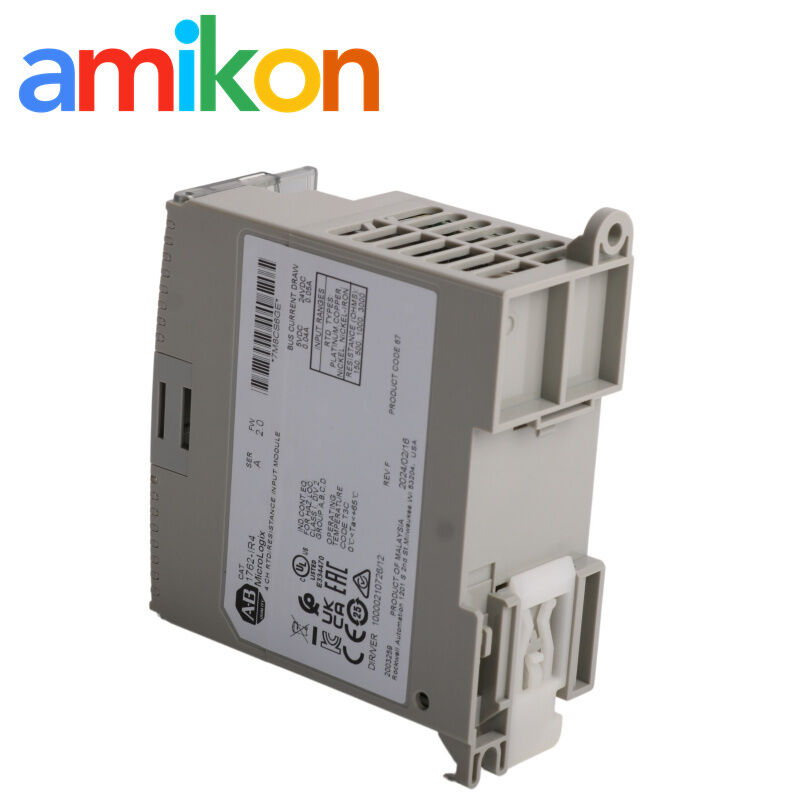

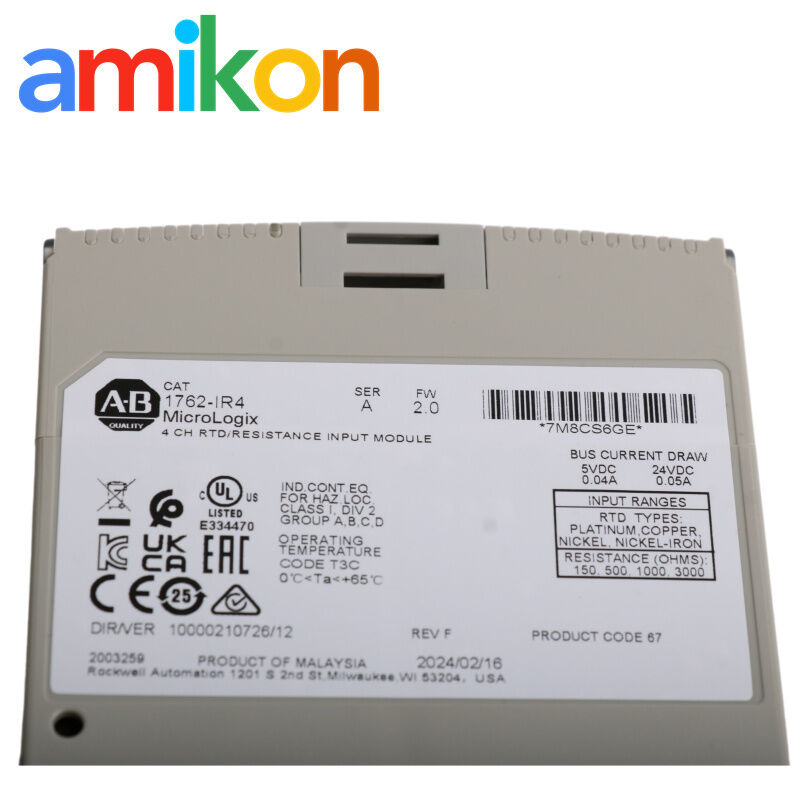

Allen-Bradley 1762-IR4
The Allen-Bradley 1762-IR4 is a four-channel RTD/resistance input module designed for use in a MicroLogix 1200 system. It receives supported resistance-temperature detector and resistance signals for controller-based monitoring.
REQUEST A QUOTATION →Technical Specifications
Confirm the catalog number, sensor type, resistance range, wiring arrangement and existing controller configuration. Similar-looking input modules are not automatically interchangeable.
Additional accuracy and resistance-range specifications
Additional electrical and immunity specifications
Environmental, installation and wiring specifications
Input accuracy depends on sensor type, selected range, filter settings, calibration and operating conditions. Confirm application-specific limits before installation.
Applications & Failure Scenarios
The 1762-IR4 acquires supported RTD and resistance signals in MicroLogix 1200 applications. Typical uses include monitoring equipment or process temperature where compatible resistance sensors are installed.
Open-circuit or out-of-range readings
Sensor faults, damaged wiring or loose terminals may cause an open-circuit indication or readings outside the expected range.
Fluctuating temperature or resistance values
Check sensor condition, cable shielding, terminal connections and channel configuration before identifying the input module as the cause.
Potential process interruption
If the affected measurement is required for control, monitoring or an interlock, a fault may interrupt the associated process or require equipment shutdown. Actual impact depends on the control program and plant design.
Delivery & Warranty
| Testing | Inspection and functional testing are subject to the agreed order scope. Confirm the testing scope before purchase. |
| Packaging | Protective packaging is arranged according to the part and agreed shipping method. |
| Returns / DOA | Report transit damage or suspected dead-on-arrival conditions promptly with order details, photos and available test evidence. Return authorization and remedies are subject to the agreed sales terms. |
| Warranty | The warranty period, coverage and exclusions are confirmed in the quotation or order confirmation. Applicable exclusions are subject to the agreed written terms. |
Industrial Parts Sourcing, Kept Practical.
Frequently Asked Questions
1. What is the Allen-Bradley 1762-IR4 used for?
It is a four-channel RTD/resistance input module for the MicroLogix 1200 system, used to acquire supported temperature-sensor and resistance signals.
2. How many input channels does the 1762-IR4 provide?
It provides four input channels. Sensor type, resistance range and channel configuration must match the application requirements.
3. What should be checked when a channel reports a fault?
Check the sensor, field wiring, terminal connections, channel settings and controller diagnostics. Reported conditions can include overrange, underrange and open circuit.
4. What information is needed to source a replacement?
Provide the full catalog number, quantity, destination, required date and machine/system model. Sensor type and controller details help clarify the application.
5. Where can I find the 1762-IR4 manual or datasheet?
Use the exact catalog number, 1762-IR4, when locating the installation and configuration reference in your technical documentation library. Check that the model designation matches the installed module.
