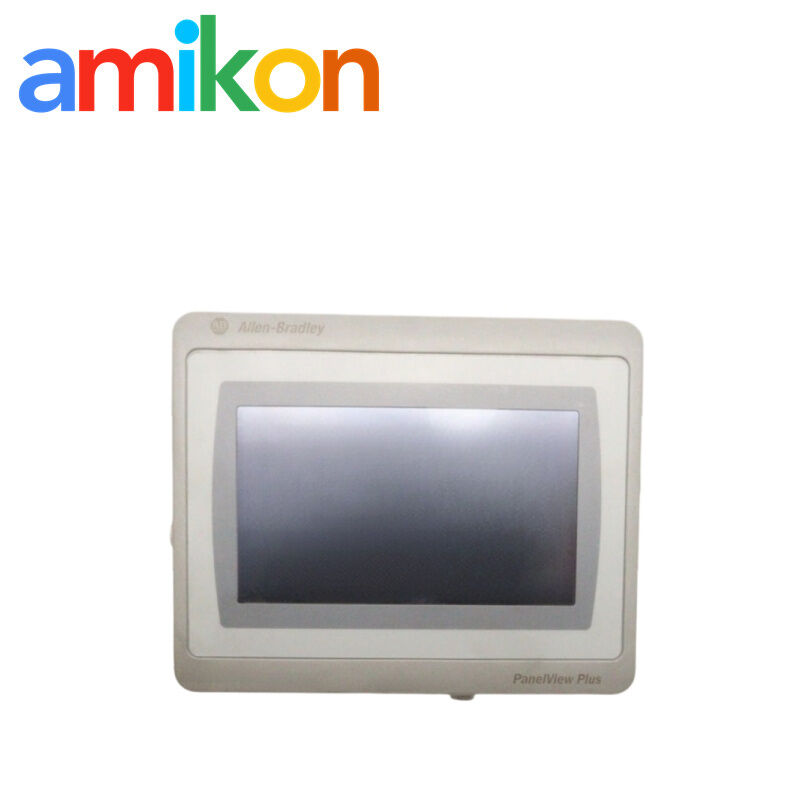

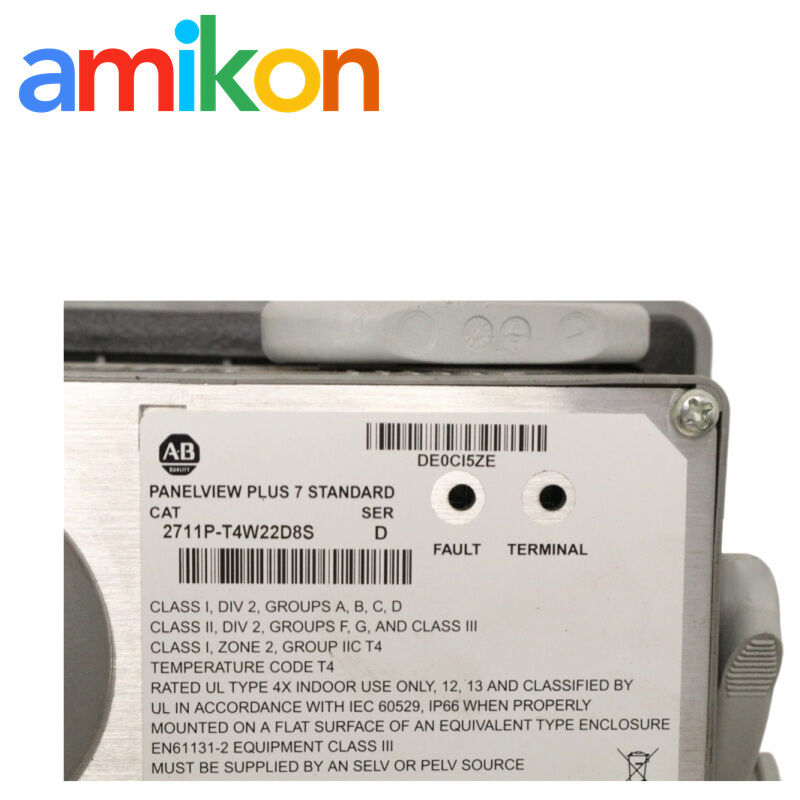

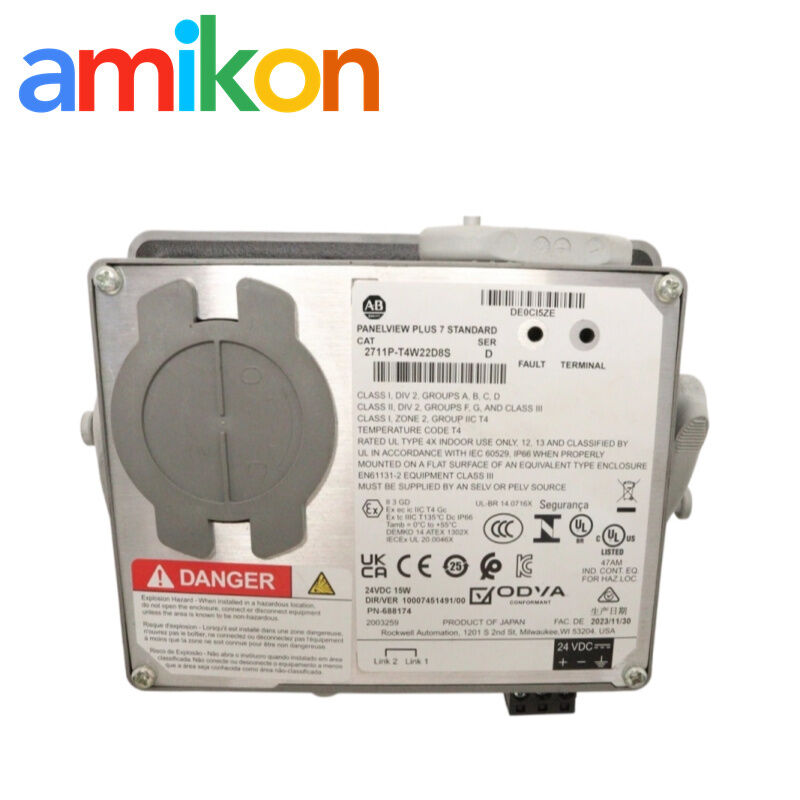

Allen-Bradley 2711P-T4W22D8S PanelView Plus 7 Standard 4.3-Inch HMI Operator Terminal
Allen-Bradley PanelView Plus 7 Standard
2711P-T4W22D8S HMI Terminal
4.3-Inch Color TFT Display
Place of Origin:
USA
Brand Name:
Allen-Bradley
Allen-Bradley PanelView Plus 7 Standard
,2711P-T4W22D8S HMI Terminal
,4.3-Inch Color TFT Display
2711P-T4W22D8S
Compact HMI for machine monitoring and control.
| Display4.3-inch color TFT | Resolution480 × 272 WQVGA | NetworkDLR Ethernet | Supply24V DC |
Application & Failure Scenarios
|
01
Operator interactionUsed as a human-machine interface in industrial control installations. Operators use configured screens to view process information, check alarms and access available machine commands. |
02
Replacement assessmentTypical service concerns include an unresponsive touch surface, a damaged display, startup problems or disrupted network communication. The actual fault should be diagnosed before replacing the terminal. |
Technical Specifications
Core identification and display characteristics are shown below. Expand the environmental section for additional operating and mechanical details.
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Product Family | PanelView Plus 7 Standard Terminal |
| Display | Color TFT LCD, widescreen |
| Diagonal Size | 4.3 inches |
| Viewing Area | 95 × 54 mm |
| Resolution | 480 × 272 WQVGA |
| Aspect Ratio | 16:9 |
| Color Graphics | 18-bit color |
| Touch Input | Analog resistive touchscreen |
| Communication | Ethernet with Device Level Ring (DLR) capability |
| Input Voltage | 24V DC |
| Operating System | Windows CE 6 |
Environmental, Touch & Backlight Data
| Operating Temperature | 0 to 55 °C |
| Storage Temperature | -25 to 70 °C |
| Relative Humidity | 5–95%, non-condensing |
| Operating Altitude | Up to 2,000 m |
| Operating Shock | 15 g at 11 ms |
| Non-operating Shock | 30 g at 11 ms |
| Vibration | 10–57 Hz: 0.012 in peak-to-peak displacement; 57–500 Hz: 2 g peak acceleration |
| Touch Actuation Rating | 1 million presses |
| Touch Operating Force | 100 grams |
| Backlight Life | Minimum 50,000 hours at 40 °C to half-brightness; backlight is not replaceable |
Confirm enclosure requirements and installation conditions against the exact terminal label and applicable installation instructions.
For the 2711P-T4W22D8S datasheet PDF/manual, confirm the publication number and revision applicable to the installed terminal.
Replacement & Configuration
Match the complete catalog number and verify the panel cutout, 24V DC supply, Ethernet arrangement and availability of the existing HMI project. A similar-looking terminal is not automatically a compatible substitute; confirm controller communication and application requirements before installation.
