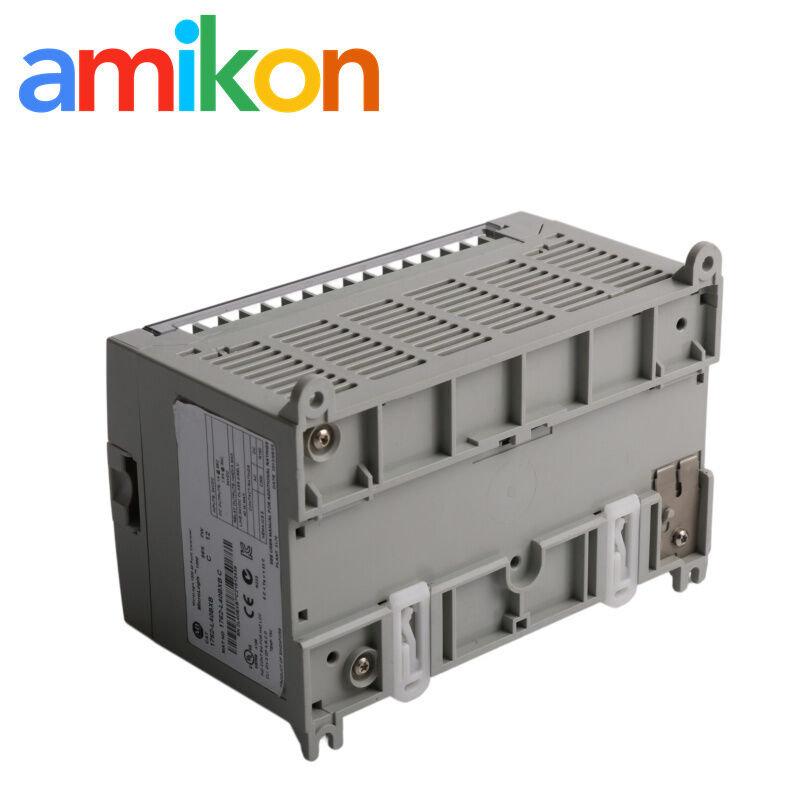

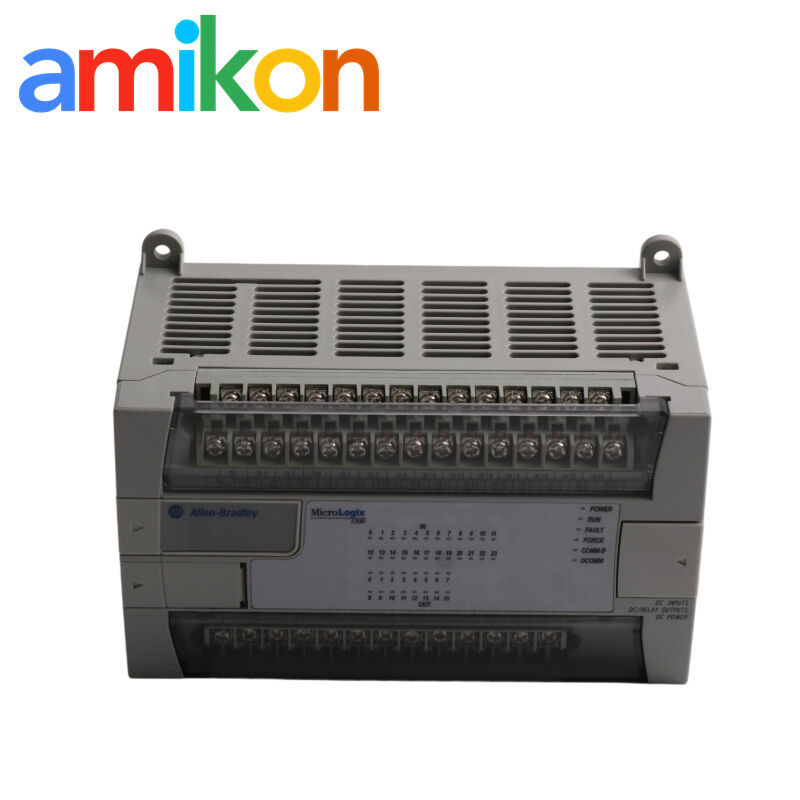

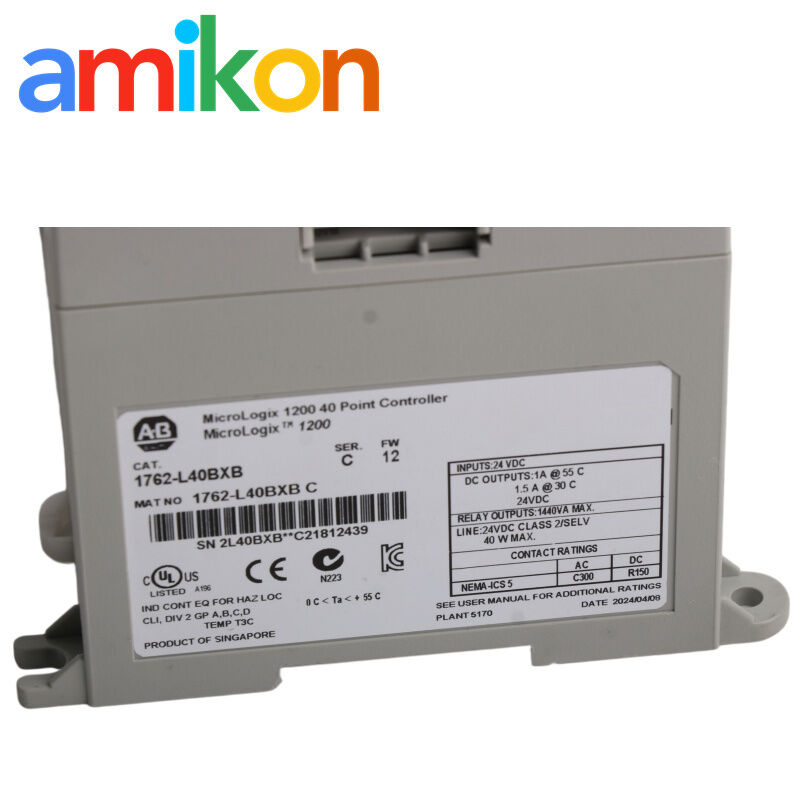

Allen-Bradley 1762-L40BXB MicroLogix 1200 40-Point Programmable Controller 24V DC
Allen-Bradley 1762-L40BXB
MicroLogix 1200 Controller
40-Point Programmable Controller
Place of Origin:
USA
Brand Name:
Allen-Bradley
Allen-Bradley 1762-L40BXB
,MicroLogix 1200 Controller
,40-Point Programmable Controller
1762-L40BXB
Programmable controller for industrial control applications, combining digital field inputs with relay and DC FET output options.
Technical Specifications
| Product family | MicroLogix 1200 |
|---|---|
| Controller type | 40-point programmable controller |
| Power supply | 24V DC |
| Standard inputs | 20 × 24V DC digital inputs |
| Fast inputs | 4 × 24V DC digital inputs |
| Relay outputs | 8 relay outputs |
| Standard FET outputs | 7 × 24V DC FET outputs |
| Fast FET output | 1 × 24V DC FET output |
| Program memory | 6 KB |
| Serial interface | RS-232C port |
| Communication protocols | DF1, DH-485, Modbus RTU, ASCII |
| Height | 90 mm |
| Depth | 87 mm |
| Manufacturer discontinuation date | August 25, 2021 |
Product Information & Documentation
| Installation instructions | Publication 1762-IN006 |
|---|---|
| Selection guide | Publication 1761-SG001 |
| User manual | MicroLogix 1200 User Manual — 1762-UM001 |
Verify the complete catalog number, wiring and system requirements before ordering. A related controller should not be assumed to be a direct replacement without application-level checks.
Application & Failure Scenarios
Used in MicroLogix 1200 installations to process digital field signals and control connected devices.
When a controller-related fault affects machine operation, confirm the cause before arranging a replacement.
Potential downtime impact depends on the control task and machine safeguards. Follow the site's isolation and maintenance procedures before inspecting wiring or connected loads.
Supply, Inspection & Warranty
Confirm available quantity, item condition and agreed order terms with AMIKON before purchase.
About AMIKON
AMIKON supports industrial parts sourcing through catalog verification, quotation coordination and shipment communication. For discontinued controllers, provide the full part number and application details so stock condition and available inspection scope can be checked before purchase.
| Part Number | 1762-L40BXB |
| Quantity | Required quantity |
| Destination | Delivery city / country |
| Required Date | Target delivery date |
| Machine/System Model | Installed machine or control-system model |
Frequently Asked Questions
It has 20 standard and 4 fast 24V DC digital inputs, 8 relay outputs, 7 standard 24V DC FET outputs and 1 fast 24V DC FET output.
Yes. Rockwell Automation lists August 25, 2021 as the discontinuation date. Manufacturer lifecycle status and current AMIKON stock availability are separate matters.
Verify the full catalog number, power requirements, I/O types, field wiring, communication setup and installed control-system requirements.
Do not assume direct interchangeability. Compare the hardware, wiring, program requirements and system configuration before selecting another model.
