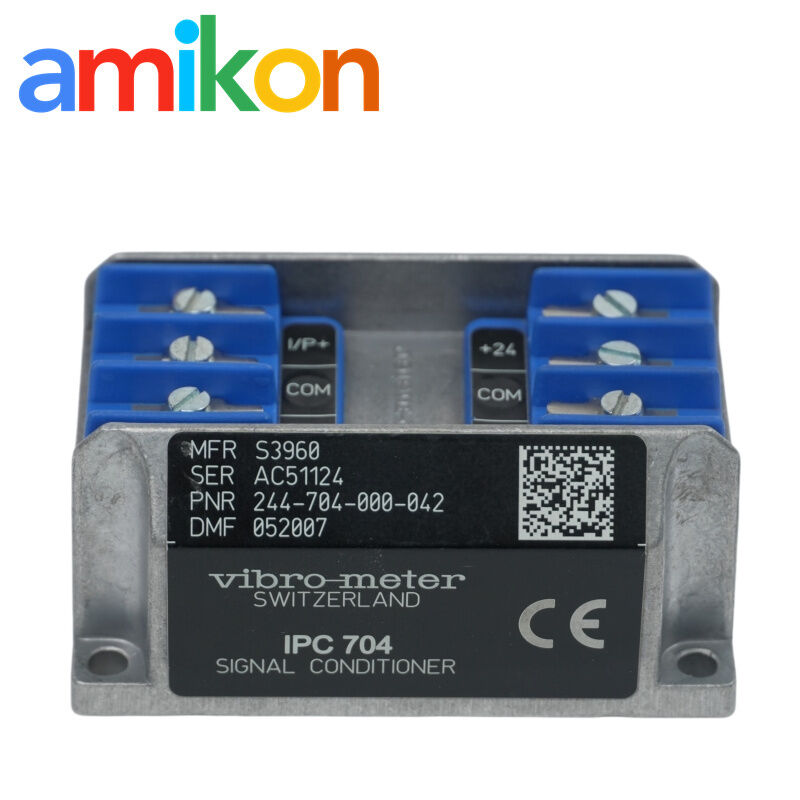

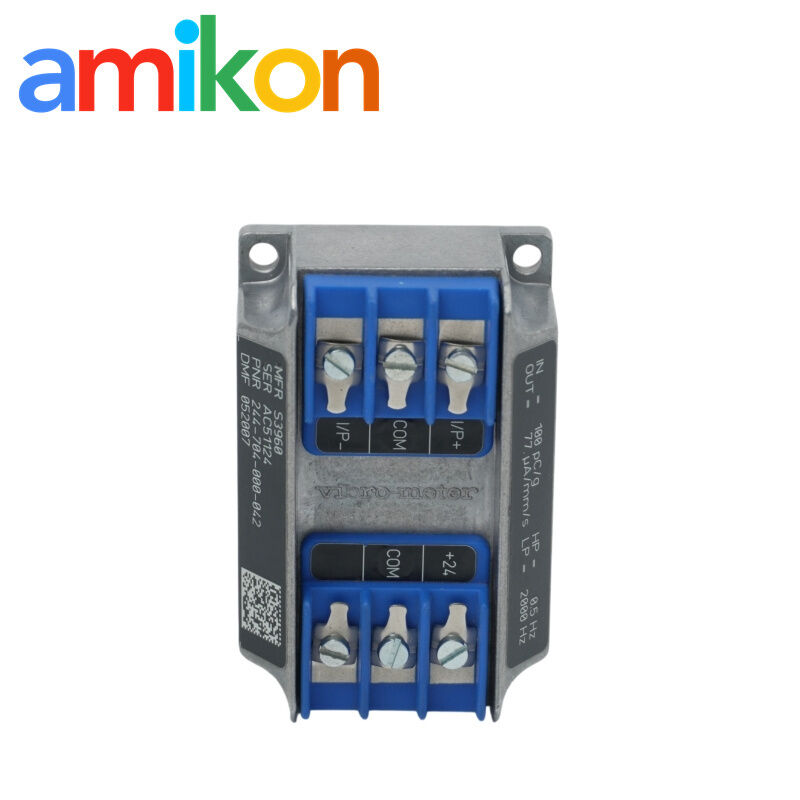

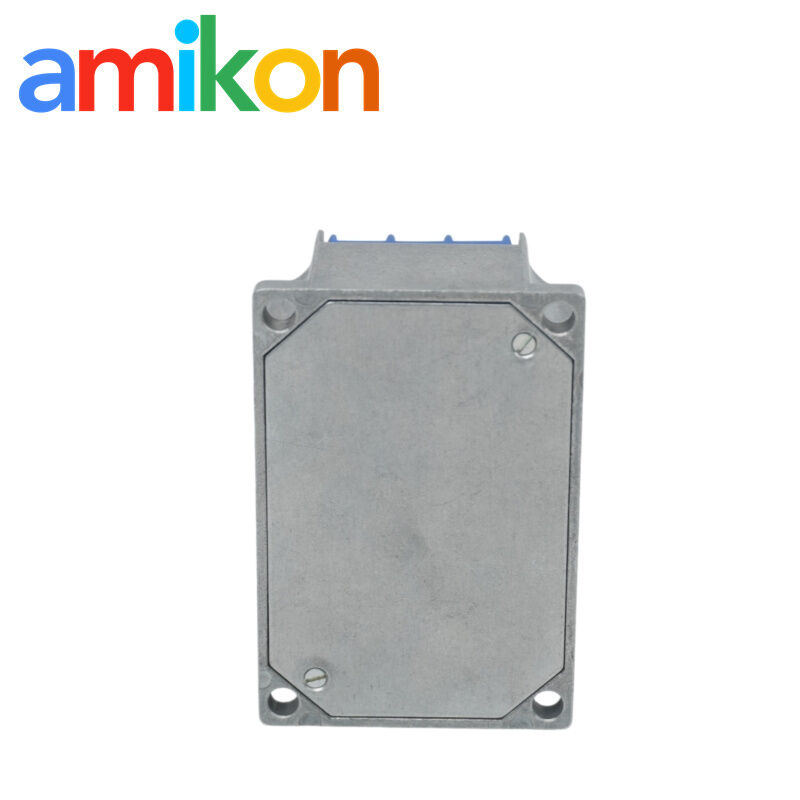

Vibro-Meter IPC704 244-704-000-042 Signal Conditioner – Industrial Vibration Monitoring Module
Vibro-Meter IPC704
244-704-000-042
Piezoelectric Transducer Interface
Place of Origin:
USA
Brand Name:
VIBRO METER
Vibro-Meter IPC704
,244-704-000-042
,Piezoelectric Transducer Interface
Vibro-Meter IPC704 244-704-000-042
Charge signal conditioning for compatible piezoelectric sensors, with current or voltage output options for machinery measurement systems.
The IPC704 conditions piezoelectric sensor signals for acceleration, velocity or dynamic-pressure measurement, depending on the selected configuration.
Application & Failure Scenarios
Application: Signal conditioning in machinery monitoring and protection measurement chains using compatible piezoelectric transducers.
Replacement trigger: Missing or unstable measurement signals, suspected conditioner failure, or planned maintenance replacement.
Downtime risk: A failed or incorrectly configured conditioner can interrupt monitoring data and delay machinery condition assessment.
Technical Specifications
| Product Type | Signal conditioner / charge amplifier |
|---|---|
| Model | IPC704 |
| Part Number | 244-704-000-042 |
| Input | Charge signal from compatible piezoelectric transducers |
| Output | Current or voltage, according to the selected configuration |
| Measurement Types | Acceleration, velocity or dynamic pressure, depending on configuration |
| High-Pass Filter Options | 0.5 Hz, 1 Hz, 2 Hz, 5 Hz or 10 Hz |
| Low-Pass Filter Options | 200 Hz, 500 Hz, 1 kHz, 2 kHz, 5 kHz, 10 kHz or 20 kHz |
| Installation Options | Standalone conditioner, industrial housing or mounting adaptor, depending on the order code |
Configuration & Installation Details
| Transfer Unit | Available configurations cover acceleration, velocity and pressure measurements. |
|---|---|
| Sensitivity | Depends on the selected input and output configuration; match the installed unit and sensor requirements. |
Sourcing & Replacement
Before ordering, compare the full part number, sensor input, transfer unit, sensitivity, filter settings, output format, cable entries and mounting arrangement. Do not assume a different IPC series or a similar-looking unit is interchangeable.
Search reference: Vibro-Meter IPC704 244-704-000-042 datasheet.
AMIKON Service & Contact
Industrial Parts Sourcing, Kept Practical
Miya Zheng
AMIKON Industrial Supply
sales@amikon.cnWhatsApp: +86 180 2077 6792
Send the part number and nameplate details for availability and quotation.
| Testing | Inspection and agreed functional checks, according to item condition and quotation. |
|---|---|
| Packaging | Protective packaging appropriate to the item and shipment. |
| Returns & DOA | Report damage or suspected DOA promptly with order details and photos. Returns require authorization and follow the agreed sales terms. |
| Warranty | Warranty period, coverage and exclusions are confirmed in the written quotation or order confirmation. |
Request a Quotation
Part Number · Quantity · Destination · Required Date · Machine/System Model
A nameplate photo and full suffix code are helpful for accurate replacement identification.
Frequently Asked Questions
1. What is the function of the Vibro-Meter IPC704?
It conditions charge signals from compatible piezoelectric transducers and provides current or voltage outputs for downstream processing.
2. Does part number 244-704-000-042 identify every configuration detail?
The complete ordering code is needed to identify the selected measurement, sensitivity, filter, installation and cable-entry options.
3. Can the IPC704 support acceleration and velocity measurements?
The IPC704 family supports configurations for acceleration and velocity measurement. The selected transfer unit and sensitivity must match the application.
4. What should be checked before replacing an IPC704?
Check the full order code, sensor compatibility, signal output, sensitivity, filter settings, cable fittings and mounting arrangement.
5. How can I request an IPC704 quotation from AMIKON?
Email sales@amikon.cn with the part number, quantity, destination, required date and machine/system model. Include a nameplate photo when available.
