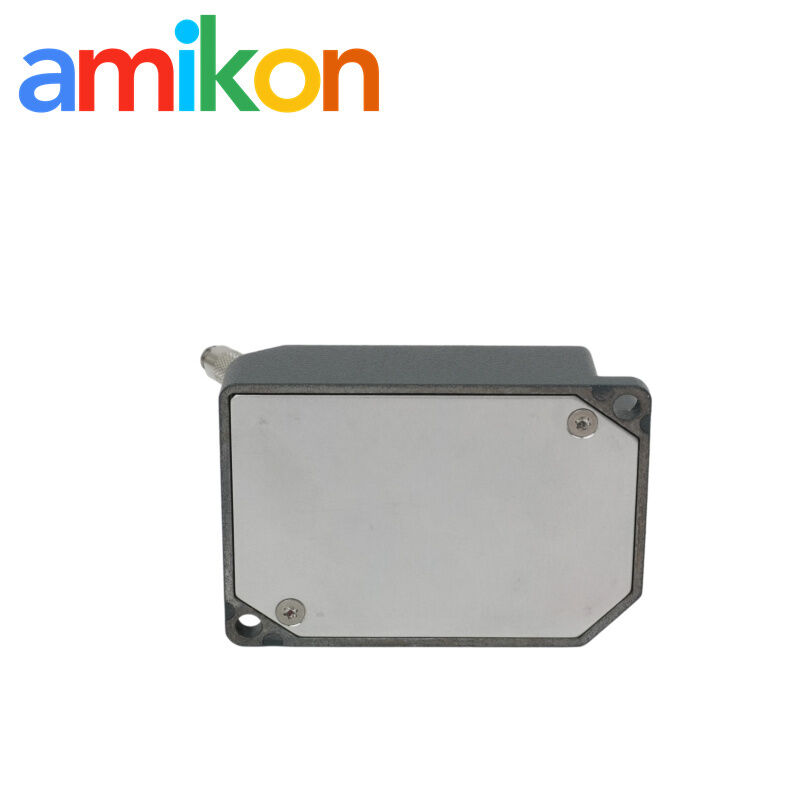

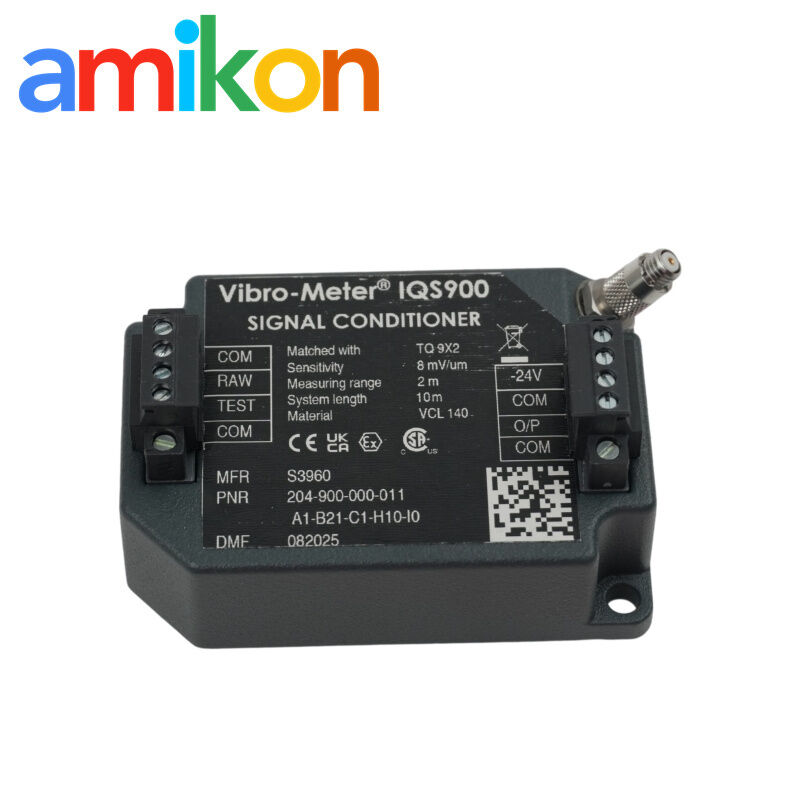

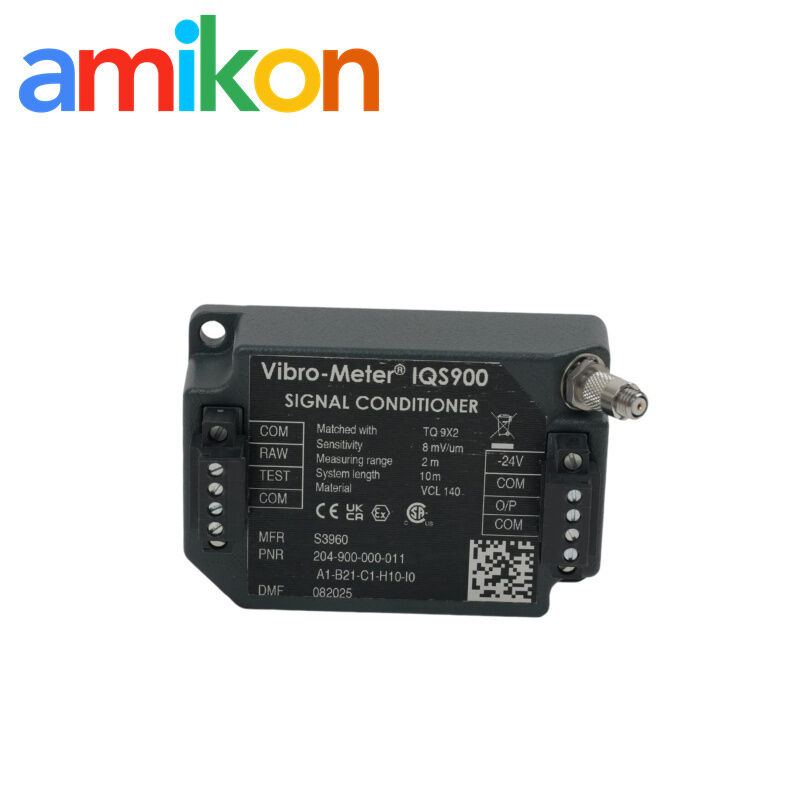

Vibro-Meter IQS900 204-900-000-011 A1-B21-C1-H10-I0 Proximity Signal Conditioner
Vibro-Meter IQS900 204-900-000-011 A1-B21-C1-H10-I0 Proximity Signal Conditioner
Vibro-Meter IQS900
204-900-000-011
2 mm Measurement Range
Place of Origin:
USA
Brand Name:
VIBRO METER
Contact Us
Request A Quote
Product Details
Place Of Shipment:
Xiamen,china
Shipping:
TNT, DHL, FedEx, EMS, UPS
MOQ:
1 Piece
Highlight:
Vibro-Meter IQS900
,204-900-000-011
,2 mm Measurement Range
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
VIBRO-METER · IQS900 · PROXIMITY MEASUREMENT
IQS900 204-900-000-011 A1-B21-C1-H10-I0
Vibro-Meter IQS900 signal conditioner for proximity measurement chains. Product identification and technical selection should be checked against the complete ordering code and installed measurement chain.
204-900-000-011 · A1-B21-C1-H10-I0
IQS900 Measurement Chain
The IQS900 sits in the Vibro-Meter proximity measurement chain and conditions the signal before it reaches the machinery monitoring equipment.
Working principle The proximity sensor provides the measurement signal; the IQS900 conditions that signal for transmission to the monitoring system.
Proximity Sensor
IQS900
Monitoring System
Proximity Sensor → IQS900 → Monitoring System
Shaft Monitoring Non-contact measurement on rotating machinery.
Position / Gap Used where relative shaft position or clearance is monitored.
Replacement Search Common search point when an installed conditioner requires replacement.
Measurement Fault Relevant when a proximity channel becomes unavailable or abnormal.
Exact Configuration
The complete ordering code identifies the specific IQS900 configuration.
A1 Standard environment
B21 2 mm range · 8 mV/µm sensitivity
C1 Without diagnostics
H10 10 m total system length
I0 Without DIN-rail adaptor
Technical Specifications · Core Measurement Data
| Manufacturer / Product Line | Vibro-Meter · IQS900 |
| Linear Measurement Range | 0.15 to 2.15 mm typical |
| Sensitivity | 8 mV/µm (200 mV/mil) |
| Corresponding Voltage Output | −1.6 to −17.6 V |
| Raw Output | −0.8 to −8.8 V nominal |
| Frequency Response | DC to 20 kHz (−3 dB) |
| Current Output | −15.5 to −20.5 mA · 2-wire transmission |
| Voltage Output | −1.6 to −17.6 V · 3-wire transmission |
Technical Specifications · Electrical, Environmental & Mechanical
| Power Supply · Current Output | −18 to −30 VDC nominal |
| Power Supply · Voltage Output | −19 to −30 VDC nominal |
| Maximum Current Consumption | 25 mA at nominal 24 VDC supply |
| Operating / Storage Temperature | −40 to +85 °C |
| Humidity | 0 to 95%, non-condensing |
| Protection Rating | IP20 |
| Housing | Injection-moulded aluminium, painted |
| Approx. Weight | 200 g |
Compatibility
The IQS900 platform is specified for Vibro-Meter TQ9xx and TQ4xx proximity measurement chains.
Manufacturer documentation also describes IQS900 use with TQ902/TQ912 proximity measurement chains.
Installation & Connections
The I0 configuration is supplied without the DIN-rail mounting adaptor. The unit can instead be mounted using two M4 screws.
- Sensor-side miniature coaxial connector
- Removable screw-terminal connectors for electrical connections
- Screw-terminal conductor range: 0.2–1.5 mm² (24–16 AWG)
- Tightening torque: 0.2–0.25 N·m
Diagnostics & Replacement Check
Before Ordering
Check the complete part number, configuration code, connected sensor, system cable length and existing installation before replacing an installed unit.
Delivery & Warranty
Testing Visual and functional checks before dispatch where applicable.
Packaging Secure industrial packaging for international shipment.
Warranty 12-month warranty for confirmed product-related functional defects under normal use.
DOA / Returns Report DOA or transit issues promptly with photos and test information for review.
Request a Quote
Miya Zheng · AMIKON
sales@amikon.cn +86 180 2077 6792
Please include: Part Number · Quantity · Destination · Required Date · Machine/System Model
FAQ
What does A1-B21-C1-H10-I0 specify?
A1 is the standard-environment version; B21 specifies the 2 mm range and 8 mV/µm sensitivity; C1 is without diagnostics; H10 specifies a 10 m total system length; and I0 is supplied without the DIN-rail adaptor.
Is the C1 version equipped with diagnostics?
No. C1 identifies the version without diagnostic circuitry. The IQS900 ordering information separately identifies C2 as the diagnostic version.
Can IQS900 be used with TQ902 or TQ912 measurement chains?
Yes. Manufacturer documentation specifies IQS900 in TQ902/TQ912 proximity measurement chains.
Does I0 include the DIN-rail mounting adaptor?
No. I0 identifies the version without the DIN-rail adaptor.
Confirm the complete installed ordering code and connected measurement chain before replacement. Product suitability should be checked against the actual machine and system installation.
