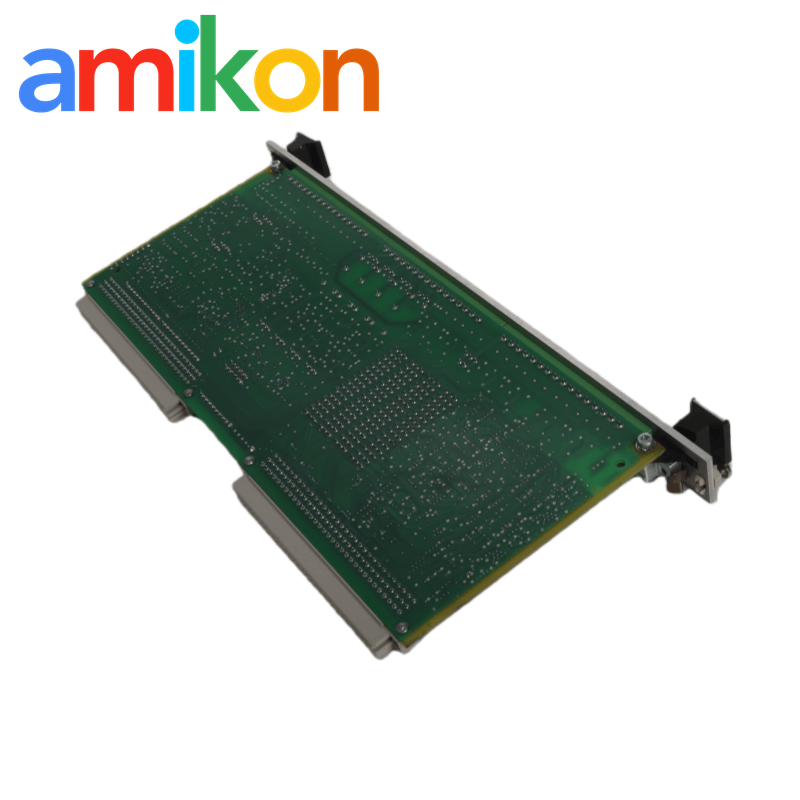

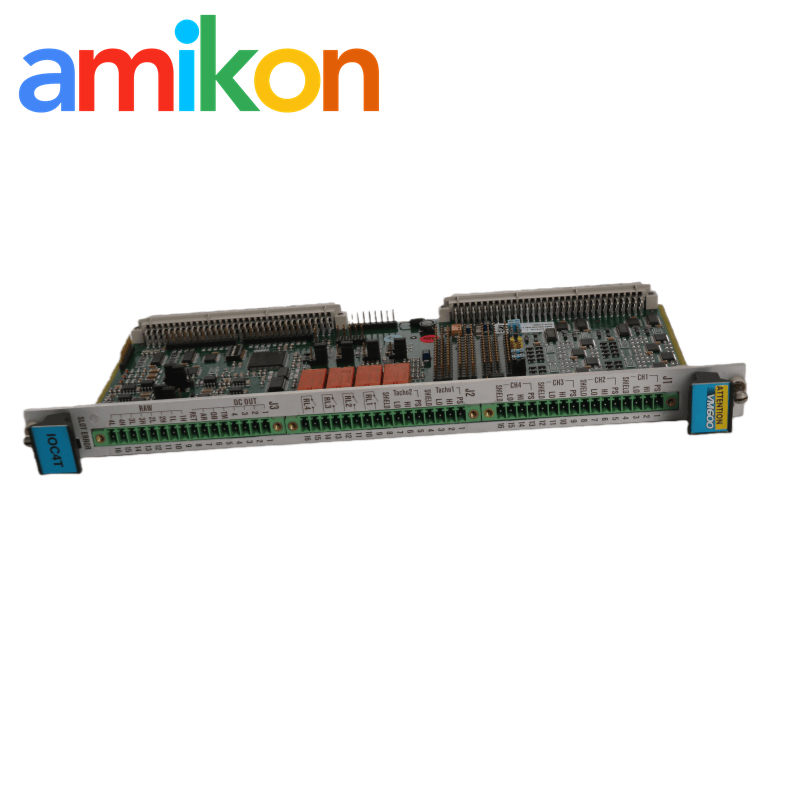

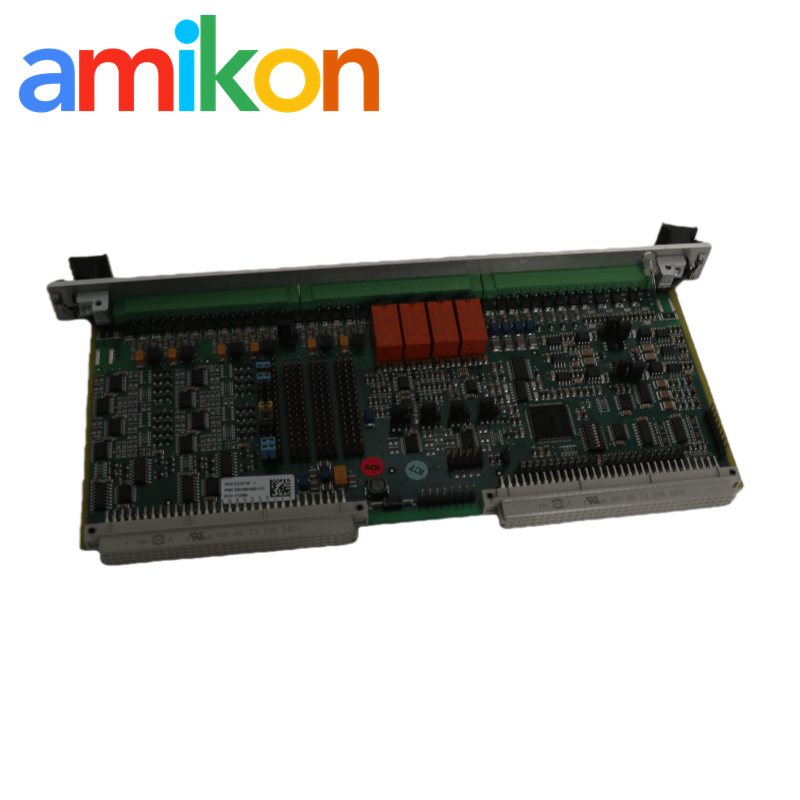

Automation Vibro Meter VM600 IOC4T 200-560-000-113 Input Output Card With 4 Dynamic Signal Inputs

Automation Vibro Meter VM600 IOC4T 200-560-000-113 Input Output Card With 4 Dynamic Signal Inputs

automation Vibro Meter VM600 IOC4T 200-560-000-113

4 Inputs Vibro Meter VM600 IOC4T 200-560-000-113

Dynamic Signal Input Output Card

Place of Origin:

USA

Brand Name:

VIBRO METER

Model Number:

VM600 IOC4T 200-560-000-113

Contact Us
Request A Quote
Product Details
Product Model:
VM600 IOC4T 200-560-000-113
Product Parameters:
Input/output Card
Place Of Shipment:
Xiamen, China
Estimated Shipping Size:
26.2x12.4x2cm
Weight:
0.24 Kg
Packaging:
Original New Packaging
MOQ:
1 Piece
Warranty:
12 Months
Highlight:

automation Vibro Meter VM600 IOC4T 200-560-000-113

,

4 Inputs Vibro Meter VM600 IOC4T 200-560-000-113

,

Dynamic Signal Input Output Card

Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
Product Description
VIBRO METER VM600 IOC4T 200-560-000-113 Input/output card
Automation Vibro Meter VM600 IOC4T 200-560-000-113 Input Output Card With 4 Dynamic Signal Inputs 0
KEY FEATURES AND BENEFITS
  • Signal interface card with 4 dynamic signal inputs and 2 tachometer (speed) inputs, for the MPC4 machinery protection card
  • Screw-terminal connectors (48 terminals) for all input/output connections
  • Contains 4 relays which can be attributed to alarm signals, under software control
  • 32 fully-programmable open-collector outputs (jumper selectable) to IRC4 and RLC16 relay cards
  • Buffered "raw" sensor signals and analog output signals (voltage or current) for vibration channels
  • EMI protection for all inputs and outputs
  • Live insertion and removal of cards (hot-swappable)
  • Available in "standard" and "separate circuits" versions
APPLICATIONS

Machinery protection and/or basic condition monitoring

IOC4T CARD DETAILS
  • Installed in the rear of a VM600 rack and connects directly to the rack backplane via two connectors
  • Each IOC4T card is associated with a corresponding MPC4 card and is mounted directly behind it in the VM600 rack (ABE04x or ABE056)
  • Operates in slave mode and communicates with the MPC4 through connector P2, using an Industry Pack (IP) interface
  • Front panel contains terminal strip connectors for wiring to transmission cables from measurement chains (sensors and/or signal conditioners)
  • Screw-terminal connectors used for all input/output signals to external control systems
Automation Vibro Meter VM600 IOC4T 200-560-000-113 Input Output Card With 4 Dynamic Signal Inputs 1
