330104-00-07-10-02-00 Bently Nevada 3300 XL 8 mm Proximity Probe
Bently Nevada 330104-00-07-10-02-00
3300 XL 8 mm Proximity Probe
8 mm Eddy Current Proximity Probe
Brand Name:
Bently Nevada
Bently Nevada 330104-00-07-10-02-00
,3300 XL 8 mm Proximity Probe
,8 mm Eddy Current Proximity Probe

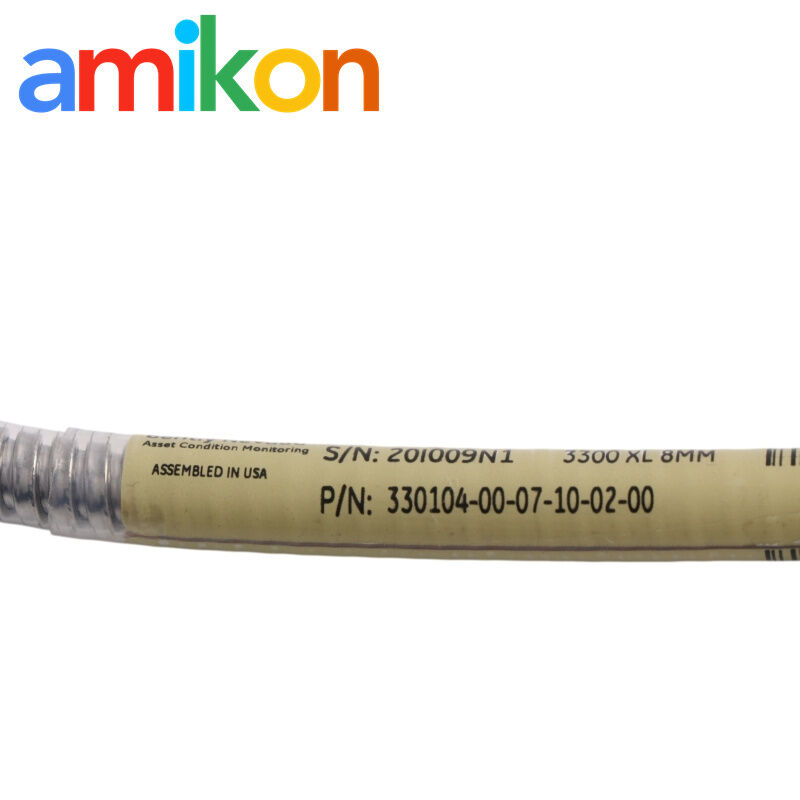

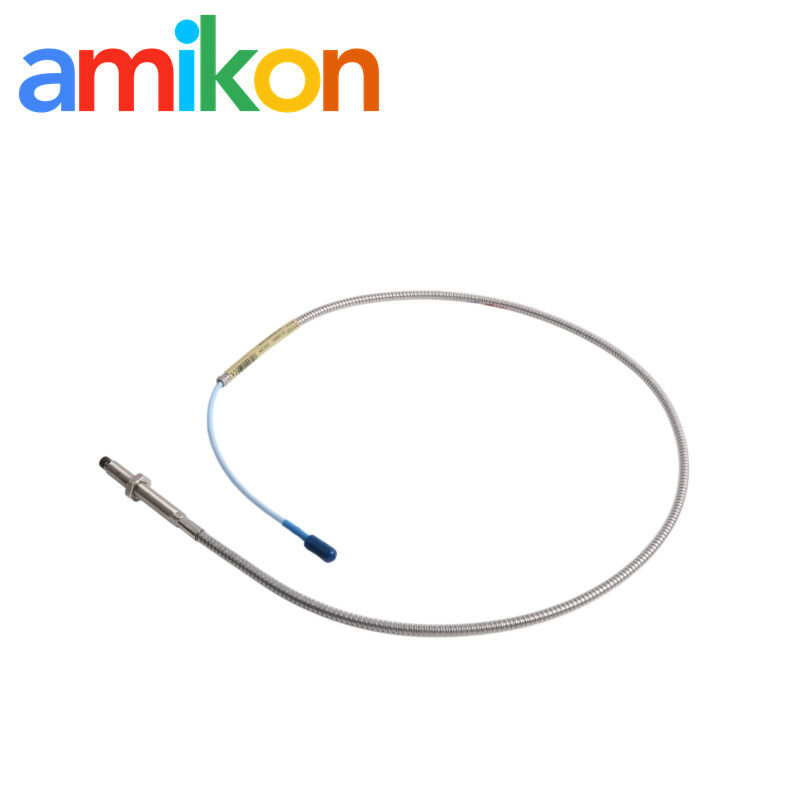

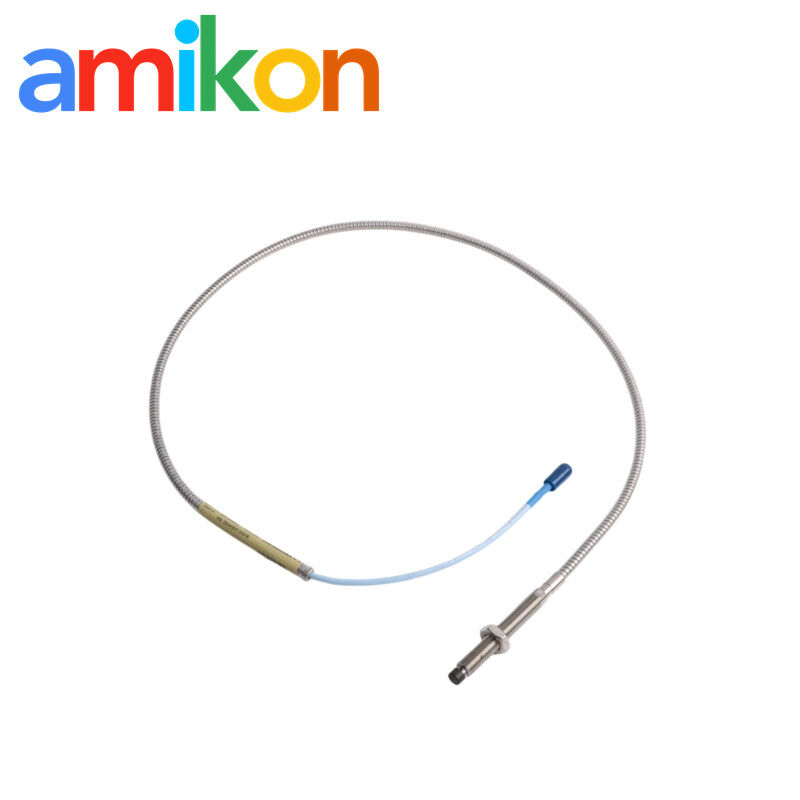

330104-00-07-10-02-00 Bently Nevada Proximity Probe
3300 XL 8 mm series probe for non-contact rotating-machinery measurement. Confirm the complete ordering code and installed transducer configuration when sourcing a replacement.
This ordering code belongs to the Bently Nevada 3300 XL 8 mm proximity probe series. The coded dimensions and connection options should be checked against the installed probe before ordering.
Technical Specifications
| Manufacturer | Bently Nevada |
|---|---|
| Product Family | 3300 XL 8 mm proximity probe |
| Probe Type | Metric-threaded probe with armor |
| Probe Tip Diameter | 8.0 mm (0.31 in) |
| Thread | M10 × 1 |
| Unthreaded Length Code | 00 — 0 mm unthreaded length |
| Case Length Code | 07 — 70 mm case length |
| Total Probe Length Code | 10 — 1.0 m (3.3 ft) |
| Connector / Cable Code | 02 — miniature coaxial ClickLoc connector, standard cable |
| Approval Code | 00 — no agency-approval option specified by this ordering code |
Additional technical details and system requirements
| Measurement Principle | Eddy-current, non-contact proximity measurement |
|---|---|
| Measurement Applications | Shaft vibration and static shaft position when used with the appropriate transducer system |
| Nominal Linear Range | 2.0 mm (80 mils) for the specified 3300 XL 8 mm transducer system |
| Nominal Scale Factor | 7.87 V/mm (200 mV/mil), a system-level value under specified conditions |
| Frequency Response | 0 to 10 kHz, +0 / −3 dB, under specified system conditions |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 stainless steel |
| Cable Construction | 75 Ω triaxial cable with FEP insulation for the specified family |
| Connector Type | Miniature coaxial ClickLoc connector |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in), as specified for the family cable |
| System Configuration | Probe and compatible Proximitor Sensor, with extension cable where required by the selected system arrangement |
| System Length Matching | Where an extension cable is used, confirm the combined probe and extension-cable length against the Proximitor Sensor specification |
Rotating Machinery Monitoring
The 3300 XL 8 mm proximity transducer family is used for non-contact shaft vibration and position measurement in rotating machinery monitoring. Maintenance teams may search for this probe when a measurement channel becomes unstable, shows an abnormal reading, loses its signal, or requires replacement after physical damage.
An unreliable channel can reduce visibility into machine condition and delay fault assessment. Check the complete measurement chain before concluding that the probe itself is defective.
Checks Before Replacement
| Inspection Point | What to Confirm |
|---|---|
| Ordering code | Compare the full part number and coded dimensions with the installed probe. |
| Signal-chain configuration | Confirm the Proximitor Sensor and any extension cable match the intended system arrangement. |
| Mounting and routing | Check thread fit, mounting clearance, cable routing and bend radius. |
| Connector and cable | Inspect for visible damage, looseness or contamination before recommissioning. |
| Abnormal signal | Consider the probe, cable, sensor, target and monitor channel during fault isolation; symptoms alone do not identify the failed component. |
Delivery & Warranty
Send Your Requirements
Include these details to help confirm the item and delivery terms.
- Part Number: 330104-00-07-10-02-00
- Quantity: Required quantity
- Destination: Country / city
- Required Date: Target delivery date
- Machine/System Model: Installed machine or monitoring system
Industrial Parts Sourcing, Kept Practical.
Miya Zheng
Frequently Asked Questions
1. Which dimensions should be checked before ordering this probe?
Confirm the M10 × 1 thread, 70 mm case-length option, 1.0 m total probe-length option and connector/cable code against the installed part.
2. Does the probe alone provide a complete monitoring channel?
No. The probe is a component of the proximity transducer system. Confirm the compatible Proximitor Sensor and any required extension cable for the installation.
3. Can an unstable shaft reading be attributed to a failed probe?
Not from the reading alone. Inspect the probe, cable, sensor, target and monitor channel as part of fault isolation.
4. What should be checked when replacing a probe in an existing system?
Match the complete ordering code and verify mechanical fit, cable routing, connector condition and the installed transducer-system configuration.
5. Where can the specifications for this exact ordering code be checked?
Consult the Bently Nevada 3300 XL 8 mm Proximity Transducer System datasheet, document 141194, and compare its ordering-code table with the complete part number.
