Bently Nevada 330130-030-00-00 Extension Cable, 3.0 m, 3300 XL 8 mm Proximity Transducer System
Bently Nevada 330130-030-00-00
330130-030-00-00 Extension Cable
Vibration Monitoring Spare Parts
Brand Name:
Bently Nevada
Bently Nevada 330130-030-00-00
,330130-030-00-00 Extension Cable
,Vibration Monitoring Spare Parts
Bently Nevada 330130-030-00-00

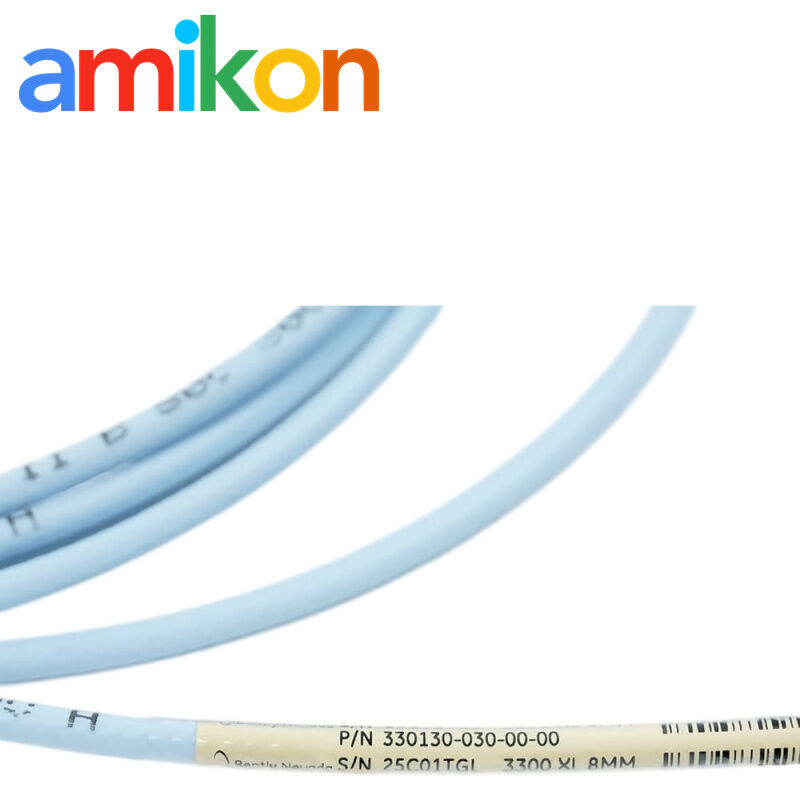

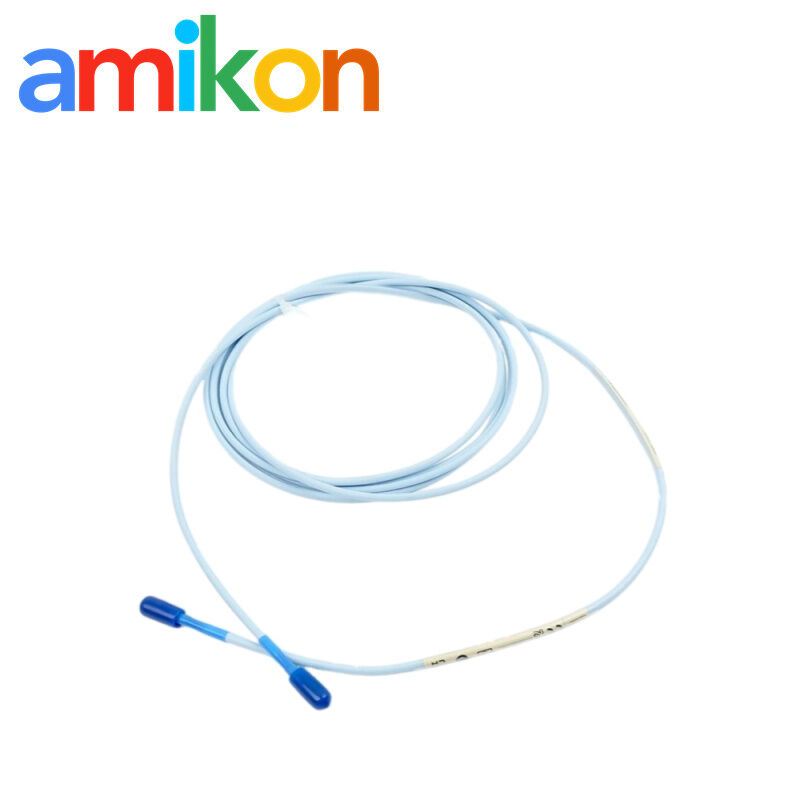

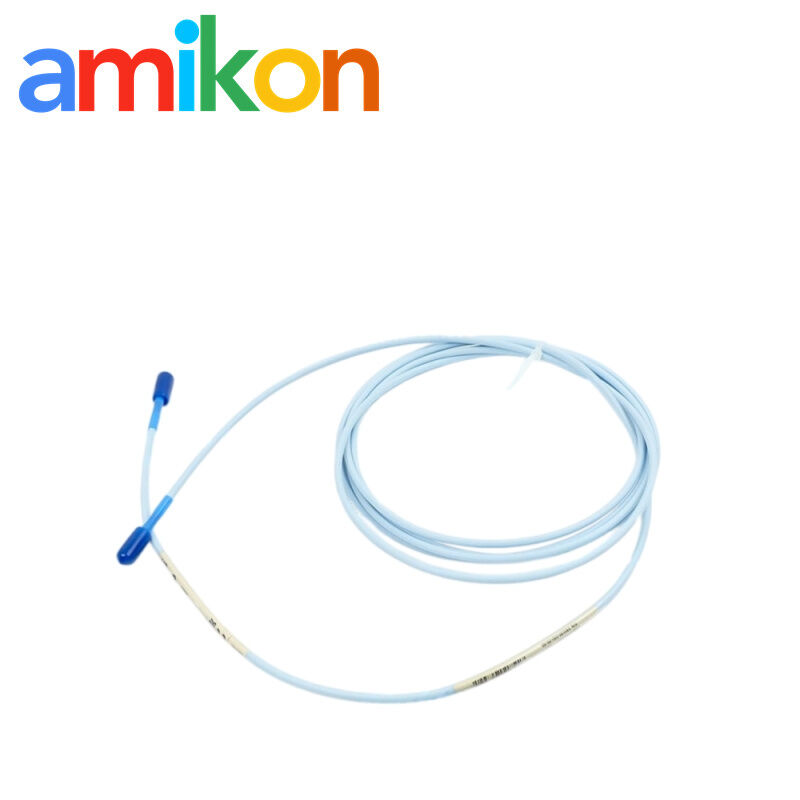

A 3.0 m standard extension cable for the Bently Nevada 3300 XL 8 mm proximity transducer system. Its triaxial cable construction and ClickLoc connector design support the probe-to-extension-cable connection used in machinery vibration and position monitoring.
Product Overview
The extension cable connects the compatible proximity probe to its associated Proximitor sensor as part of the transducer system. Correct total system length depends on the combined probe and extension-cable lengths.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Product Type | 3300 XL Standard Extension Cable |
| Product Series | 3300 XL 8 mm Proximity Transducer System |
| Cable Length | 3.0 m (9.8 ft) |
| Cable Construction | 75 Ω triaxial cable |
| Insulation Material | Fluoroethylene propylene (FEP), standard cable |
| Connector Type | 3300 XL gold-plated ClickLoc connector system |
| Connector Material | Gold-plated brass or gold-plated beryllium copper |
| Connector Torque | Maximum rated torque: 0.565 N·m (5 in·lbf) |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Typical Cable Weight | 34 g/m (0.4 oz/ft), standard extension cable |
Electrical Characteristics
| Extension Cable Capacitance | 69.9 pF/m (21.3 pF/ft), typical |
| Core DC Resistance at 3.0 m | 0.66 ± 0.10 Ω, center conductor to center conductor |
| Outer-Conductor DC Resistance at 3.0 m | 0.20 ± 0.04 Ω, outer conductor to outer conductor |
| Cable Impedance | 75 Ω triaxial construction |
Resistance values are the manufacturer's nominal values for the specified extension-cable length.
Mechanical, Connector and Ordering Details
| Ordering Number Format | 330130-AAA-BB-CC |
| Length Option 030 | 3.0 m (9.8 ft) |
| Cable Option 00 | Standard cable |
| Approval Option 00 | Agency approval not required |
| Connector Tightening | Two 3300 XL gold ClickLoc connectors: finger-tight |
| Connector Protection | Connector protectors are available; the datasheet recommends their use for increased environmental protection. |
| Silicone Tape | Supplied with 3300 XL extension cables as an alternative connector-protection method. Not recommended where the probe-to-extension-cable connection is exposed to turbine oil. |
The connector torque limit is a maximum rated value, not an instruction to tighten every connector to that torque. Follow the manufacturer's connector-specific installation instructions.
Technical reference: 3300 XL 8 mm Proximity Transducer System Datasheet (PDF).
Application & Failure Scenarios
Used in compatible 3300 XL proximity transducer installations for machinery vibration and shaft-position monitoring, including fluid-film bearing machines. The system can also support Keyphasor reference and speed measurements when configured for the application.
A damaged cable, loose connection or intermittent signal may lead maintenance teams to investigate the extension cable. If the connection fails, the monitoring system may lose or degrade its measurement signal, reducing visibility into machine condition and potentially delaying fault detection.
Installation Considerations
- The probe length and extension-cable length, when added together, must equal the Proximitor sensor's specified system length.
- Maintain a minimum cable bend radius of 25.4 mm (1.0 in).
- For two 3300 XL gold ClickLoc connectors, the specified tightening method is finger-tight.
- Observe the connector and cable installation requirements in the manufacturer's system documentation.
