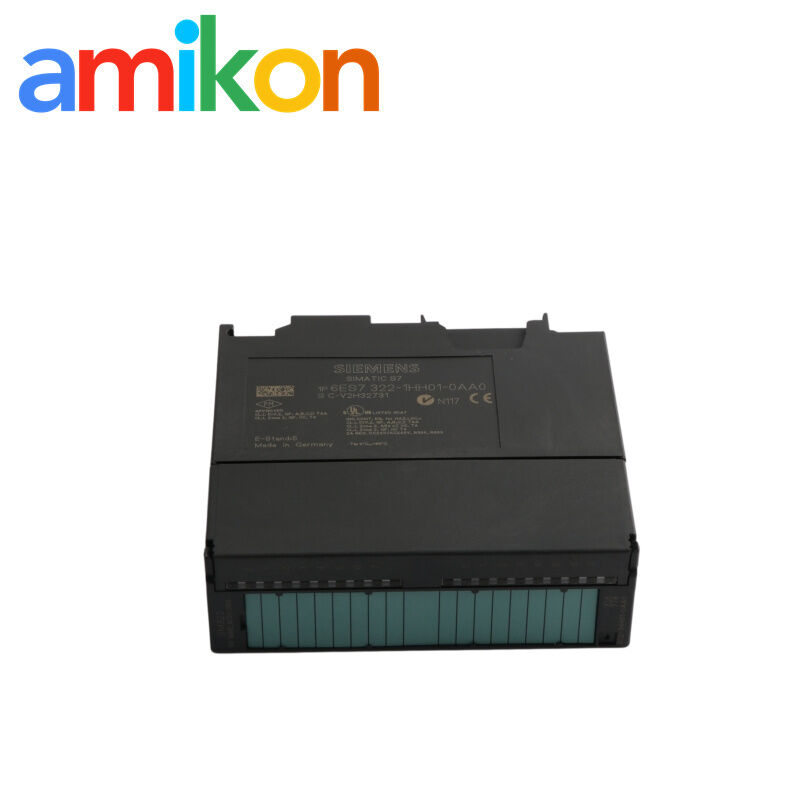

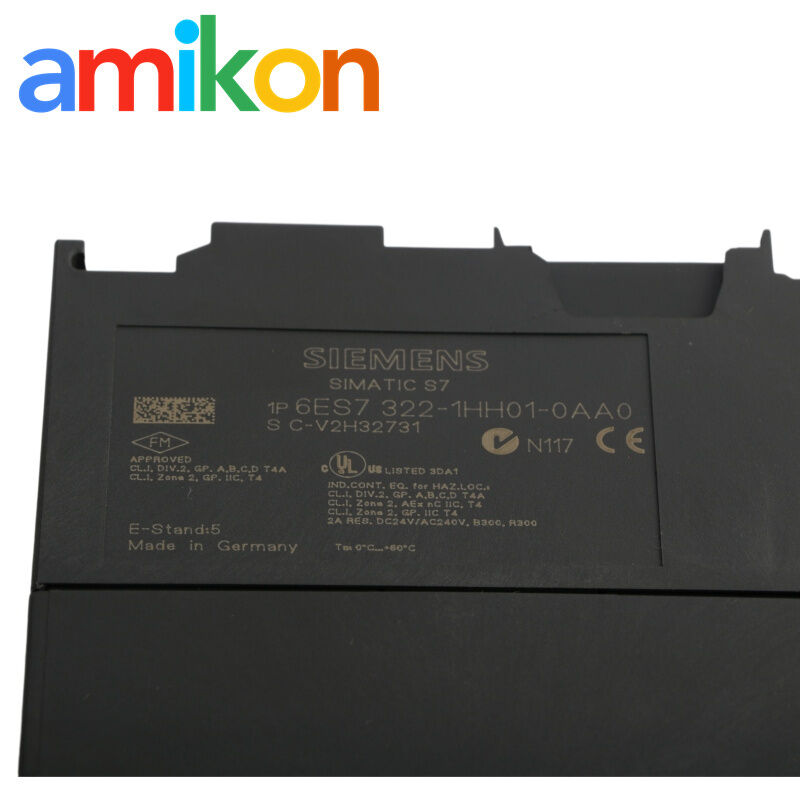

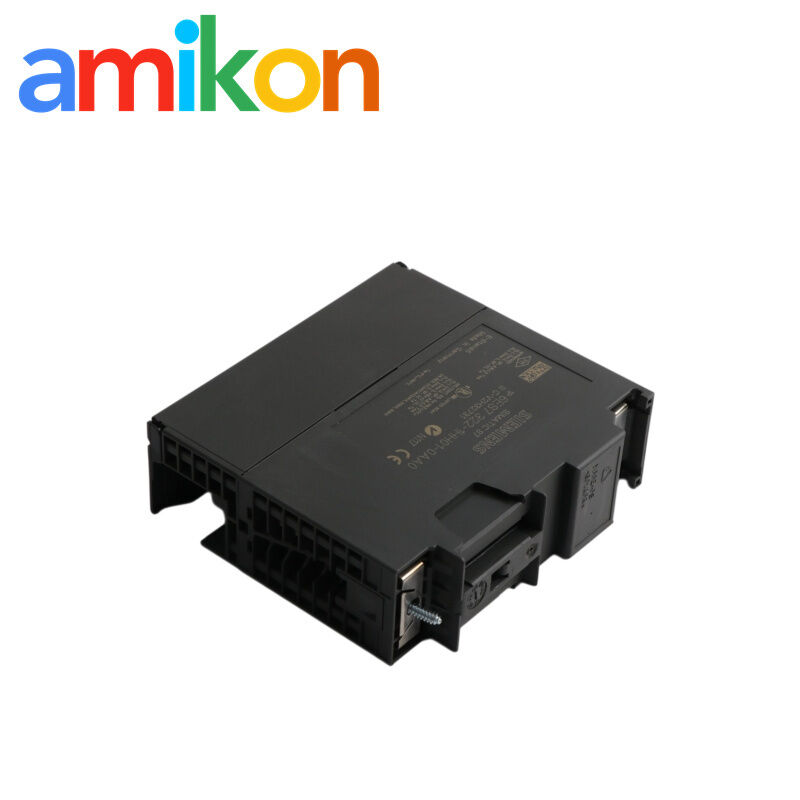

Siemens 6ES7322-1HH01-0AA0 SIMATIC S7-300 SM 322 Digital Output Module, 16 Relay Outputs
Siemens 6ES7322-1HH01-0AA0 SIMATIC S7-300 SM 322 Digital Output Module, 16 Relay Outputs
16 Digital Relay Outputs
SM 322 Digital Output Module
SIMATIC S7-300
Place of Origin:
Germany
Brand Name:
Siemens
Contact Us
Request A Quote
Product Details
Quotation Time:
Quick Quote Within 24 Hours
MOQ:
1 Piece
Shipping:
TNT, DHL, FedEx, EMS, UPS
Highlight:
16 Digital Relay Outputs
,SM 322 Digital Output Module
,SIMATIC S7-300
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
SIEMENS · SIMATIC S7-300 · SM 322
6ES7322-1HH01-0AA0
Digital output module with 16 relay outputs, electrically isolated in groups of 8, for switching AC/DC loads within the specified operating range of the SIMATIC S7-300 system.
Module Context
Relay switching in an S7-300 installation
The module is specified for switching direct- and alternating-current loads. Siemens documentation lists applications including solenoid valves, contactors, motor starters, small motors and signal lamps, subject to the stated electrical limits.Siemens 6ES7322-1HH01-0AA0 was phased out under product phase-out PM400, effective from October 1, 2023.
Core Data
Technical Specifications
Electrical & output characteristics
| Article number | 6ES7322-1HH01-0AA0 |
| Product family | SM 322 digital output modules |
| Number of digital outputs | 16 relay outputs |
| Load voltage, DC rated value | 120 V DC |
| Load voltage, AC rated value | 230 V AC |
| Specified load-voltage range | 24–120 V DC; 24–230 V AC |
| Output current, signal 1 rated value | 2 A |
| Minimum load current | 10 mA |
| Thermal continuous current | 2 A |
| Lamp load, maximum | 50 W at 230 V AC |
| Switching frequency, resistive load | 1 Hz max. |
| Switching frequency, inductive load | 0.5 Hz max. |
| Switching frequency, lamp load | 1 Hz max. |
| Mechanical switching frequency | 10 Hz max. |
Relay, isolation, connection & physical data
| Relay coil rated supply voltage | 24 V DC |
| Contact capacity, resistive load | 2 A max. |
| Contact capacity, inductive load | 2 A max. |
| Operating cycles, maximum | 100,000; values vary with load and voltage |
| Output potential separation | Yes, in groups of 8 |
| Isolation to backplane bus | Yes, optocoupler |
| Isolation test voltage | 1,500 V AC |
| Required front connector | 20-pin |
| Dimensions W × H × D | 40 × 125 × 120 mm |
| Weight | Approx. 250 g |
| Status indication | Green LED per channel |
Installation and operating limitations
- For horizontal installation, the load must be limited so that two adjacent outputs do not exceed the permitted load.
- For vertical installation, the load must be limited so that four adjacent outputs do not exceed the permitted load.
- Maximum aggregate output current per group is 8 A for horizontal installation up to 60 °C and for vertical installation up to 40 °C.
- Siemens specifies no diagnostic function, no diagnostic alarm, and no wire-break, short-circuit, fuse-blown or missing-load-voltage diagnostics for this module.
Application
Typical operating role
Used where relay-based switching is required for AC or DC field loads in the S7-300 environment, including actuator and signaling circuits covered by the manufacturer's specified limits.
Failure Search Trigger
When replacement is investigated
Common maintenance searches can begin when a commanded field load no longer switches as expected, an output circuit remains inactive, or an installed relay-output module requires replacement.
Downtime Risk
Affected process operation
Loss of a required switching channel can leave a connected actuator or signal circuit without the commanded state and may interrupt the affected machine or process.
Documentation
Check the exact article number
Before ordering, compare the article number and the manufacturer's technical documentation with the installed module and application requirements.
Reference search: 6ES7322-1HH01-0AA0 pdf / manual / datasheet
AMIKON · About & Contact
Miya Zheng · AMIKON
For industrial automation spare-part sourcing, send the required part details and delivery information for quotation review.
RFQ
Please provide Part Number, Quantity, Destination, Required Date and Machine/System Model.
Request QuoteOrder Support
Delivery & Warranty
Testing
Part identification and applicable pre-shipment checks are handled before dispatch.
Part identification and applicable pre-shipment checks are handled before dispatch.
Packaging
Industrial spare parts are packed for transport with protection appropriate to the shipment.
Industrial spare parts are packed for transport with protection appropriate to the shipment.
DOA / Returns
Any DOA or return issue should be reported promptly with order and part details for review.
Any DOA or return issue should be reported promptly with order and part details for review.
Warranty Scope
Warranty handling follows the agreed order terms and applies to the supplied item under those terms.
Warranty handling follows the agreed order terms and applies to the supplied item under those terms.
Product Questions
FAQ
What load voltages are specified for this module?
The specified load-voltage range is 24–120 V DC and 24–230 V AC, with 120 V DC and 230 V AC listed as rated values.
How are the output channels electrically separated?
The outputs are electrically isolated in groups of 8, and the outputs are isolated from the backplane bus by optocoupler.
What type of front connector is required?
Siemens specifies a 20-pin front connector for the module.
Does the module provide built-in diagnostic functions?
No. Siemens specifies no diagnostic function, diagnostic alarm, wire-break diagnosis, short-circuit diagnosis, fuse-blown diagnosis or missing-load-voltage diagnosis for this module.
What is the current Siemens product lifecycle status?
Siemens lists the article under PM400 with product phase-out effective from October 1, 2023.
