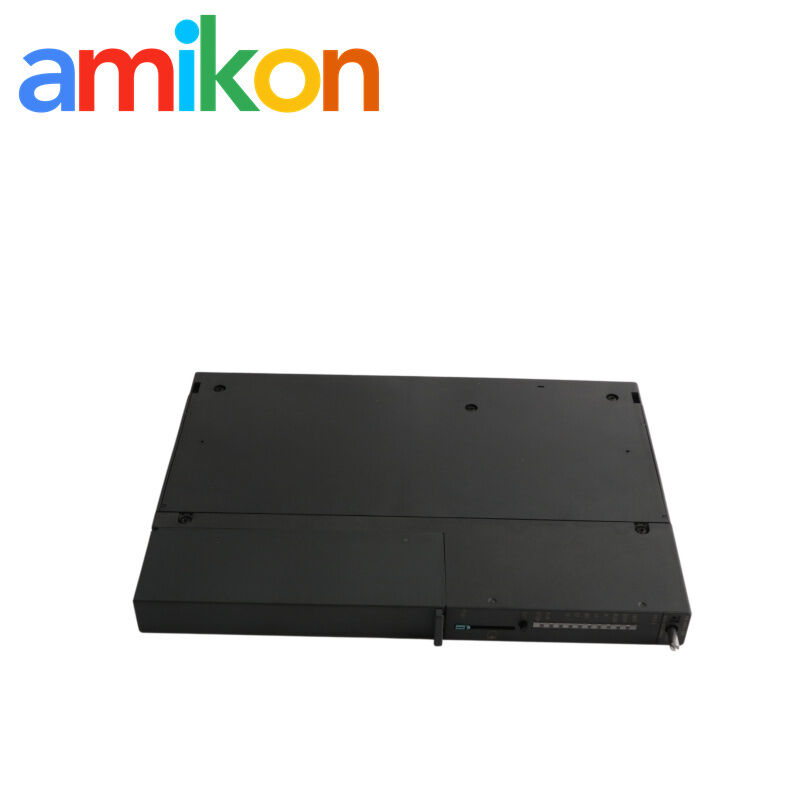

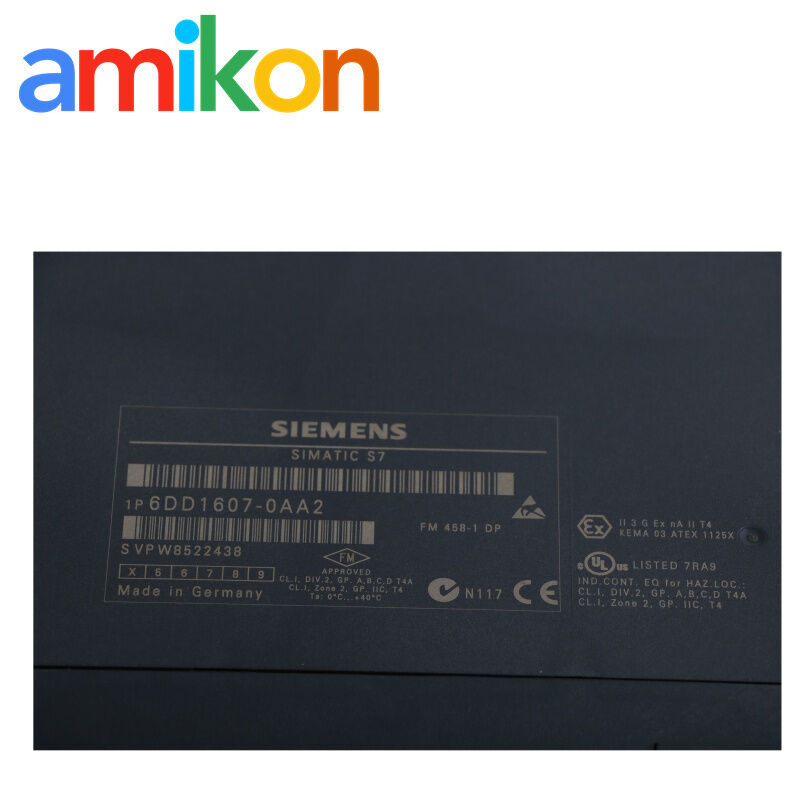

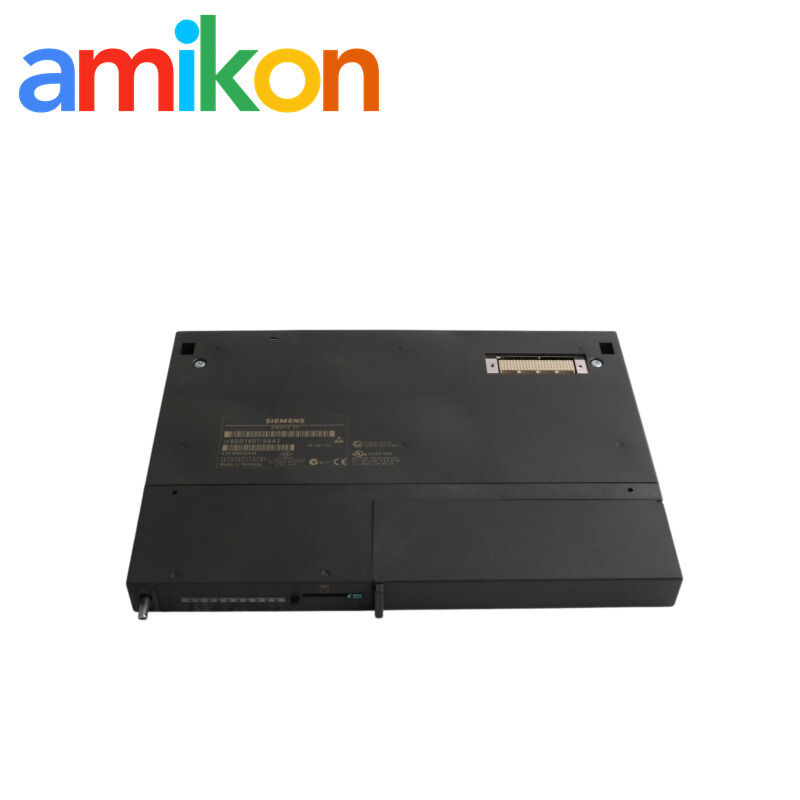

Siemens 6DD1607-0AA2 FM458-1 DP Application Module
Siemens FM458-1 DP
SIMATIC S7-400
PROFIBUS DP
Place of Origin:
Germany
Brand Name:
Siemens
Contact Us
Request A Quote
Product Details
Quotation Time:
Quick Quote Within 24 Hours
MOQ:
1 Piece
Shipping:
TNT, DHL, FedEx, EMS, UPS
Highlight:
Siemens FM458-1 DP
,SIMATIC S7-400
,PROFIBUS DP
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
Siemens Automation Spare Parts
Siemens 6DD1607-0AA2
FM 458-1 DP application module for high-performance, user-configurable computing, open-loop, closed-loop and motion-control tasks.
6DD1607-0AA2 FM458-1 DP Application Module
Technical Specifications
Core Siemens dataProduct type
FM458-1 DP Application Module
System
SIMATIC S7-400
Supply voltage
5 V DC / 24 V DC
Permissible 5 V range
4.8 to 5.25 V DC
Current consumption, typical
1.5 A
Current consumption, maximum
3 A
Memory backup
SRAM; battery operation
Backup current, maximum
15 µA
Required slots
1
Real-time clock
Yes; 500 ms resolution
Digital inputs
8; connector X2
Input rated voltage
24 V DC
Input signal 0
−1 to +6 V
Input signal 1
13.5 to 33 V
Input current, signal 1
3 mA typical at 24 V
Input delay
5 µs maximum, 0 → 1
PROFIBUS DP
Equidistance; direct data exchange
Alarms
Supported
Digital input galvanic isolation
No; optional interface modules can provide isolation
Approx. weight
1,000 g
Additional technical and configuration information
- Usable Micro Memory Cards: 2 MB, 4 MB or 8 MB.
- Serial service interface X1 uses RS232/V.24; service protocol DUST1; transfer rate 19.2 kbaud.
- PROFIBUS DP transfer rate: up to 12 Mbaud.
- The module can be configured graphically using CFC together with the D7-SYS add-on package.
- Siemens documentation lists approximately 300 function blocks, including arithmetic, logic and general motion-control functions.
Application & Fault Scenarios
Where the part is typically searchedTypical use High-performance configurable control tasks involving computing, closed-loop control, open-loop control and motion control.
Search trigger Engineers may search this exact order number when an FM458-1 DP application module is reported missing, unavailable, or suspected of malfunctioning during maintenance.
Downtime risk Loss of the application module can affect the control functions assigned to it and may delay commissioning or restoration of the affected automation process.
DP
Diagnostic / status capability Siemens specifies alarm support for the module. PROFIBUS DP operation also supports equidistant operation and direct data exchange, providing the communication path used by the application configuration.
Compatibility & Configuration Reference
Based on Siemens FM458-1 DP documentationReleased CPU combinations
Siemens documentation lists the following CPUs for operation with FM 458-1 DP from V3.1.0:
- CPU412-1 — 6ES7 412-1XF03-0AB0
- CPU412-2 — 6ES7 412-2XG00-0AB0
- CPU414-2 — 6ES7 414-2XG03-0AB0
- CPU414-3 — 6ES7 414-3XJ00-0AB0
- CPU416-2 — 6ES7 416-2XK02-0AB0
- CPU416F-2 — 6ES7 416-2FK02-0AB0
- CPU416-3 — 6ES7 416-3XL00-0AB0
- CPU417-4 — 6ES7 417-4XL00-0AB0
- CPU414-4H — 6ES7 414-4HJ00-0AB0
- CPU417-4H — 6ES7 417-4HL01-0AB0
Configuration & expansion references
Siemens documentation identifies these FM458-1 DP-related components:
- EXM 438-1 I/O extension
- EXM 448 / EXM 448-2 communication expansion
- SB10 interface module for 8 binary I/Os
- SB61 interface module for 8 binary I/Os, 24/48 V DC
- SU12 interface module for 10 signals
- SC64 interface cable for serial PC/programming-device connection
Replacement Relationship
Manufacturer documentationSiemens FM458-1 DP documentation states that 6DD1607-0AA2 replaced 6DD1607-0AA1 and describes the two order numbers as 100% compatible. This is a documented replacement relationship, not a generic cross-model substitution.
For the 6DD1607-0AA2 datasheet / manual / PDF, use the Siemens documentation associated with FM458-1 DP when checking installation, configuration and technical details.
Product Status
Siemens Industry MallLifecycle
Siemens Industry Mall lists 6DD1607-0AA2 as product cancellation, effective October 1, 2022. For existing installations, the exact order number should be checked before sourcing a replacement unit.
Contact & Delivery
AMIKON parts serviceSource the exact part number.
AMIKON can arrange sourcing, pre-shipment checking and protective packaging for industrial automation spare parts. For used or refurbished units, test condition and available return terms are confirmed with the quotation.
Contact: Miya Zheng
FAQ
5 questions for this part1. What communication interface does 6DD1607-0AA2 provide?
The module has an onboard PROFIBUS DP interface and supports equidistant operation and direct data exchange.
2. How many digital inputs are available?
There are 8 digital inputs on connector X2, with a rated input voltage of 24 V DC.
3. Can 6DD1607-0AA2 replace 6DD1607-0AA1?
Yes. Siemens documentation states that 6DD1607-0AA2 replaced 6DD1607-0AA1 and identifies the two order numbers as 100% compatible.
4. Is 6DD1607-0AA2 still an active Siemens product?
Siemens Industry Mall lists the product as cancelled, with the product cancellation effective October 1, 2022.
