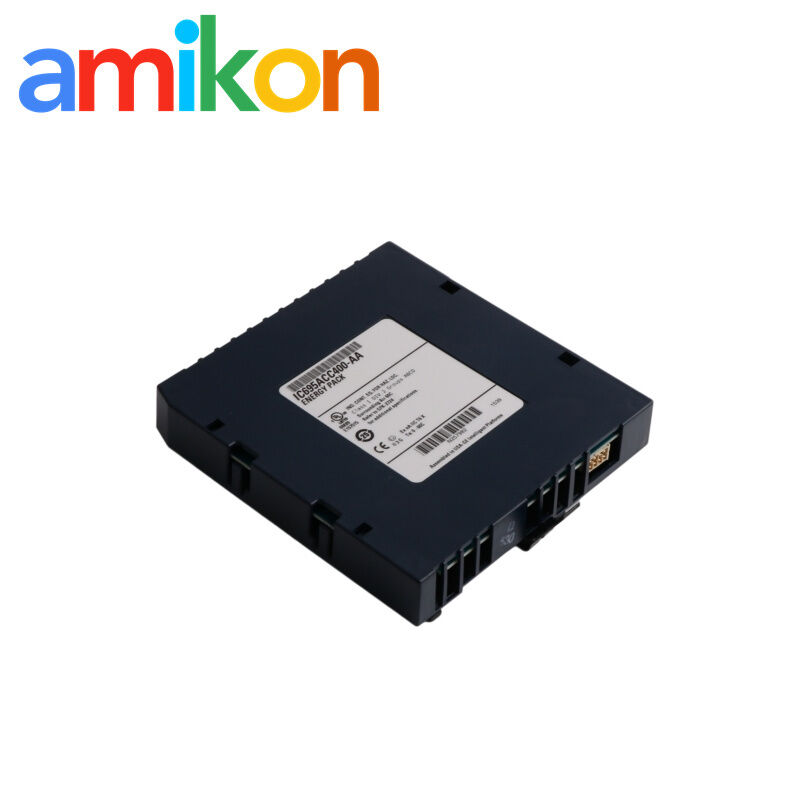

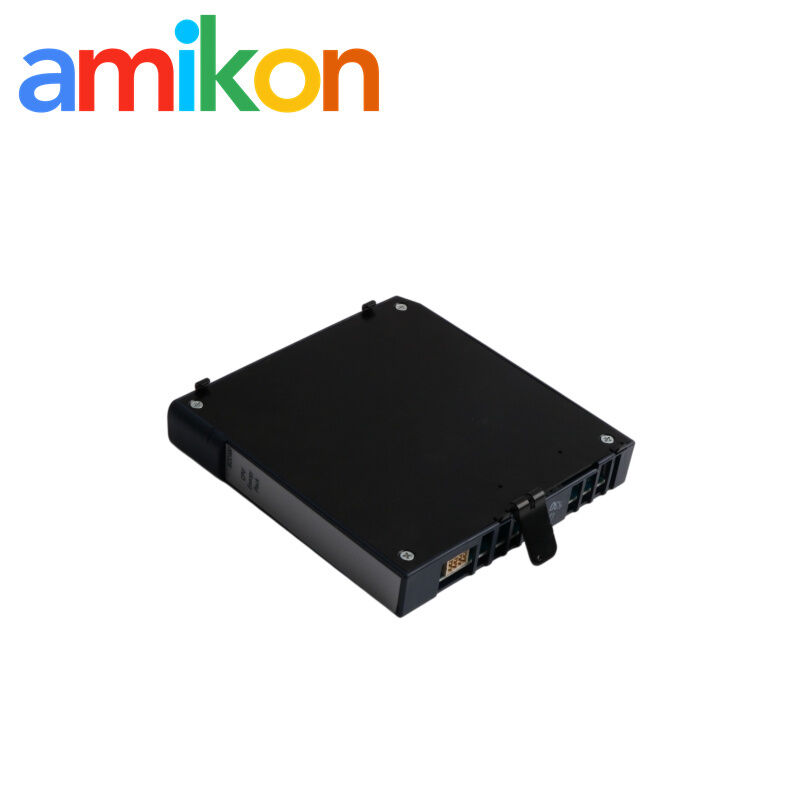

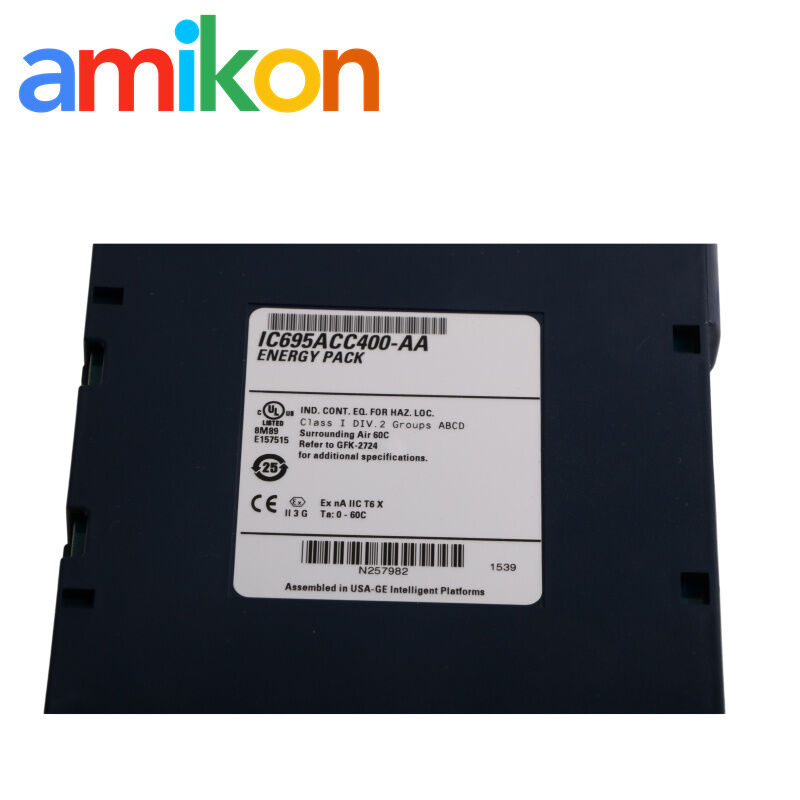

GE IC695ACC400 PACSystems RX3i Energy Pack
GE IC695ACC400
PACSystems RX3i Energy Pack
CPU Memory Preservation
Place of Origin:
Germany
Contact Us
Request A Quote
Product Details
Quotation Time:
Quick Quote Within 24 Hours
MOQ:
1 Piece
Shipping:
TNT, DHL, FedEx, EMS, UPS
Highlight:
GE IC695ACC400
,PACSystems RX3i Energy Pack
,CPU Memory Preservation
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
GE PACSystems RX3i
IC695ACC400 RX3i Energy Pack
The GE IC695ACC400 is a PACSystems RX3i Energy Pack used with specified RX3i controller CPUs. During a system power loss, it maintains CPU power long enough for user memory to be written to non-volatile flash memory.
Catalog No. IC695ACC400 RX3i Energy Pack Memory Preservation
Product Function
Energy backup for RX3i CPU memory preservation
IC695ACC400 provides the Energy Pack function for applicable RX3i CPUs. When system power is lost, the Energy Pack maintains CPU power long enough for the CPU to save user memory contents to non-volatile flash memory.
Technical Specifications
| Manufacturer | GE / GE Intelligent Platforms |
| Catalog Number | IC695ACC400 |
| Product Type | PACSystems RX3i Energy Pack |
| Specified CPU Compatibility | CPE302, CPE305 and CPE310 |
| Power-Loss Function | Maintains CPU power long enough to write user memory contents to non-volatile flash memory |
| Energy Pack Cable | IC695CBL001 |
| Mounting Position | Left side of an RX3i module |
| Dimensions | 140 mm H × 124 mm D × 25.4 mm W, including mounting brackets and latch |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Manufacturer Reference | PACSystems RX3i Energy Pack, IC695ACC400 IPI, GFK-2724 |
Additional Official Operating Notes
Initial Charging
After first power-up, or after the system has been powered down long enough to completely discharge the Energy Pack, several seconds may be required for it to charge to operating level.
CPU Status LED
During the charging period described above, the CPU STATUS LED blinks green.
Time-of-Day Clock
Removal of the Energy Pack does not cause the CPU to lose its Time-of-Day value because the TOD clock is powered by the Real-Time Clock battery.
Conditional Flash Power-Up
With Conditional–Flash configured, if the Energy Pack is disconnected or has failed, flash contents are loaded into RAM at power-up.
Installation
Mounting and CPU Connection
Mounting position
The Energy Pack mounts on the left side of an RX3i module. When installed on a module in slot 0, the manufacturer notes that it extends approximately 13 mm beyond the left side of the backplane.
Connection
The specified connection to the CPU uses the IC695CBL001 Energy Pack cable.
Diagnostic Reference
Energy Pack Status
Emerson identifies %S0014 (PLC_BAT) as the system status reference for Energy Pack condition.
| 0 | Energy Pack is connected and functioning. |
| 1 | Energy Pack is not connected or has failed. |
Application & Fault Scenarios
Where this part is typically searched
IC695ACC400 is relevant to RX3i controller systems using the specified CPUs when troubleshooting Energy Pack status, power-loss memory preservation, or an Energy Pack that is disconnected or has failed.
Shutdown Risk
Without a functioning Energy Pack, the intended memory-preservation operation during a power-loss event is not available. This makes the component relevant when an RX3i CPU reports the corresponding Energy Pack condition.
AMIKON
Confirm the Exact Part
For an accurate quotation, please provide: Part Number, Quantity, Destination, Required Date, and Machine/System Model.
Exact model identification is recommended before quotation and shipment.
Testing
Part-number and condition checks before shipment; functional testing where applicable.
Packaging
Protective industrial packaging prepared for shipment.
DOA / Returns
Report DOA or shipping damage promptly with supporting photos or video for review.
Warranty
12-month warranty for confirmed product defects under normal intended use; misuse or unauthorized modification excluded.
FAQ
Which RX3i CPUs are specified for IC695ACC400?
The applicable Emerson documentation identifies CPE302, CPE305 and CPE310 CPUs for the IC695ACC400 Energy Pack.
What happens if the RX3i system loses power?
The Energy Pack maintains CPU power long enough for user memory contents to be written to non-volatile flash memory.
Which cable is used with IC695ACC400?
The specified Energy Pack cable is IC695CBL001.
How is the Energy Pack status checked?
%S0014 (PLC_BAT) indicates the Energy Pack status: 0 means connected and functioning; 1 means not connected or failed.
