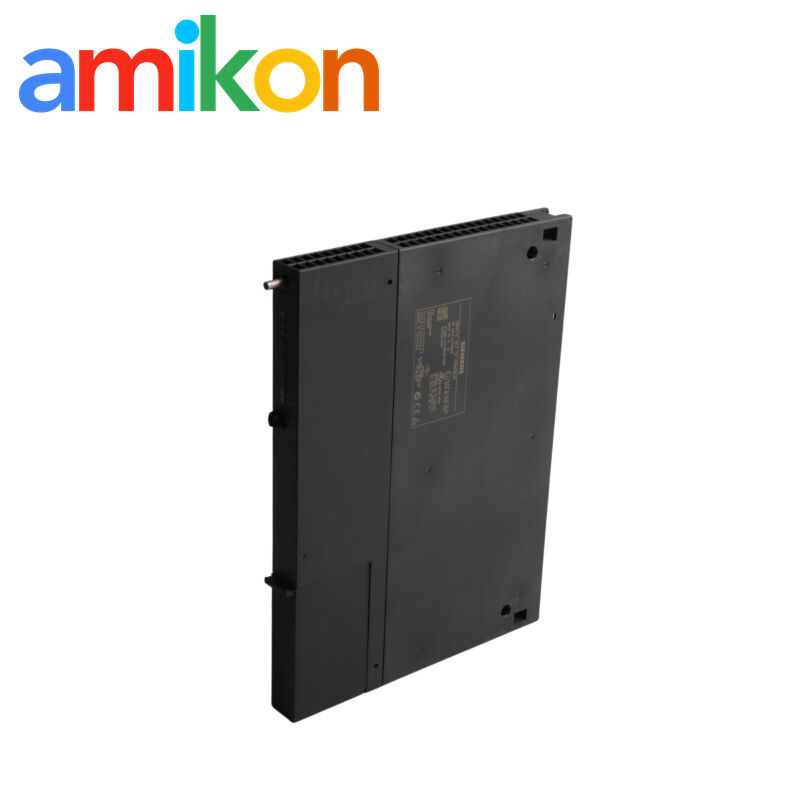

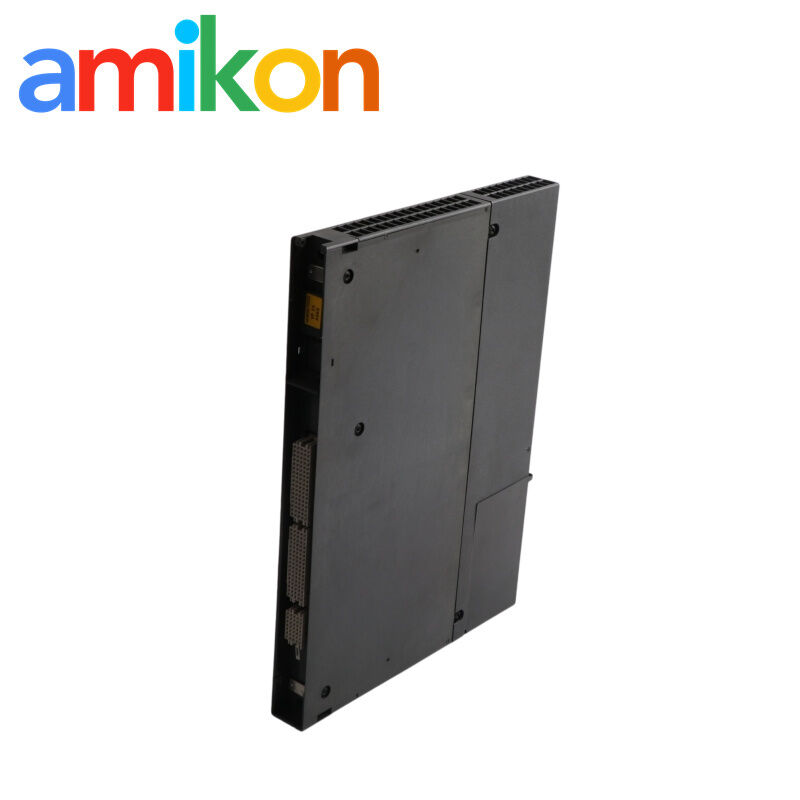

Siemens 6GK7443-5DX05-0XE0 CP 443-5 Extended PROFIBUS DP Communication Processor
Siemens 6GK7443-5DX05-0XE0 CP 443-5 Extended PROFIBUS DP Communication Processor
CP 443-5 Extended
PROFIBUS DP Master
SIMATIC S7-400 / S7-400H
Place of Origin:
Germany
Brand Name:
Siemens
Contact Us
Request A Quote
Product Details
Quotation Time:
Quick Quote Within 24 Hours
MOQ:
1 Piece
Shipping:
TNT, DHL, FedEx, EMS, UPS
Highlight:
CP 443-5 Extended
,PROFIBUS DP Master
,SIMATIC S7-400 / S7-400H
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
AMIKON · SIEMENS · SIMATIC NET
6GK7443-5DX05-0XE0
Communication processor for the S7-400 platform.
The 6GK7443-5DX05-0XE0 is specified for PROFIBUS DP master operation and supports S5-compatible PG/OP, S7 and open SEND/RECEIVE communication.
The 6GK7443-5DX05-0XE0 is specified for PROFIBUS DP master operation and supports S5-compatible PG/OP, S7 and open SEND/RECEIVE communication.
PROFIBUS transfer rate 9.6 kbit/s — 12 Mbit/s
Technical Specifications
Core product dataCommunication, electrical and mechanical data — Part 1
| Product type designation | CP 443-5 Extended |
| Article number | 6GK7443-5DX05-0XE0 |
| Primary system connection | SIMATIC S7-400 / S7-400H |
| Communication interface | PROFIBUS DP |
| Transfer rate | 9.6 kbit/s ... 12 Mbit/s |
| Number of PROFIBUS electrical connections | 1 |
| Electrical connection | 9-pin Sub-D socket, RS-485 |
| Industrial Ethernet interfaces | 0 |
| Supply voltage | 5 V DC from the S7-400 backplane bus |
| Relative symmetrical tolerance at 5 V | 5% |
| Typical consumed current | 0.6 A from backplane bus at 5 V DC |
Communication, electrical and mechanical data — Part 2
| Power loss | 3 W |
| Ambient temperature during operation | 0 ... 60 °C |
| Ambient temperature during storage | -40 ... +70 °C |
| Ambient temperature during transport | -40 ... +70 °C |
| Relative humidity | Maximum 95% at 25 °C, without condensation, during operation |
| Protection class | IP20 |
| Module format | Compact module S7-400 single width |
| Width | 25 mm |
| Height | 290 mm |
| Depth | 210 mm |
| Net weight | 0.65 kg |
Performance data
| Open communication connections | Maximum 32 using SEND/RECEIVE blocks |
| Open communication user data | Maximum 240 bytes per connection |
| PROFIBUS DP service | DPV1 as DP master |
| Operable DP slaves | Maximum 125 |
| DP master input address area | 4,096 bytes total |
| DP master output address area | 4,096 bytes total |
| Input address area per DP slave | 244 bytes |
| Output address area per DP slave | 244 bytes |
| S7 communication connections | Maximum 48 |
| Multi-protocol mode, without DP | Maximum 59 active connections |
| Multi-protocol mode, with DP | Maximum 54 active connections |
| Telecontrol TCP/IP | No |
| Maximum CPs per CPU | 14 |
Configuration and product revision information
| Configuration software | STEP 7 V5.4 SP4 or higher / STEP 7 Professional V12 or higher |
| Hardware version in Siemens 01/2023 equipment manual | Version 2 |
| Firmware version in Siemens 01/2023 equipment manual | V7.1.9 |
| Front-panel elements | LED displays, mode selector and PROFIBUS interface |
System Role & Application
Where this part fitsTypical system position
Installed as a communication processor within a SIMATIC S7-400 / S7-400H automation station where PROFIBUS DP communication is required.
Communication tasks
Supports data exchange between the S7-400 station and PROFIBUS DP devices within the configured automation network.
Need the 6GK7443-5DX05-0XE0 pdf/manual/datasheet for identification, configuration or replacement work? Match the complete article number before ordering.
Application & Fault Scenarios
Search triggers for maintenance teamsPROFIBUS communication lost When the S7-400 station can no longer communicate correctly with PROFIBUS DP devices, maintenance teams may search by the CP part number.
CP / bus diagnostic alarm A CP communication or PROFIBUS-side diagnostic condition can trigger a replacement search for the exact installed communication processor.
Production downtime Loss of the communication path can interrupt data exchange with connected DP devices and may hold up an automation process until communication is restored.
Installation & Configuration Notes
Project engineeringProject engineering
Siemens documentation specifies STEP 7 V5.4 SP4 or higher, or STEP 7 Professional V12 or higher, for configuration.
Replacement check
Before replacement, compare the complete article number and confirm the installed project and applicable hardware / firmware revision.
Delivery & Warranty
AMIKON service processPrepared for replacement work.
AMIKON checks the part number and physical condition before shipment. Functional testing is performed when the item and available test setup allow it.
- Testing: identity + condition check
- Packaging: protective industrial packaging
- DOA: report promptly with evidence
- Returns: handled under agreed return terms
- Warranty: 12 months for covered product defects
- RFQ: exact part details speed processing
RFQ — send these details
Part Number Quantity Destination Required Date Machine/System Model

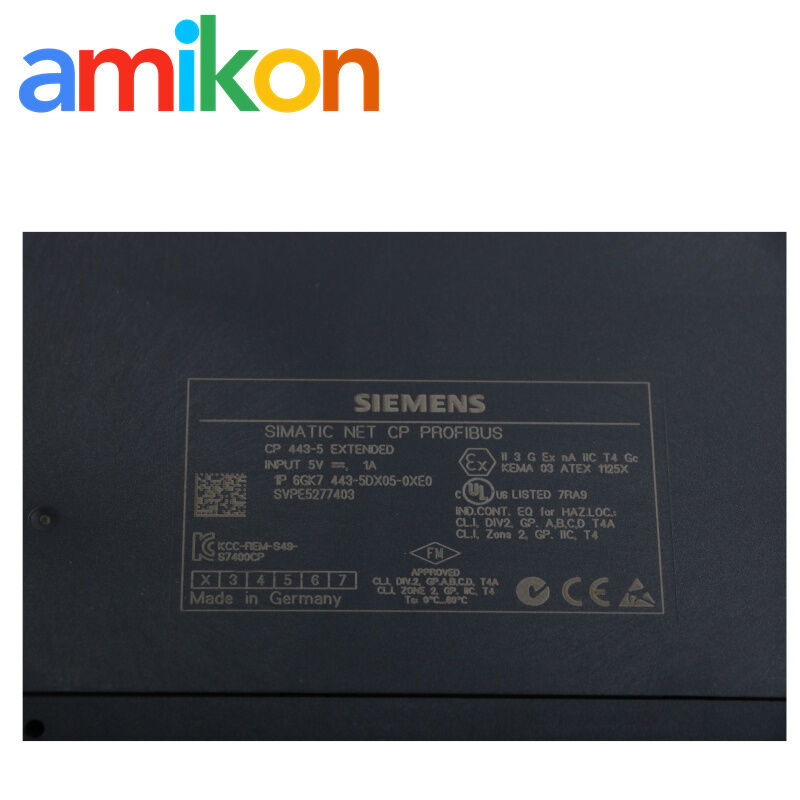

For an exact quotation, include the complete marking shown on the installed module whenever possible.
Contact
AMIKON Industrial AutomationRFQ / Spare Parts
Miya Zheng
AMIKON · Industrial Automation Spare Parts
sales@amikon.cn +86 180 2077 6792
Please include Part Number, Quantity, Destination, Required Date and Machine/System Model in your enquiry.
FAQ
6GK7443-5DX05-0XE0What PROFIBUS interface does it use?
The module has one PROFIBUS electrical interface using a 9-pin Sub-D socket with RS-485.
What is the maximum PROFIBUS transfer rate?
The specified PROFIBUS transfer-rate range is 9.6 kbit/s to 12 Mbit/s.
How many DP slaves can the CP 443-5 Extended operate as DP master?
The Siemens technical data specifies a maximum of 125 operable DP slaves on the DP master.
Does 6GK7443-5DX05-0XE0 provide an Industrial Ethernet interface?
No. The specified communication interface for this module is PROFIBUS; the technical data lists zero Industrial Ethernet interfaces.
What should I provide when requesting a replacement?
Send the complete part number, quantity, destination, required date and machine/system model. If possible, also provide the exact marking visible on the installed module.
