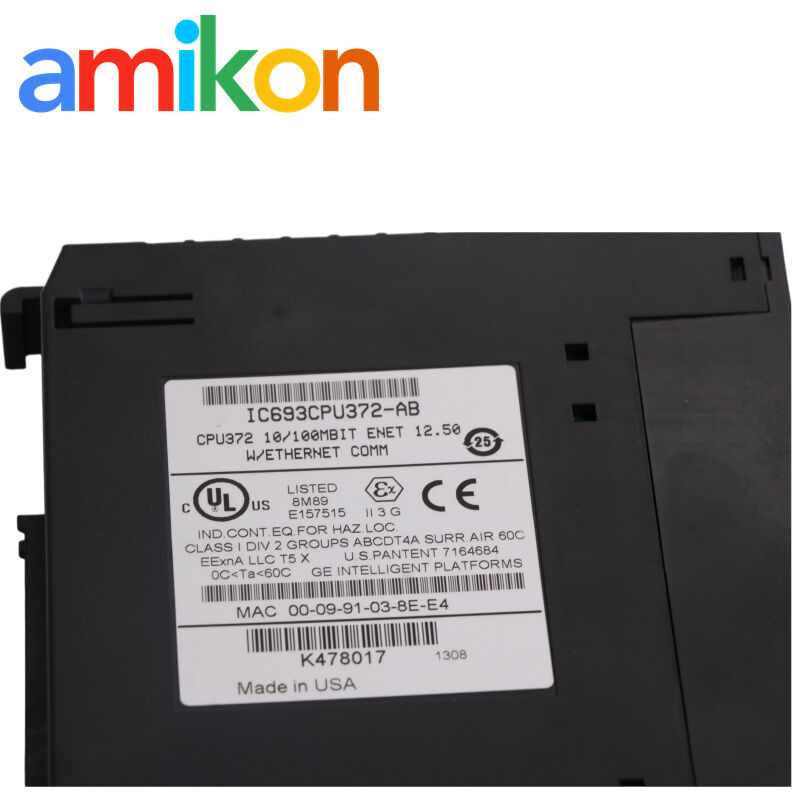

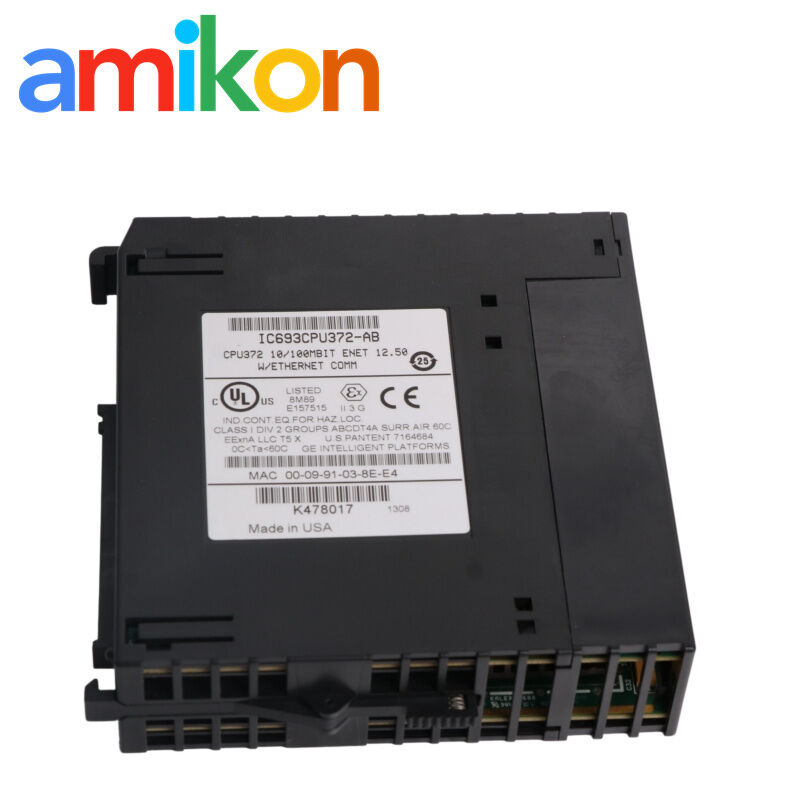

GE Fanuc IC693CPU372 Series 90-30 PLC CPU Module 133 MHz Embedded Ethernet
GE Fanuc IC693CPU372
Series 90-30 PLC CPU
Single-Slot CPU Module
Place of Origin:
USA
Brand Name:
General Electric
GE Fanuc IC693CPU372
,Series 90-30 PLC CPU
,Single-Slot CPU Module
GE Fanuc IC693CPU372
Series 90-30 PLC CPU Module
Product Overview
The IC693CPU372 is a single-slot CPU for the GE Fanuc Series 90-30 PLC platform. Its architecture combines PLC processing, configurable memory areas and an embedded Ethernet interface for control-system communication and programming functions.
Technical Specifications
Core CPU & Memory
| Manufacturer / Platform | GE Fanuc / Series 90-30 |
|---|---|
| Part Number | IC693CPU372 |
| Controller Type | Single-slot CPU with embedded Ethernet interface |
| Processor | AMD SC520 / 80386EX |
| Processor Speed | 133 MHz |
| Boolean Execution Time | 0.15 μs per Boolean instruction |
| Memory Storage | RAM and Flash |
| User Memory | 120 KB total; actual available program memory depends on configured %R, %AI and %AQ word-memory areas |
| Floating-Point Math | Supported |
| Battery-Backed Clock | Supported |
I/O & Reference Memory
| Discrete Inputs %I | 2,048 fixed |
|---|---|
| Discrete Outputs %Q | 2,048 fixed |
| Discrete Global Memory %G | 1,280 bits fixed |
| Internal Coils %M | 4,096 bits fixed |
| Temporary Coils %T | 256 bits fixed |
| System Status References %S | 128 bits fixed |
| Register Memory %R | 128 to 32,640 words, configurable |
| Analog Inputs %AI | 128 to 32,640 words, configurable |
| Analog Outputs %AQ | 128 to 32,640 words, configurable |
| System Registers %SR | 28 words fixed |
| Timers / Counters | More than 2,000, depending on available user memory |
Ethernet & System Hardware
| Ethernet | Built-in 10/100 Mbps Ethernet interface |
|---|---|
| Ethernet Ports | Two auto-sensing 10Base-T / 100Base-TX RJ-45 ports |
| Ethernet Network | 10BaseT or 100BaseTX IEEE 802.3 |
| Ethernet Services | SRTP, Ethernet Global Data (EGD), Modbus TCP Client/Server and web diagnostic support |
| Station Manager | Supported through the Station Manager interface |
| Power Supply Requirement | High-capacity Series 90-30 power supply required |
| 5 VDC Load | 7.4 W from the 5 VDC supply |
| Baseplates | Up to 8 total baseplates: 1 CPU baseplate plus up to 7 expansion and/or remote baseplates |
| Hand-Held Programmer | Not supported |
| Program Store Devices | PLC Program Download Device (PPDD) and EZ Program Store Device |
Application & Fault Scenarios
Used as the CPU element of Series 90-30 PLC installations where centralized program execution and embedded Ethernet communication are required.
CPU replacement after a controller fault, loss of normal PLC operation, or an Ethernet-related control-system issue can lead maintenance teams to search by the exact IC693CPU372 catalog number.
Because the CPU is the controller's processing element, an unavailable or failed unit can prevent the affected PLC system from operating normally until the controller issue is resolved.
Configuration & Diagnostics
Delivery & Warranty
Industrial sourcing, handled clearly.
Each supplied unit is checked against the ordered part number before dispatch. Packaging is selected for industrial spare-part transport, with order details retained for delivery and after-sales handling.
For DOA or an item that does not match the agreed order specification, contact AMIKON promptly with the part number, order information and supporting photos or test information where applicable. Warranty coverage follows the agreed quotation and order terms.
Contact
AMIKON Industrial Automation
Miya Zheng — sourcing coordination, quotation and order communication for industrial automation spare parts.
FAQ
1. What type of module is the IC693CPU372?
2. Does the IC693CPU372 have built-in Ethernet?
3. What processor is used in the IC693CPU372?
4. How much user memory does the IC693CPU372 provide?
5. Is a high-capacity power supply required?
