Bently Nevada 330102-04-25-10-02-00 3300 XL 8 mm Armored Proximity Probe · 1.0 m
3300 XL 8 mm Proximity Probe
Armored Proximity Probe
Non-Contact Shaft Measurement
Brand Name:
Bently Nevada
3300 XL 8 mm Proximity Probe
,Armored Proximity Probe
,Non-Contact Shaft Measurement

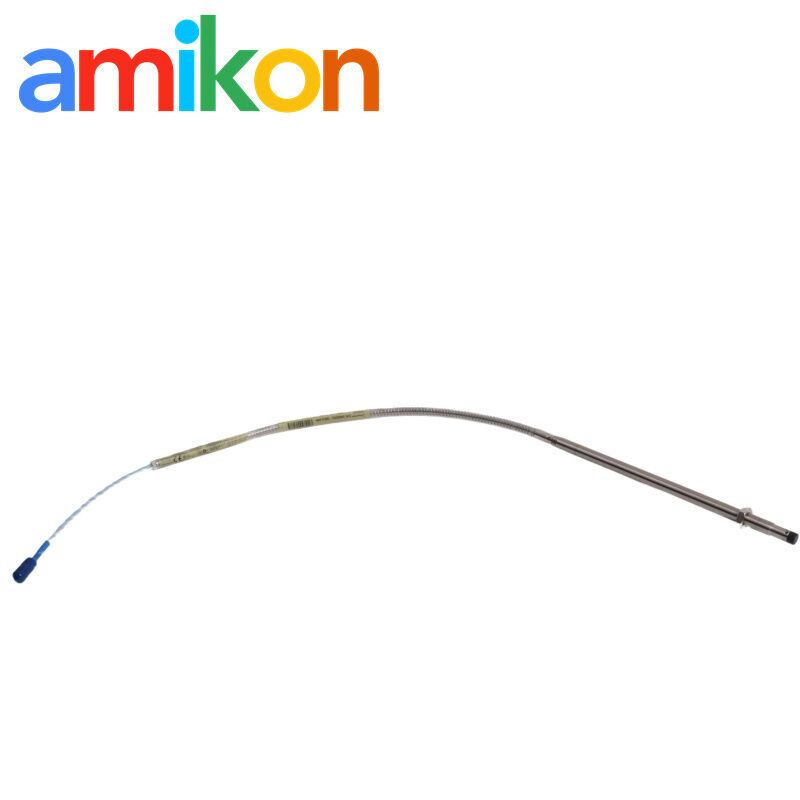

Bently Nevada 330102-04-25-10-02-00 3300 XL 8 mm Armored Proximity Probe
A standard-mount proximity probe for non-contact machinery monitoring within the 3300 XL 8 mm Proximity Transducer System.
Ordering Code
Technical Specifications
Bently Nevada Datasheet 141194 Rev. AM
Expand full electrical, mechanical & environmental specifications
Compatibility & Replacement
Original Compatibility
Designed for the 3300 XL 8 mm Proximity Transducer System and its matched Proximitor Sensor chain.
Historical Compatibility
Bently Nevada states that 3300 XL 8 mm components are electrically and physically interchangeable with non-XL 3300 5 mm and 8 mm components, with system performance then limited to the non-XL specification.
Applications & Fault Scenarios
Non-contact shaft measurement
Used in machinery monitoring where shaft position and dynamic vibration are measured without physical contact with the target surface.
Missing or unstable signal
Probe, connector, cable or gap conditions may need inspection when a monitoring channel becomes unstable.
Abnormal shaft-position reading
Incorrect gap or a disturbed transducer chain can affect the measured position signal.
Intermittent connection
Connector condition, cable routing and bend radius should be checked during troubleshooting.
Monitoring channel unavailable
Loss of a critical measurement channel can delay maintenance completion and machine return to service.
Installation & Commissioning
Secure the probe
Install the probe within the specified mechanical limits and apply the required installation torque.
Set the measurement gap
Set the probe gap according to the required measurement condition before commissioning the channel.
Protect the cable
Maintain the specified bend radius and avoid excessive tensile or mechanical loading.
Complete the connection
Connect the probe to the associated transducer chain and secure the connector correctly.
Check the transducer chain
Confirm the appropriate Proximitor Sensor and monitoring arrangement before operation.
Verify the channel
Check supply, continuity, gap voltage and monitor response before returning the channel to service.
Documentation
330102-04-25-10-02-00 datasheet
Bently Nevada Datasheet 141194 covers the 3300 XL 8 mm probe ordering options, mechanical limits, system performance and installation-related requirements.
