Product Description
ABB · AC 800M High Integrity
PM865K02
REDUNDANT PROCESSOR UNIT
ABB PM865K02 3BSE031150R1 Redundant Processor Unit for AC 800M High Integrity Systems

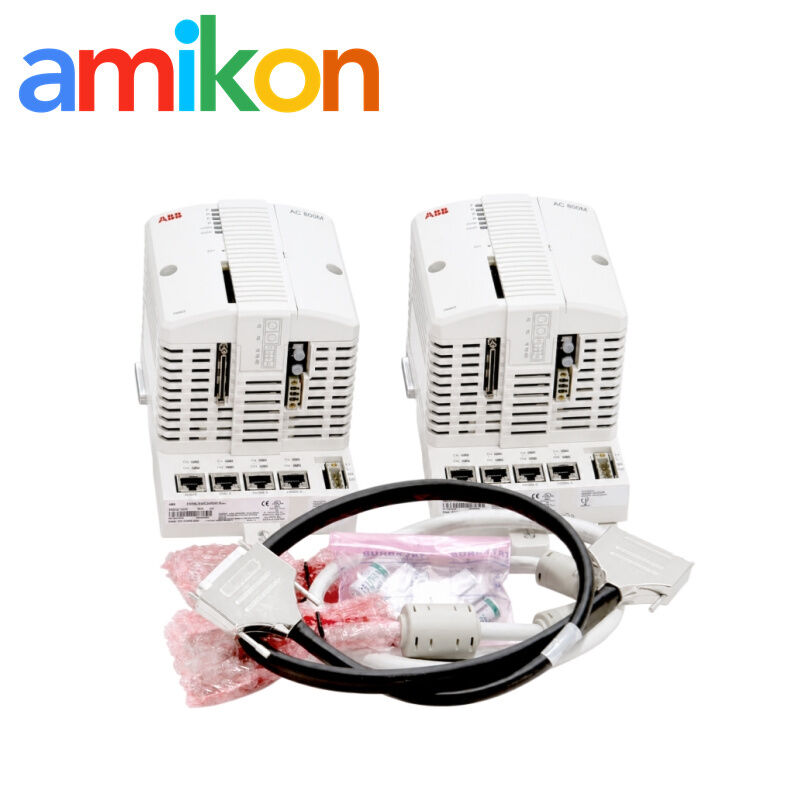

PM865K02 is ABB's redundant processor package for AC 800M High Integrity systems. The package contains two PM865K01 Processor Units together with one TK850 CEX-bus expansion cable and one TK851 RCU-Link cable.
01
Product Overview
What PM865K02 is
Redundant Processor Unit package for AC 800M High Integrity systems.
ABB defines PM865K02 as a redundant processor package rather than a single PM865 CPU. Its core configuration is built from two PM865K01 Processor Units, with the CEX-bus and RCU-Link cables required for the redundant arrangement.
PM865K02 package contents
2×
PM865K01
Processor Unit
1×
TK850
CEX-bus expansion cable
1×
TK851
RCU-Link cable
Each PM865K01 includes
PM865 CPU · TP830 Baseplate · TB850 CEX-bus terminator · TB807 ModuleBus terminator · TB852 RCU-Link terminator · Battery for memory backup
02
Redundant Architecture
●
PM865K01
Primary Processor Unit
⇄
●
PM865K01
Backup Processor Unit
→
◆
AC 800M
High Integrity controller system
The TK851 RCU-Link connects the redundant processor units. ABB documentation states CPU redundancy support for PM865 and specifies a maximum switchover time of 10 ms in the redundant configuration.
03
Package Connections
⇄
TK851 RCU-Link
The RCU-Link cable connects the redundant processor units and supports the exchange between the primary and backup CPU.
⌁
TK850 CEX-bus
The package includes one TK850 CEX-bus expansion cable for the processor configuration.
▦
ModuleBus termination
TB807 is part of each PM865K01 Processor Unit package and serves as the ModuleBus terminator.
The PM865K02 package should be distinguished from the complete High Integrity system. Additional safety and system components are selected according to the actual AC 800M configuration.
04
Technical Specifications
＋ View ABB technical data
PM865K02 Article number
3BSE031150R1
Package configuration
2 × PM865K01 + 1 × TK850 + 1 × TK851
High Integrity Controller
Yes
Clock frequency
96 MHz
RAM
32 MB
RAM available for application
22.184 MB
Processor type
MPC862P
CPU redundancy support
Yes
Maximum switchover time
10 ms
Power supply
24 V DC (19.2–30 V DC), maximum 5% ripple
Power current at +24 V
287 / 487 mA typical / maximum
Power dissipation
6.9 W typical
CEX-bus communication modules
12
ModuleBus I/O capacity
Maximum 96 / 84 I/O modules with non-redundant / redundant CPU
Ethernet channels
2
Ethernet interface
IEEE 802.3, 10 Mbit/s, RJ-45
Control Network protocol
MMS and IAC
Operating temperature
+5 to +55 °C
Storage temperature
−40 to +70 °C
Relative humidity
5–95%, non-condensing
Protection
IP20
Dimensions
119 × 186 × 135 mm
Technical data summarized from ABB AC 800M Controller and Communication Interfaces documentation.
05
Documentation & Ordering
Official article number
3BSE031150R1
ABB documentation identifies this article number for the PM865K02 Redundant Processor Unit.
Documentation
PM865K02 pdf / datasheet
ABB's AC 800M Controller and Communication Interfaces data sheet identifies PM865K02 as 3BSE031150R1 and specifies its controller characteristics. The System 800xA Product Catalog defines the package contents.
06
Order Handling
Please provide the complete part number, quantity, destination, required date and existing machine or system information when requesting a quotation. For PM865K02, confirm the article number and package configuration against the unit label or purchasing documentation before order placement.
RFQ details
Part Number · Quantity · Destination · Required Date · Machine · System Model
07
FAQ
+ What is included in an ABB PM865K02 package?
ABB lists two PM865K01 Processor Units, one TK850 CEX-bus expansion cable and one TK851 RCU-Link cable as the PM865K02 package contents.
+ What does each PM865K01 contain?
Each PM865K01 package includes one PM865 CPU and the listed package items: TP830 baseplate, TB850 CEX-bus terminator, TB807 ModuleBus terminator, TB852 RCU-Link terminator and battery for memory backup.
+ What are TK850 and TK851 used for?
TK850 is the CEX-bus expansion cable included in the PM865K02 package. TK851 is the RCU-Link cable used for the redundant processor configuration.
+ Is PM865K02 intended for High Integrity systems?
Yes. ABB identifies the PM865 CPU Unit as intended for High Integrity systems, and PM865K02 is the redundant processor package based on two PM865K01 Processor Units.
+ What should be confirmed before purchasing PM865K02?
Confirm the complete article number, package configuration, quantity and the existing AC 800M system arrangement before ordering. For quotation requests, provide the machine or system model when available.
+ Show 40 additional models
Additional automation inventory. These models are not presented as direct replacements for PM865K02.
P57354M TSXP57354M GJR5252300R0101 VT-HNC100-1-31/NI-00/000 TSXCSY164 AX2020-AS S62001-520 1756-L73XT E32GAC00000L5H5XXX-02S13300000 VT-HACD-1-13/V0/1-0-0 AX2020 S62000-520 TCSESM163F2CS0 CX1030-0011 HPX10 EEA-PAM-568-C-32 EEA-PAM-568-B-30 EEA-PAM-568-F-30 6FC5210-0DF21-2AA0 BMEP582040 M580PLC 2715P-T7WD XCL8010A VT-SR1-13/1/4WRD25-3X TSXETY4103 PCD3.M5547 CX9010-0001 VT-VSPA2-1-20/V0/T5 TSXSCY11601 EEA-PAM-581-A-11 DKH-E 2601 EEA-PAM-535-D-30 AX2010 S61000-520 140NRP95400 B&R X20 CP1684 TSXASY410 2410 M80 VT-VSPA2-50-10/T5 6FC5203-0AF22-0AA2 TCSESM083F2CU0 EEA-PAM-513-A-32 VT-VRPA2-1-11/V0/T1 1788-EN2DNR PCD3.M6893
Product configuration and technical information are based on ABB AC 800M Controller documentation and the System 800xA Product Catalog.
