Product Description
ABB Ability™ System 800xA® · AC 800M High Integrity
PM863K01 · 3BSE088381R1
Processor Unit / High Integrity Controller

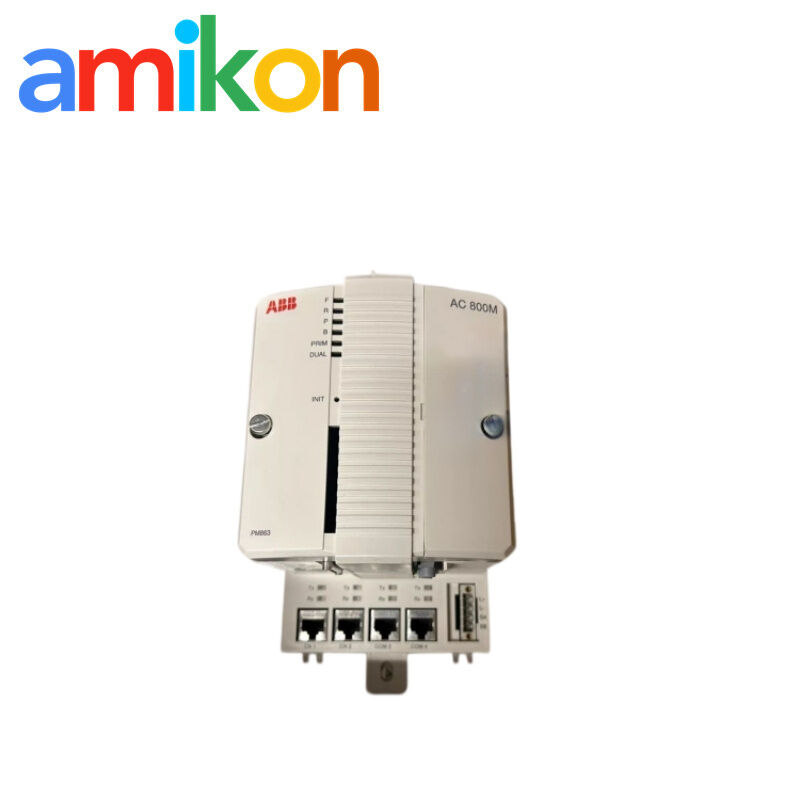

ABB PM863K01 High Integrity Processor Unit + 96 MHz AC 800M
Non-redundant High Integrity processor unit for the AC 800M platform, with 32 MB memory and a 96 MHz processor.
3BSE088381R1 High Integrity Non-Redundant AC 800M
96 MHz
CPU clock frequency
32 MB
Memory
0.17 ms
1000 boolean operations
01 / Overview
Designed for AC 800M High Integrity control.
Platform
AC 800M controller for System 800xA applications.
High Integrity
High Integrity functionality is supported with the applicable SM81x module, SIL-certified software and Safety Manual configuration.
Interfaces
Two Ethernet channels plus two RS-232C interfaces. COM4 is isolated for configuration-tool connection.
Ordering reference
PM863K01 · Article No. 3BSE088381R1.
Processor MPC866
High Integrity Yes
Redundancy No
02 / Technical Specifications
Key Data.
Expand only the specification group you need.
Core specifications
Article number
3BSE088381R1
Processor
MPC866
Clock frequency
96 MHz
Memory
32 MB
Application RAM
22.184 MB
Flash PROM
18 MB
Performance
0.17 ms / 1000 boolean operations
Applications / controller
32
Tasks / controller
32
Redundancy
No
High Integrity
Yes
Power & I/O architecture
Power supply
24 V DC (19.2–30 V DC)
Power consumption
210 mA typ. / 360 mA max. at +24 V
CEX-Bus modules
12
I/O clusters
1 electrical + 7 optical for non-redundant CPU
Modulebus capacity
Max. 96 I/O modules with single PM863
Communication
Ethernet
2 channels, RJ-45, IEEE 802.3
Control Network
MMS and IAC
RS-232C
2 interfaces
COM3
Non-isolated, full RTS-CTS
COM4
Opto-isolated, configuration/service tool
Environment & mechanical
Operating temperature
0 to +55 °C
Storage temperature
−40 to +70 °C
Relative humidity
5–95 %, non-condensing
Protection
IP20
Dimensions
119 × 186 × 135 mm
Weight including base
1200 g
Source: ABB official System 800xA Hardware Selector / PM863K01 data sheet, Article No. 3BSE088381R1.
03 / Compatibility
Compatibility first. Replacement only after verification.
Original-platform compatibility
AC 800M / System 800xA
- PM863K01 is an AC 800M High Integrity processor unit.
- ABB lists compatibility with 800xA 6.1 and Control Builder Safe 3 and onwards for the PM863K01 package.
- High Integrity configuration requires the applicable safety hardware and software.
Replacement check
Do not assume family interchangeability.
- PM863K01 is non-redundant.
- PM863K02 is a different redundant package configuration.
- Other AC 800M processor models require a project-specific compatibility check.
04 / Application
Processor-level position in the control path.
Control Network Ethernet / MMS / IAC
→
PM863K01 Application execution
→
CEX / Modulebus / S800 I/O Controller I/O architecture
Why buyers search the exact part
Controller fault, processor status issue or suspected hardware failure during AC 800M maintenance.
Downtime concern
A processor-layer failure can interrupt execution of the associated control application.
05 / Delivery & Warranty
Guarantee of Amikon.
RFQ
Six details are enough.
Part Number / Quantity / Destination / Required Date / Machine / System
PM863K01 manual / datasheet check? Send the exact label or project reference.
06 / FAQ
Before you order PM863K01.
Is PM863K01 a redundant controller?
No. ABB lists PM863K01 as non-redundant. PM863K02 is the separate redundant package configuration.
Which System 800xA version should be checked for PM863K01?
ABB identifies the PM863K01 package with 800xA 6.1 and Control Builder Safe 3 and onwards. The installed project configuration should be checked before replacement.
Does PM863K01 support High Integrity applications by itself?
High Integrity operation requires the applicable SM81x module, SIL-certified software and configuration according to ABB's Safety Manual.
What interfaces does PM863K01 have?
The official data lists two Ethernet channels and two RS-232C interfaces. COM4 is opto-isolated and intended for configuration/service-tool connection.
What information should I send for a PM863K01 quotation?
Send Part Number, Quantity, Destination, Required Date, Machine and System Model. A nameplate photo is useful when the installed ordering reference needs verification.
