Product Description
AMIKON Industrial Automation
ABB AC 800M · PM858K01 · 3BSE082895R1
AC 800M Processor Unit

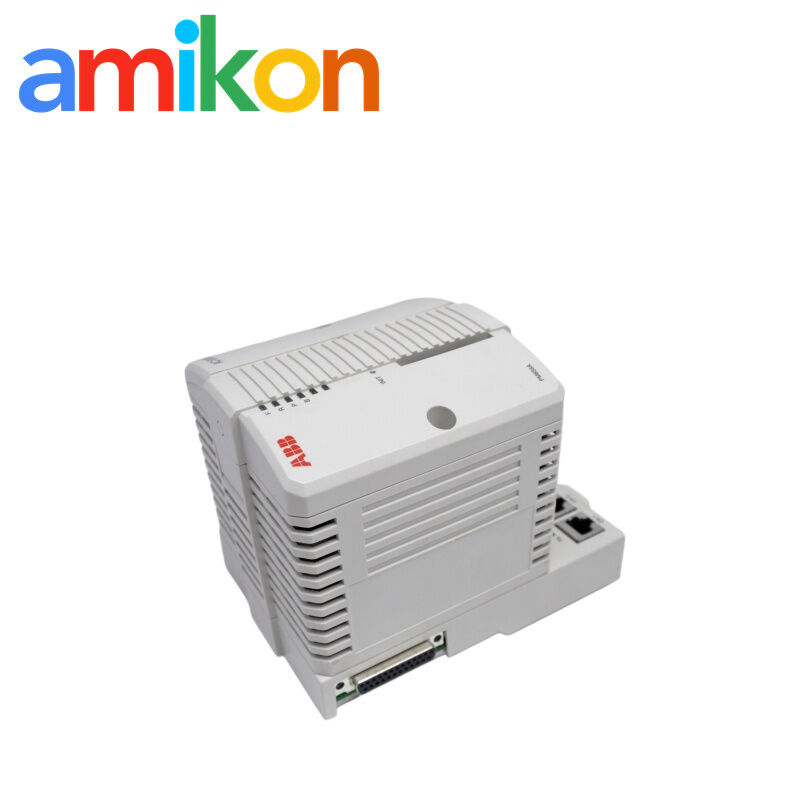

ABB PM858K01 3BSE082895R1 Processor Unit · 33 MHz / 16 MB AC 800M
Non-redundant AC 800M processor unit with MPC866 processor, 16 MB memory and integrated Ethernet, CEX-Bus and ModuleBus interfaces.
01
Overview
The controller core within an AC 800M configuration.
PM858K01 is an AC 800M processor unit for non-redundant controller configurations. The CPU executes the configured control applications and communicates with I/O and network components through the AC 800M architecture.
The processor unit is supplied with the TP830 baseplate and associated termination hardware specified for the PM858K01 package.
Identification first: order against the complete ABB article number 3BSE082895R1, not only the PM858K01 family name.
Processor MPC866 · 33 MHz
Memory 16 MB
Application RAM 7.147 MB
02
Technical Specifications
Expand only the data group you need.
CPU & memory
| Parameter | PM858K01 |
|---|---|
| Article number | 3BSE082895R1 |
| Processor | MPC866 |
| Clock frequency | 33 MHz |
| Performance, 1000 boolean operations | 0.36 ms |
| Memory | 16 MB |
| RAM available for application | 7.147 MB |
| Flash PROM for firmware storage | 4 MB |
| Applications per controller | 32 |
| Programs per application | 64 |
| Tasks per controller | 32 |
Power & interfaces
| Parameter | PM858K01 |
|---|---|
| Power supply | 24 V DC (19.2–30 V DC) |
| Power consumption at +24 V | 210 mA typ. / 360 mA max. |
| Ethernet channels | 2 |
| Ethernet | IEEE 802.3, 10 Mbit/s, RJ-45 |
| Control Network protocol | MMS and IAC |
| RS-232C | 2 interfaces |
| COM3 | 75–19,200 baud, non-isolated, RTS-CTS support |
| COM4 | 9,600 baud, opto-isolated, service/configuration tool |
| CEX-Bus modules | 12 |
ModuleBus & environment
| Parameter | PM858K01 |
|---|---|
| I/O clusters, non-redundant CPU | 1 electrical + 7 optical |
| ModuleBus I/O capacity | Max. 96 I/O modules for single PM866 / 84 for redundant PM866 configuration |
| Operating temperature | 0 to +55 °C |
| Storage temperature | −40 to +70 °C |
| Relative humidity | 5–95 %, non-condensing |
| Protection class | IP20 |
| Dimensions | 119 × 186 × 135 mm |
| Weight including base | 1200 g |
| Rated isolation voltage | 500 V AC |
Source: ABB Automation Hardware Selector / ABB AC 800M PM858K01 documentation.
03
Controller Architecture
A compact view of where PM858K01 sits in the AC 800M system.
01 · CPU PM858K01 Executes configured control applications and tasks.
→
02 · Internal CEX-Bus / ModuleBus Connects communication modules and AC 800M I/O.
→
03 · Network Control Network Ethernet interfaces connect the controller to the control network.
04
Compatibility & Replacement
Do not treat related processor units as automatic substitutes.
Original configuration
Package components identified for PM858K01 include:
- PM858 processor unit
- TP830 baseplate
- TB850 CEX-Bus terminator
- TB807 ModuleBus terminator
- TB852 RCU-Link terminator
- 3.6 V lithium backup battery
Replacement check
Before replacing an installed unit, verify:
- Complete article number
- System 800xA / Compact Control Builder version
- Non-redundant or redundant architecture
- TP830 and termination arrangement
- Existing controller configuration
05
Application & Fault
What usually drives a maintenance search for the exact part number.
Search trigger Controller fault Maintenance teams may search PM858K01 when the installed processor unit is suspected rather than an individual I/O module.
System impact Control execution affected A processor-unit failure can interrupt application execution and controller-dependent functions.
Before removal Capture configuration Record the article number, controller architecture and system version before replacement work begins.
For documentation searches, use the complete term PM858K01 manual or the ABB article number 3BSE082895R1 to avoid mixing information from nearby AC 800M variants.
06
Supply & Service
Commercial handling is kept separate from manufacturer specifications.
Testing Part-number and visual inspection before shipment; available test information can be confirmed with quotation.
Packaging Protective industrial packaging according to item and shipping method.
DOA Report arrival damage or functional non-conformance promptly with supporting photos and test details.
Warranty 12-month AMIKON warranty unless otherwise stated on the quotation.
Coverage Confirmed product defects under normal use; physical damage and unauthorized modification are excluded.
Return Return authorization should be obtained before sending an item back.
Direct Contact · RFQ
AMIKON Industrial Automation
Contact Miya Zheng
Email sales@amikon.cn
WhatsApp +86 180 2077 6792
Send Part Number · Quantity · Destination · Required Date · Machine · System
07
FAQ
Five questions focused on actual replacement and purchasing decisions.
Is PM858K01 a redundant AC 800M processor?
No. PM858K01 is specified as a non-redundant processor-unit configuration. A redundant architecture should be checked separately before selecting another processor package.
What is the ABB article number for PM858K01?
The article number identified for PM858K01 is 3BSE082895R1. Use the complete article number when requesting a quotation or checking an installed unit.
Does PM858K01 use a TP830 baseplate?
Yes. The PM858K01 package documentation identifies the TP830 baseplate together with the specified CEX-Bus, ModuleBus and RCU-Link termination hardware.
Which software versions should be checked before replacement?
ABB documentation identifies compatibility with System 800xA 6.0.2 and Compact Control Builder 6.0.0-1 and later. The installed system version should still be confirmed before replacement.
What information should I send when ordering PM858K01?
Send the complete Part Number, Quantity, Destination, Required Date, Machine and System information. For installed-system replacement, including the current configuration/version helps avoid selecting an incompatible package.
