T8153C Trusted Communication Interface Adapter ICS Triplex
2× 10/100BaseT Ethernet ports
4× RS485 and 2× RS232 ports
Official Trusted system compatibility guidance
Brand Name:
ICS Triplex
Certification:
ATEX model family; verify unit nameplate
Model Number:
T8153C / T8153
2× 10/100BaseT Ethernet ports
,4× RS485 and 2× RS232 ports
,Official Trusted system compatibility guidance

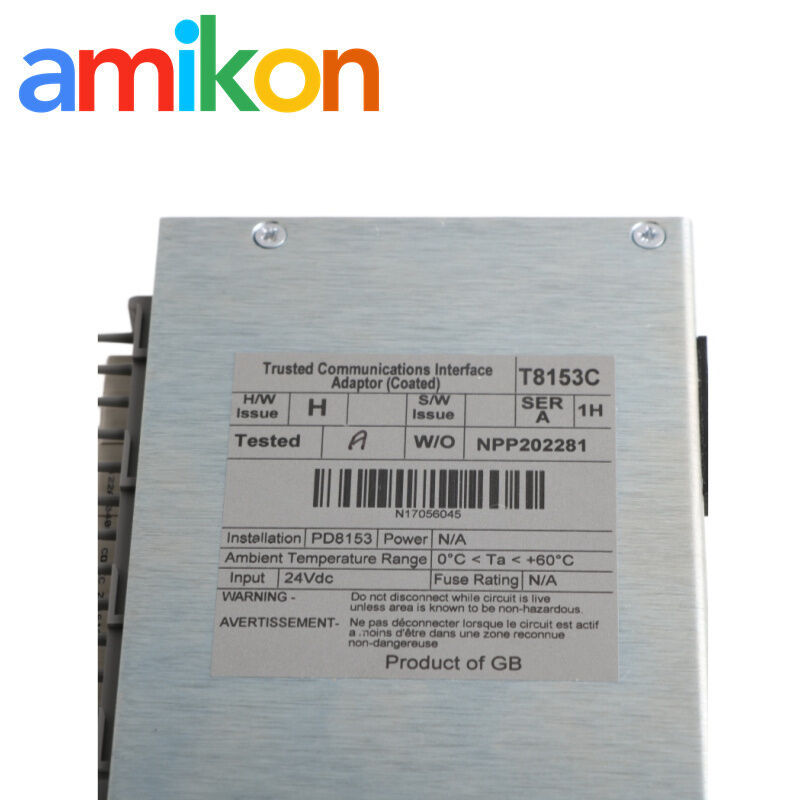

Manufacturer documentation identifies the catalog number as T8153, Trusted Communication Interface Adapter. The suffix “C” may appear on certified model markings; buyers should verify the exact catalog and hardware issue on the unit nameplate.

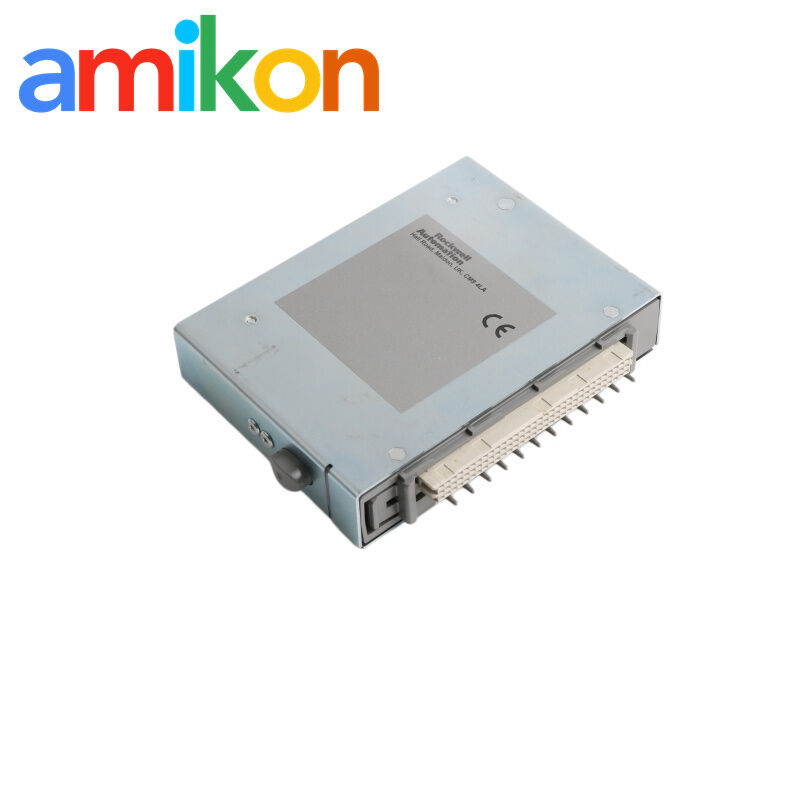

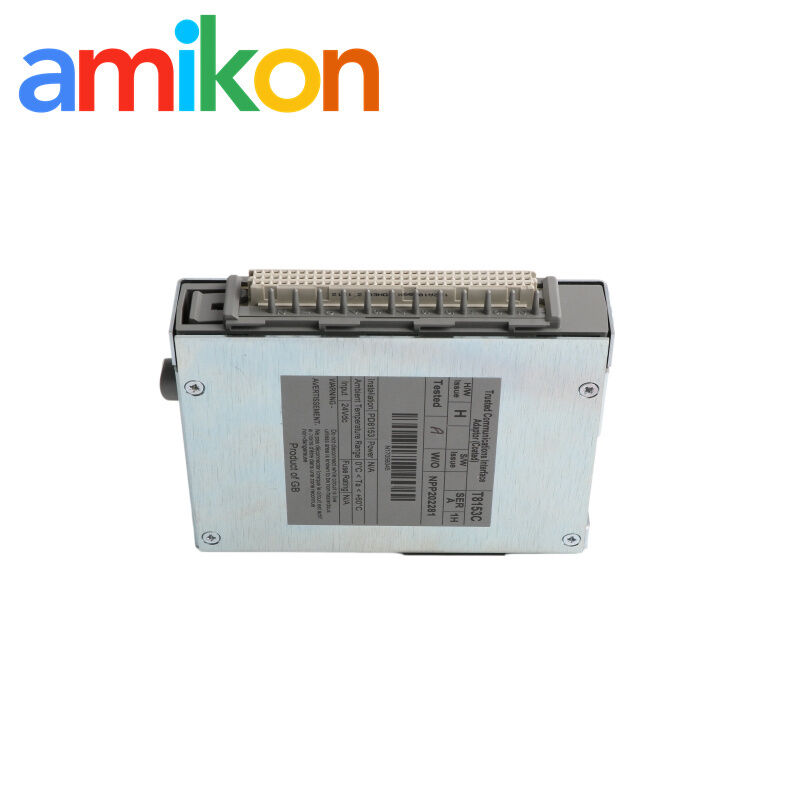

The adapter mounts directly to the rear of a Trusted Communication Interface module in a T8100 Trusted Controller Chassis. It provides external communications access for peer-to-peer links, DCS connections, networked PCs and other remote systems.
| Parameter | Value |
|---|---|
| Ethernet | 2 × RJ45, 10BaseT/100BaseT |
| RS485 | 4 ports with direct and multi-drop facilities |
| RS232 | 2 ports (one full, one partial) |
| Chassis connection | 78+2-way inverse DIN 41612 M-type connector |
| Operating temperature | 0 to +60 °C |
| Non-operating temperature | -25 to +70 °C |
| Relative humidity | 10–95%, non-condensing |
| Dimensions | 150 × 28 × 106 mm (H × W × D, including mounting rail) |
| Weight | 418 g |
| Installation | clips to the rear connector of the Trusted controller chassis; installation and maintenance must be performed by qualified personnel. |
T8153 is associated with the T8151B/T8151C Trusted Communication Interface. Manufacturer Product Notice PN 2019-04-002 states that T8151C Series B or later requires a compatible T8153 hardware issue G through X; T8153 hardware issues A through F must be replaced when that communication module is upgraded. Confirm module series, hardware issue, connector arrangement and system configuration before installation.
For a T8170 Trusted Gateway Module application, Manufacturer documentation recommends the T8173 Gateway Adapter instead of T8153. T8173 is an application-specific engineering alternative, not a universal drop-in replacement: Ethernet transport and keyboard/video/mouse connections differ, so hardware selection, cabling and system engineering must be reviewed.
No manufacturer-published discontinuation date or universal official successor for T8153/T8153C was found in the referenced manufacturer product manual, current Trusted documentation or official product notice. Therefore, no estimated end-of-life date is stated. Confirm current lifecycle and repair availability with ICS Triplex support using the full catalog number, series and hardware issue.
Manufacturer publication ICSTT-RM254 / PD_T8153, Issue 14; Trusted Communications Interface documentation ICSTT-RM253; Manufacturer Product Notice PN 2019-04-002.
