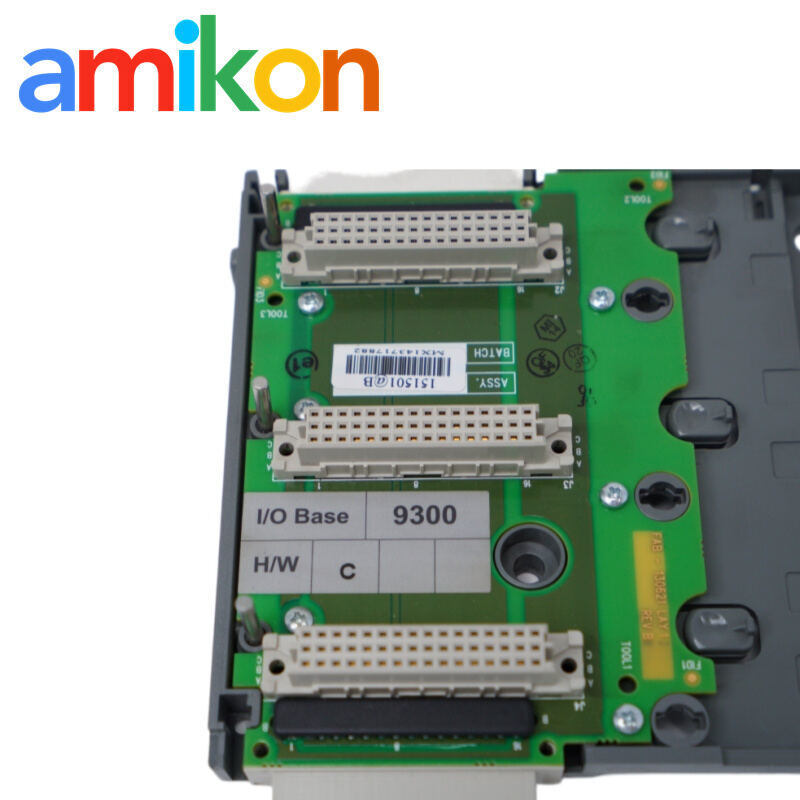

ICS Triplex T9300 AADvance 3-Way I/O Base Unit for SIL 3 Safety Systems
T9300 AADvance 3-Way I/O Base Unit
Passive Backplane for SIL 3 Safety Systems
Supports 1 to 3 AADvance I/O Modules
Brand Name:
ICS Triplex
Certification:
IEC 61508 up to SIL 3 (system-level)
Model Number:
T9300
T9300 AADvance 3-Way I/O Base Unit
,Passive Backplane for SIL 3 Safety Systems
,Supports 1 to 3 AADvance I/O Modules
ICS Triplex T9300 3-Way I/O Base Unit
Passive I/O backplane for certified AADvance safety architectures, supporting one, two or three I/O modules.
T9300 1–3 I/O Modules SIL 1–SIL 3 ArchitectureThe ICS Triplex T9300 is the three-way I/O base unit for the ICS Triplex AADvance safety controller. Its passive backplane provides the electrical connections between up to three I/O modules, their associated termination assemblies and the T9100 processor base unit. It distributes system power together with the command and response buses. The T9300 is not a processor module and does not contain application firmware.
Official Technical Data
| Catalog Number | T9300 |
| Product Type | 3-way I/O base unit / passive backplane |
| Supported I/O Modules | 1, 2 or 3 |
| Supply Requirement | Redundant +24 V DC nominal; 18–32 V DC from the processor base unit |
| Command / Response Buses | 1 command bus / 24 response buses |
| I/O Buses per System | 2 |
| Base Units per Bus | Up to 8 |
| I/O Modules per Bus | Up to 24 individual modules, 12 dual groups or 8 triple groups |
| Dimensions | 235 × 126 mm (9.25 × 5 in.) |
| Weight | 133 g (5 oz.) |
| Mounting | Standard DIN rail or direct panel/wall mounting |
System Connection
A T9300 connects directly to the right side of the T9100 processor base or another T9300 through the side plug-and-socket connection. A T9310-02 backplane expansion cable is used when the I/O arrangement continues on another row. T9100 and T9310-02 are related system components, not substitutes for T9300.
Applications
The manufacturer identifies AADvance as a scalable safety instrumented system for SIL 1 to SIL 3. T9300 is used in certified AADvance architectures for safety instrumented systems, emergency shutdown, fire and gas protection, and other high-integrity critical control applications. Safety integrity depends on the complete certified architecture, approved hardware revisions, configuration and validation.
Lifecycle, Replacement and Compatibility
The manufacturer has not published a T9300 discontinuation notice or final production date in the official material reviewed. The product is therefore not described here as discontinued.
No separate replacement catalog number has been published. The correct like-for-like replacement is a compatible-revision T9300.
The AADvance 1.041 hardware compatibility matrix identifies T9300 revision D as current hardware and revisions B and C as functionally identical. Revision A is listed as not compatible with that release. Before replacement, verify the installed controller release, approved hardware revision, I/O arrangement, mechanical installation and site safety validation requirements.
T8442C, T8448C, T8451C, T8461C, T8480C and other T8xxx modules belong to the Trusted platform. The manufacturer does not identify them as direct replacements for the AADvance T9300. Moving between Trusted and AADvance requires an engineered system migration and cannot be treated as a plug-in replacement.
Related AADvance Models
| T9100 Processor Base Unit |
T9110 Processor Module |
T9310-02 Expansion Cable |
| T9401 / T9402 Digital Input |
T9431 / T9432 Analogue Input |
T9451 Digital Output |
| T9481 / T9482 Analogue Output |
T9801 / T9802 / T9803 Digital Input TA |
T9831 / T9832 / T9833 Analogue Input TA |
| T9851 / T9852 Digital Output TA |
T9881 / T9882 Analogue Output TA |
T9901 / T9902 Fuse Modules |
Frequently Asked Questions
It is the passive three-way I/O base unit that connects AADvance I/O modules and termination assemblies to the T9100 processor base.
No official discontinuation announcement or final production date was found in the manufacturer material reviewed.
No different replacement catalog number is published. Use a T9300 hardware revision approved for the installed AADvance release.
The official AADvance 1.041 matrix lists revision D as current and revisions B/C as functionally identical. Confirm the installed system release and safety validation before changing hardware.
No direct interchangeability is published. Trusted and AADvance are different platforms.
Publication ICSTT-RM447N-EN-P — AADvance Controller Solutions Reference Manual
AADvance 1.041 Release and Hardware Compatibility
AADvance Control System
Engineering Drawing Notes
Figure 1 — T9100, T9300 and T9310-02 system connection
| Primary Row | The T9300 connects directly to the right side of a T9100 processor base or another T9300 through the side plug-and-socket connection. |
| Expansion Row | Use the T9310-02 2 m backplane expansion cable when the I/O arrangement continues on another row. |
| Mechanical Envelope | 235 × 126 mm (9.25 × 5 in.); mass 133 g (5 oz.); DIN rail or direct panel/wall mounting. |
| Bus Capacity | Two I/O buses per system, up to eight base units per bus and up to 24 individual I/O modules per bus. |
The engineering drawing is an original technical illustration derived only from Manufacturer Publication ICSTT-RM447N-EN-P. It is not to scale and does not replace the complete installation manual.
