ICS Triplex T9310-02 AADvance Backplane Extender Cable 2 m
2 m AADvance backplane extender cable assembly
Links T9300 I/O bases with T9300 or T9100 base units
Screened cable carries command response and system power
Place of Origin:
Manufacturer documentation does not specify
Brand Name:
ICS Triplex
Certification:
RoHS listed in official AADvance Declaration 9000-CT009G-EN-E
Model Number:
T9310-02
2 m AADvance backplane extender cable assembly
,Links T9300 I/O bases with T9300 or T9100 base units
,Screened cable carries command response and system power
ICS Triplex T9310-02 Backplane Extender Cable

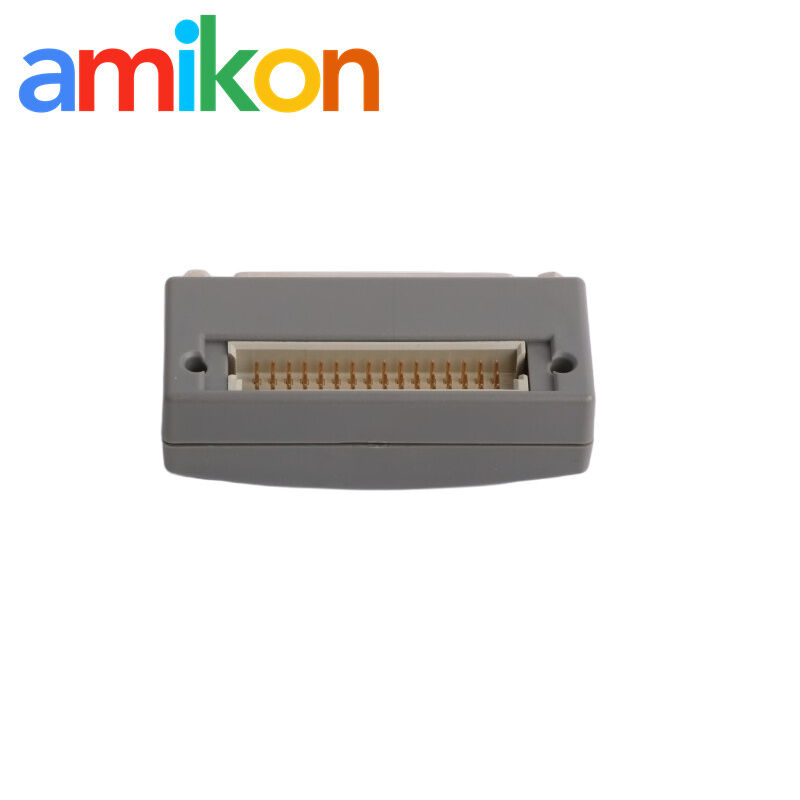

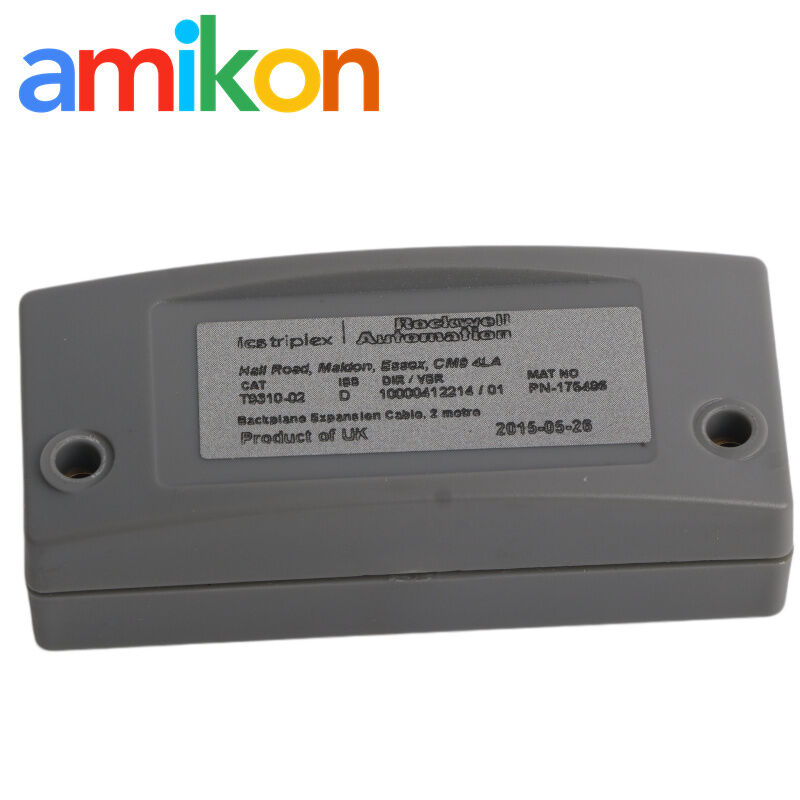

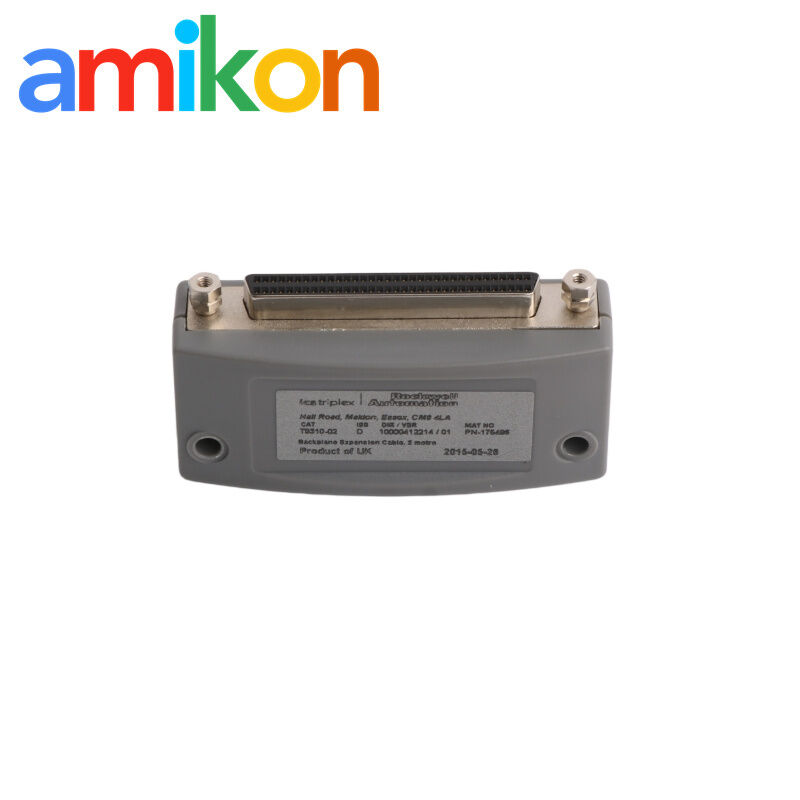

A 2 m screened AADvance backplane extension assembly for connecting supported T9300 I/O base units with another T9300 base or a T9100 processor base.
Key Benefits
- Extends the AADvance backplane between separated base-unit groups.
- Carries command signals, response signals and system power.
- Screened construction helps reduce radiated emissions.
- Secured using retaining screws and screw cap screws.
Official Technical Details
| Catalog number | T9310-02 |
|---|---|
| Official description | Backplane Extender Cable / T9310 Expansion Cable Assembly |
| Cable length | 2 m |
| Documented interfaces | T9300 I/O base-unit bus connectors and T9100 processor base-unit I/O Bus 2 |
| Signals carried | Command, response and system power |
| Construction | Screened cable with multi-way plugs and two adaptors |
Application and Installation
The T9310-02 is used when compatible AADvance base units cannot be mounted directly adjacent, such as across separate DIN-rail rows or cabinet sections. The plug assembly connects to the right-hand bus connector of a T9300, or to I/O Bus 2 on a T9100 processor base. The socket assembly connects to the left-hand bus connector of the destination T9300.
Installation note: The September 2024 AADvance build manual instructs installers to fit the supplied snap-on ferrites 50 mm (2 in.) from each cable end and secure them with cable ties. Always follow the complete official manual and the approved safety-system design.
Lifecycle and Replacement
No public official document reviewed states an explicit T9310-02 discontinuation date. The September 2024 official build manual still documents T9310 installation. No official direct successor or confirmed drop-in replacement was identified.
Before considering an alternative, verify cable length, connector orientation and keying, base-unit interface, hardware revision, firmware/software compatibility, ferrite and EMC requirements, certification and engineering configuration. T9300 and T9100 are compatible base units, not replacements for T9310-02.
Related ICS Triplex / Trusted Models
These are related catalog references for navigation and sourcing convenience, not official substitutes for T9310-02.
| T9300 I/O Base Unit | T9110 Processor Module | T9402 Digital Input Module |
| T9432 Analog Input Module | T9802 Output Module | T9852 Digital Output Module |
| T8310C Trusted Expander Modules | T8311C TMR Expander Interface | T8403 24 Vdc Digital Input |
| T8431 Analogue Input Module | T8461C TMR Digital Output | T8151C Communications Interface |
| T3310 I/O Transceiver Module | T3419 Digital Input Module | TC-301-02-4M5 Communications Cable |
Other Industrial Automation References
Additional cross-brand catalog references that may be relevant to broader industrial-control sourcing are listed below. They are unrelated to T9310-02 compatibility and must be checked independently.
GHG5114306R0001 / GHG5117306R0001 · PXM20-E / PXM20 · IC697RCM711C / IC697RCM711 · PCD3.E165 · BK5200 with KL4004, KL3064 and KL9010 · NFAI143-S00 · ABB 1MRK 000508-BDr03 · 51202329-402
FAQ
What is the ICS Triplex T9310-02?
T9310-02 is a 2 m AADvance backplane extender cable assembly for supported T9300 and T9100 base-unit connections.
Is T9310-02 an I/O module?
No. It is a screened backplane interconnection accessory.
Is there a direct replacement?
No manufacturer-confirmed drop-in successor was identified. Obtain written compatibility confirmation before substitution.
