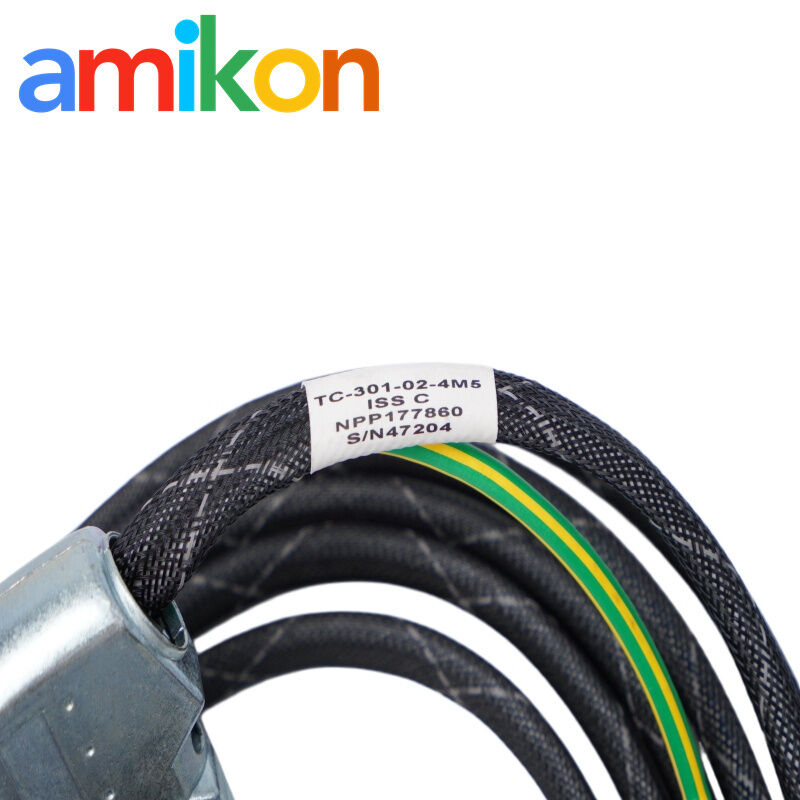

ICS Triplex TC-301-02-4M5 Trusted Local Expansion Cable 4.5 m for T8312 to T8310
TC-301-02-4M5 4.5 m Trusted Local Expansion Cable
Screened Cat 6 Plus Cable with LSZH Sheath
T8312 Expander Adapter to T8310 TMR Processor Connection
Place of Origin:
ICS Triplex
Brand Name:
ICS Triplex
Model Number:
TC-301-02-4M5
TC-301-02-4M5 4.5 m Trusted Local Expansion Cable
,Screened Cat 6 Plus Cable with LSZH Sheath
,T8312 Expander Adapter to T8310 TMR Processor Connection
TC-301-02-4M5 Trusted Local Expansion Cable
4.5 m screened LSZH cable for the T8312 Expander Interface Adapter to T8310 TMR Expander Processor connection.
Official Product Identification
| Manufacturer / Brand | ICS Triplex |
| Series | Trusted Communications Cables |
| Catalog Number | TC-301-02-4M5 |
| Cable Type | Local Expansion Cable |
| Specified Length | 4.5 m — the official ordering code 4M5 denotes 4.5 metres. |
Product Overview
The TC-301-02-4M5 is a screened, low-smoke zero-halogen local expansion cable for the Trusted fault-tolerant control system. Official manufacturer publication ICSTT-RM312N-EN-P identifies the TC-301-02 family as the cable used between a Trusted Expander Interface Adapter T8312 and a Trusted TMR Expander Processor T8310.
Official Technical Specifications
| Construction | Cat 6 Plus, screened |
| Sheath | LSZH — low smoke zero halogen |
| Flame Retardancy | IEC 60332-3 Category A |
| Length | 4.5 m |
| Maximum TC-301 Length | 30 m |

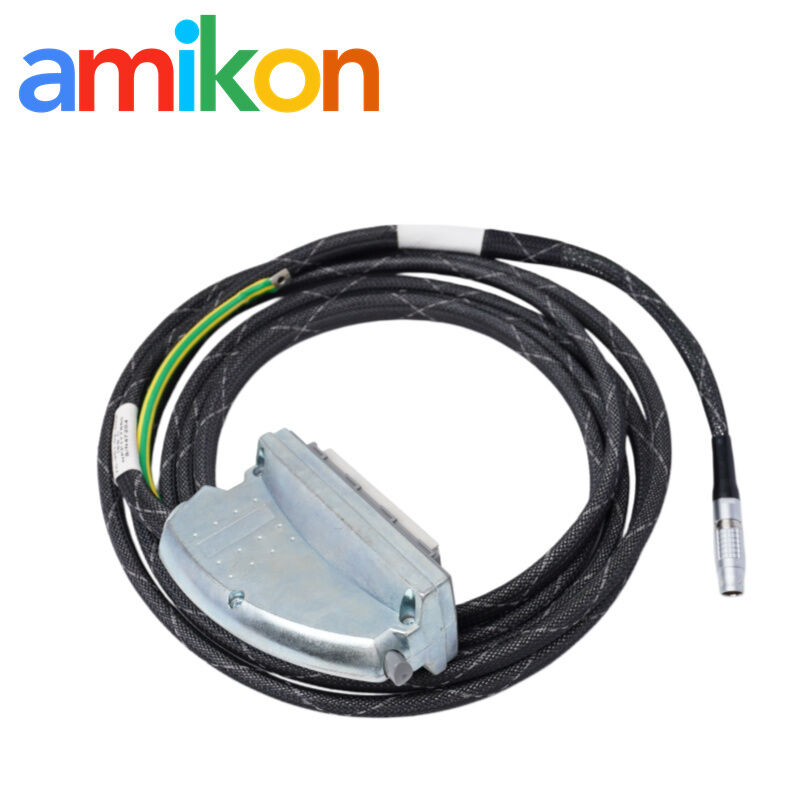

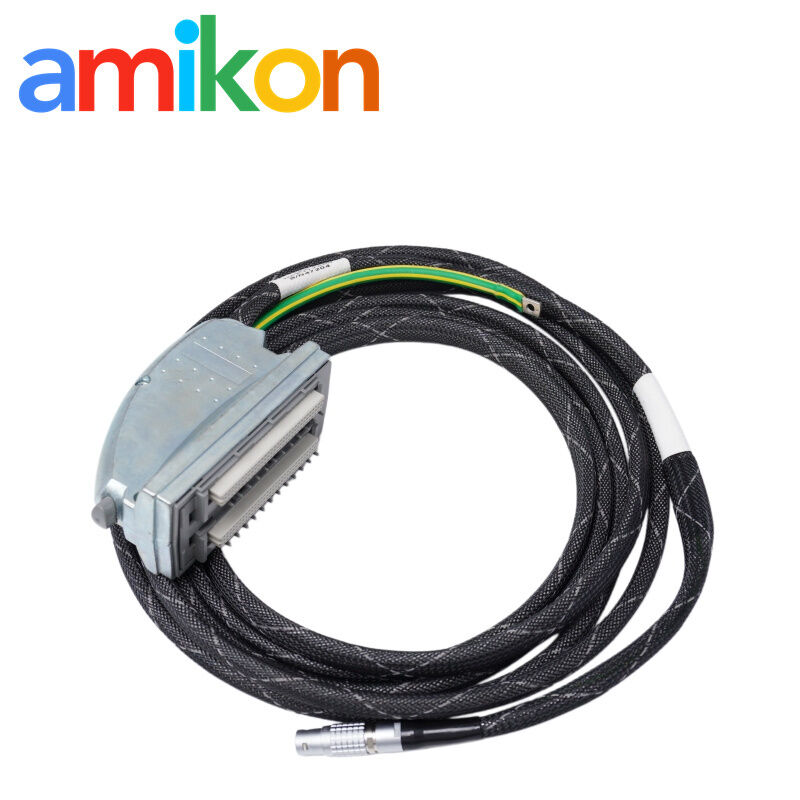

| Processor End (SKT2) | 96-way Type C connector in a double-width hood with earth braid |
| Adapter End | 12-way LEMO plug |
| Compatible Equipment | Trusted T8312 and Trusted T8310 |
Function & Applications
Carries the local electrical expansion connection from the controller-side T8312 adapter to the T8310 processor installed in a Trusted Expander Chassis. Typical use is in Trusted safety and critical-control installations requiring a local expander chassis connection.
Installation Essentials
Avoid lateral strain and excessive pulling force. Keep the cable parallel to the connector for at least 100 mm before the first bend; minimum bend radius is 4 × cable diameter. Work must be performed by qualified personnel.
Lifecycle, Discontinuation & Migration
No product-specific official lifecycle notice, End of Life date, discontinued date or officially recommended replacement for TC-301-02-4M5 was identified in the official documents reviewed for this page. No unverified discontinuation date or substitute catalog number is claimed. Confirm current status directly with ICS Triplex or its authorized support channel.
Replacement Compatibility
A similar part number is not automatically a direct replacement. TC-301-03 uses a UL-certified Cat 5e screened sheath, while TC-301-02 uses Cat 6 Plus screened LSZH construction. A proposed replacement must match length, connectors, construction, environmental certification and the T8312-to-T8310 interface; differences require engineering review.
Official Source
ICSTT-RM312N-EN-P, Issue 17 — Trusted Communications Cables (PD-TC300)
