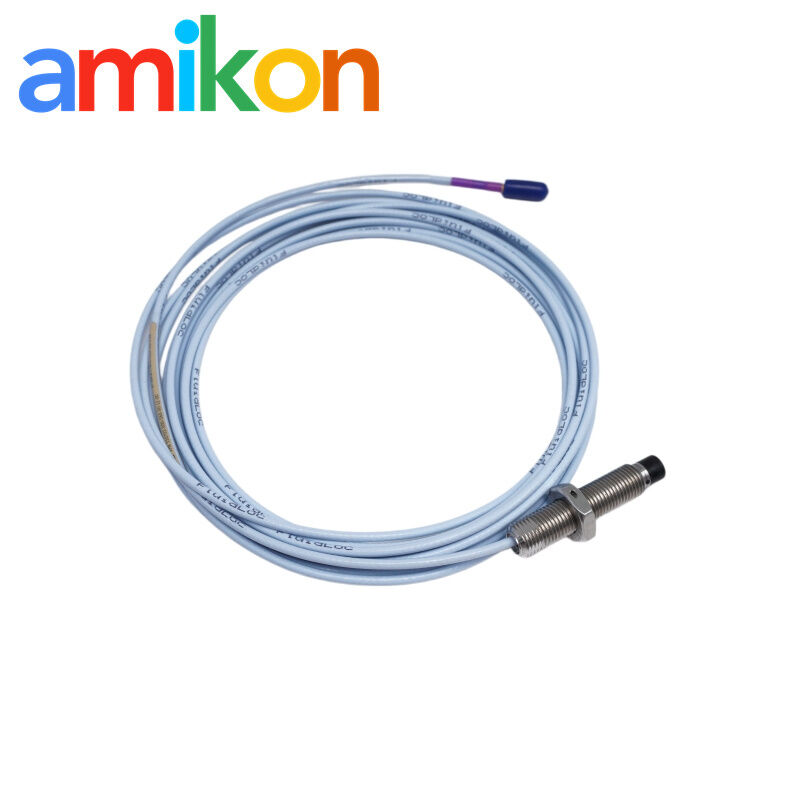

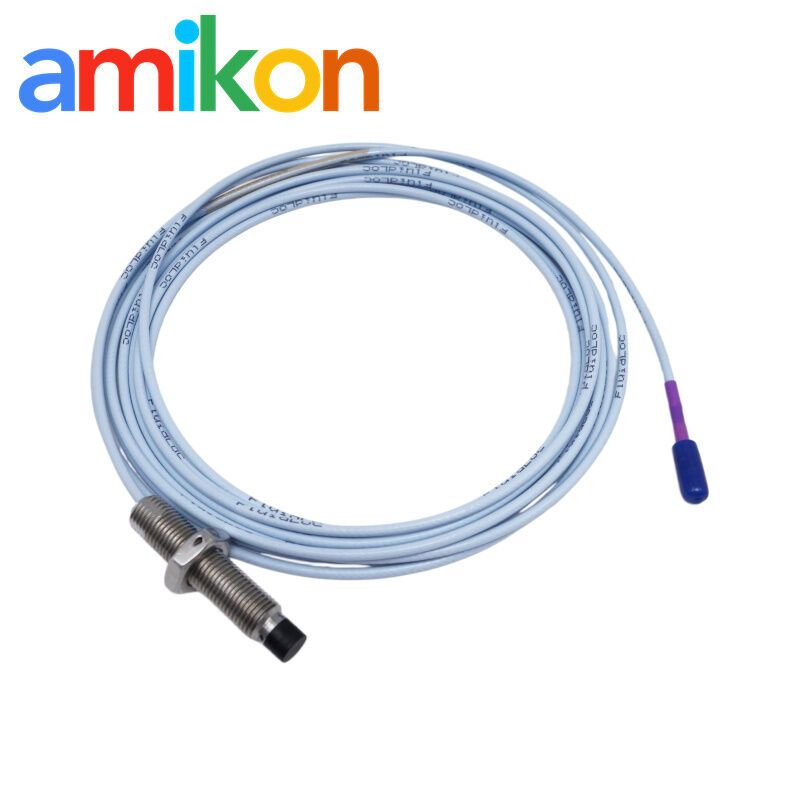

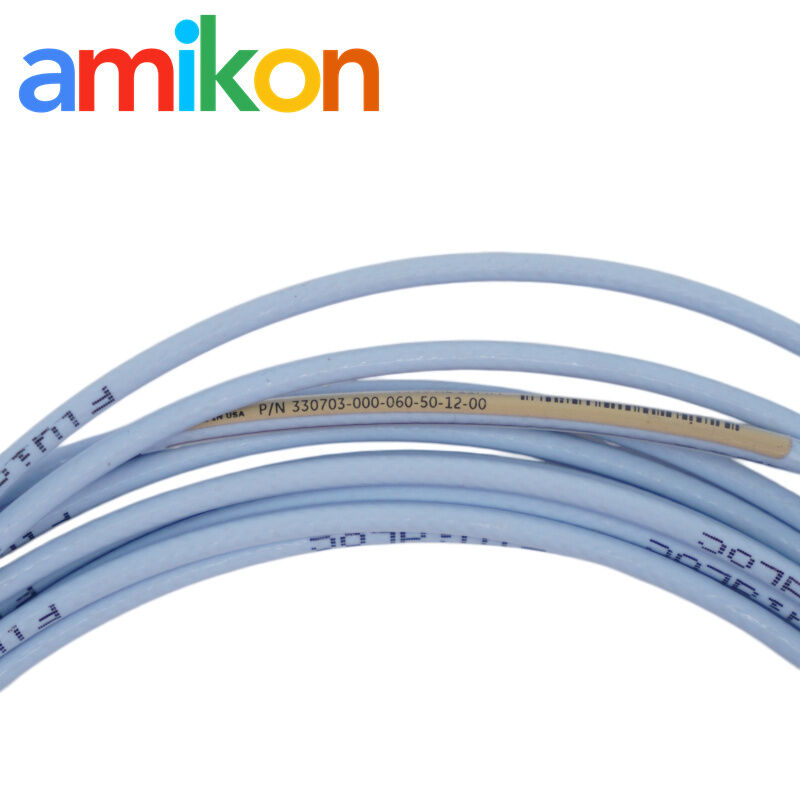

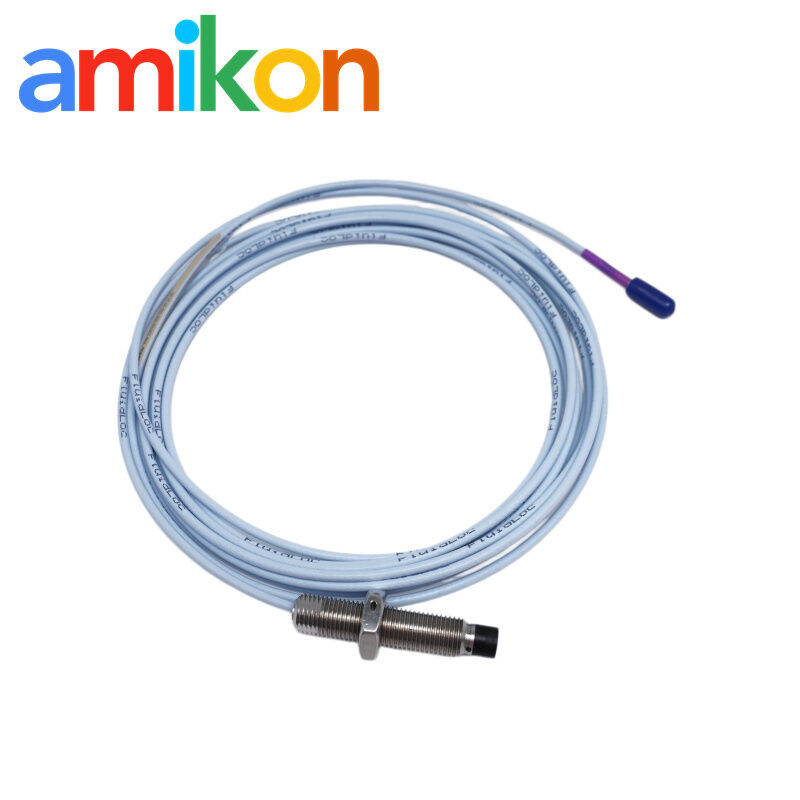

Bently Nevada 330703-000-060-50-12-00 3300 XL 11 mm Proximity Probe with FluidLoc Cable and 5.0 Metres Length for Precise Displacement Sensing
Bently Nevada 330703 Bently Nevada 3300 XL system
330703-000-060-50-12-00 steam turbine vibration probe
3300 XL 11mm Proximity Probe eddy current displacement sensor
Place of Origin:
USA
Brand Name:
Bently Nevada
Model Number:
330703-000-060-50-12-00
Bently Nevada 330703 Bently Nevada 3300 XL system
,330703-000-060-50-12-00 steam turbine vibration probe
,3300 XL 11mm Proximity Probe eddy current displacement sensor
video
Bently Nevada 330180-X0-05 Proximitor Sensor with 5 Meters System Length DIN-rail Mount for Solar Turbines Customized Equipment
video
Bently Nevada 330130-030-01-CN 3300 XL Extension Cable with 3.0 Meters Length, IP67 Waterproof Connector, and CN Certification
| Parameter | Specification |
|---|---|
| Probe Diameter | 11 mm |
| Thread Type | M14 × 1.5 (Metric smooth case) |
| Unthreaded Length (000) | 0 mm |
| Overall Case Length (060) | 60 mm |
| Total Cable Length (50) | 5.0 metres (16.4 feet) |
| Cable Design | FluidLoc cable (prevents internal fluid leakage) |
| Connector Type (12) | ClickLoc miniature coaxial (with connector protector) |
| Linear Range | 4.0 mm (160 mils) |
| Recommended Gap | 2.5 mm (100 mils) |
| Incremental Scale Factor (ISF) | 3.94 V/mm (100 mV/mil) (±10%) |
| Frequency Response | 0 to 8 kHz (+0, -3 dB typical) |
| Operating Temperature | -35°C to +120°C (-31°F to +248°F) |
| Agency Approvals (00) | None required |
- 100% Original: Only genuine, brand-new, factory-sealed products.
- Massive Stock: Thousands of industrial automation parts ready to ship.
- Fast Delivery: Global express shipping via DHL, FedEx, and UPS.
- 1-Year Warranty: Full 12-month warranty on all items.
- 24/7 Support: Dedicated professional service around the clock.
It’s a Bently Nevada 3300 XL 11mm Proximity Probe, mainly for shaft vibration measurement.
Code is simple:
330703 = 11mm probe with M14×1.5 metric thread probe
-000 = fully threaded
-060 = 60 mm case
-50 = 5-meter proximity probe cable included
-12 = FluidLoc sealed cable probe + connector protection
-00 = standard version
Used quite often in 3300 XL system setups.
Because the FluidLoc cable helps reduce oil migration and keeps things stable in dirty or wet conditions.You’ll usually see it on steam turbine vibration probe, gas turbines, or centrifugal compressor monitoring. For API 670 vibration monitoring, it’s a common pick.
The probe is calibrated for AISI 4140 steel, so target material can slightly affect the eddy current displacement sensor output. It already has a 5.0 m cable, so normally no extension cable is added. Best match is a 3300 XL Proximitor Sensor (5 m system).
Usually around 2.5 mm (100 mils). While adjusting, just watch the Proximitor output—when it sits near -10 Vdc, the probe is basically in the right position.
| Part Number | Compatible With |
|---|---|
| 3500/72M 176449-08 | 330104-19-25-10-11-05 |
| 3500/62 163179-03 | 330103-00-05-10-02-05 |
| 3500/40M 140734-01 | 330103-00-18-05-02-05 |
| 330500-02-00 | 330130-045-02-05 |
| 135137-01 | 330101-00-08-05-02-05 |
| 149992-02 | 330130-085-00-05 |
| 147663-01 | 125388-01 |
| 3500/94 145988-01 | 128275-01/128275-01F 130944-01 |
| 140482-01 | 330780-91-00 |
| 330500-00-20 | 330103-00-14-10-01-00 |
| 170133-090-00 | 330730-080-02-00 |
| 3500/32M 149986-02 | 330104-05-13-10-02-00 |
| 1900/65A 172323-01 | 3500/23E |
| 330180-X0-05 | 3500/15E |
| 125720-01 | 136711-01 |
| 125760-01 | 330703-000-040-10-11-00 |
| 125768-01 | 330705-02-18-10-02-00 |
| 128229-01 | 330703-000-070-10-02-00 |
| 128240-01 | 330101-10-27-05-02-05 |
| 133396-01 | 330878-50-00 |
