Bently Nevada 330101-10-27-05-02-05 3300 XL 8 mm Proximity Probe with Hazardous Area Certification and API 670 Compliance
Bently Nevada 330101-10-27-05-02-05 3300 XL 8 mm Proximity Probe with Hazardous Area Certification and API 670 Compliance
3300 XL 8mm Probe shaft vibration sensing
radial vibration measurement gas turbine shaft displacement
steam turbine vibration monitoring Bently Nevada 3300 XL system
Place of Origin:
USA
Brand Name:
Bently Nevada
Model Number:
330101-10-27-05-02-05
Contact Us
Request A Quote
Product Details
Model:
330101-10-27-05-02-05
Country Of Origin:
USA
Place Of Shipment:
Xiamen,China
Shipping:
TNT, DHL, FedEx, EMS, UPS
MOQ:
1 Piece
Packaging:
Original New Packaging
Highlight:
3300 XL 8mm Probe shaft vibration sensing
,radial vibration measurement gas turbine shaft displacement
,steam turbine vibration monitoring Bently Nevada 3300 XL system
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
video
Bently Nevada 330878-50-00 3300 XL Proximitor Sensor with 27.9 mm Linear Range, 5.0-Metre Panel-Mount System, and API 670 Compliance
Get Best Price
video
Bently Nevada 330101-10-27-05-02-05 3300 XL 8 mm Proximity Probe with Hazardous Area Certification and API 670 Compliance
Get Best Price
Contact Us
Contact Now
Product Description

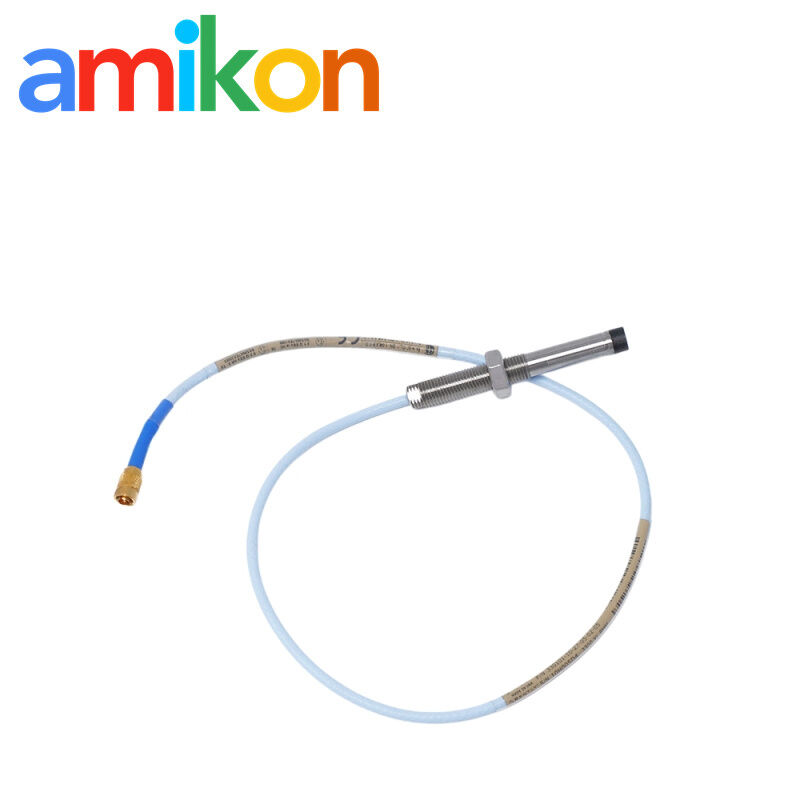

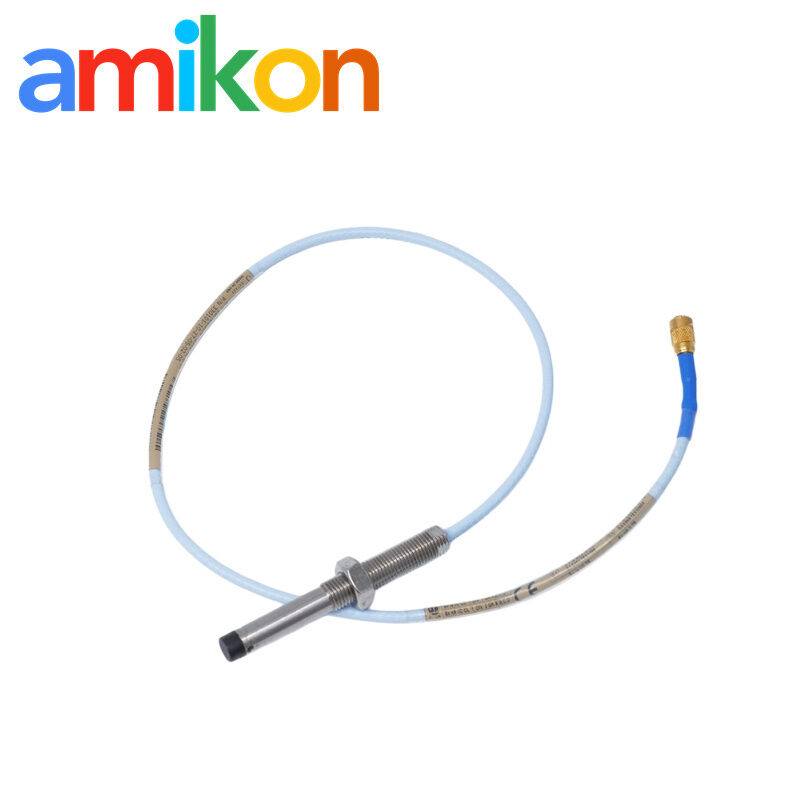

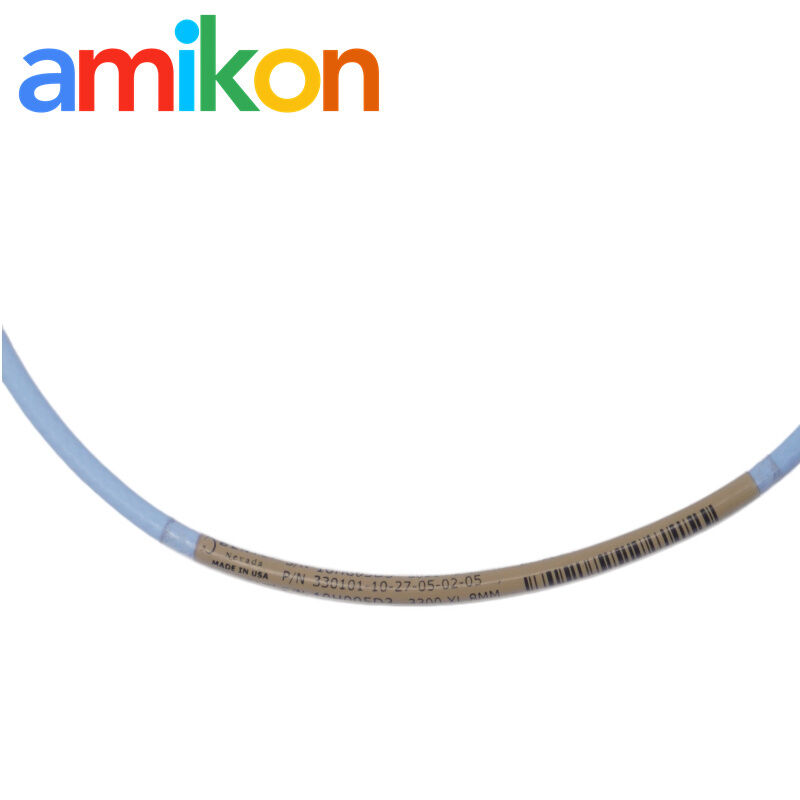

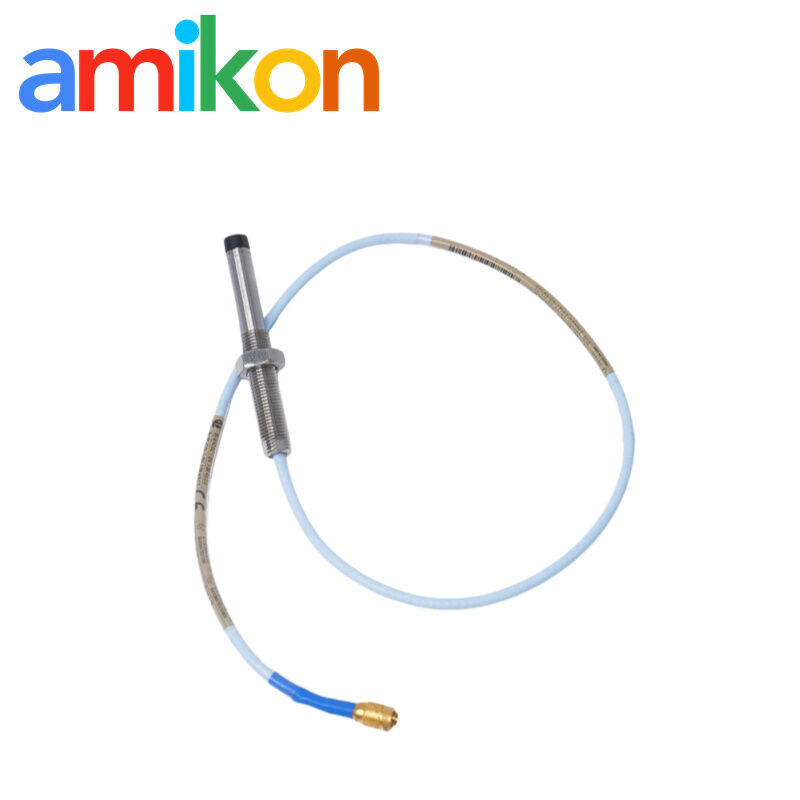

Bently Nevada 330101-10-27-05-02-05 3300 XL 8 mm Proximity Probe
| Specification | Value |
|---|---|
| Model Type (330101) | 3300 XL 8 mm Probe, 3/8-24 UNF thread, no armor |
| Unthreaded Length (10) | 1.0 in |
| Case Length (27) | 2.7 in |
| Cable Length (05) | 0.5 m (1.6 ft) |
| Connector Type (02) | Miniature coaxial ClickLoc |
| Agency Approvals (05) | CSA, ATEX, IECEx (Hazardous Area) |
| Probe Tip Diameter | 8.0 mm (0.31 in) |
| Linear Range | 2.0 mm (80 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil) nominal |
| Operating Temp | -51 °C to +177 °C (-60 °F to +350 °F) |
Contact Us for Pricing or Technical Support
Contact: Miya Zheng
Email: sales@amikon.cn
WhatsApp: +86 180 2077 6792
Key Features
- 3300 XL 8mm System: This one sits right inside the standard 3300 XL 8mm proximity transducer ecosystem from Bently Nevada, so compatibility is usually not something you need to think twice about. It just works with the common probes, cables, and Proximitor setup already in the field.
- Threaded Case Design: You’ve got a 3/8-24 UNF-2A threaded housing here. Nothing exotic. The body length is split into 1.0 inch unthreaded plus 2.7 inch overall. In practice, installers like it because it fits most turbine/compressor mounting pockets without modification.
- ClickLoc Connector: Mini coax ClickLoc connector, plus a 0.5 m unarmored cable. Short run, clean connection. Usually used close to the junction box side, not meant for long-distance routing.
- Non-Contact Measurement: This is the typical eddy current style non-contact setup. No physical touch on the shaft, so no wear issue over time. It picks up radial vibration, shaft displacement, and also axial position. In rotating machines, these are basically the core signals everyone watches.
- Wide Linear Range: Around 2.0 mm (80 mils) linear range with 7.87 V/mm (200 mV/mil). It behaves pretty steady in real operation, not too sensitive in a bad way, which helps when you feed the signal into vibration systems for analysis.
- Hazardous Area Certified: Comes with CSA, ATEX, IECEx approvals, so it’s already cleared for hazardous area use. In oil & gas or chemical plants, this part is basically expected, not optional.
- API 670 Compliant: Designed around API 670 requirements. That usually means it’s acceptable for machinery protection systems on turbines and compressors without extra justification work.
- Rugged Temperature Tolerance: It can handle -51 °C up to +177 °C. In real sites, that means both outdoor winter installs and high-heat turbine zones are covered without special variants.
- Critical Asset Protection: Most of the time you’ll see it sitting on steam turbines, gas turbines, centrifugal compressors. Basically anywhere rotating equipment is considered critical and downtime is expensive.
- Seamless System Integration: Works naturally with 330130 extension cables, 330180 Proximitors, and 3500/40M or 3500/42M rack monitors. It drops into the 3500 monitoring system architecture without much integration effort.
Industrial Applications
- Steam Turbine Vibration Monitoring: In most power plant setups, this probe from Bently Nevada sits right in the vibration monitoring loop. It keeps tracking radial shaft vibration and axial thrust position all the time. Operators usually don’t chase a single reading—it’s more about how the trend develops over hours or days.
- Gas Turbine Shaft Displacement: Gas turbines are a bit more dynamic. Shaft displacement here is closely related to rotor movement under fast load swings and high temperature. Thermal expansion shows up quite clearly, so the signal ends up being used for watching rotor behavior in real time rather than static values.
- Centrifugal Compressor Protection:On compressors, things get more sensitive. The probe is mainly used for early warning—shaft instability, surge conditions, oil whip, that kind of stuff. It’s not waiting for failure, more like catching abnormal movement before things escalate.
- API 670 Machinery Protection: In an API 670 system, this is basically part of the standard sensing layer. Not something optional in heavy rotating equipment. It sits in the front end of machinery protection architecture for turbines and compressors.
- Critical Asset Condition Monitoring: When tied into a Bently Nevada 3500 system, the signal usually goes into rack monitors like 3500/40M or 3500/42M. From there it becomes part of continuous condition monitoring for power plants and refinery turbo-machinery.
- Hazardous Area Machinery Sensing: With CSA, ATEX, and IECEx certifications, it can go directly into hazardous areas. In oil & gas or chemical plants, this is basically a must-have requirement rather than an extra feature.
- Industrial Generator & Pump Protection: On generators and heavy-duty pumps, the focus is on avoiding rotor-to-stator contact and tracking bearing wear over time. It’s more about preventing gradual degradation from turning into sudden downtime.
Service Advantages & Value Commitment
| Core Advantage | Service & Value Commitment |
|---|---|
| Extensive Premium Inventory | We keep a fairly large stock of industrial automation parts, including brand-new original items and also some hard-to-find or discontinued components. Brands like Bently Nevada, AB, ABB are usually part of our sourcing range. The focus is really on making urgent sourcing possible when production is stuck or waiting for critical spares. |
| Rapid Global Shipping | We usually ship via DHL, FedEx or UPS. If stock is available, it can go out very quickly—sometimes the same day or next day. It’s mainly to help when projects are urgent or downtime really matters. |
| Comprehensive 12-Month Warranty | 12 months warranty as standard. Each unit is checked before shipment with basic QA to avoid obvious issues. Nothing overdone, just practical checks to keep things reliable when it arrives. |
| Obsolete & Legacy Parts Specialist | A big part of what we do is sourcing discontinued or obsolete automation parts. These are often no longer supported by OEMs, so we help customers keep older systems running without having to replace the whole setup. |
| 24/7 Expert Multilingual Support | Technical and sales support is available across time zones. Communication is usually fast, quotations are handled quickly, and multilingual support is provided since customers come from different regions. |
Frequently Asked Questions
Q1: What is the exact configuration of Bently Nevada 330101-10-27-05-02-05?
A1: This is a 3300 XL 8mm proximity probe from Bently Nevada, 3/8-24 UNF threaded body, no armor version. Typical build here is 1.0-inch unthreaded tip, 2.7-inch overall case length, and 0.5 m standard cable. ClickLoc coax connector is used. Approval set includes CSA, ATEX and IECEx depending on option code “05”.
Q2: What functions does the 330101-10-27-05-02-05 support?
A2: Mainly used for non-contact displacement measurement. In practice it covers radial vibration, shaft position, eccentricity and axial movement. It sits in continuous monitoring loops on rotating equipment rather than spot checks.
Q3: Does the 330101-10-27-05-02-05 meet API 670 requirements?
A3: Yes, it’s commonly used in API 670 systems. Output is 7.87 V/mm (200 mV/mil), linear range 2.0 mm (80 mils), typically referenced to steel targets like AISI 4140. Used in protection channels for turbines and compressors.
Q4: Where is the 330101-10-27-05-02-05 used most often?
A4: Power plants, refinery units, petrochemical sites. Mostly on steam turbines, gas turbines, centrifugal compressors. Anywhere turbo-machinery runs 24/7 and condition monitoring is required.
Q5: What about temperature and hazardous area rating for the 330101-10-27-05-02-05?
A5: Operating range is -51 to +177 °C. The “05” configuration covers CSA / ATEX / IECEx approvals. Suitable for hazardous locations, including oil & gas and chemical environments.
Q6: How does the 330101-10-27-05-02-05 connect into a system?
A6: Probe side comes with 0.5 m cable. Usually extended with 330130 cable and paired with 330180 Proximitor. Output then goes into 3500 rack modules like 3500/40M or 3500/42M. This forms a standard 3500 monitoring channel setup.
