Bently Nevada 330104-00-24-10-02-00 3300 XL 8 mm Proximity Probe
3300 XL 8mm Probe gas turbine monitoring
non-contact vibration measurement eddy current sensor
steam turbine vibration 3300 XL Proximitor® Sensor
Place of Origin:
USA
Brand Name:
Bently Nevada
Model Number:
330104-00-24-10-02-00
Contact Us
Request A Quote
Product Details
Model:
330104-00-24-10-02-00
Country Of Origin:
USA
Place Of Shipment:
Xiamen,China
Shipping:
TNT, DHL, FedEx, EMS, UPS
MOQ:
1 Piece
Packaging:
Original New Packaging
Estimated Shipping Size:
20.5x22.4x3.3cm
Weight:
0.22 Kg
Highlight:
3300 XL 8mm Probe gas turbine monitoring
,non-contact vibration measurement eddy current sensor
,steam turbine vibration 3300 XL Proximitor® Sensor
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

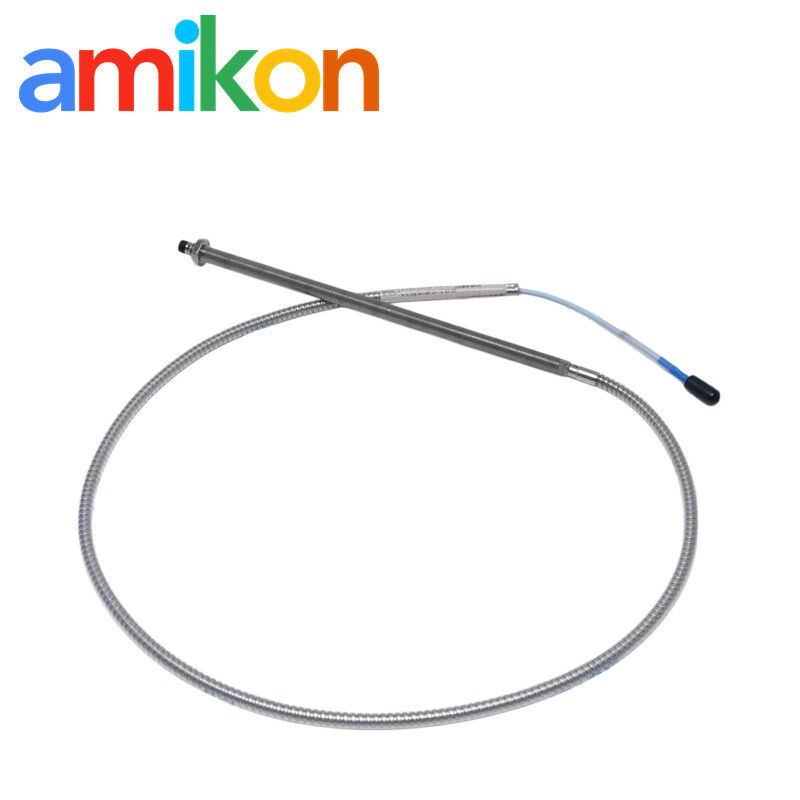

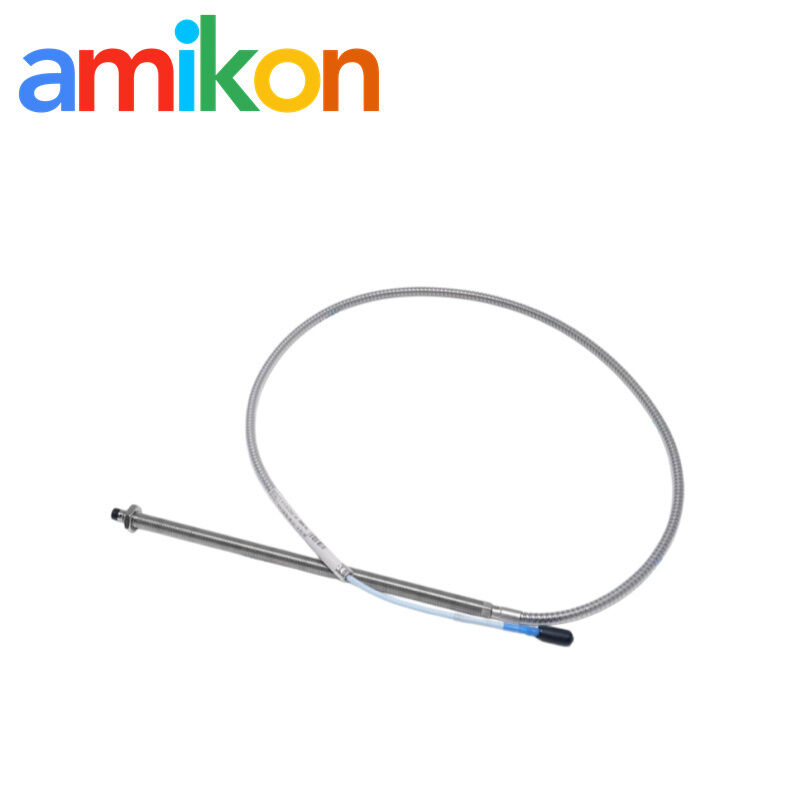

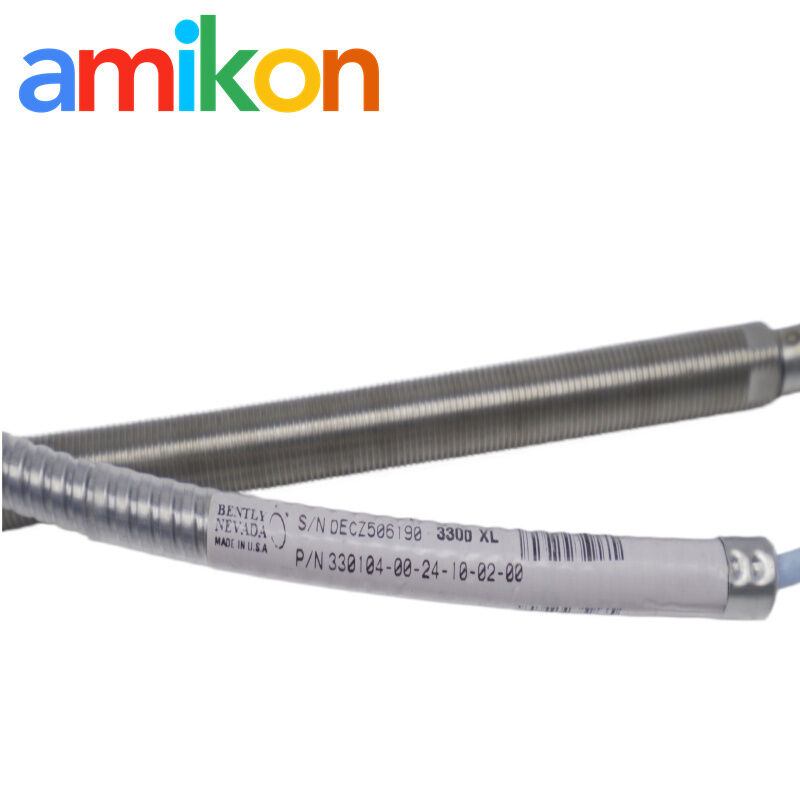

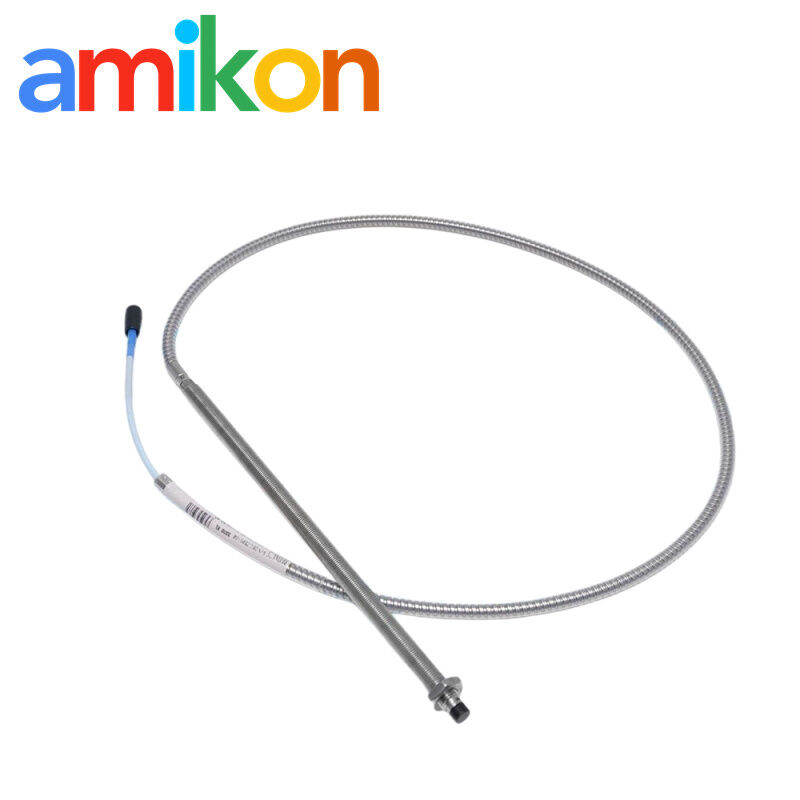

Bently Nevada 330104-00-24-10-02-00 3300 XL 8 mm Proximity Probe
| Parameter | Specification |
|---|---|
| Model Number | 3300 XL 8 mm Proximity Probe |
| Thread Type | M10 x 1 |
| Unthreaded Length (-00) | 0 mm |
| Overall Case Length (-24) | 240 mm |
| Total Length (-10) | 1.0 Metre (3.3 feet) |
| Connector & Cable (-02) | Miniature coaxial ClickLoc™ connector with armor |
| Agency Approval (-00) | Not required |
| Linear Range | 2.0 mm (80 mils) |
| Incremental Scale Factor | 7.87 V/mm (200 mV/mil) |
| Operating Temperature | -35°C to +177°C (-31°F to +350°F) |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 Stainless Steel |
| Recommended Gap | 1.27 mm (50 mils) |
Contact Information
Industrial Applications
- Radial Vibration & Thrust Position Monitoring
The primary use is for non-contact measurement of shaft radial vibration and axial thrust position in high-speed rotating machinery, providing critical data for API 670 compliant protection systems. - Deep-Reach Turbine Instrumentation
The 240mm extended case length is specifically designed for steam and gas turbines, where the probe must penetrate thick outer casings or thermal insulation to monitor the internal bearings and shaft. - Critical Compressor Protection
Ideal for centrifugal and axial compressors in oil and gas refineries. It tracks shaft eccentricity and displacement to prevent catastrophic rotor-to-stator contact during surge or high-load conditions. - Hydro-Turbine Shaft Alignment
Used in hydroelectric power plants to monitor shaft "runout" and alignment. The M10x1 metric thread allows for precise calibration in the large-scale mounting structures typical of hydro-turbines. - Predictive Maintenance & TDI Integration
Acts as the essential front-end sensor for the Bently Nevada 3500 system. It feeds high-fidelity signals to TDI modules for advanced vibration frequency analysis and early machinery fault detection. - Extreme Environment Protection
With its armored cable and PPS tip, it is applied in harsh industrial zones involving high temperatures (up to 177°C) and continuous exposure to corrosive lubricants or chemicals.
Product Features
- API 670 Compliant Precision
When people look for a reliable Bently Nevada 330104 solution for critical rotating equipment, this 3300 XL 8mm Probe is usually one of the preferred options, especially in API 670 compliant systems where stable signal output really matters. The probe works with a 200 mV/mil (7.87 V/mm) scale factor, so non-contact vibration measurement and shaft position sensing stay accurate even during continuous operation on turbines or compressors. - Extended 240mm Reach
One thing users often notice first is the extended 240 mm case length. In real projects, machine housings are not always easy to access, particularly on steam turbine monitoring or centrifugal compressor monitor applications. This longer probe design helps the sensor reach the shaft area without forcing complicated mounting modifications. - Fully Threaded M10x1 Design
The fully threaded M10x1 metric body also makes installation more practical. Since the probe comes with a 0 mm unthreaded length, technicians can adjust the mounting gap more freely in tight spaces or custom machinery protection brackets. Basically, it gives more flexibility during alignment and calibration work. - ClickLoc® Connector Technology
For field wiring, the ClickLoc connector design helps a lot. The gold-plated miniature coaxial connector locks firmly in place, which reduces the chance of loose connections caused by vibration. On industrial rotating machinery, that kind of detail can save maintenance time later on. - Armored Cable Protection
The armored cable version (-02) is commonly selected for heavy industrial areas where probes may be exposed to oil contamination, abrasion, or accidental cable pressure. The stainless armored jacket adds another layer of protection, so the proximity sensor can keep working steadily around harsh machinery environments. - High-Durability Construction
Material selection is also pretty solid here. The PPS probe tip together with the AISI 304 stainless steel housing allows the 330104-00-24-10-02-00 probe to operate in demanding temperature conditions, roughly from -35°C up to +177°C. It also handles industrial lubricants and chemical exposure better than standard sensor materials. - System-Wide Compatibility
In terms of system compatibility, the probe is designed for seamless use with the 3300 XL Proximitor Sensor, 330180 Proximitor, 330130 extension cable, and Bently Nevada 3500 rack module setups. Many users integrate it directly into the 3500 monitoring system spares environment, including TDI module integration and 3500/40 monitor configurations for radial vibration measurement, shaft eccentricity monitor functions, and broader machinery protection applications.
Frequently Asked Questions
- Q1: What is the 330104-00-24-10-02-00 mainly used for?
Most customers use this Bently Nevada 330104 probe on rotating machines where vibration and shaft movement need to be watched continuously. Things like steam turbines, compressors, pumps, sometimes hydro turbine monitoring too. Since it’s a non-contact vibration measurement device, the probe doesn’t physically touch the shaft during operation. - Q2: In the 330104-00-24-10-02-00, what does “-24” stand for?
That part is related to the probe length. The “-24” version comes with around 240 mm overall case length, so it’s more suitable for deeper installations. Some machines have thicker casings, and shorter probes just don’t reach properly. - Q3:Is the 330104-00-24-10-02-00 used in API 670 systems?
Yes, quite often actually. The 3300 XL 8mm Probe is commonly installed in API 670 compliant machinery protection systems together with a Proximitor monitor or 3500 monitoring rack. Output is the standard 200 mV/mil, which makes system matching easier. - Q4: How about the 330104-00-24-10-02-00 protection in harsh areas?
The cable is armored, stainless steel type. That helps when the installation area has oil, vibration, dirt, or possible mechanical rubbing. In power plant instrumentation environments, that extra protection usually matters more than people expect. The ClickLoc connector also stays tighter compared with ordinary connectors. - Q5: Can the 330104-00-24-10-02-00 be connected to a 3500 system?
Yes. Normally people combine it with the 330180 Proximitor, 330130 extension cable, and Bently Nevada 3500 rack module. It’s pretty common in radial vibration measurement setups, shaft eccentricity monitor applications, and other industrial rotating machinery protection systems.
Compatible Parts & Accessories
330102-22-58-10-02-00
330180-X1-05 MOD:145004-02
330910-03-09-05-02-05
133323-01
330709-000-070-10-02-00
330905-00-08-10-02-00
3500/61 163179-02
990-04-50-01-00
1900/65A 172323-01/1900/65A 167699-02
330101-XX-XX-10-02-05 MOD:147773-00-12
3500/15 106M1079-01
330104-00-04-10-02-00
3500/65 145988-02
330104-00-06-10-02-00
3500/92 136180-01
330851-04-000-023-10-01-05
3500/94 145988-01
330910-05-10-02-00
330104-00-10-10-02-05
330101-00-16-10-02-00
330910-00-05-10-02-00
3300/12
3500/44M 176449-03
330850-50-05
TK3-2E 14700-02A
330730-080-00-00
3500/42M 140734-02
330930-040-01-00
3500/92
990-08-XX-01-00
330103-00-05-10-02-00
330130-040-03-00
330703-000-060-10-02-00
3300/16-02-01-00-00-00-01
330103-00-09-10-02-00
330851-06-000-070-50-00-05
135813-01
330101-00-08-10-02-00
990-05-XX-01-00
RS900106-05-30-05-02-00
