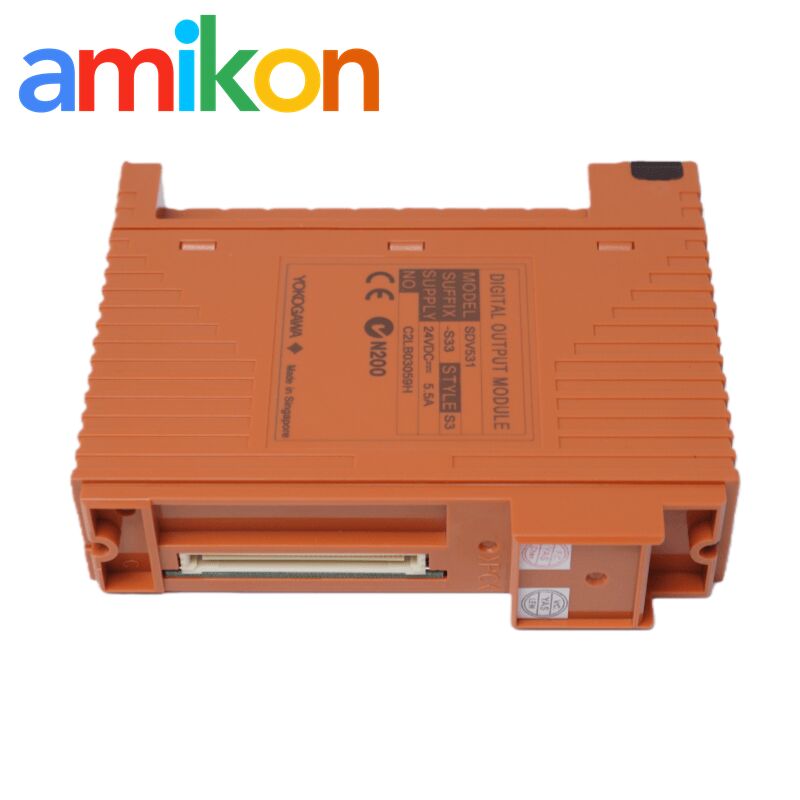

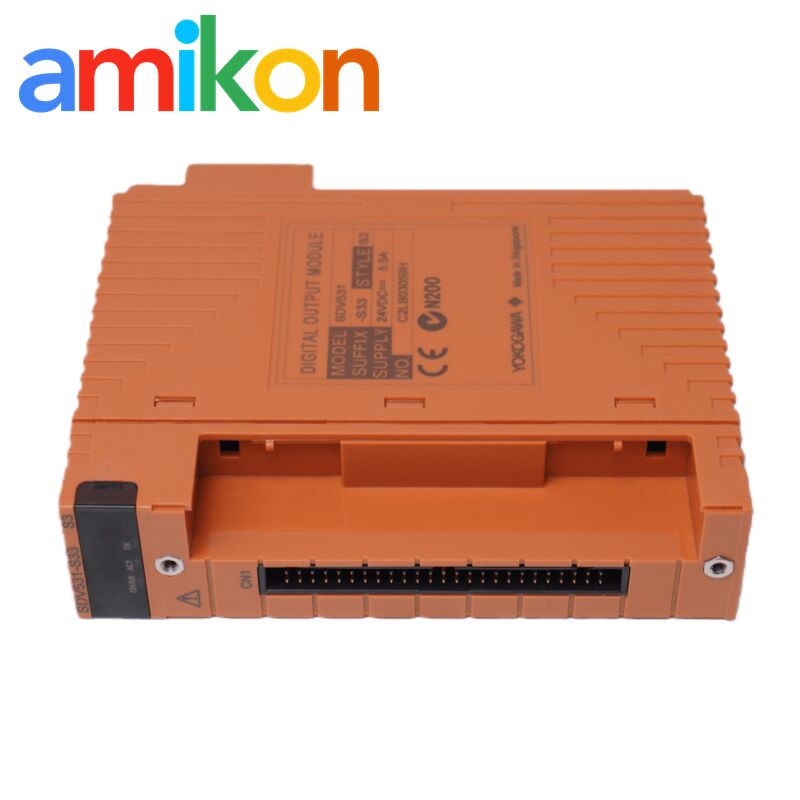

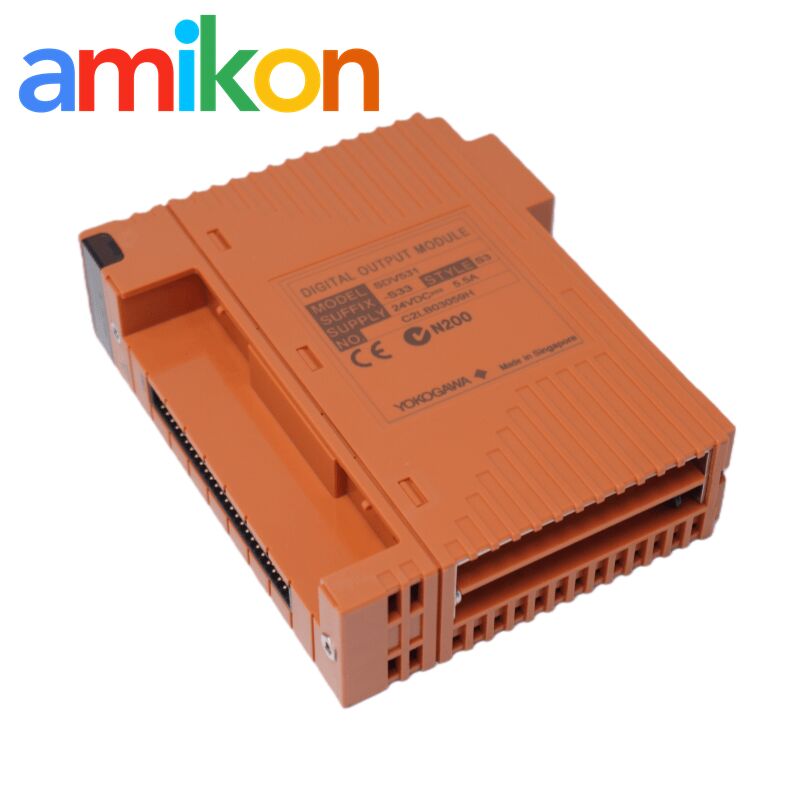

Yokogawa SDV531-S33 S3 Digital Output Module with 8-channel Isolation
Yokogawa SDV531-S33 S3 Digital Output Module with 8-channel Isolation
8-channel Digital Output Module
24 V DC Yokogawa Module
0.6 A per channel SDV531-S33 S3 Module
Place of Origin:
JAPAN
Brand Name:
Yokogawa
Model Number:
SDV531-S33 S3
Contact Us
Request A Quote
Product Details
Number Of Outputs:
8-channel, Module Isolation
Output Voltage:
24 V DC
Output Voltage Drop:
1 V Maximum
External Power Supply Rating:
24 V DC, 5 A Minimum
Maximum Load Current:
0.6 A/output Line
Minimum Load Current:
35 MA
Load Resistance Range:
40 To 685 Ω
Estimated Shipping Size:
3.2x10.6x13cm
Highlight:
8-channel Digital Output Module
,24 V DC Yokogawa Module
,0.6 A per channel SDV531-S33 S3 Module
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
Yokogawa ADV169-P00 S1 Digital I/O Module with 64-channel input, 8 ms response time
Get Best Price
CONTACT US
Contact Now
Product Description
| Feature | Specification | Notes |
|---|---|---|
| Output Channels | 8 | Fully isolated per 3 channels |
| Output Voltage | 24 V DC | Standard industrial logic |
| Voltage Drop | ≤ 1 V | Minimal loss across module |
| External Power Supply | 24 V DC ±20%, ≥5 A | Ensures stable operation for all channels |
| Output Format | Current Source | Sourcing type output |
| Maximum Load Current | 0.6 A per channel (4.8 A total) | Supports high-current actuators |
| Minimum Load Current | 35 mA | Ensures reliable detection |
| Load Resistance Range | 40-685 Ω | Wide compatibility with devices |
| Maximum Leakage Current | 1.6 mA (when OFF) | Prevents false triggering |
| Output Response Time | ≤ 30 ms | Suitable for real-time control |
Direct Solenoid Drive
Challenge: Eliminating cabinet clutter caused by interposing relays.
Solution: The module enables high-density actuation with a 0.6 A per channel sourcing capacity (Max Aggregate: 4.8 A). This power budget allows for direct driving of field solenoids while maintaining a low voltage drop (<1 V), effectively maximizing permissible cable lengths within the 40-685 Ω load resistance window.
Loop Integrity & Noise Immunity
Challenge: Preventing spurious "On" states (ghosting) in high-impedance environments.
Solution: Engineered thresholding. The Off-state leakage is strictly clamped at 1.6 mA, while requiring a 35 mA minimum load current to latch. This ensures distinct binary state resolution and prevents false positives caused by line capacitance or EMI.
Critical Timing Compliance
Challenge: Meeting tight safety loop time budgets.
Solution: Hard-real-time execution. The module guarantees an output response of ≤ 30 ms. Coupled with full module-level isolation, it ensures that field-side faults do not propagate to the bus, maintaining the deterministic speed required for Emergency Shutdown (ESD) sequences.
The Edge
We don't just participate in the spare parts market; we lead it. Our advantage comes down to one thing: availability.
Old & New Under One Roof
Our warehouse is stacked with a massive surplus of control system hardware. But we aren't stuck in the past. We also roll out brand-new hardware to help you upgrade to the latest tech or keep your current setup breathing.
The Mission
We hate downtime as much as you do. Amikon's goal is simple: take on your toughest challenges and solve them immediately. We get the part to you so you can get back to work.
- Step 1: Allocation - In Stock Now → Brand New in Box → 100% T/T to secure
- Step 2: Preparation - Consolidated Packing → Shock-proof Foam → Ready at Xiamen Port
- Step 3: Dispatch - Via FedEx/DHL/UPS/TNT → Immediate Tracking, Weight & Dims sent to you
- Step 4: Guarantee - Delivery → 12-Month Warranty starts
